E996L, E7500
Electrified trim, electric mortise lock
Overview
E996L- Electrified breakaway lever trim
E996L Electrified Breakaway lever trim provides remote locking and unlocking capabilities while incorporating the patented Breakaway trim design.
The 24VDC solenoid can be energized from a distant controller, thus allowing access control of the opening. The control of stairwells in high-rise buildings is a common application for this trim. When electrically unlocked the unit operates as a normal lever trim. When electrically locked, the lever feels locked, but when more than 35 pounds of torque pressure is applied, the Breakaway lever feature engages.
The E996L is available in standard either in a fail safe (FS) or fail secure (FSE) condition, but can also be field converted where allowed. The trim can be ordered with a device, added to an existing 98/99 series device application, or a conversion kit can be added to an existing 996L Breakaway lever trim. On new construction applications, the E996L trim will require less door prep.
The E996L is available with a blank escutcheon (BE) function, or with cylinder operation for night latch (NL) function.
The E996L electrified trim replaces the current "E" electric feature on 98/99 series rim devices. Consult factory for requirements.

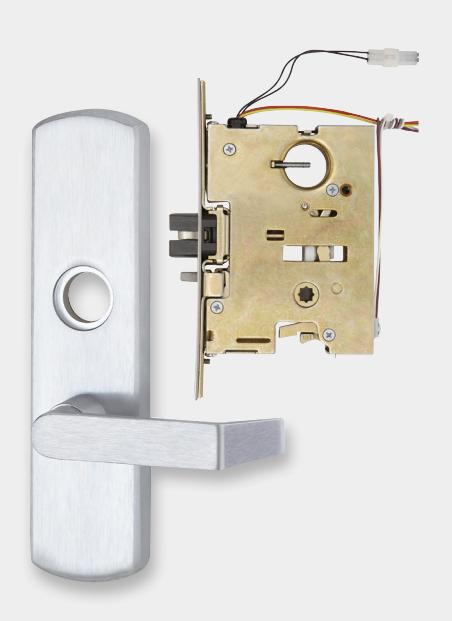

E7500- Electric mortise lock
The electric mortise lock device has all the versatility and advantages of the standard mortise lock device, plus the advantage of being electrically controlled by a remote switching device, an access control system or an automatic fire alarm system. The device features the 7500 mortise lock. The E7500 controls the locking of the outside trim. When unlocked, the door remains latched, preserving the fire rating of the door and making it particularly useful where codes permit locking but require unlocking during a fire emergency. The outside trim cylinder retracts the latch bolt for mechanical override of night latch function. Only available with TP, K or L functions.
The E7500 lock contains a SPDT signal to monitor the outside trim condition (locked or unlocked) and a second SPDT signal switch to monitor the latch bolt.
Features and benefits
E996L
- § Fail safe or fail secure, can also be converted in the field
- § Conversion kits available to add to existing 996L trim
- § Available with blank escutcheon function or cylinder operation for night latch function
E7500
- § Field reversible handing
- § 24 VDC continuous-duty solenoid
- § Fail safe or fail secure optional1
1 Some fire codes will require fail safe (FS) operation for stairwell doors. Be sure to specify the correct operation for your application.
E996L specifications
| Solenoid | 24VDC |
|---|---|
| Solenoid draw | 0.22 AMPS |
To order, specify
Note: To order, please reference Von Duprin catalog and price book
- § Use "E" prefix, example E996L
- § When ordering with device specify trim series with "E" prefix, example 9927L-BE 3' US26D E996L.
- § Device type, R/V (rim/surface or concealed vertical rod) or M (mortise)
- § Fail Safe (FS) or Fail Secure (FSE)
- § RHR is furnished standard if not specified. Field reversible.
- § Lever style (06 lever is furnished standard)
- § Finish: US3, US4, US10, US10B, SP313, US26, US26D, SPBLK, US15
E7500 specifications
| Solenoid | .60 Amps @ 12VDC |
| .30 Amps @ 24VDC | |
| Each switch | Up to 2.0 Amps @ 24CDC |
| Maximum |
The E option does not include the power transfer from door to frame, the power supply or the control operator. (Refer to EPT-10 and PS902 or PS914 power supply)
To order, specify
Note: To order, please reference Von Duprin catalog and price book
- § Use prefix "E," example E9975
- § FS or FSE
- § Voltage and current

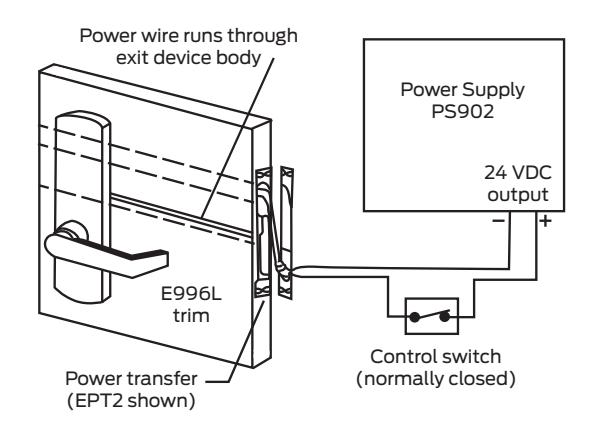

E996L Electrical wiring
- § Power input for E996L is 24 VDC
- § Two wires on the trim are non-polarized (18 AWG minimum)
Standard features:
- § Field reversible handing
- § 24 VDC continuous duty solenoid
Optional features:
- § Fail safe (locked when energized, unlocked when deenergized or during power failure). Specify with suffix "FS."
- § Fail secure (unlocked when energized, locked when de-energized or during power failure). Specify with suffix "FSE."
- § 24 VAC (with SO option)
- § 12 VDC
- § 12 VAC (with SO option)
Note: Some fire codes will require "Fail Safe" (FS) operation for stairwell doors. Be sure to specify the correct operation for your application.
