Von Duprin E98 and E99 Rim Electric Locking Device for Type “161” Stock Hollow Metal Applications Template

Original Source Document Full PDF Version

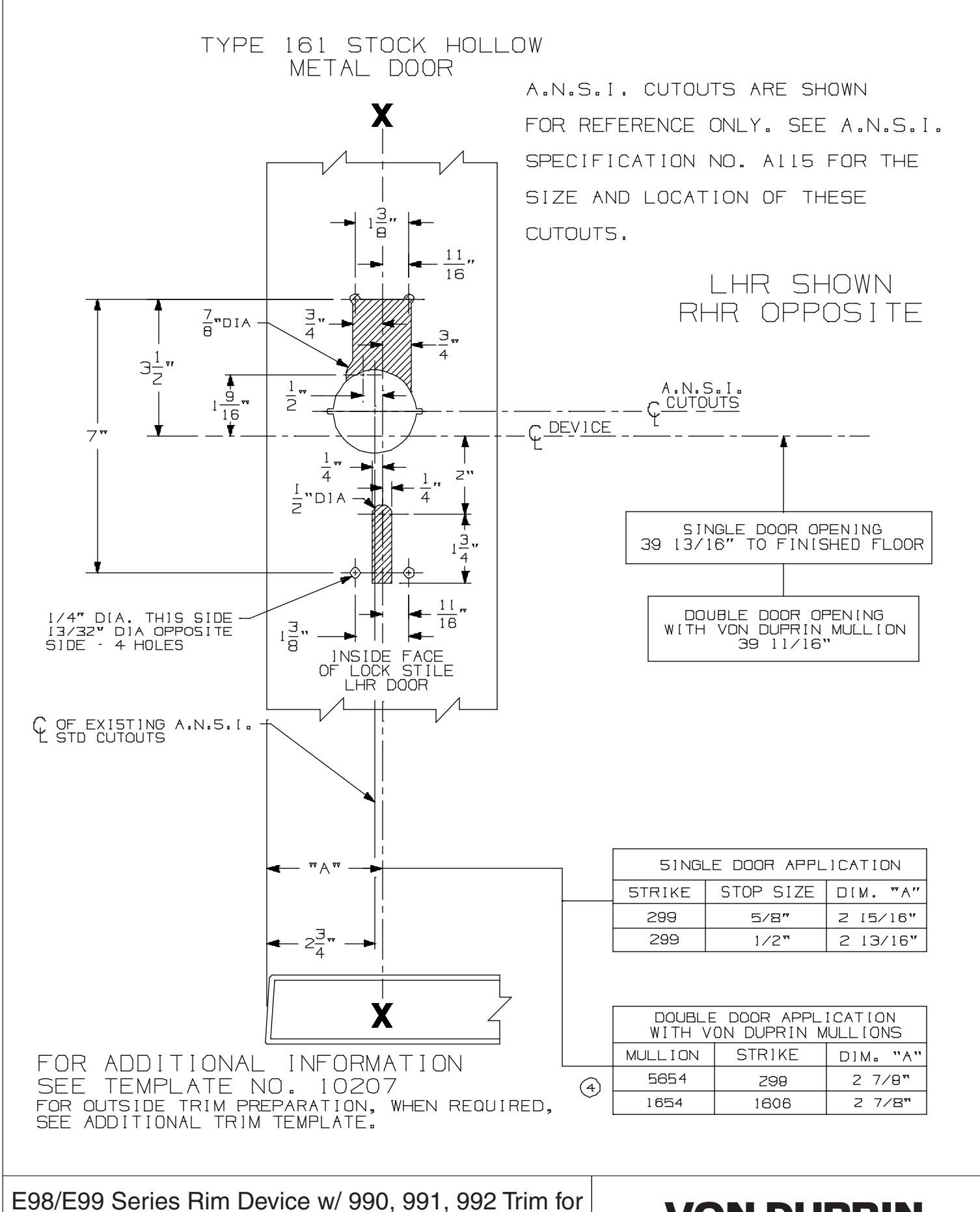

Von Duprin E98 and E99 Rim Electric Locking Device for Type “161” Stock Hollow Metal Applications Template diagram on page 1

Type "161" Stock Hollow Metal Applications

VON DUPRIN ®

TEMPLATE NUMBER:

10308 a

DATE: 05-21-13
