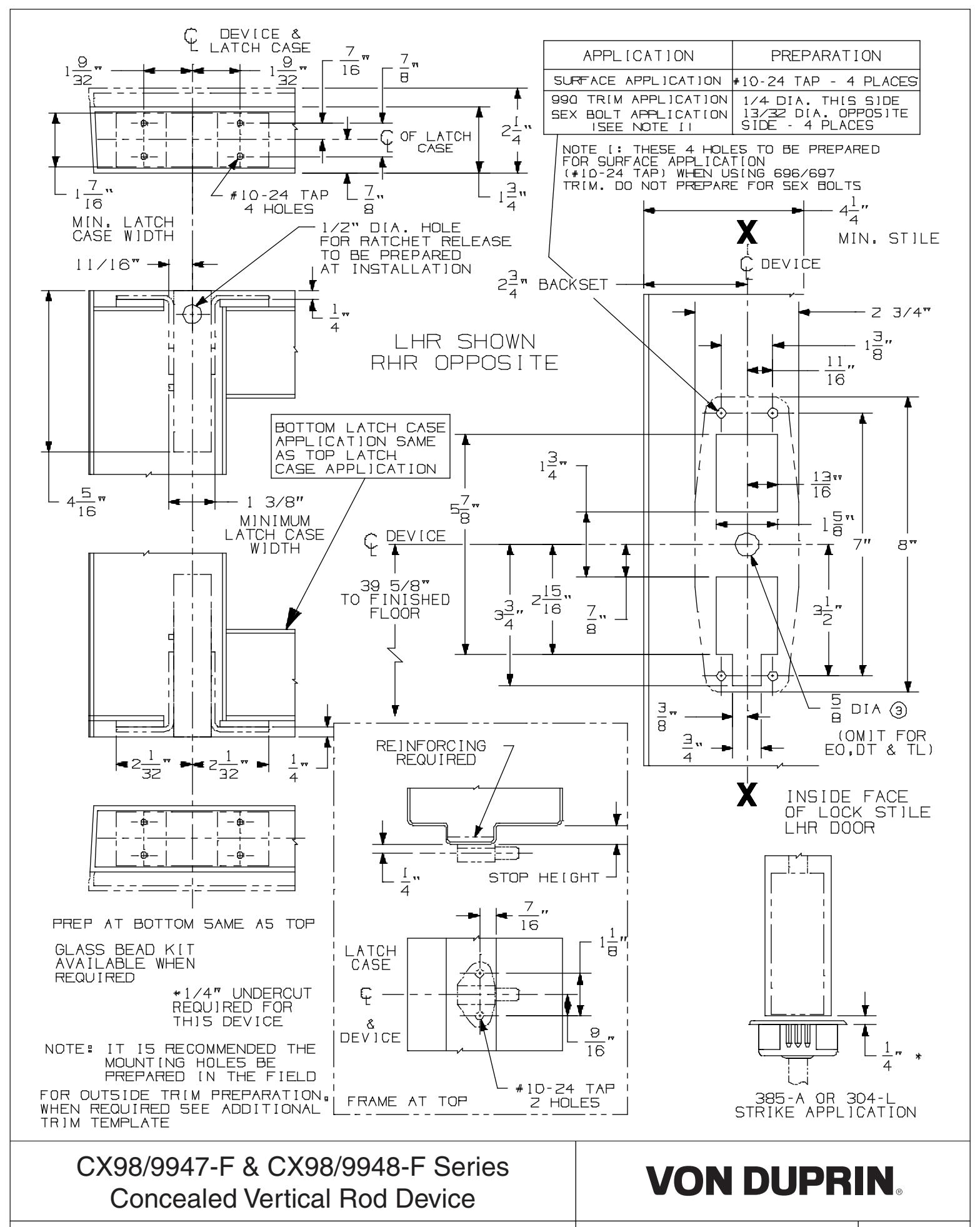

Von Duprin CX9847-F, CX9947-F, CX9848-F, CX9948-F Concealed Vertical Rod Exit Device For Hollow Metal Applications Template

Original Source Document Full PDF Version

Von Duprin CX9847-F, CX9947-F, CX9848-F, CX9948-F Concealed Vertical Rod Exit Device For Hollow Metal Applications Template d

NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING

TEMPLATE NUMBER:

10359_a

DATE: 05-22-13
