Von Duprin CX9847, CX9947 Concealed Vertical Rod Exit Device For Hollow Metal Applications Template

Original Source Document Full PDF Version

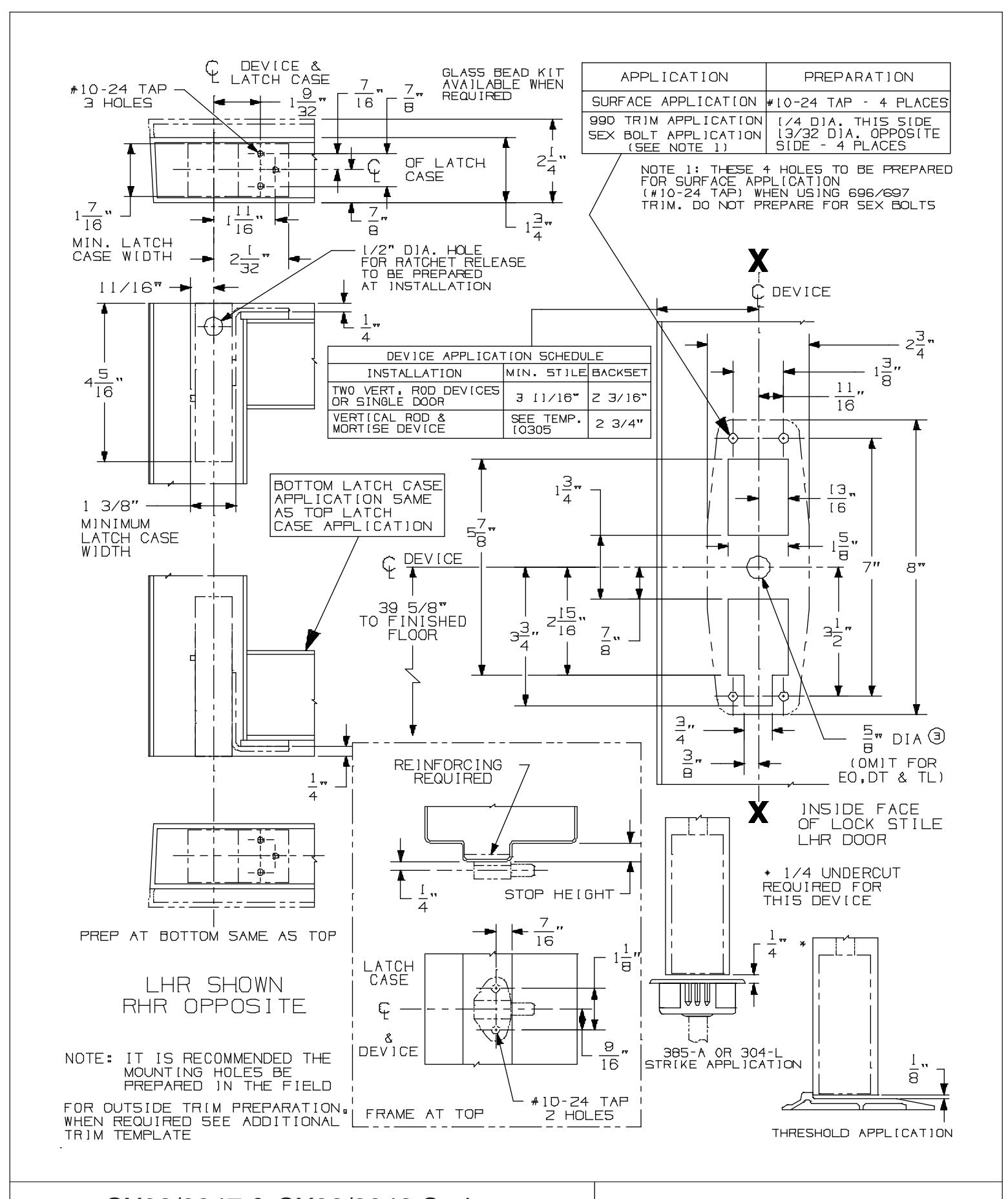

Von Duprin CX9847, CX9947 Concealed Vertical Rod Exit Device For Hollow Metal Applications Template diagram on page 1

CX98/9947 & CX98/9948 Series Concealed Vertical Rod Device

TEMPLATE NUMBER:

10360_a

DATE: 05-22-13
