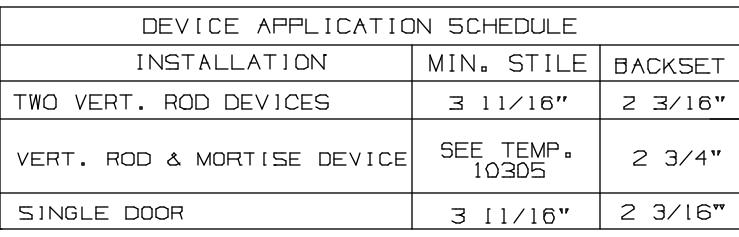

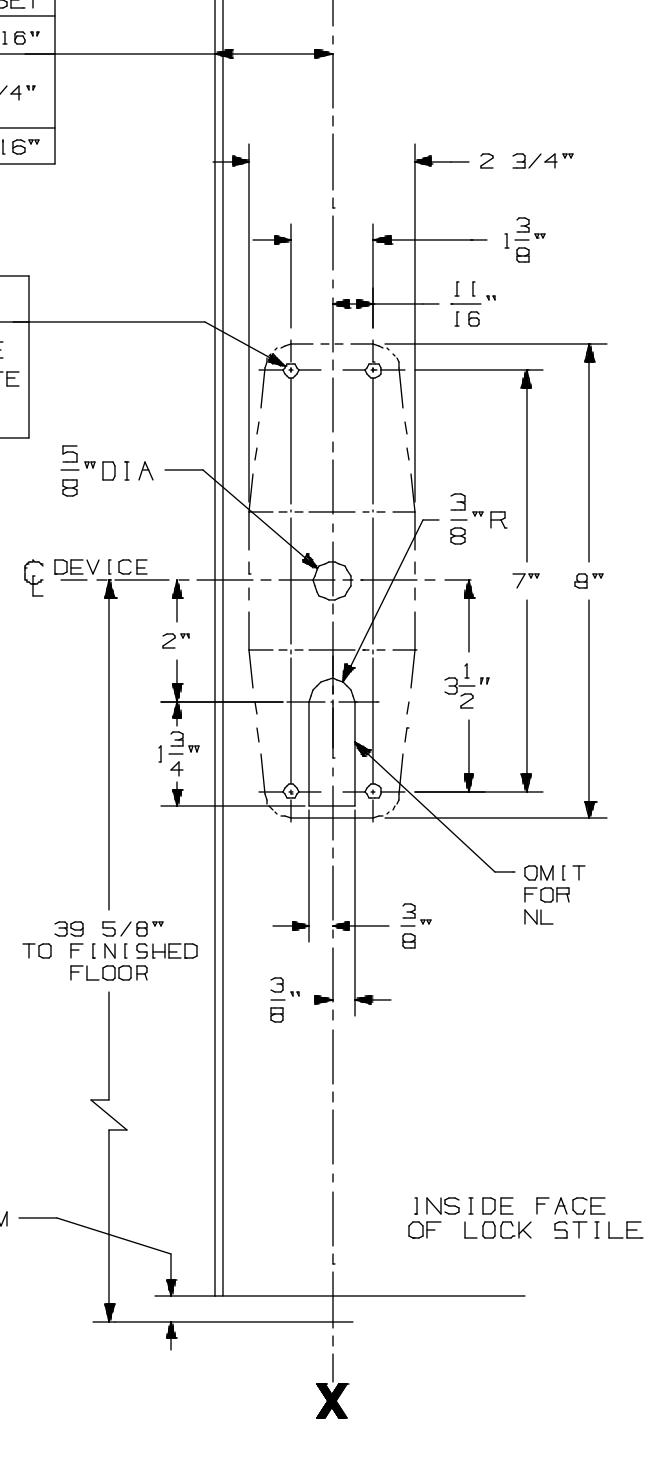

APPL1CATION	PREPARAT [ ON
990 TRIM APPLICATION	1/4" DIA. THIS SIDE
SEX BOLT APPLICATION	13/32" DIA. OPPOSITE
(SEE NOTE !!	5IDE - 4 PLACE5

NOTES:

• 1. THESE FOUR HOLES TO BE PREPARED FOR SURFACE APPLICATION (#10-24 TAP) WHEN USING 696/697 TRIM. DO NOT PREPARE FOR SEX BOLTS.
• 2. FOR STOCK HOLLOW METAL DOORS SEE TEMPLATE NO. [03]].
• 3. LATCH CASE PREPARATION TO BE MADE AT INSTALLATION ON DOOR.
• 4. IT IS RECOMMENDED THE MOUNTING HOLES BE PREPARED IN THE FIELD.
• 5. FOR OUTSIDE TRIM PREPARATION, WHEN REQUIRED, SEE TRIM TEMPLATE.
• 6. LHR APPLICATION SHOWN, RHR APPLICATION OPPOSITE.
• 7. BACKSET MAY VARY WHEN USED WITH COORDINATOR.
• 8. GLASS BEAD KIT AVAILABLE WHEN REQUIRED.

RECOMMENDED DOOR UNDERCUT IS 1/4" FROM F1NISHED FLOOR (PANIC & FIRE) OR 1/8" FROM THRESHOLD (PANIC ONLY).

CX9827/CX9927 NL, TP, K, & L Series Vertical Rod Devices

VON DUPRIN ®

TEMPLATE NUMBER:

10357 a

DATE: 05-22-13
