Von Duprin CX98 and CX99 K, L, TP Rim Exit Device For Hollow Metal Applications Template

Original Source Document Full PDF Version

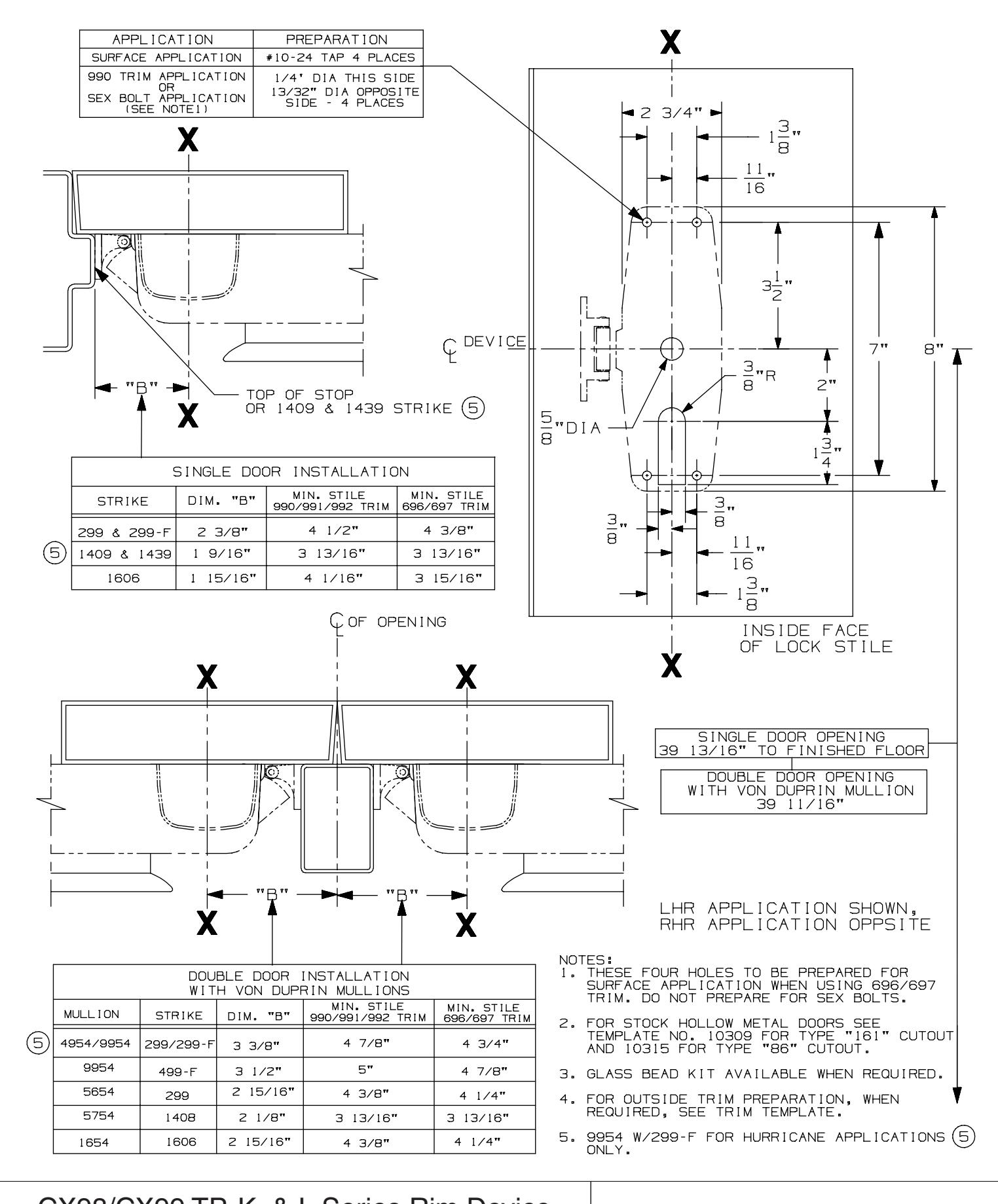

Von Duprin CX98 and CX99 K, L, TP Rim Exit Device For Hollow Metal Applications Template diagram on page 1

CX98/CX99 TP, K, & L Series Rim Device

VON DUPRIN ®

TEMPLATE NUMBER:

10355 a

DATE: 05-22-13
