The Von Duprin AX: The exit device which requires only 5 lbs. of force to operate
For decades, architects have turned to Von Duprin for innovative solutions with proven performance. We delivered that once again with the AX, our newest exit device offering. This option provides a complete accessibility solution—without compromising any of the other elements that have made Von Duprin the industry's most trusted exit device manufacturer.
New maximum force code
The AX was born out of a need to provide the market with a solution that meets the 2010 ADA Standards for Accessible Design (Chapters 404.2.7 and 309.4) that state the force reqiured to activate operable parts shall be 5 lbs. maximum. The 2013 California Building Code (Chapter 11B-309.4) adopted virtually identical requirements that went into effect January 1st, 2013.
What this means to you
- New construction projects in the United States require exits to meet 5 lb. maximum operating force.
- An ideal fit for openings that demand maximum accessibility.
UL certification on new California Building Code requirements
The AX is subject to Von Duprin's standard testing to ensure it meets our own rigorous standards for durability, use and functionality. We also received a new UL certification confirming for you—and building inspectors—that an independent third party has verified that the AX is compliant with the 5 lb. maximum operational force requirement. The AX is the first UL-certified exit device to meet the new requirements put in place by ADA Standards and the California Building Code for accessible openings.
What this means to you
You can be assured that you're specifying a product that's been thoroughly tested to meet the ADA Standard as well as California Building Code's new code requirements. This will help minimize the risk of project delays, liability and lost time and money in having to re-specify an opening.
Accessibility without compromise

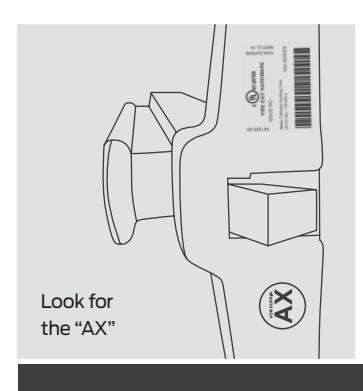

On the surface, the AX looks and performs the same as our traditional exit devices. But, through smart engineering and redesign, we've enabled the AX to meet 5 lb. operational force requirements. The chassis now requires less push force to actuate the latch, allowing for accessibility without compromise...the Von Duprin promise.

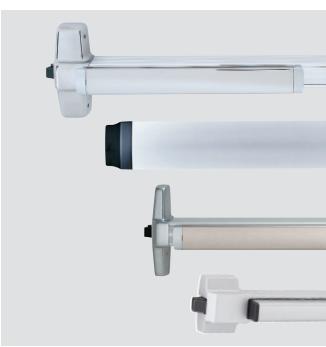

Von Duprin AX offering
| Series | Device Type | Functions |
|---|---|---|
|
98/99
Fire & panic |
AX98/99
AXXP98/99 |
Exit only/Dummy trim
Night latch/Lever Night latch-optional pull Lever-blank escutcheon Lever-rigid-dummy trim Lever-rigid-night latch |
|
AX98/9927 LBR
AX98/9949 LBL AX98/9950WDC LBL |
||
|
94/95
Fire & panic |
AX94/9547 |
Exit only/Dummy trim
Night latch/Lever Lever-blank escutcheon Lever-rigid-dummy trim Lever-rigid-night latch |
|
33A/35A
Fire & panic |
AX33/35A |
Exit only/Dummy trim
Night latch/Lever Night latch-optional pull Lever-blank escutcheon Lever-rigid-dummy trim |
| AX33/3549A LBL | ||
|
22
Fire & panic |
AX22
AX2227 LBR |
Exit only/Dummy trim/Night latch Night
latch-optional pull Lever/lever-blank escutcheon |
