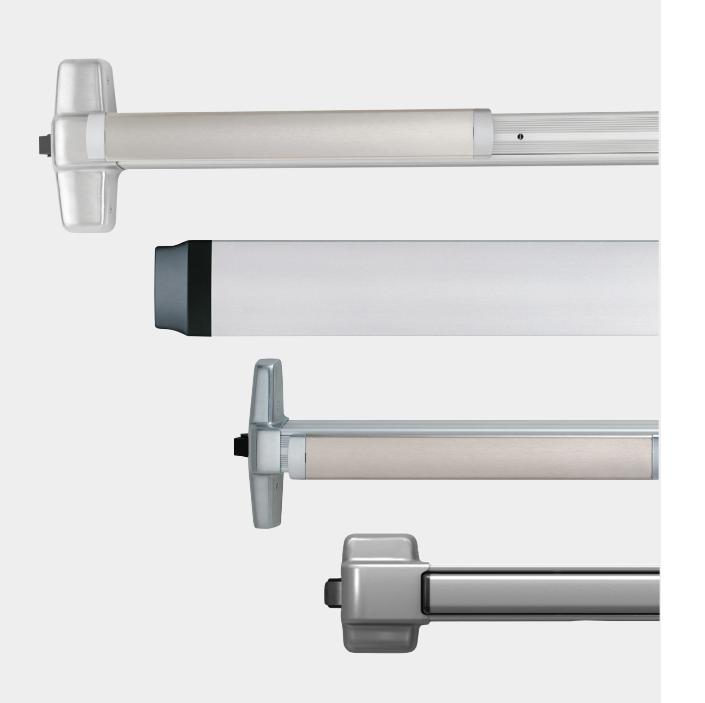

AX exit devices
Featuring the 98/99, 94/95, 33/35A and 22 Series devices
The exit device that requires only 5 pounds of force to operate
The AX was born out of a need to provide the market with a solution that meets the 2010 ADA Standards for Accessible Design (Chapters 404.2.7 and 309.4) that state the force reqiured to activate operable parts shall be 5 pounds maximum. The 2013 California Building Code (Chapter 11B-309.4) adopted virtually identical requirements that went into effect January 1st, 2014, and has been carried forward into subsequent editions of the CBC.
Since pioneering the first exit device in 1908, Von Duprin life safety products have provided unparalleled quality, performance and flexibility for schools, hospitals, stadiums and public buildings. These products come with the support and customer care only offered by Von Duprin, providing the confidence and peace of mind at critical moments of life safety.
AX device code compliance
- ANSI/BHMA A156.3
- 2010 ADA Standards for Accessible Design (Chapters 404.2.7 and 309.4)
- California Building Code (Chapter 11B-309.4)]
- UL305 Panic Exit
- UL305, UL10C Fire Exit Hardware
How to identify the Von Duprin AX device
- Look for the "AX" Prefix in the hardware schedule and/or specification.

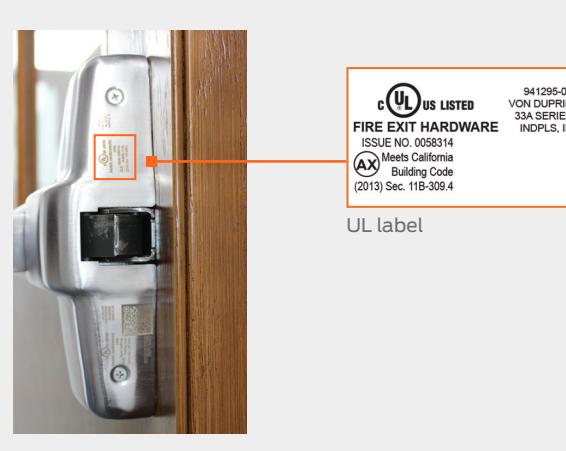

- 2 In the field, look for the compliance note on the UL label and the AX device label. Both labels can be found on the center case cover of the exit device as shown below.
Contact Allegion today at 877-671-7011 or us.allegion.com to learn how the AX device can help you provide accessibility without compromise.
| AX98/99 Series specifications | |
|---|---|
| Device types |
AX98/99 - Rim
AXXP98/99 - Rim AX98/9927 - LBR AX98/9950 WDC - LBL AX98/9949 - LBL and LBL-AFL - Concealed Vertical Cable Less Bottom Latch |
| Device functions | EO, DT, NL, NLOP, L, LBE, LDT, LNL |
| Device lengths | 3' / 4' |
| Rating | Panic and Fire |
| Electric options |
QELX - Quiet Electric Latch Retraction for AX
LX - Latchbolt monitor switch LXLC - Latchbolt monitor switch low current LXRX - Latchbolt pushpad monitor LXRXLC - Latchbolt pushpad monitor low current RX - Pushpad monitor switch RXLC - Pushpad monitor switch low current RX2 - Double pushpad monitor switch ALK - Alarm kit SS - Signal switch |
| Mechanical options |
GBK - Glass bead kit
-2 - Double cylinder -2SI - Double cylinder with Security Indicator QM - Quiet Mechanical SNB - Sex bolts SEC - Security screws WP - Weep holes |
| Dogging options* |
Hex key dogging = Standard
CD - Cylinder dogging CDSI - Cylinder dogging with Security Indicator DI - Dogging indicator HDSI - Hex dogging with security indicator LD - Less dogging SD - Special dogging |
| AX94/95 Series specifications | |
| Device types | AX94/9547 |
| Device functions | EO, DT, L, LDT, LBE, LNL |
| Device lengths | 3' / 4' |
| Rating | Panic and Fire |
| Electric options | LX - Latchbolt monitor switch |
| *For panic devices only |
|---|
| AX33/35A Series specifications | ||||
|---|---|---|---|---|
| Device types |
AX33/35A - Rim
AX33/3549 - LBL & LBL-AFL - Concealed Vertical Cable Less Bottom Latch |
|||
| Device functions | EO, DT, NL, NLOP, L, LBE, LDT | |||
| Device lengths | 3' / 4' | |||
| Rating | Panic and Fire | |||
| Electric options |
QELX - Quiet Electric Latch Retraction for AX
LX - Latchbolt monitor switch LXLC - Latchbolt monitor switch low current LXRX - Latchbolt pushpad monitor LXRXLC - Latchbolt pushpad monitor low current RX - Pushpad monitor switch RXLC - Pushpad monitor switch low current RX2 - Double pushpad monitor switch ALK - Alarm kit SS - Signal switch |
|||
| Mechanical options |
GBK - Glass bead kit
QM - Quiet Mechanical SEC - Security screws WP - Weep holes |
|||
| Dogging options* |
Hex key dogging = Standard
CD - Cylinder dogging CDSI - Cylinder dogging with Security Indicator HDSI - Hex dogging with security indicator LD - Less dogging |
|||
| AX22 Series specifications | ||||
| Device types |
AX22 - Rim
AX2227 - LBR |
|||
| Device functions | EO, DT, NL, NLOP, L, LBE | |||
| Device lengths | 3' / 4' | |||
| Rating | Panic and Fire | |||
| Electric options |
LX - Latchbolt monitor switch
RX - Pushpad monitor switch RX2 - Double pushpad monitor switch ALK - Alarm kit |
|||
| Mechanical options | GBK - Glass bead kit | |||
| Dogging options* | Hex key dogging = Standard | |||
LD - Less dogging
Ordering information
| AX |
-
98 |
- |
-
L - |
F
- |
-2 | -US26D - | 3' | -RHR -996L-06-SNB | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Prefix | Series | Device type | Function | Rating | Suffix | Finish |
Width
Door |
Handing |
m
Tri |
Lever Style | Accessories |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
Selections correspond with the numbers above. See price book for specific configuration options.
| 1 | Prefix |
|---|---|
| AX* | Accessible Device |
| QELX | Quiet Electric Latch Retraction for AX |
| QM | Quiet Mechanical |
| CDSI | Cylinder dogging with Security Indicator |
| HDSI | Hex dogging with Security Indicator |
| LX | Latchbolt Monitor Switch |
| LXLC | Latchbolt Monitor Switch |
| Low Current | |
| LXRX | Latchbolt Pushpad Monitor |
| LXRXLC | Latchbolt Pushpad Monitor |
| Low Current | |
| RX | Pushpad Monitor Switch |
| RXLC | Pushpad Monitor Switch |
| Low Current | |
| RX2 | Double Pushpad Monitor Switch |
| SS | Signal Switch |
| *Must be specified; may select more than one prefix. | |
| 2 | Series |
| XP98 | Series XP98 - smooth |
| 98 | Series 98 - smooth |
| XP99 | Series XP99 - grooved |
| 99 | Series 99 - grooved |
| 94 | Series 94 - smooth |
| 95 | Series 95 - grooved |
| 33A | Series 33A - grooved |
35A Series 35A - smooth
22 Series 22
| 3 | Device type |
| N/A | Rim |
| 27 | Surface Vertical Rod |
| 47 | Concealed Vertical Rod |
| 49 | Concealed Vertical Cable |
| 4 | Function |
| EO | Exit Only |
| DT | Dummy Trim |
| NL | Night Latch |
| NLOP | Night Latch - Optional Pull |
| L | Lever |
| LBE | Lever - Blank Escutcheon |
| LDT | Lever, Rigid - Dummy Trim |
| LNL | Lever, Rigid - Night Latch |
| 5 | Rating |
| N/A | Panic |
| F | Fire-rated |
| 6 | Suffix |
| -2 | Double Cylinder |
| -2SI | Double Cylinder with Security Indicator |
| LBL | Less Bottom Latch |
| LBR | Less Bottom Rod |
| LBL-AFL Less Bottom Latch with Fire Pin | |
| WH | Weep Holes |
| 7 | Finish |
| See pricebook for finish offering | |
| 8 | Door Width |
|
3'
4' |
Standard Default |
| 9 | Handing |
| RHR | Right Hand Reverse |
| LHR | Left Hand Reverse |
| 10 | Trim |
| See pricebook for trim/control offering | |
| 11 | Lever style |
| See pricebook for lever style offering | |
| 12 | Accessories |
| ALK | Alarm Kit |
| GBK | Glass Bead Kit |
| SNB | Sex Bolts |
Contact Allegion today at 877-671-7011 or us.allegion.com to learn how the AX device can help you provide accessibility without compromise.
