VDREEKIT-ET

INSERT INSTRUCTIONS

FIELD INSTALLABLE VON DUPRIN 966L SERIES

KIT INCLUDES TOOLS REQUIRED

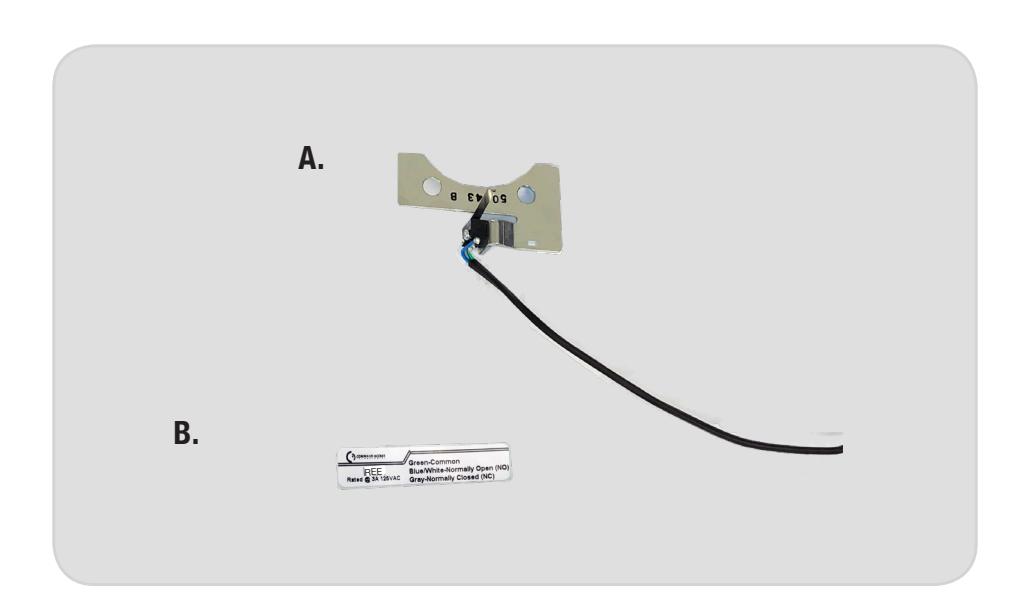

A. 50843 REE Bracket

B. REE Color code sticker

Cordless Drill or Phillips Screwdriver #8 Nut Driver

SPECIFICATIONS

• Single Pole - Double Throw (SPDT)

• Rating: .5A @24VAC

• Configuration: Green - Common (C)

Blue - Normally Open (NO) Gray - Normally Closed (NC)

INSTALLATION INSTRUCTIONS

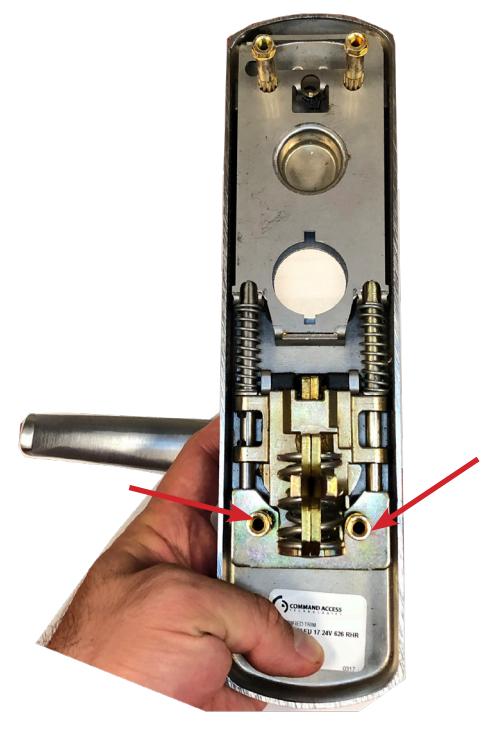

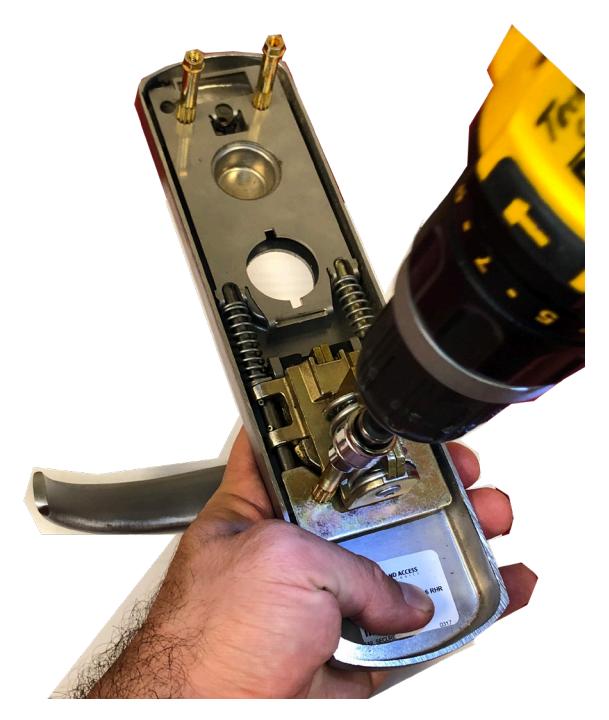

REMOVE THE (2) BOTTOM MOUNTING POSTS USING A #8 NUT DRIVER. 1.

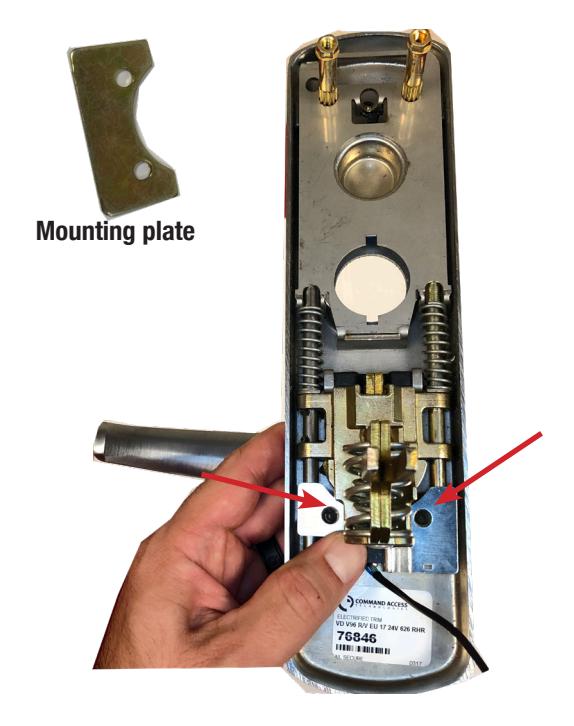

REMOVE MOUNTING PLATE & DISCARD. LINE UP REE 3. BRACKETING WITH MOUNTING POST HOLES. 2.

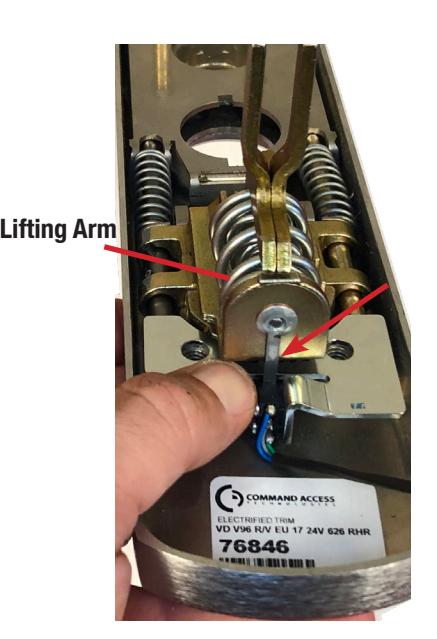

CONFIRM REE SWITCH IS FACING TOWARDS LIFTING ARM AND MAKING CONTACT WITH THE BOTTOM. NEXT, RE-INSTALL (2) MOUNTING POSTS.

4. TEST SWITCH BY ACTIVATING LEVER UP & DOWN MAKING SURE THE SWITCH CHANGES STATES.
