Von Duprin 992L-R, 992L-V Rigid Trim For 98 and 99 Series Trim Wood Door Template

Original Source Document Full PDF Version

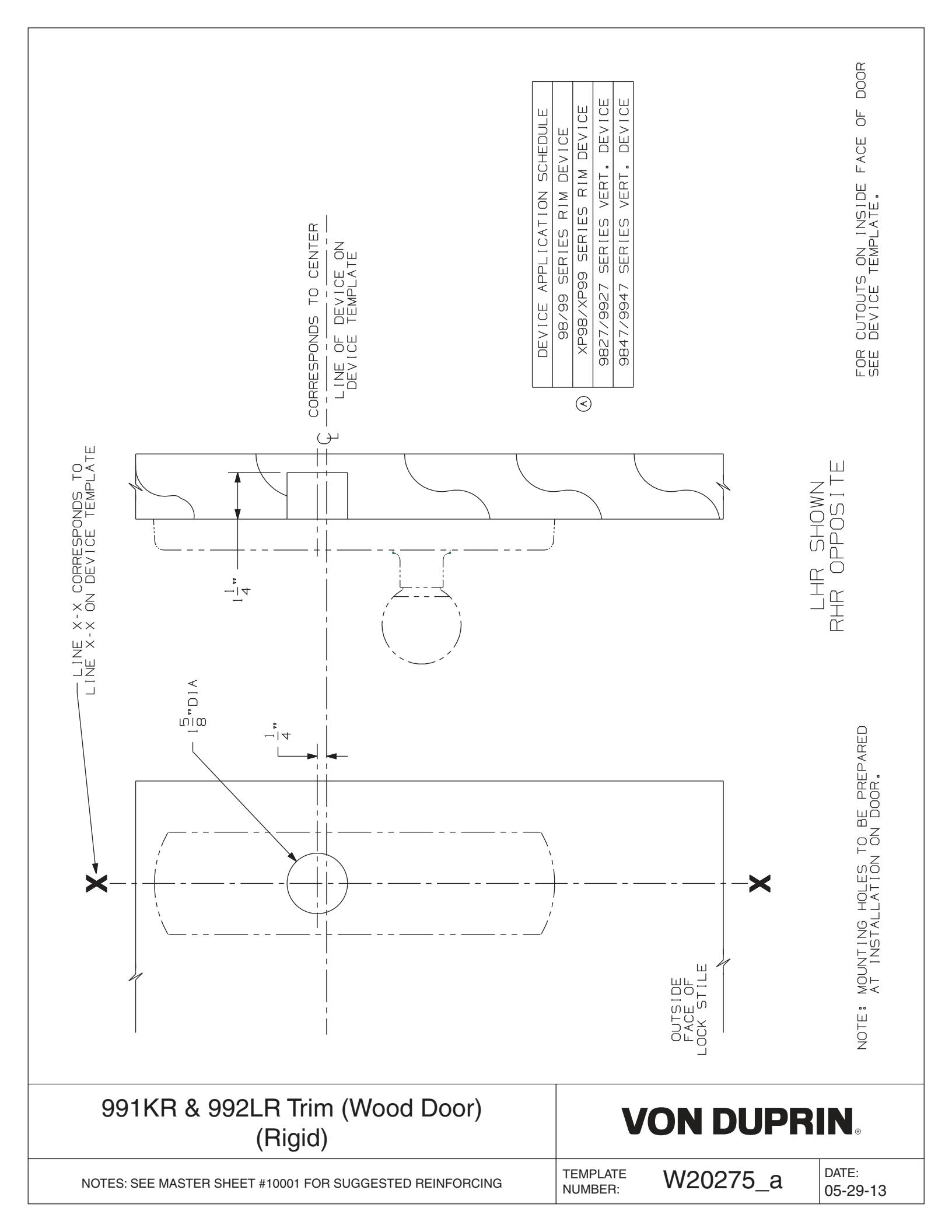

Von Duprin 992L-R, 992L-V Rigid Trim For 98 and 99 Series Trim Wood Door Template diagram on page 1
