Von Duprin 990TP-R, 990TP-V, 990TP-R-BE, 990-TP-V-BE Trim For 98 and 99 Series Trim Wood Door Template

Original Source Document Full PDF Version

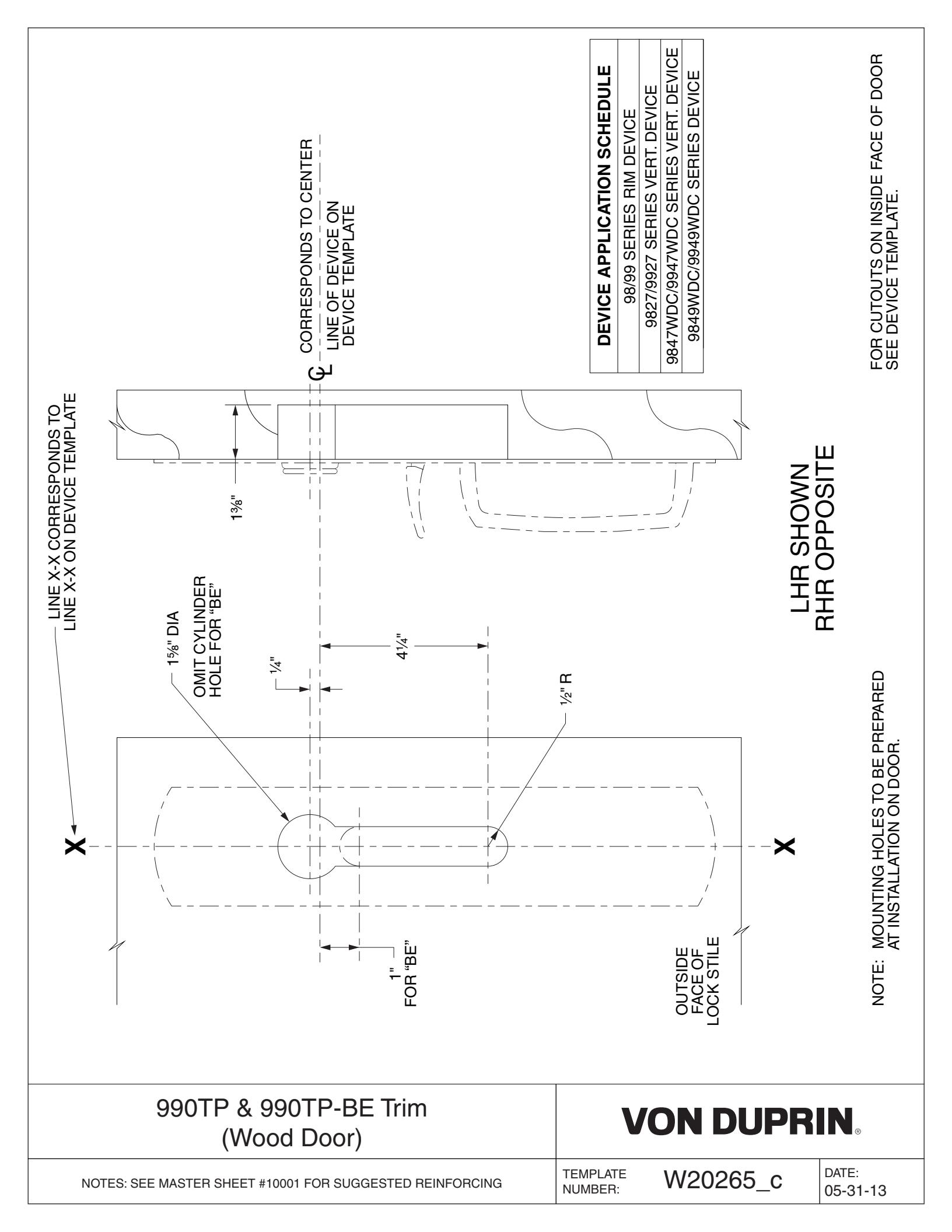

Von Duprin 990TP-R, 990TP-V, 990TP-R-BE, 990-TP-V-BE Trim For 98 and 99 Series Trim Wood Door Template diagram on page 1
