Von Duprin 98,99 & 98-F,99-F, TP, K, & L Series Rim Device For Wood Door Template

Original Source Document Full PDF Version

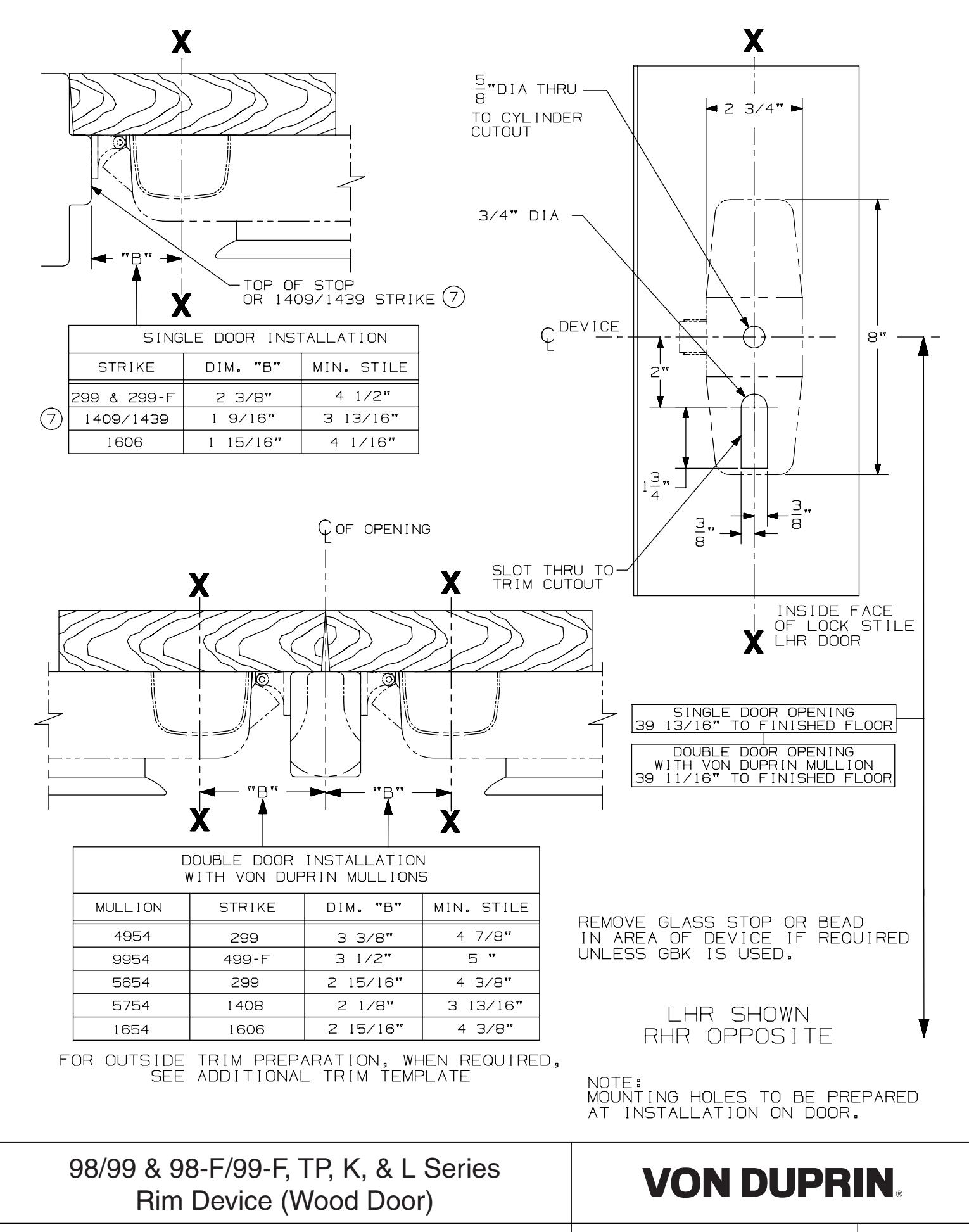

Von Duprin 98,99 & 98-F,99-F, TP, K, & L Series Rim Device For Wood Door Template diagram on page 1

NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING

TEMPLATE NUMBER:

W10302 a

DATE: 05-29-13
