Von Duprin 9875, 9975, 9875-F, 9975-F, E9875, E9975 K-2, L-2 Functions Mortise Device Metal Door Template

Original Source Document Full PDF Version

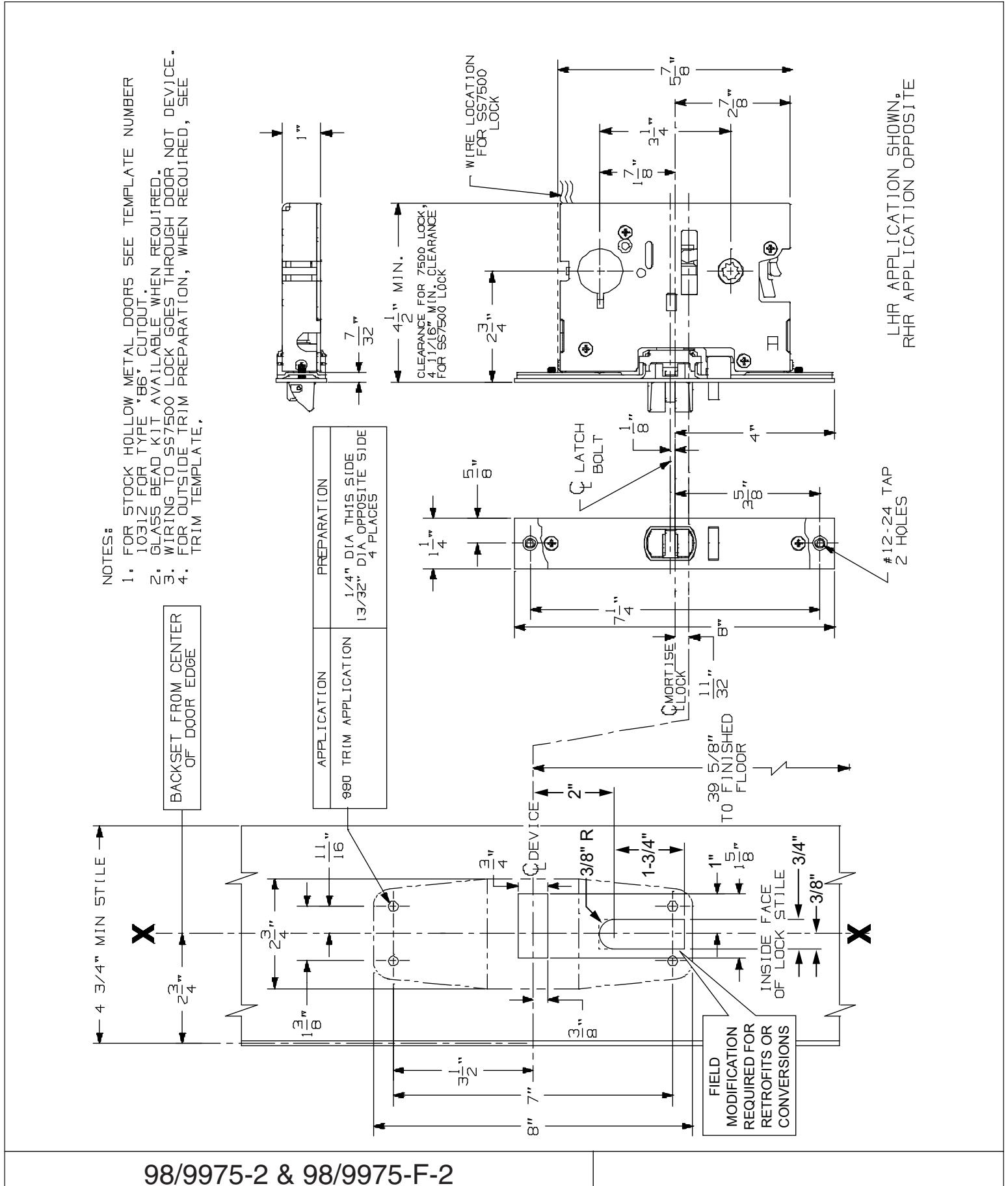

Von Duprin 9875, 9975, 9875-F, 9975-F, E9875, E9975 K-2, L-2 Functions Mortise Device Metal Door Template diagram on page 1

98/9975-2 & 98/9975-F-2 98/9975-2 SI & 98/9975-F-2 SI Mortise Lock Devices

VON DUPRIN ®

TEMPLATE NUMBER:

10368_b

DATE: 04-22-22
