Von Duprin 9850WDC, 9950WDC, 9850WDC-F, 9950WDC-F Concealed Vertical Cable For Wood Door Template

Original Source Document Full PDF Version

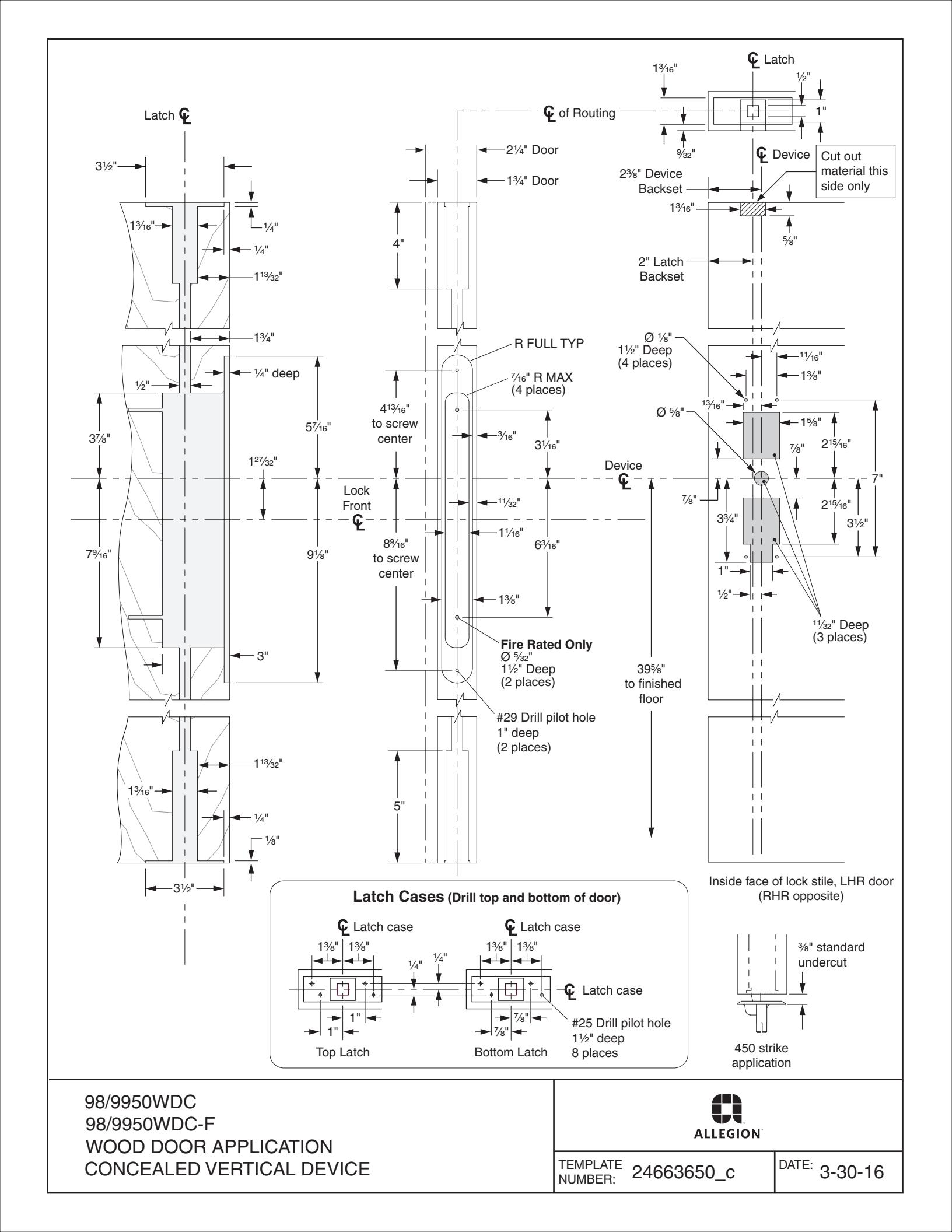

Von Duprin 9850WDC, 9950WDC, 9850WDC-F, 9950WDC-F Concealed Vertical Cable For Wood Door Template diagram on page 1
