Von Duprin 9849, 9949 Concealed Vertical Devices For Aluminium Door Panic Applications Template

Original Source Document Full PDF Version

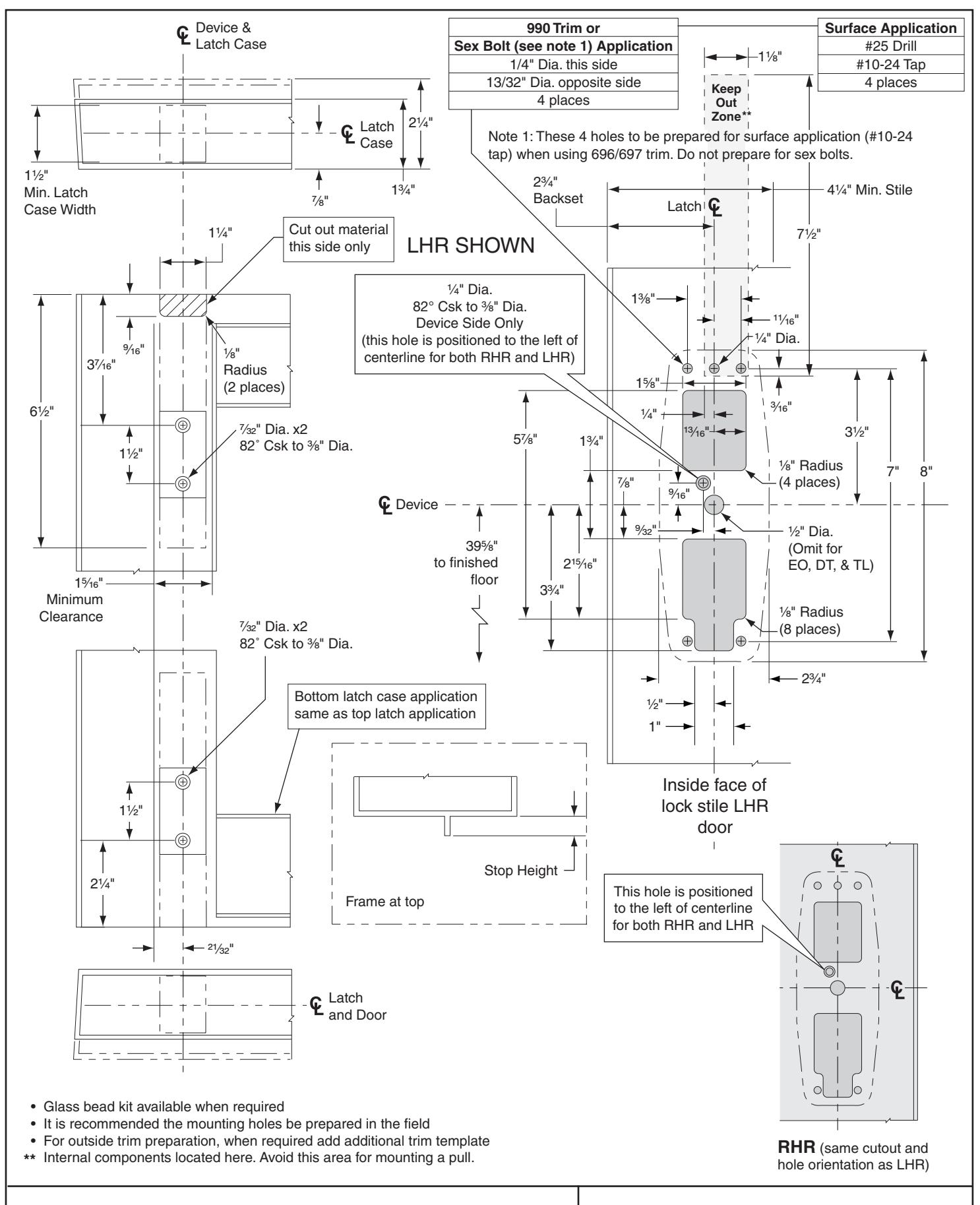

Von Duprin 9849, 9949 Concealed Vertical Devices For Aluminium Door Panic Applications Template diagram on page 1

98/9949 ALUMINUM DOOR PANIC APPLICATION CONCEALED VERTICAL DEVICE

TEMPLATE 24074247_e

DATE: 8-29-19
