Von Duprin 9847WDC, 9947WDC Concealed Vertical Rod Hinge Stile Preparation For Wood Door Template

Original Source Document Full PDF Version

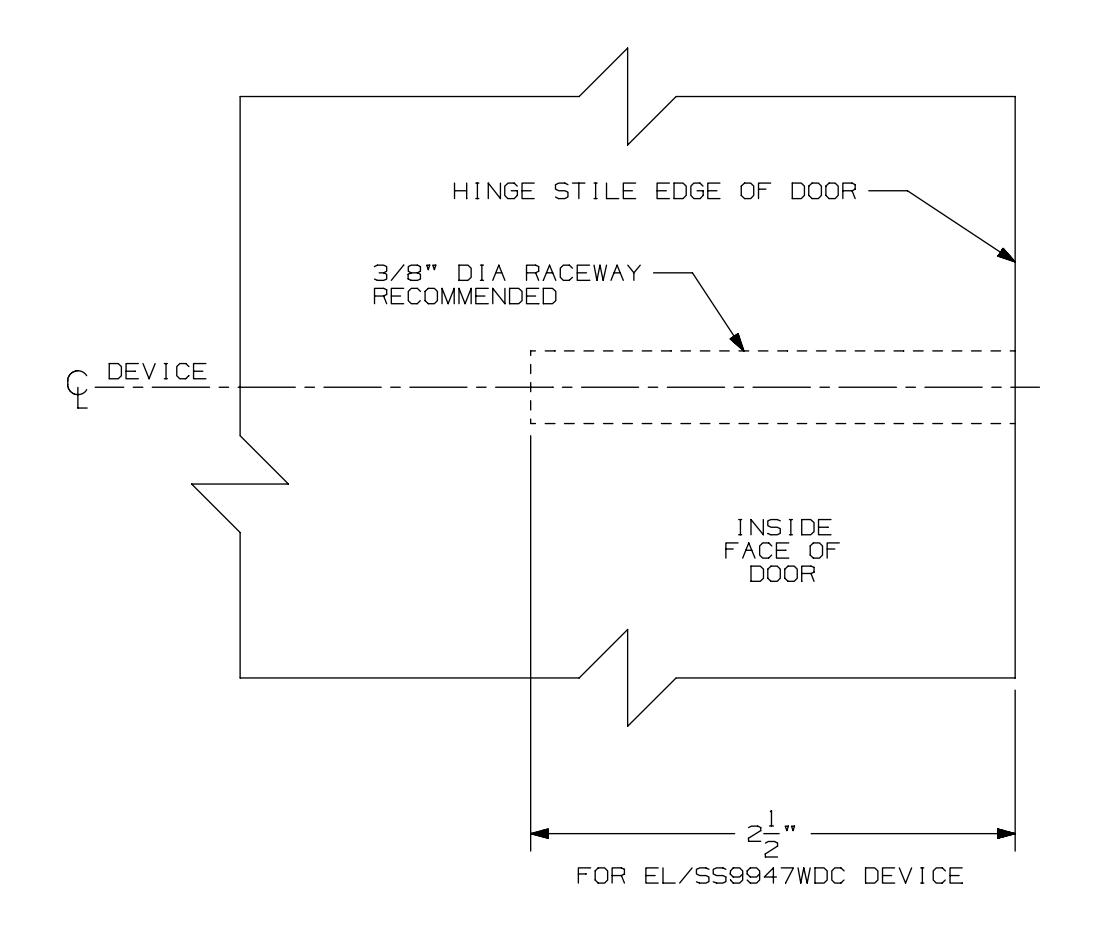

Von Duprin 9847WDC, 9947WDC Concealed Vertical Rod Hinge Stile Preparation For Wood Door Template diagram on page 1

LHR SHOWN RHR OPPOSITE

EL, SS, CX9847WDC/9947WDC Series Device Hinge Stile Preparation (Wood Door)

VON DUPRIN ®

TEMPLATE

NUMBER:

W40088_a

DATE: 05-29-13
