Von Duprin 9827-F-LBR, 9927-F-LBR Series Surface Vertical Rod Device NL, NL-OP, TP, K, L Functions For Wood Door Template

Original Source Document Full PDF Version

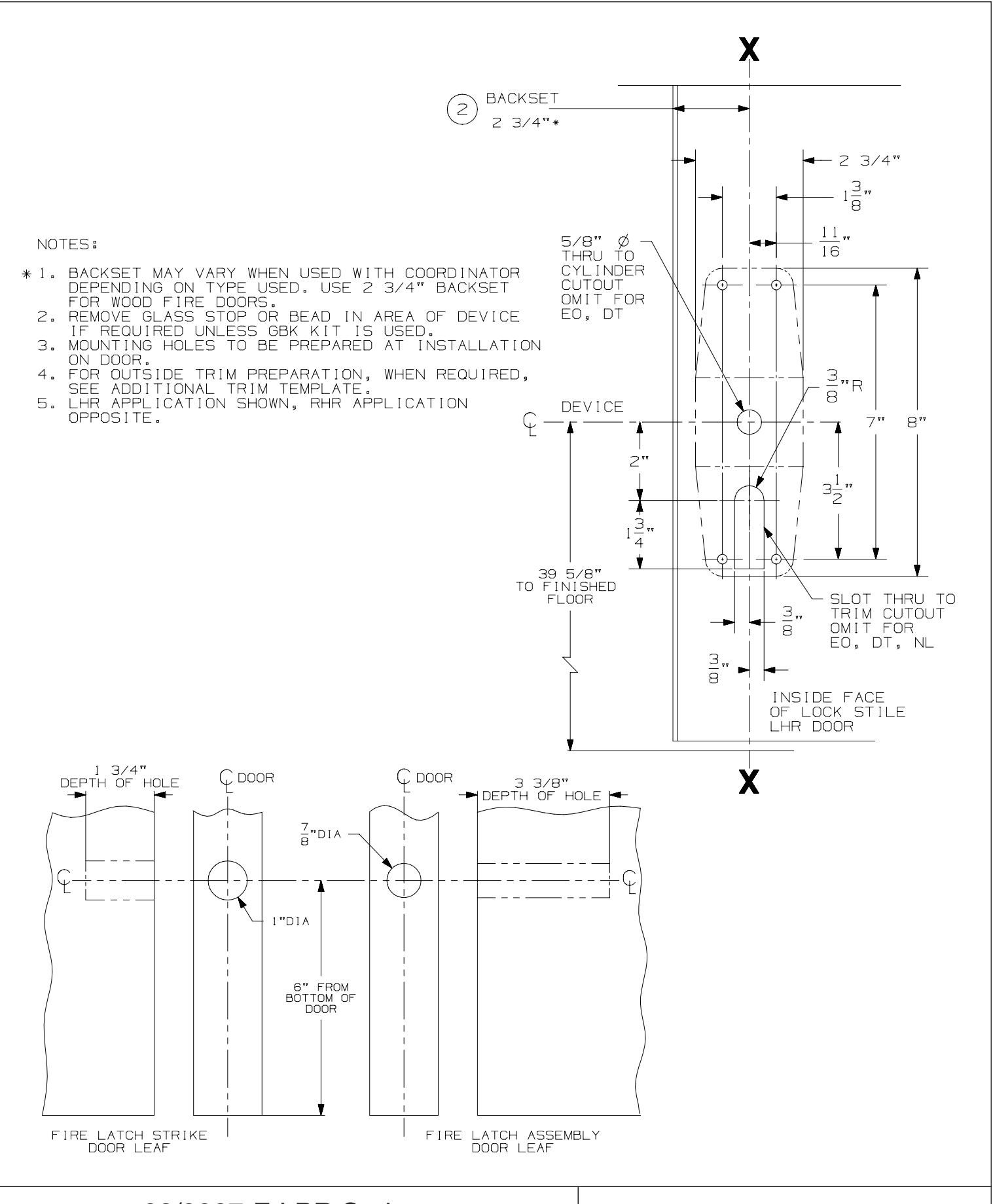

Von Duprin 9827-F-LBR, 9927-F-LBR Series Surface Vertical Rod Device NL, NL-OP, TP, K, L Functions For Wood Door Template dia

98/9927-F-LBR Series Vertical Rod Devices (Wood Door)

TEMPLATE NUMBER:

W10318_a

DATE: 05-29-13
