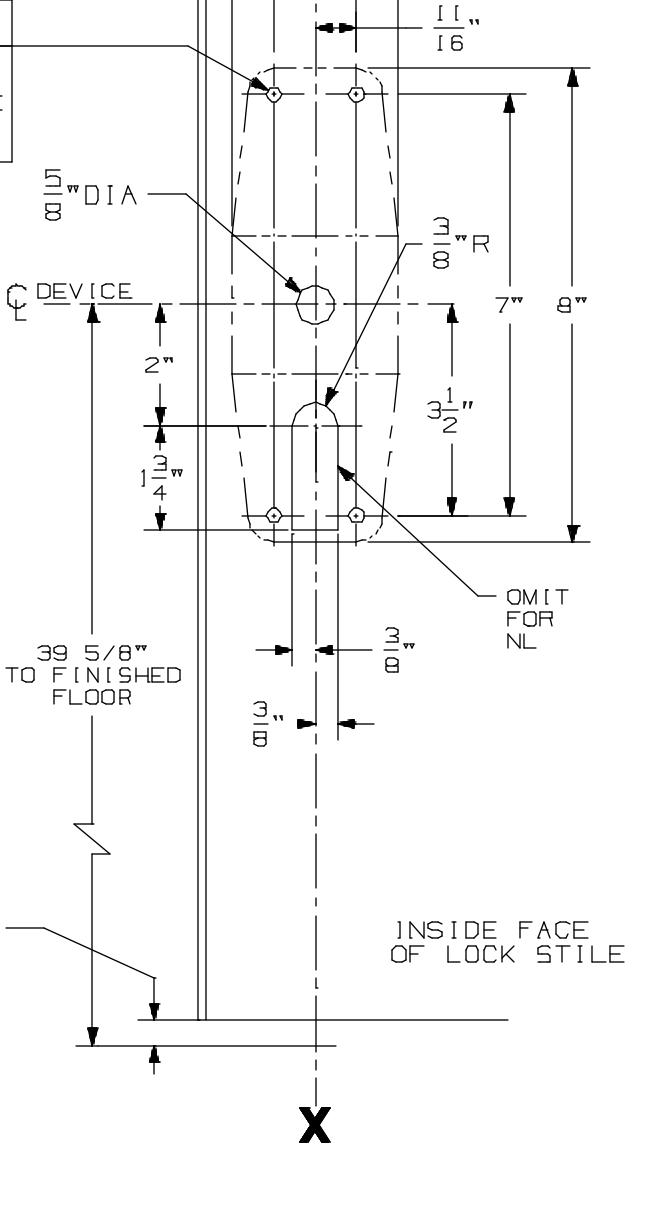

APPLICATION	PREPARAT [ON
990 TRIM APPLICATION SEX BOLT APPLICATION (SEE NOTE 1)

NOTES:

• 1. THESE FOUR HOLES TO BE PREPARED FOR SURFACE APPLICATION (#10-24 TAP) WHEN USING 696/697 TRIM. DO NOT PREPARE FOR SEX BOLTS.
• 2. FOR STOCK HOLLOW METAL DOORS SEE TEMPLATE NO. [031].
• 3. LATCH CASE PREPARATION TO BE MADE AT INSTALLATION ON DOOR.
• 4. IT IS RECOMMENDED THE MOUNTING HOLES BE PREPARED IN THE FIELD.
• 5. FOR OUTSIDE TRIM PREPARATION, WHEN REQUIRED, SEE TRIM TEMPLATE.
• 6. GLASS BEAD KIT AVAILABLE WHEN REQUIRED.
• 7. LHR APPLICATION SHOWN, RHR APPLICATION OPPOSITE.
• 8. BACKSET MAY VARY WHEN USED WITH COORDINATOR.

RECOMMENDED DOOR UNDERCUT [S 1/4" FROM FINISHED FLOOR IPANIC & F[RE] OR 1/8" FROM THRESHOLD IPANIC ONLYI.

-2 3/4"

9827/9927 & 9827-F/9927-F NL, TP, K, & L Series Vertical Rod Devices

VON DUPRIN ®

TEMPLATE NUMBER:

10304 a

DATE: 05-21-13
