APPL 1 CATION	PREPARAT I ON
SURFACE APPLICATION	#10-24 TAP-4 PLACE5
990 TRIM APPLICATION SEX BOLT APPLICATION ISEE NOTE II	1/4" DIA. THIS SIDE 13/32" DIA. OPPOSITE 5IDE - 4 PLACE5

NOTES:

• 1. THESE FOUR HOLES TO BE PREPARED FOR SURFACE APPLICATION WHEN USING 696/697 TRIM. DO NOT PREPARE FOR SEX BOLTS.
• 2. FOR STOCK HOLLOW METAL DOORS SEE TEMPLATE NO. 10310.
• 3. LATCH CASE PREPARATION TO BE MADE AT INSTALLATION ON DOOR.
• 4. IT IS RECOMMENDED THE MOUNTING HOLES BE PREPARED IN THE FIELD.
• 5. FOR OUTSIDE TRIM PREPARATION, WHEN REQUIRED, SEE TRIM TEMPLATE.
• 6. GLASS BEAD KIT AVAILABLE WHEN REQUIRED.
• 7. LHR APPL]CATION SHOWN, RHR APPLICATION OPPOSITE
• 8. BACKSET MAY VARY WHEN USED WITH COORDINATOR.

RECOMMENDED DOOR UNDERCUT [S ]/4" FROM FINISHED FLOOR IPANIC & F[REI OR 1/8" FROM THRESHOLD IPANIC ONLYI.

-2 3/4"

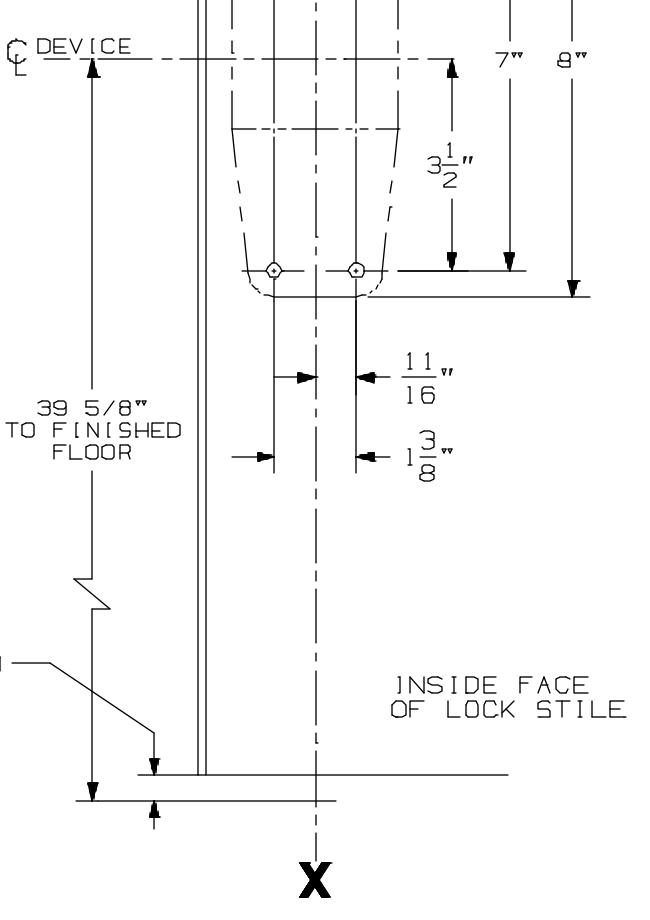

9827/9927 & 9827-F/9927-F EO & DT Series Vertical Rod Devices

VON DUPRIN ®

TEMPLATE NUMBER:

10303 a

DATE: 06-07-13
