Von Duprin 9827, 9927, 9827-F, 9927-F Series Surface Vertical Rod Device NL, NL-OP, TP, K, L Functions For Wood Door Template

Original Source Document Full PDF Version

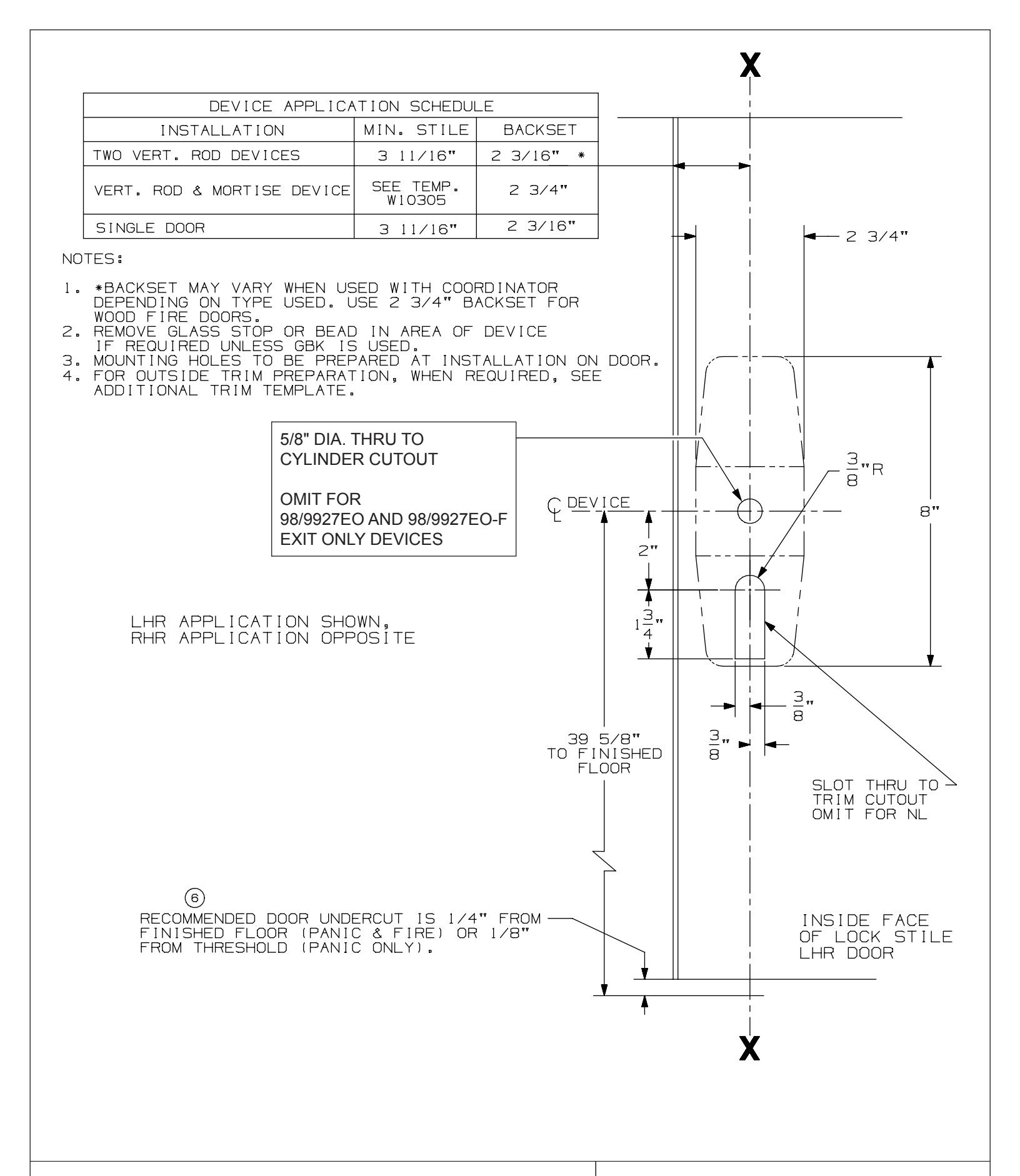

9827/9927 & 9827-F/9927-F NL, TP, K, & L Series Vertical Rod Device (Wood Door)

VON DUPRIN ®

TEMPLATE NUMBER:

W10304 b

DATE: 10-2-14
