Von Duprin 98 and 99 TP, K, L Rim Devices for Type “86” Stock Hollow Metal Applications Template

Original Source Document Full PDF Version

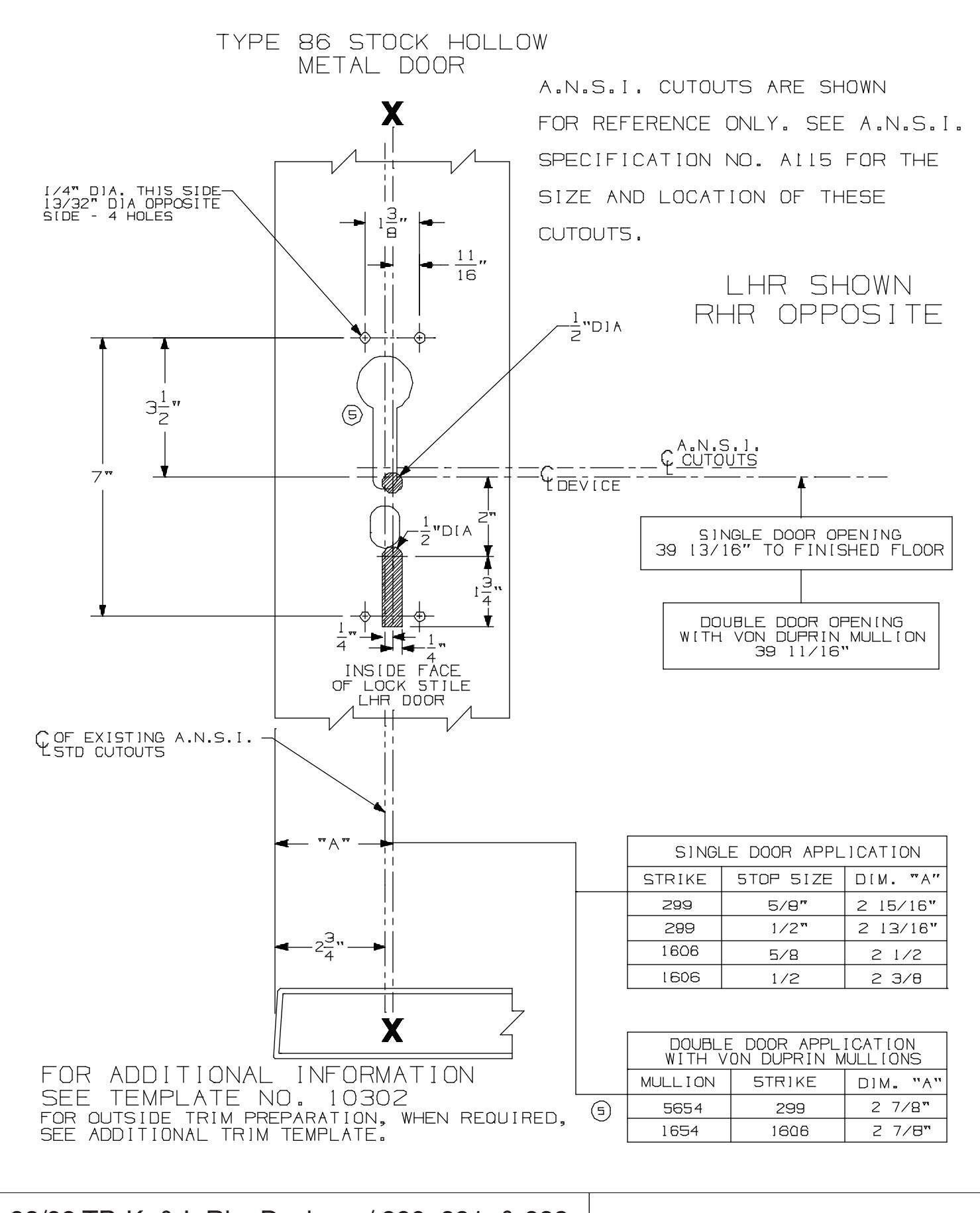

Von Duprin 98 and 99 TP, K, L Rim Devices for Type “86” Stock Hollow Metal Applications Template diagram on page 1

98/99 TP, K, & L Rim Device w/ 990, 991, & 992 Trim for Type "86" Stock Hollow Metal Application

VON DUPRIN ®

TEMPLATE NUMBER:

10315 a

DATE: 05-21-13
