Von Duprin 98 and 99 EO, DT Rim Devices for Type “86” Stock Hollow Metal Applications Template

Original Source Document Full PDF Version

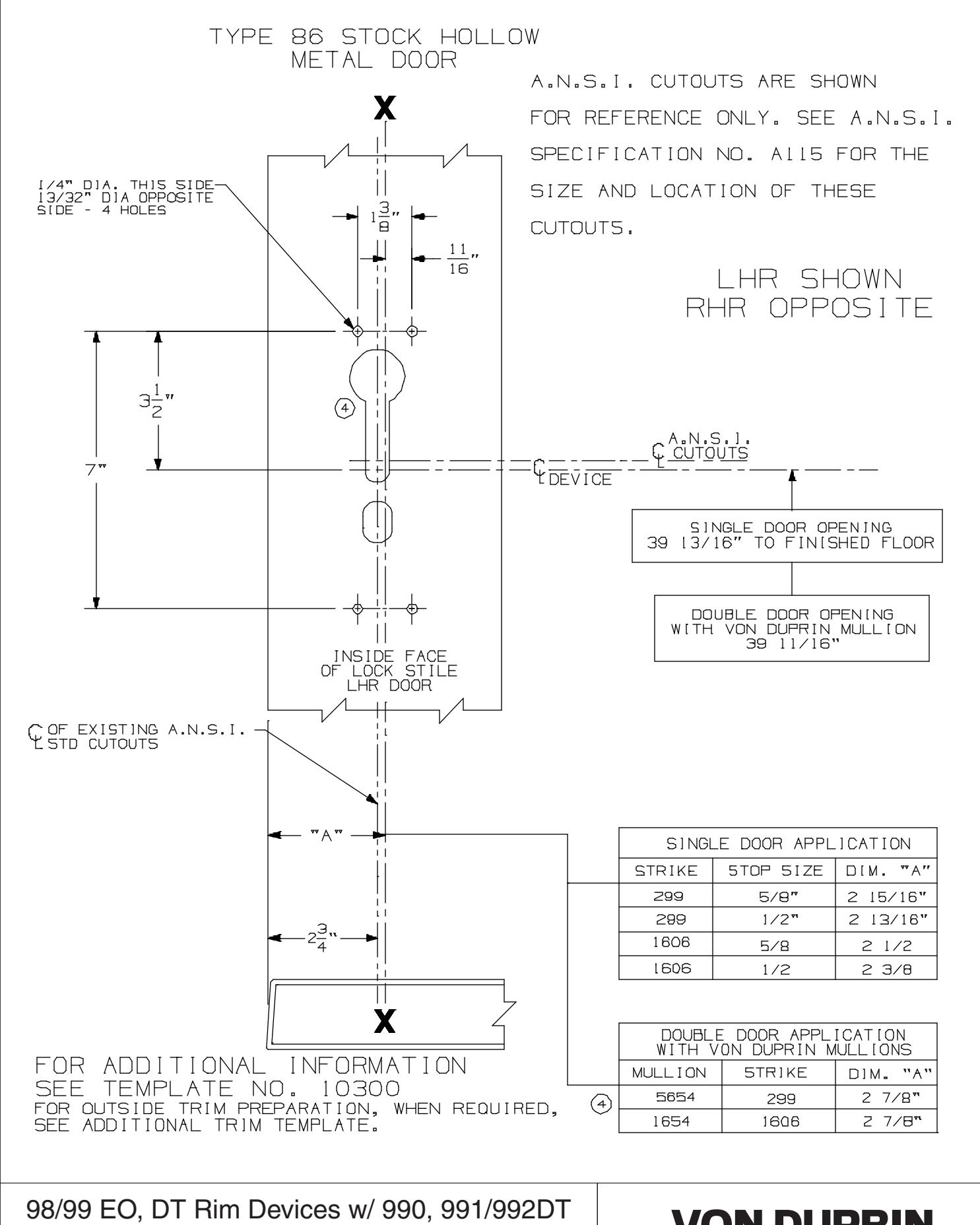

Von Duprin 98 and 99 EO, DT Rim Devices for Type “86” Stock Hollow Metal Applications Template diagram on page 1

Trim for Type "86" Stock Hollow Metal Applications

VON DUPRIN

TEMPLATE NUMBER:

10313 a

DATE: 05-21-13
