Von Duprin 98, 99 & 98-F, 99-F TP, K, & L Rim Devices For Hollow Metal Applications Template

Original Source Document Full PDF Version

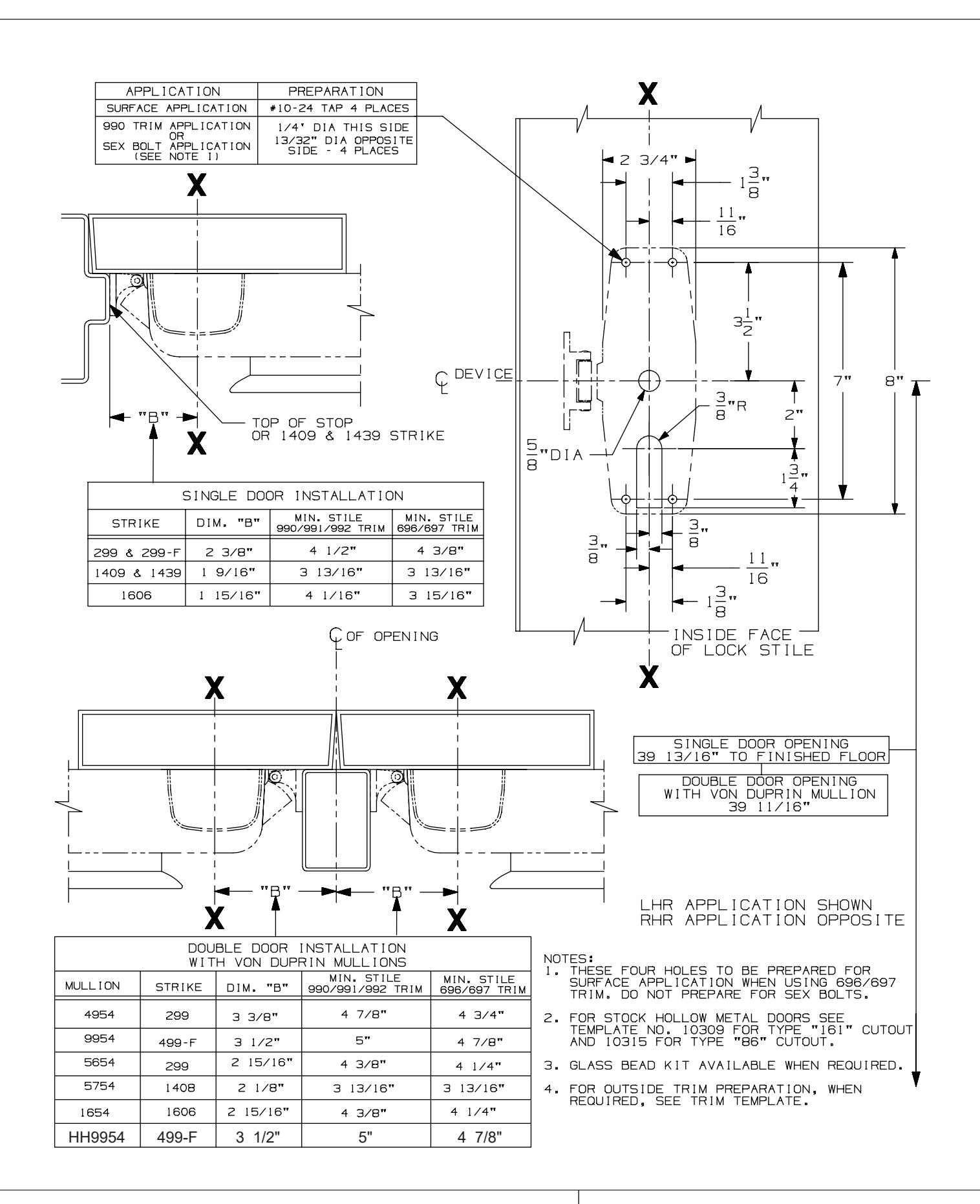

Von Duprin 98, 99 & 98-F, 99-F TP, K, & L Rim Devices For Hollow Metal Applications Template diagram on page 1

98/99 & 98-F/99-F TP, K, & L Series Rim Devices

TEMPLATE NUMBER:

10302 b

DATE: 05-24-21
