Von Duprin 98, 99, 98-F, 99-F Series Rim Device TP-2, K-2, L-2, TP-2SI, K-2SI, L-2SI Functions For Wood Door Template

Original Source Document Full PDF Version

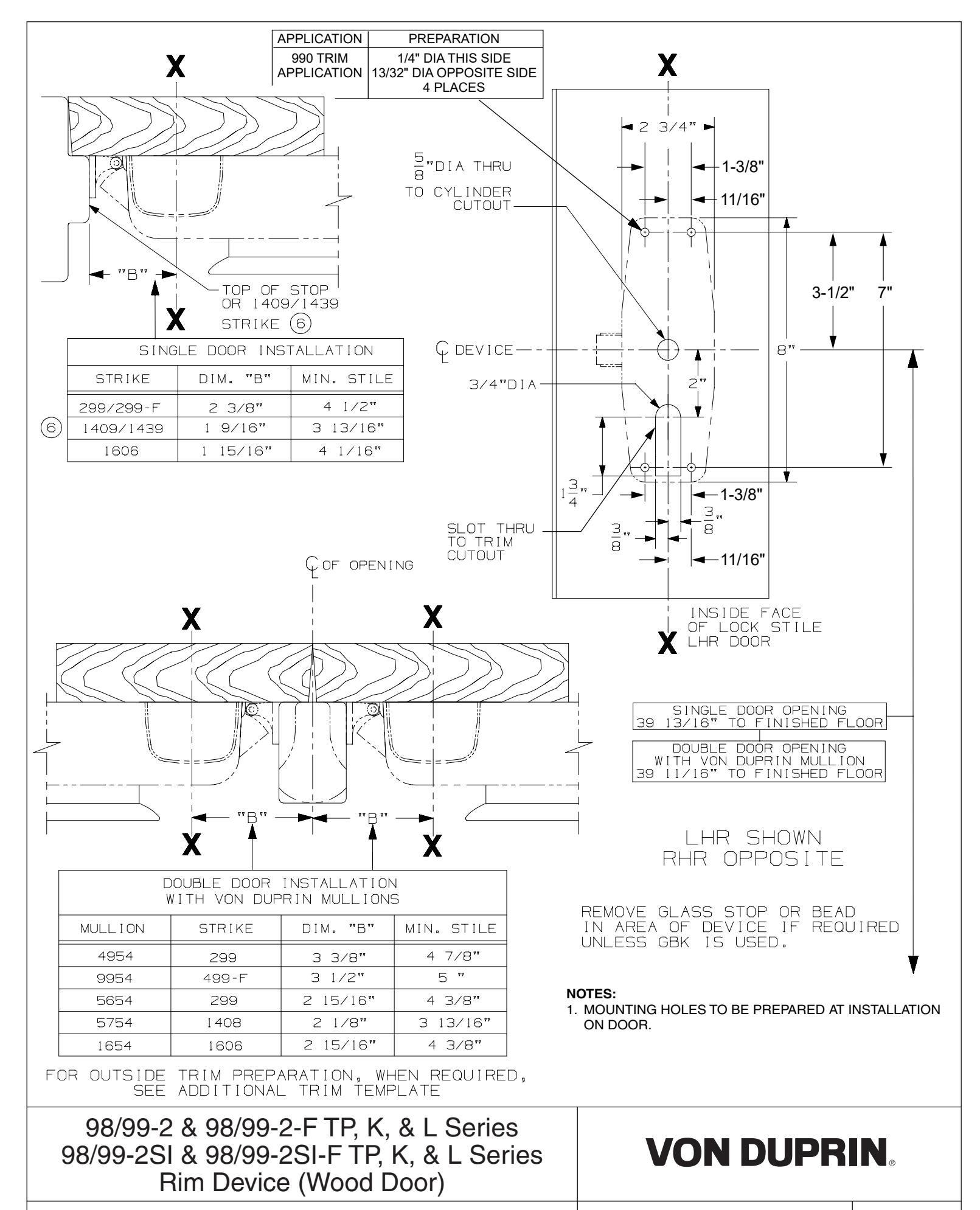

Von Duprin 98, 99, 98-F, 99-F Series Rim Device TP-2, K-2, L-2, TP-2SI, K-2SI, L-2SI Functions For Wood Door Template diagram

NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING

TEMPLATE NUMBER:

W10322 e

DATE: 05-02-22
