Von Duprin 9475, 9575, 9475-F, 9575-F Mortise Device (2ft10inch – 4ft Wide Door Opening) For Metal Applications Template

Original Source Document Full PDF Version

Von Duprin 9475, 9575, 9475-F, 9575-F Mortise Device (2ft10inch – 4ft Wide Door Opening) For Metal Applications Template diag

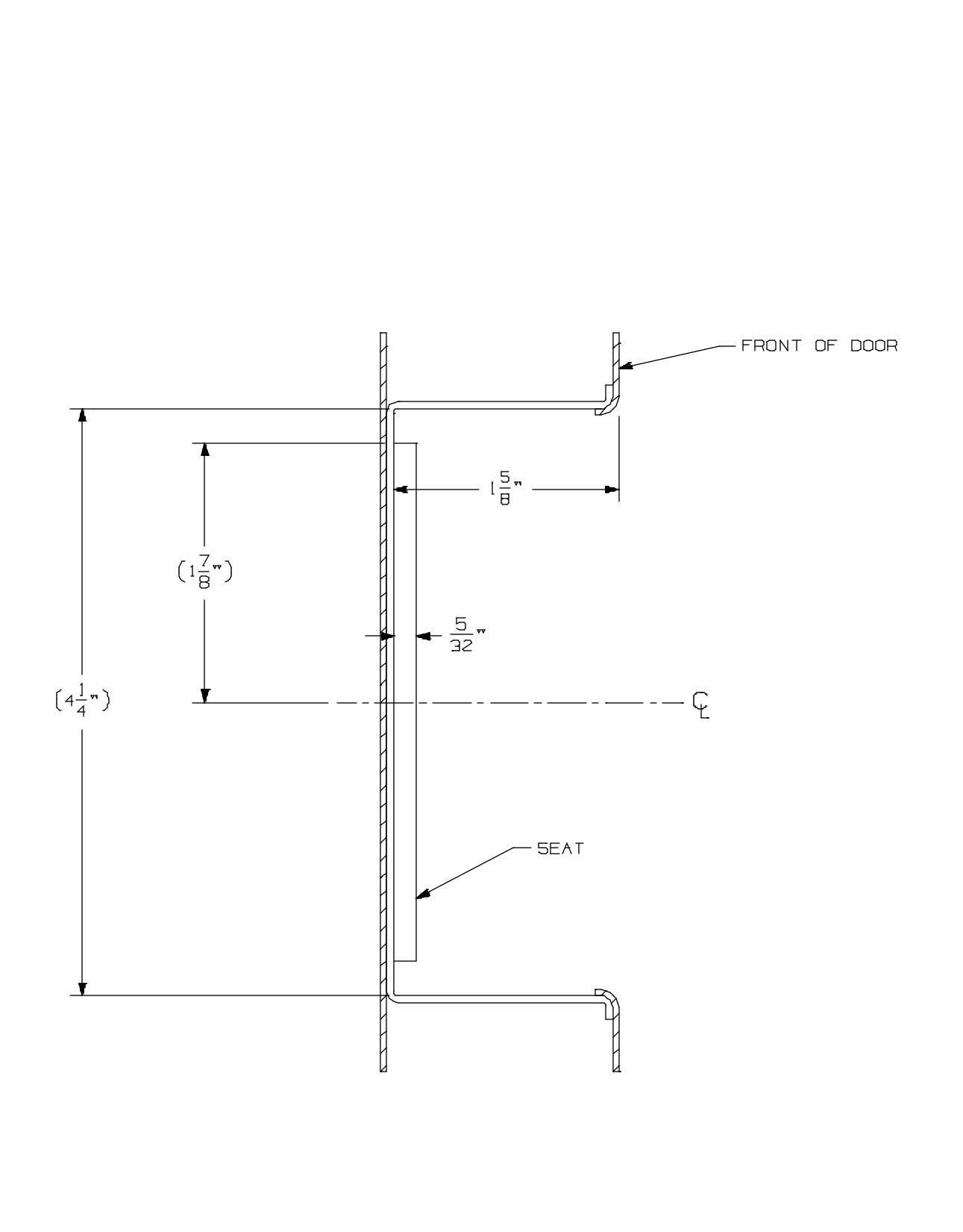

94/9575, 94/9575-F Mortise Device on 2' 10" up to 4' 0" Wide Door Opening

NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING For a door opening width smaller than 2' 10" see template # 10374

10372_b Sht 1 TEMPLATE NUMBER:

DATE: 08-07-19

Von Duprin 9475, 9575, 9475-F, 9575-F Mortise Device (2ft10inch – 4ft Wide Door Opening) For Metal Applications Template imag

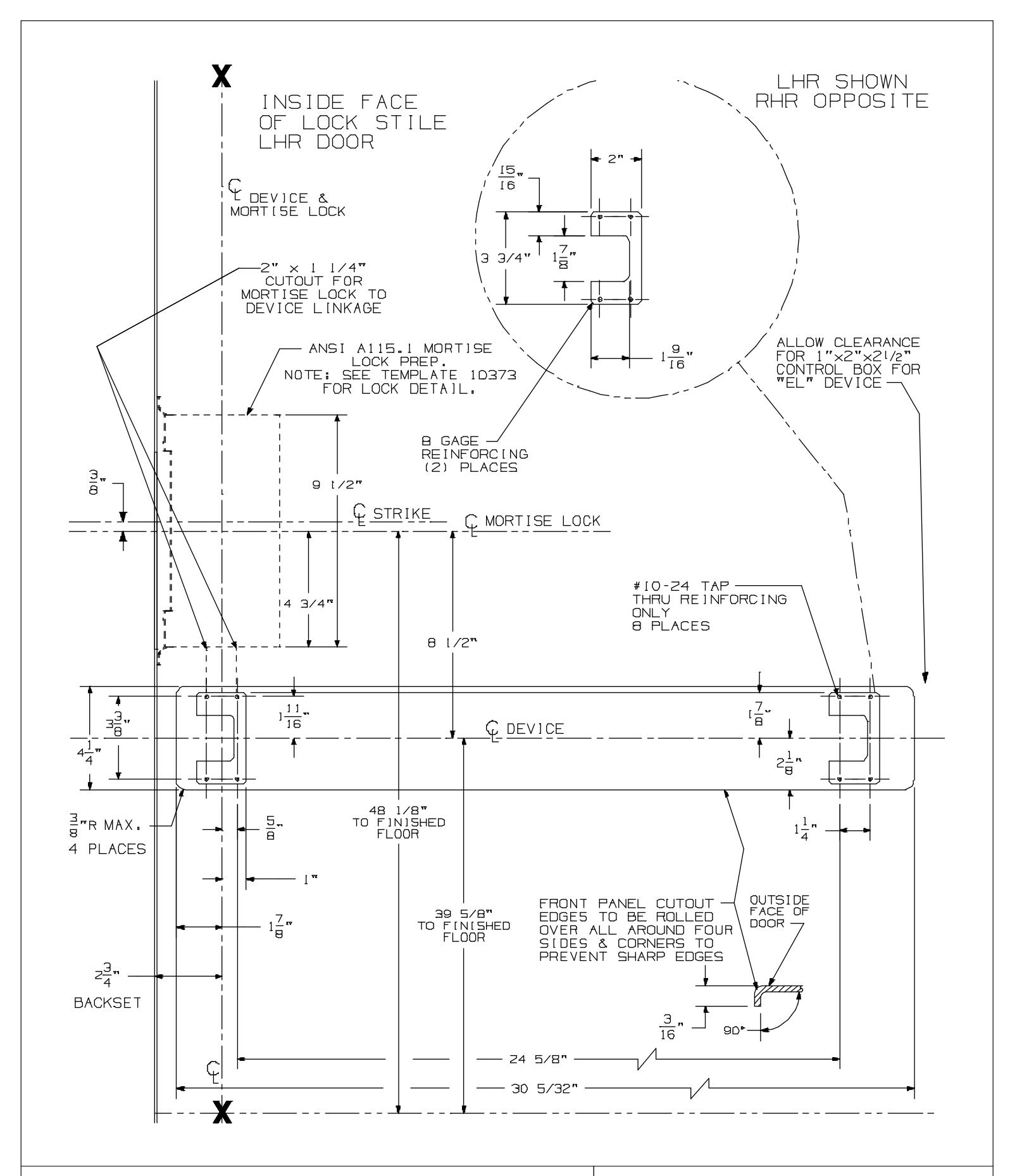

94/9575, 94/9575-F Mortise Device on 2' 10" up to 4' 0" Wide Door Opening

NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING For a door opening width smaller than 2' 10" see template # 10374

10372_b Sht 2 TEMPLATE NUMBER:

DATE: 08-07-19
