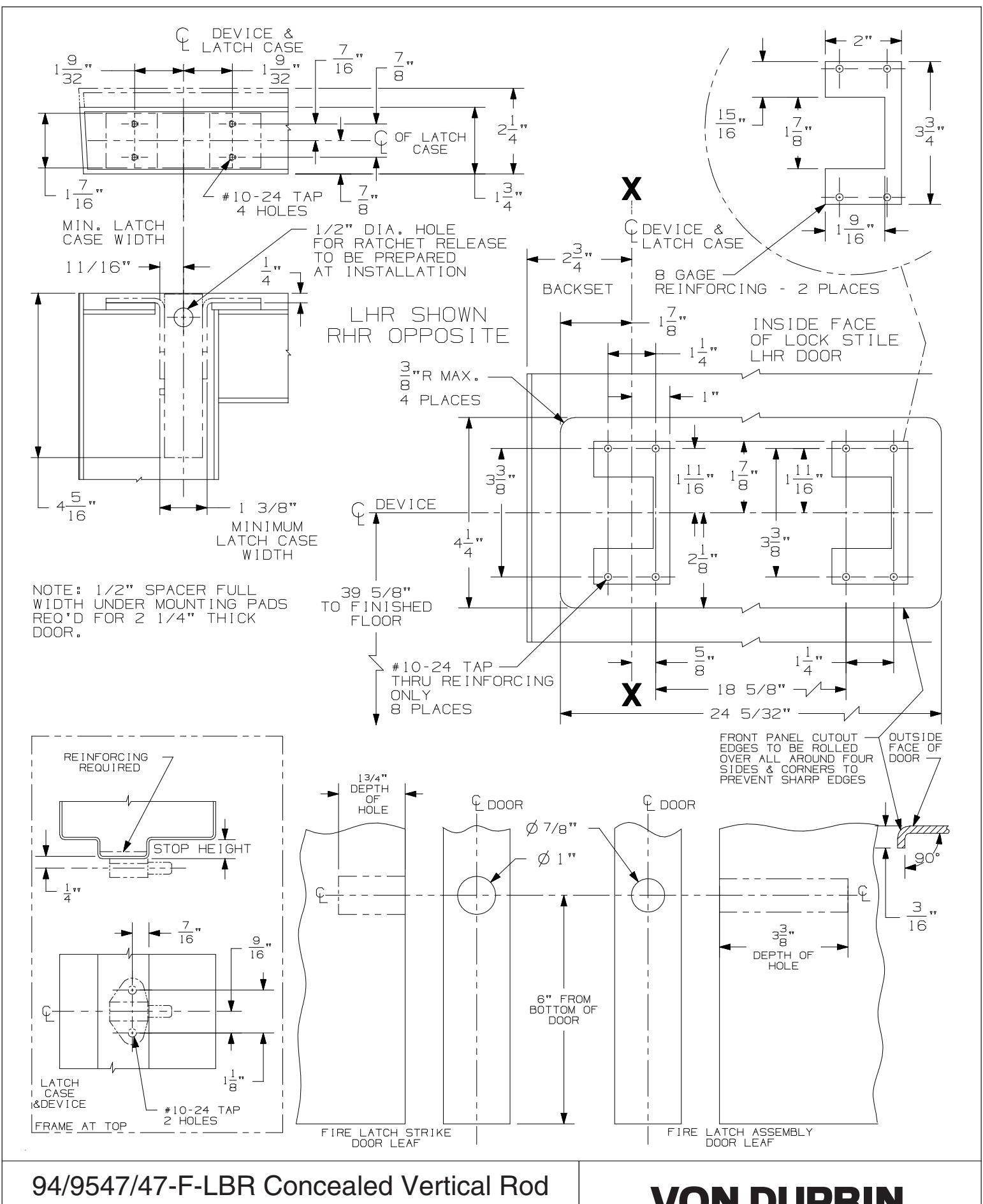

Von Duprin 9447-LBR, 9547-LBR, 9447-F-LBR, 9547-F-LBR Concealed Vertical Rod (2ft6inch – 2ft9-3by4inch Wide Door Opening) For

Device on 2' 6" to 2' 9³⁄₄" Wide Door Opening

NOTE: For a door opening width 2' 10" and larger see template # 10325

10326_d Sht 1 TEMPLATE NUMBER:

DATE: 08-07-19

Von Duprin 9447-LBR, 9547-LBR, 9447-F-LBR, 9547-F-LBR Concealed Vertical Rod (2ft6inch – 2ft9-3by4inch Wide Door Opening) For

94/9547/47-F-LBR Concealed Vertical Rod Device on 2' 6" to 2' 9³⁄₄" Wide Door Opening

NUMBER:

10326_d Sht 2 TEMPLATE

DATE: 08-07-19
