Von Duprin 9447-LBR, 9547-LBR, 9447-F-LBR, 9547-F-LBR Concealed Vertical Rod (2ft10inch – 4ft Wide Door Opening) For Metal Applications Template

Original Source Document Full PDF Version

Von Duprin 9447-LBR, 9547-LBR, 9447-F-LBR, 9547-F-LBR Concealed Vertical Rod (2ft10inch – 4ft Wide Door Opening) For Metal Ap

NOTE: For a door opening width smaller than 2' 10" see template # 10326

TEMPLATE NUMBER: 10325_b Sht 1

DATE: 08-07-19

Von Duprin 9447-LBR, 9547-LBR, 9447-F-LBR, 9547-F-LBR Concealed Vertical Rod (2ft10inch – 4ft Wide Door Opening) For Metal Ap

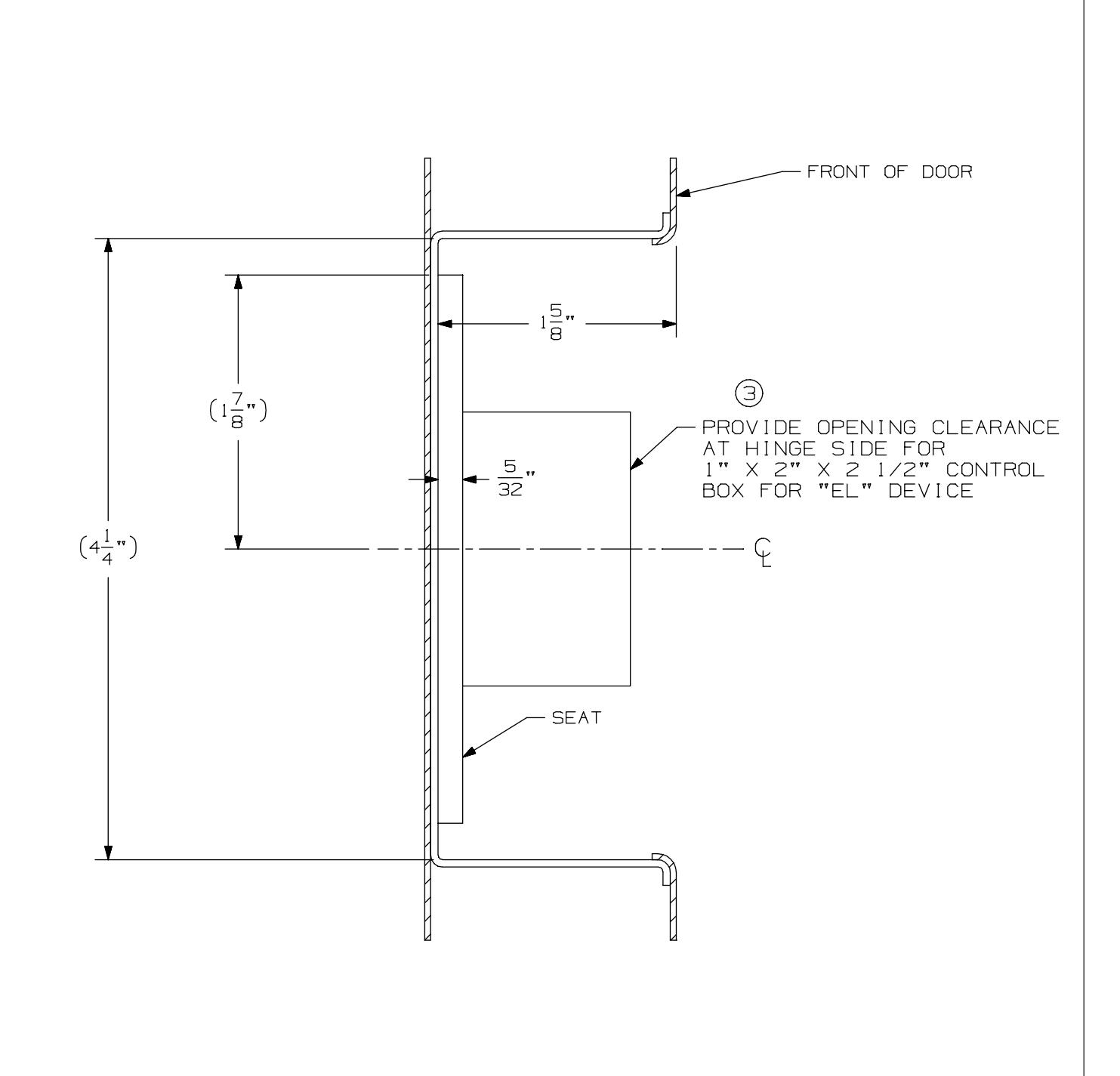

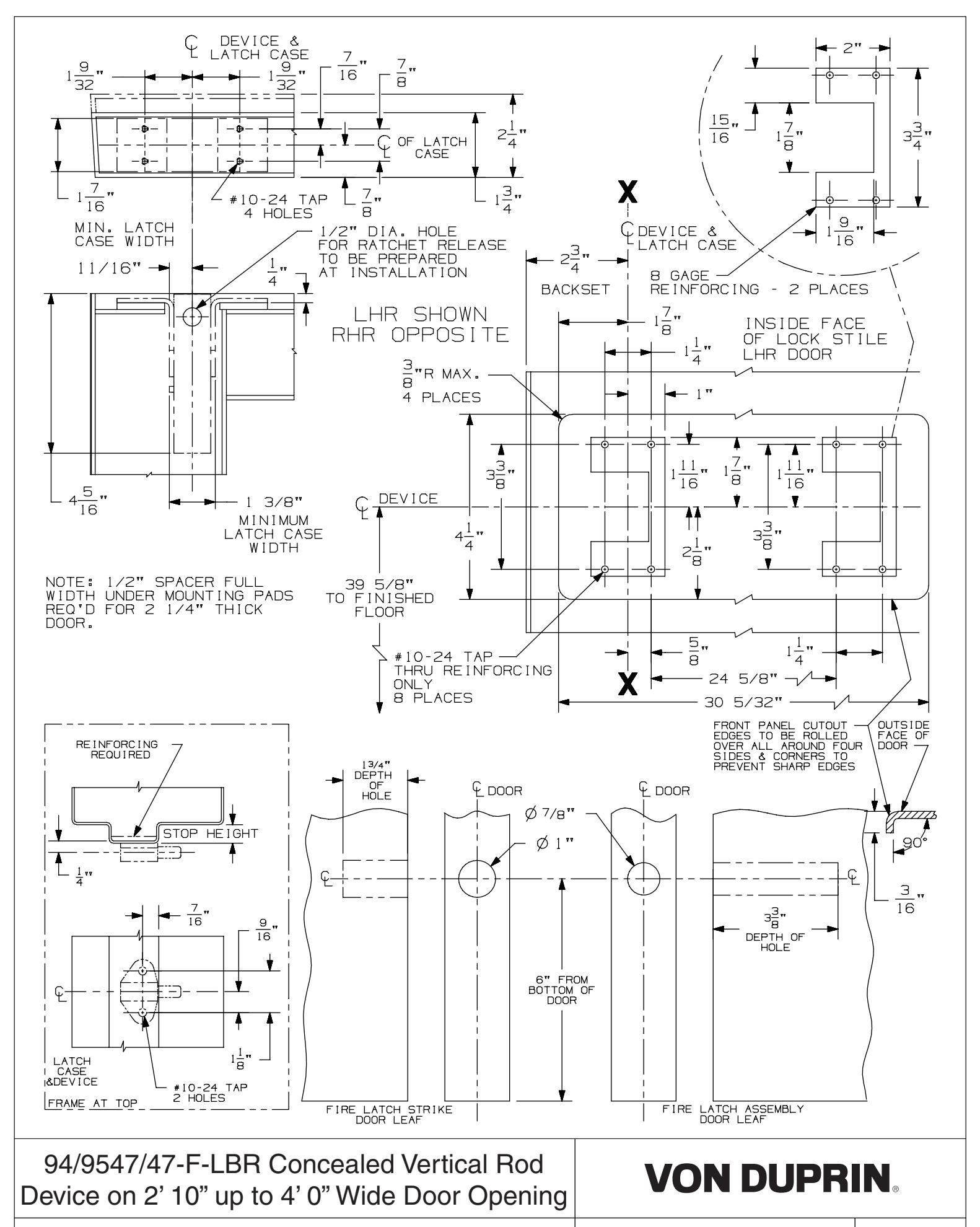

94/9547/47-F-LBR Concealed Vertical Rod Device on 2' 10" up to 4' 0" Wide Door Opening

VON DUPRIN ®

NOTE: For a door opening width smaller than 2' 10" see template # 10326

TEMPLATE NUMBER:

10325_b Sht 2

08-07-19
