Von Duprin 9447, 9547, 9447-F, 9547-F Concealed Vertical Rod (2ft6inch – 2ft9-3by4inch Wide Door Opening) For Metal Applications Template

Original Source Document Full PDF Version

Von Duprin 9447, 9547, 9447-F, 9547-F Concealed Vertical Rod (2ft6inch – 2ft9-3by4inch Wide Door Opening) For Metal Applicati

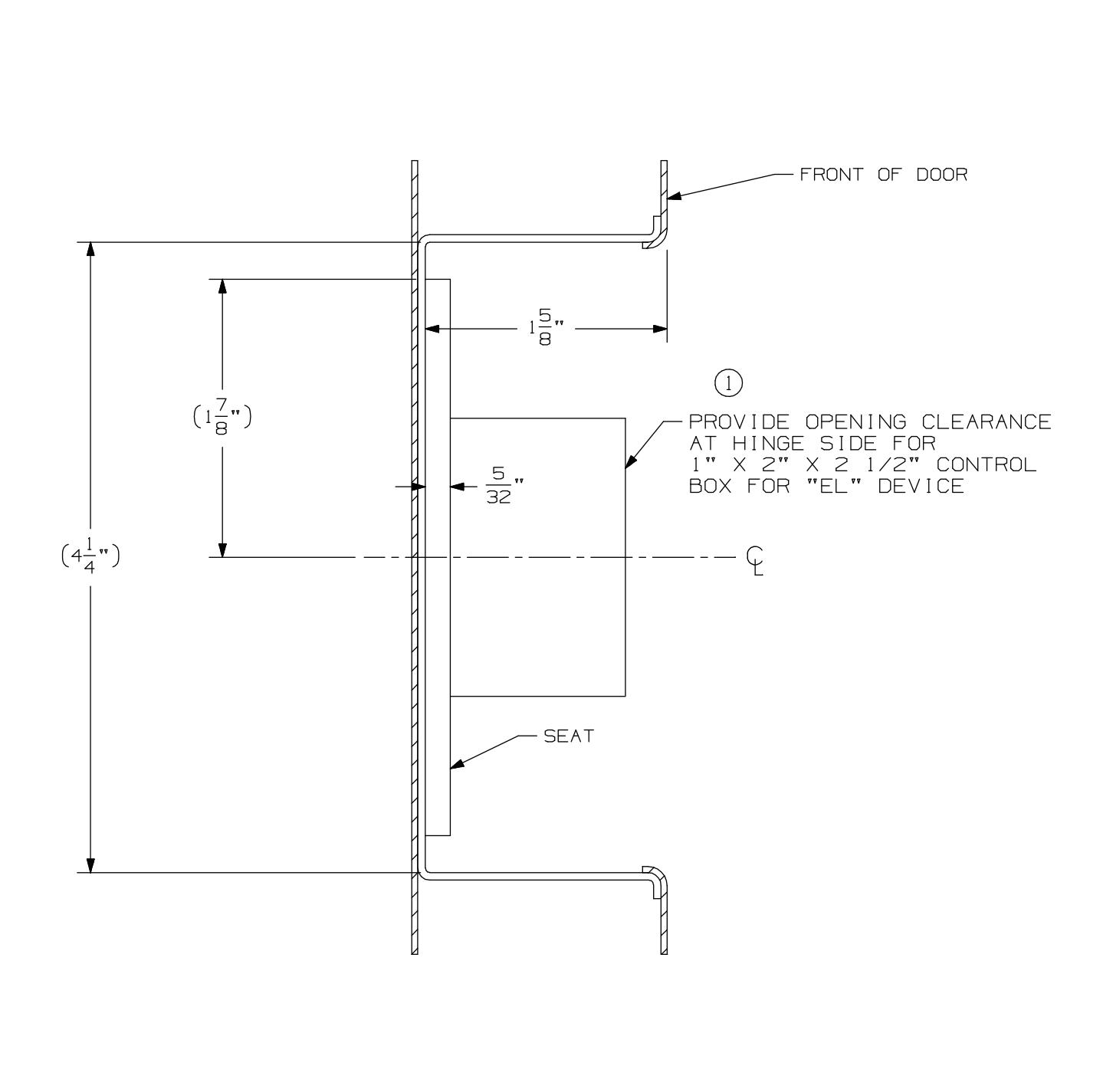

94/9547/47-F Concealed Vertical Rod Device on 2' 6" up to 2' 9³⁄₄" Wide Door Opening

NOTES: See Master Sheet #10001 For Suggested Reinforcing For a door opening width 2' 10" and larger see template # 10324

10375_d Sht 1 TEMPLATE NUMBER:

DATE: 08-07-19

Von Duprin 9447, 9547, 9447-F, 9547-F Concealed Vertical Rod (2ft6inch – 2ft9-3by4inch Wide Door Opening) For Metal Applicati

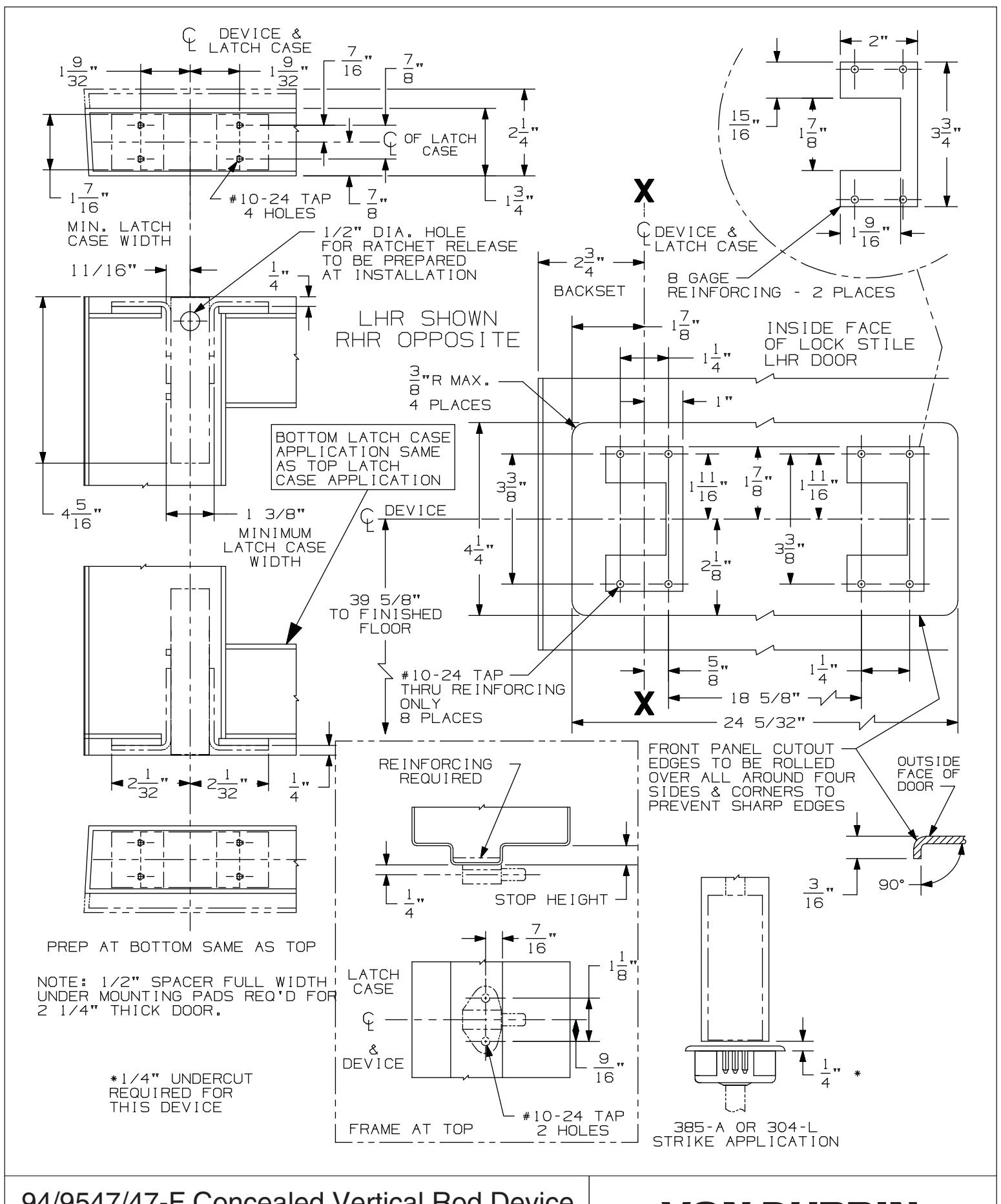

94/9547/47-F Concealed Vertical Rod Device on 2' 6" up to 2' 9³⁄₄" Wide Door Opening

NOTES: See Master Sheet #10001 For Suggested Reinforcing For a door opening width 2' 10" and larger see template # 10324

10375_d Sht 2 TEMPLATE NUMBER:

DATE: 08-07-19
