Von Duprin 9447, 9547, 9447-F, 9547-F Concealed Vertical Rod (2ft10inch – 4ft Wide Door Opening) For Metal Applications Template

Original Source Document Full PDF Version

Von Duprin 9447, 9547, 9447-F, 9547-F Concealed Vertical Rod (2ft10inch – 4ft Wide Door Opening) For Metal Applications Templ

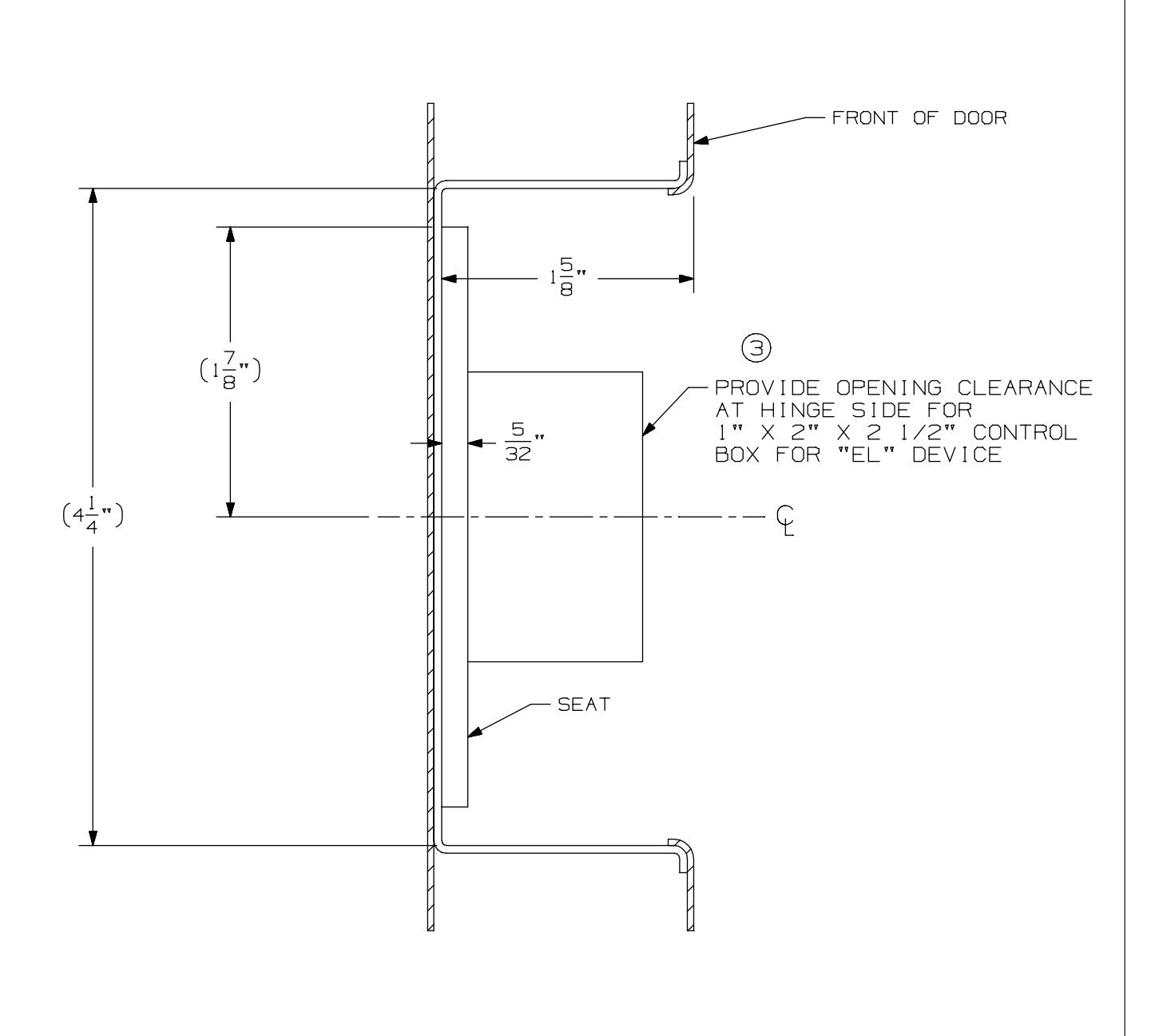

94/9547/47-F Concealed Vertical Rod Device on 2' 10" up to 4' 0" Wide Door Opening

NOTE: For a door opening width smaller than 2' 10" see template # 10375 10324_b Sht1 TEMPLATE

NUMBER:

DATE: 08-07-19

Von Duprin 9447, 9547, 9447-F, 9547-F Concealed Vertical Rod (2ft10inch – 4ft Wide Door Opening) For Metal Applications Templ

94/9547/47-F Concealed Vertical Rod Device on 2' 10" up to 4' 0" Wide Door Opening

NOTE: For a door opening width smaller than 2' 10" see template # 10375

NUMBER:

10324_b Sht 2 TEMPLATE

DATE: 08-07-19
