94/9575 Series Recessed Exit Devices
Service manual
INDEX
| 94/9575 Devices | |
|---|---|
| Panic Device 4 | |
| Fire Device 5 | |
| 94/9575 7500 Mortise Lock 6-7 | |
| Variations of the Basic Device | |
| 94/9575 SS7500 Mortise Lock 8 | |
| EL (Electric Latch Retraction) 9 | |
| LX (Latch Bolt Monitoring) 9 | |
| General Information | |
| Introduction 2 | |
| How to Order 2 | |
| Part Number Changes 2 | |
| Finishes 3 | |
| Outside Trim Functions 3 | |
| Strikes 3 | |
INTRODUCTION
This manual contains a listing of replaceable parts and assemblies for the 94/9575 and 94/9575-F Mortise Exit Devices. (94 Series and 95 Series devices are almost identical. The 95 Series has a grooved case; the 94 Series has a smooth case.)
HOW TO ORDER
Some parts are sold separately. Other items are available as part of a kit or multiple quantity package. For the best possible service when ordering replacement parts or assemblies, please provide the following information:
- Part number or assembly number
- Description
- Quantity needed
- Finish desired (if available finished)
- Date of original purchase (if known)
To find out the name of your local Von Duprin distributor or sales representative, contact:
Von Duprin Division Allegion 2720 Tobey Drive Indianapolis, Indiana 46219 Phone: (877) 671-7011
PART NUMBER AND AVAILABILITY CHANGES
This manual was designed to help illustrate the replacement parts and kits that are available for sale. Because of changes to the product and/or manufacturing process, part numbers and availability can change over time.
OUTSIDE TRIM FUNCTIONS
94/95 SERIES FINISHES
AnodizedAluminum Duranodic Dark Bronze
| 376TX550-DT | 376T-BEX550-DT |
U.S. Std
Reference |
BHMA
Reference |
Description | |
| US3 | 605 |
Bright
Brass |
|||
| US4 | 606 |
Satin
Brass |
|||
| US10 | 612 |
Satin
Bronze |
|||
| US26 | 625 |
Polished
Chrome |
|||
| US26D | 626 |
Satin
Chrome |
|||
| US28 | 628 | AnodizedAluminum | |||
| 313 | 710 | Duranodic Dark Bronze | |||
| US26D-AM | 626-AM | Satin Chrome, AM | |||
| LP230L | LP230L-BE | LP373L | LP373L-BE | ||
** "DT" (Dummy Trim) rigid lever for pull operation

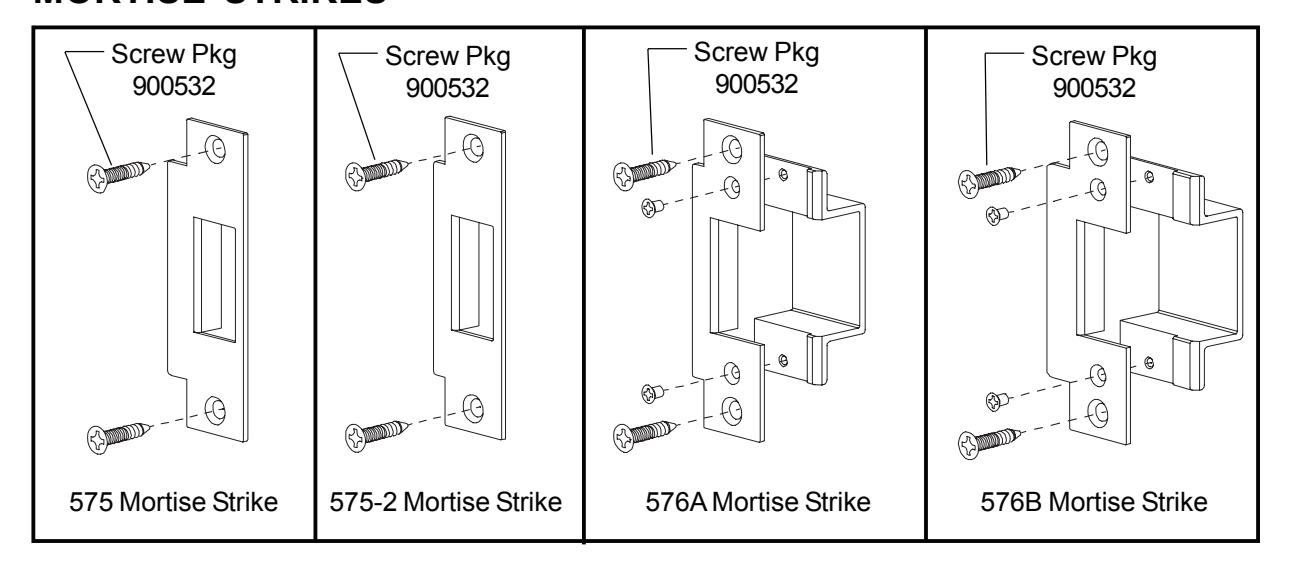

MORTISE STRIKES

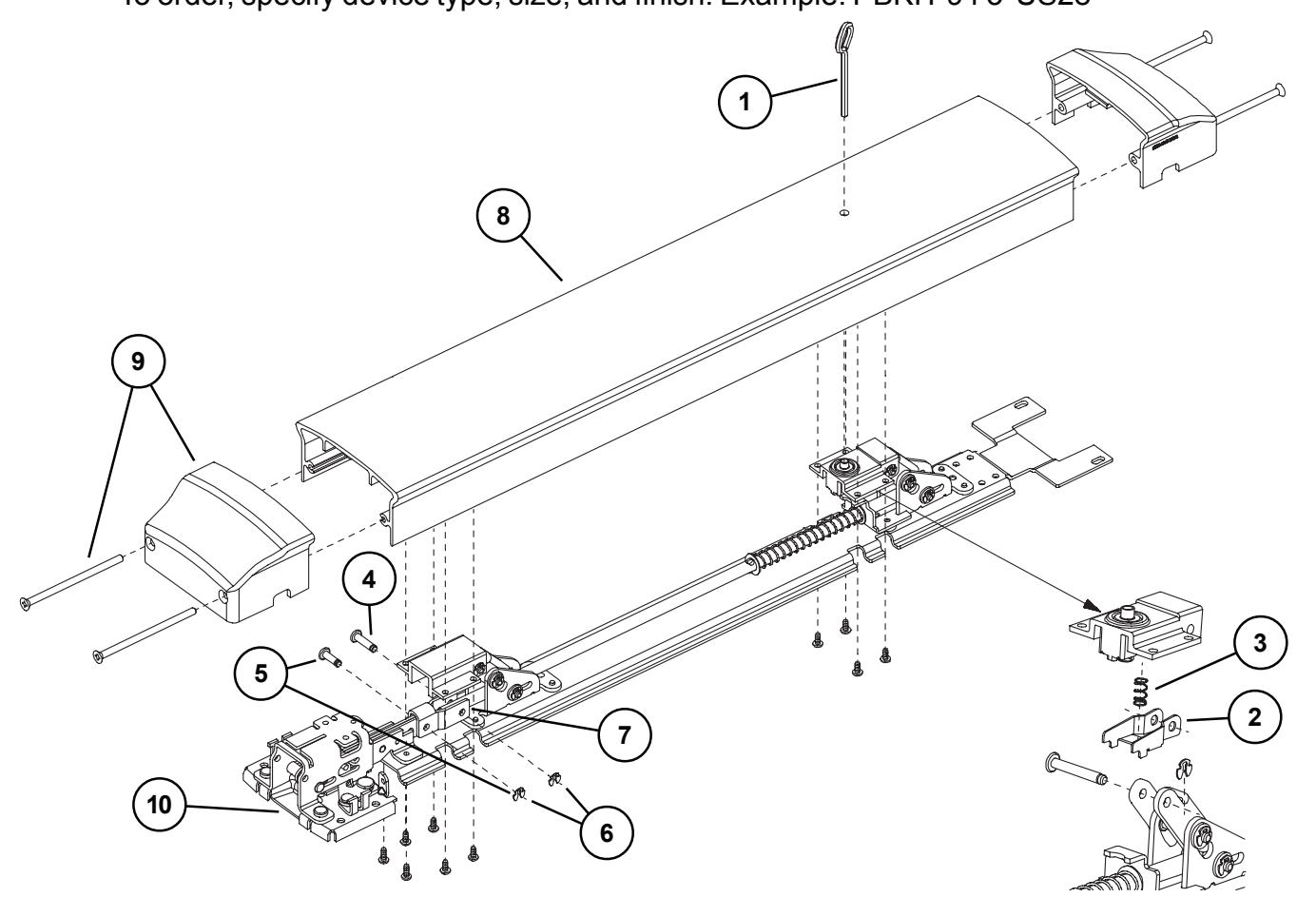

94/9575 PANIC EXIT DEVICE
|
Item
No. |
Quantity |
Part
No. Description |
Finish | |
|---|---|---|---|---|
| 1 | PKGMTG.1001 |
INPACTDevice
MountingPackage |
||
| 1 | 1 | 090085 |
Dog
Key 5/32" Hex (Pkg of 10) |
|
| 1 | 1 | 090005 |
Dog
Key 5/32" Hex (Pkg of 2) |
|
| 2 | 1 | 971659 |
Dogging
Clip |
|
| 3 | 1 | 971664 |
Dogging
Clip Spring |
|
| 4 | 1 | 971706 |
Baseplate
Link Pin |
|
| 5 | 1 | 050585 |
Control
LinkPinKit(w/Retaining Ring) |
|
| 6 | 1 | 090107 |
Control
LinkPin Retaining RingPkg/10 |
|
| 7 | 1 | 971712 |
Main
Control Link |
|
| 8 | 1 | 971763 |
9547/48/75
Pushpad |
X |
| 8 | 1 | 971764 |
9447/48/75
Pushpad |
X |
| 8 | 1 | 971709 |
9547/48/75Pushpad
(US3,/US26) |
X |
| 8 | 1 | 971710 |
9447/48/75Pushpad
(US3,/US26) |
X |
| 9 | 2 | ECAP.115 |
94/9547/48/75
End Cap Package |
X |
| 10 | 1 | CASE.107 |
94/9547/48/75
Center Case |
|
X in "Finish" column designates finished items; finish must be specified when ordering. * To order, specify device type, size, and finish. Example: PBKIT 94 3' US28

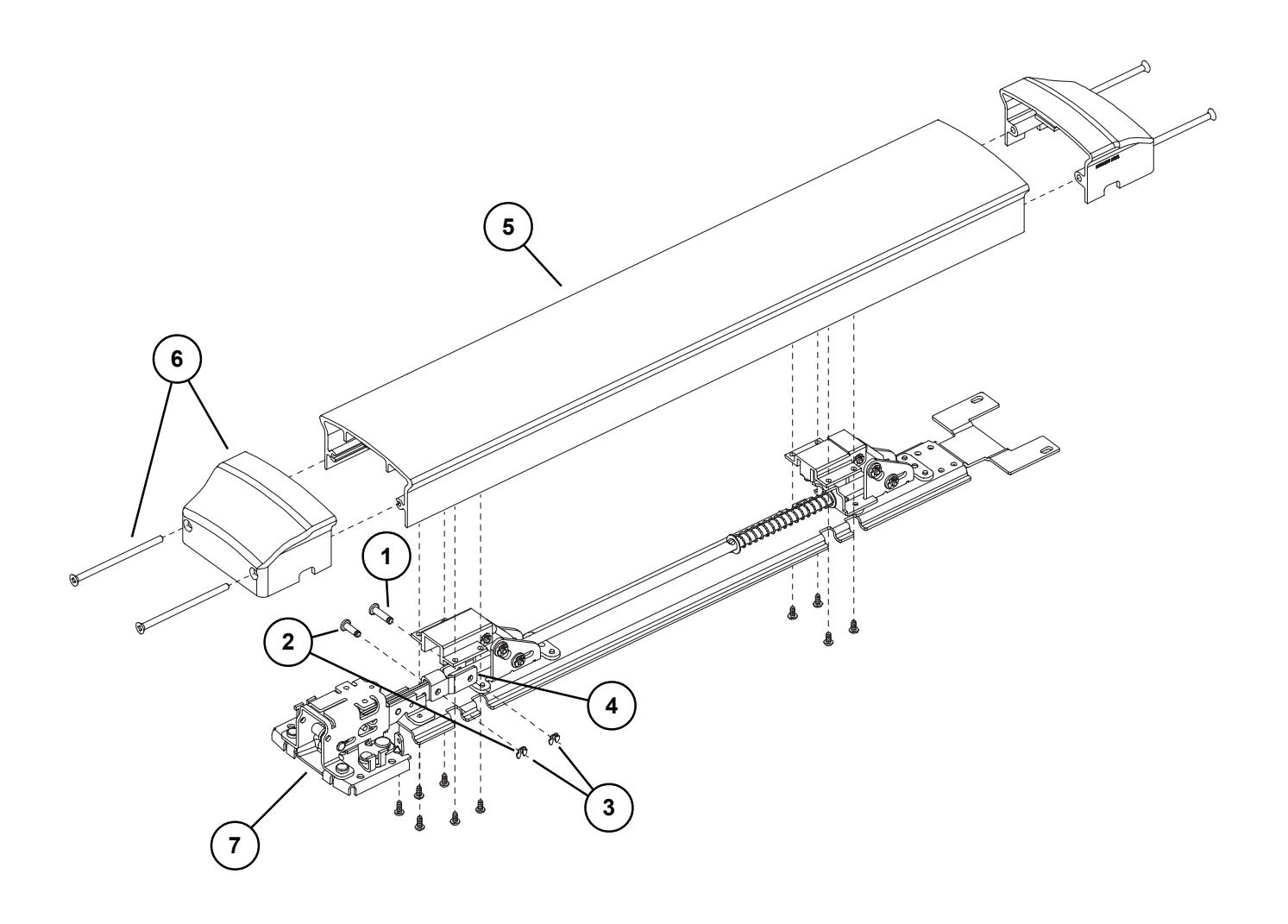

94/9575-F FIRE EXIT DEVICE
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | PKGMTG.1001 |
INPACT
Device MountingPackage |
||
| 1 | 1 | 971706 |
Baseplate
Link Pin |
|
| 2 | 1 | 050585 |
Control
LinkPinKit(w/Retaining Ring) |
|
| 3 | 1 | 090107 |
Control
LinkPin Retaining RingPkg/10 |
|
| 4 | 1 | 971712 |
Main
Control Link |
|
| 5 | 1 | 971765 | 9547/48-F/75-FPushpad | X |
| 5 | 1 | 971766 | 9447/48-F/75-FPushpad | X |
| 5 | 1 | 971655 |
9547/48/75-FPushpad
(US3,/US26) |
X |
| 5 | 1 | 971656 |
9447/48/75-FPushpad
(US3,/US26) |
X |
| 6 | 2 | ECAP.115 |
94/9547/48/75
End Cap Package |
X |
| 7 | 1 | CASE.107 |
94/9547/48/75
Center Case |
X in "Finish" column designates finished items; finish must be specified when ordering.
* To order, specify device type, size, and finish. Example: PBKIT 94 3' US28

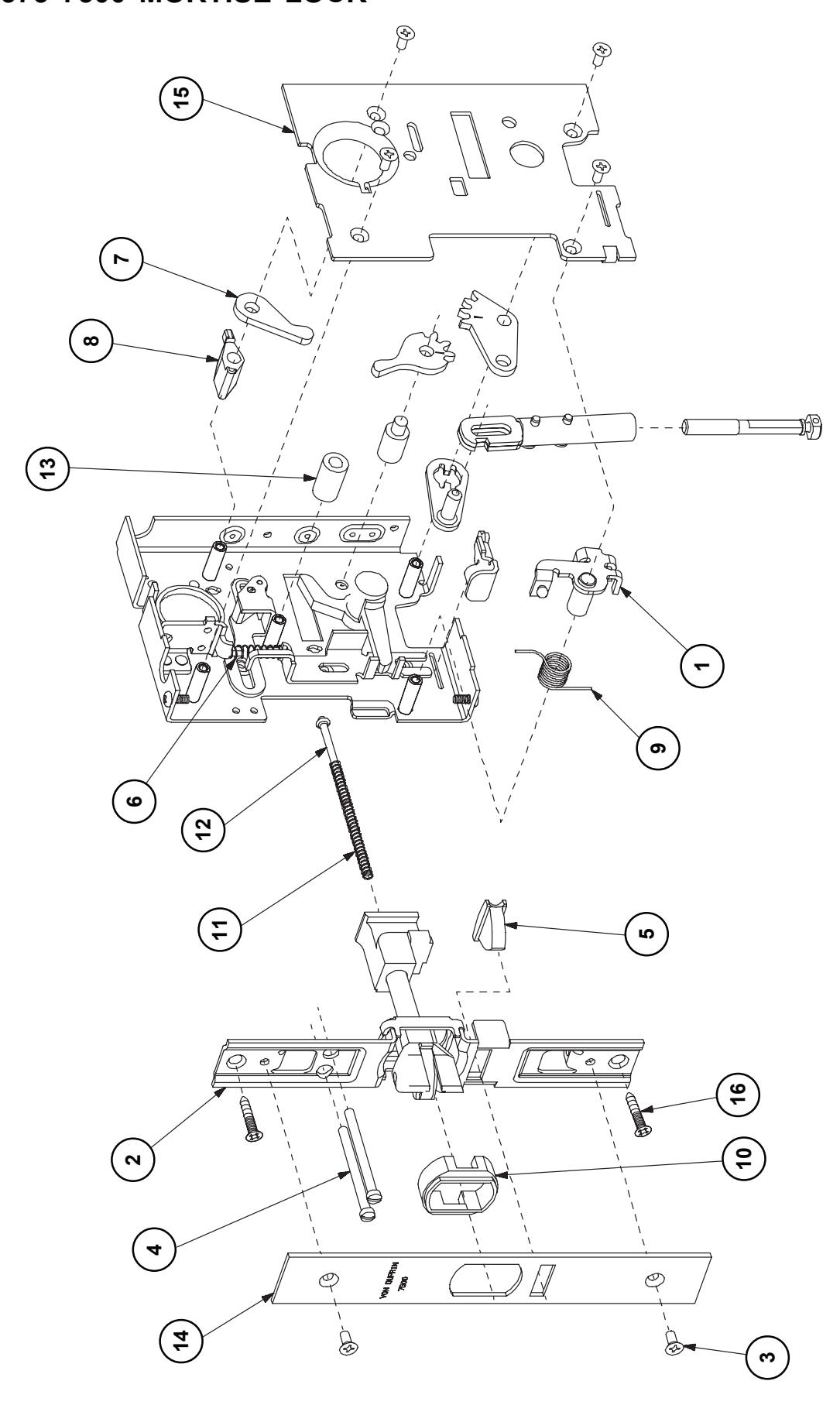

94/9575 7500 MORTISE LOCK
94/9575 7500 MORTISE LOCK
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 109347 |
7500AuxiliaryBolt
LinkSub-Assembly |
|
| 2 | 1 | 109773 |
7500
Latchbolt and FaceplateSub-Assembly |
|
| 3 | 2 | 963080 |
7500
Scalp Plate - 8-32 x 3/8" FPHMS |
X |
| 4 | 2 | 963954 |
7500
Cyl. Set - 8-32 x 2" Fill SHMS |
|
| 5 | 1 | 968668 | 7500AuxiliaryBolt | |
| 6 | 1 | 968748 |
7500
Deadlocking Spring |
|
| 7 | 1 | 968761 |
7500Trim
Bolt Retractor |
|
| 8 | 1 | 968793 |
7500Trim
LockActuator |
|
| 9 | 1 | 968935 | 7500 Auxiliary Bolt Spring | |
| 10 | 1 | 968939 |
7500
Latchbolt Collar |
|
| 11 | 1 | 969089 |
7500
Latch ReturnSpring |
|
| 12 | 1 | 969610 |
7500
Latch ReturnSpring Guide |
|
| 13 | 1 | 970735 |
7500
Stem Support |
|
| 14 | 1 | 968766 |
7500
Scalp Plate - US32, US32D |
X |
| 14 | 1 | 970872 |
7500
Scalp Plate - Brass, Bronze |
X |
| 15 | 1 | 971822 |
7500
Housing Cover |
|
| 16 | 2 | 900532 |
7500
Lock Mounting Pkg |
X in "Finish" column designates finished items; finish must be specified when ordering.

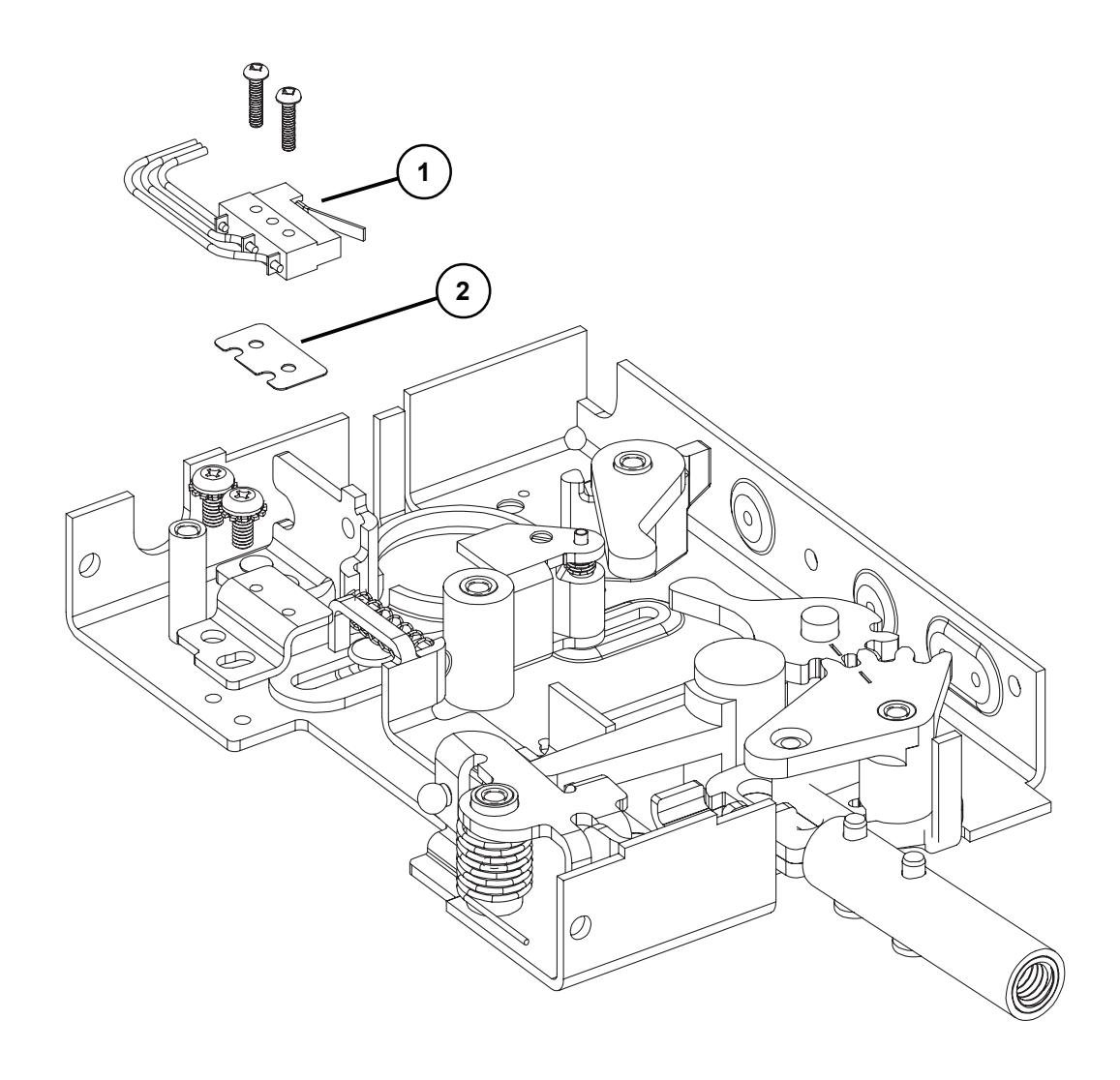

94/9575 SS7500 MORTISE LOCK
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 109658 |
Switch
WiringAssembly (R/Y/B Wires) |
|
| 2 | 1 | 968770 | SwitchInsulator |
Note: SS7500 Mortise Lock uses all the same parts as 7500 Mortise Lock on pages 6-7 plus the items on this page.

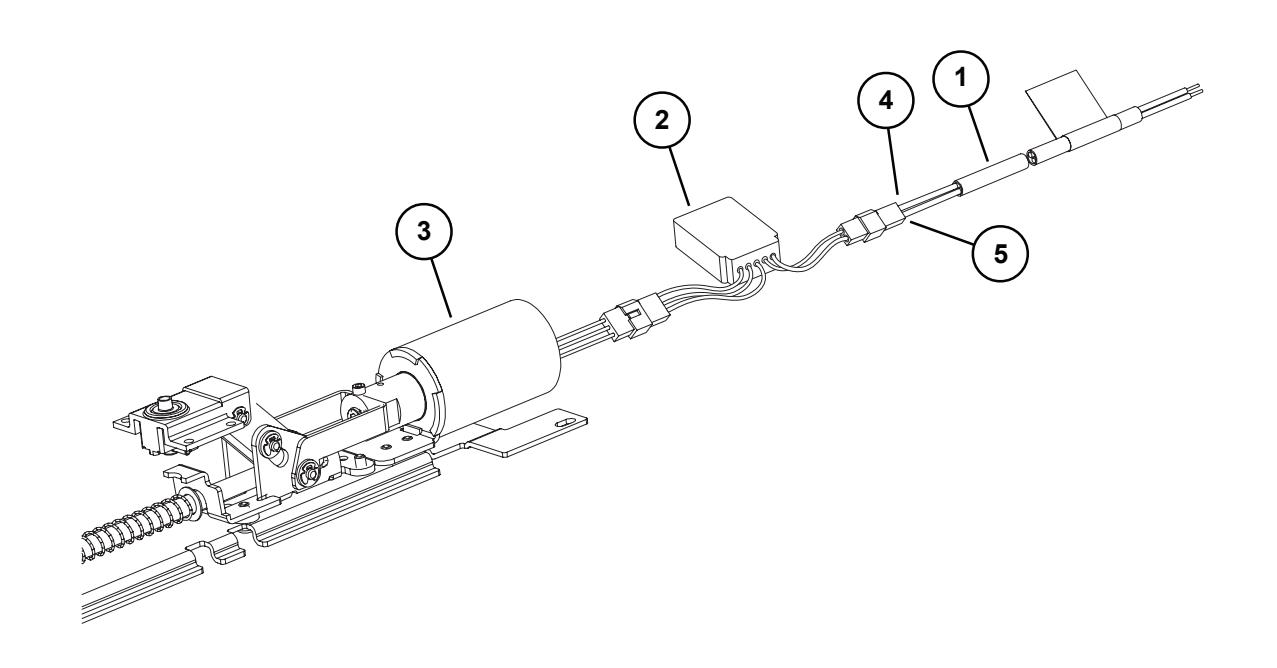

EL94/9575 ELECTRIC LATCH RETRACTION OPTION
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 110388 | EL 6' Cable and Connector | |
| 2 | 1 | 050534 | EL Potted Module | |
| 3 | 1 | 113189 | EL Solenoid Assembly | |
| 4 | 1 | 050539 | EL Receptacle Connector | |
| 5 | 2 | 050540 | EL Female Terminal | |
| * | 1 | 050380 | EL94/95 Conversion Kit |
* Kit includes items 1-7 plus new control link pin, retaining ring, and baseplate screws.

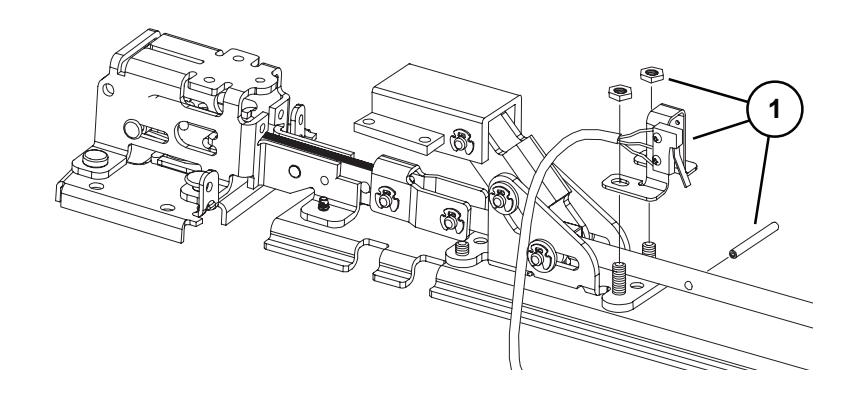

94/9575/-F LX (LATCH BOLT MONITOR)
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050226 |
94/9575/-F
LX Retrofit Kit |
