94/9547 Series Recessed Exit Devices
Service manual
INDEX
| 94/9547 Devices | |
|---|---|
| Panic Device 4 | |
| Fire Device 5 | |
| Concealed Vertical Rods and Latches 6-7 | |
| LBR (Less Bottom Rod) Fire Pin Kit 8 | |
| Variations of the Basic Device | |
| EL (Electric Latch Retraction) 9 | |
| LX (Latch Bolt Monitoring) 9 | |
| General Information | |
| Introduction 2 | |
| How to Order 2 | |
| Part Number Changes 2 | |
| Finishes 3 | |
| Outside Trim Functions 3 | |
| Strikes 3 | |
INTRODUCTION

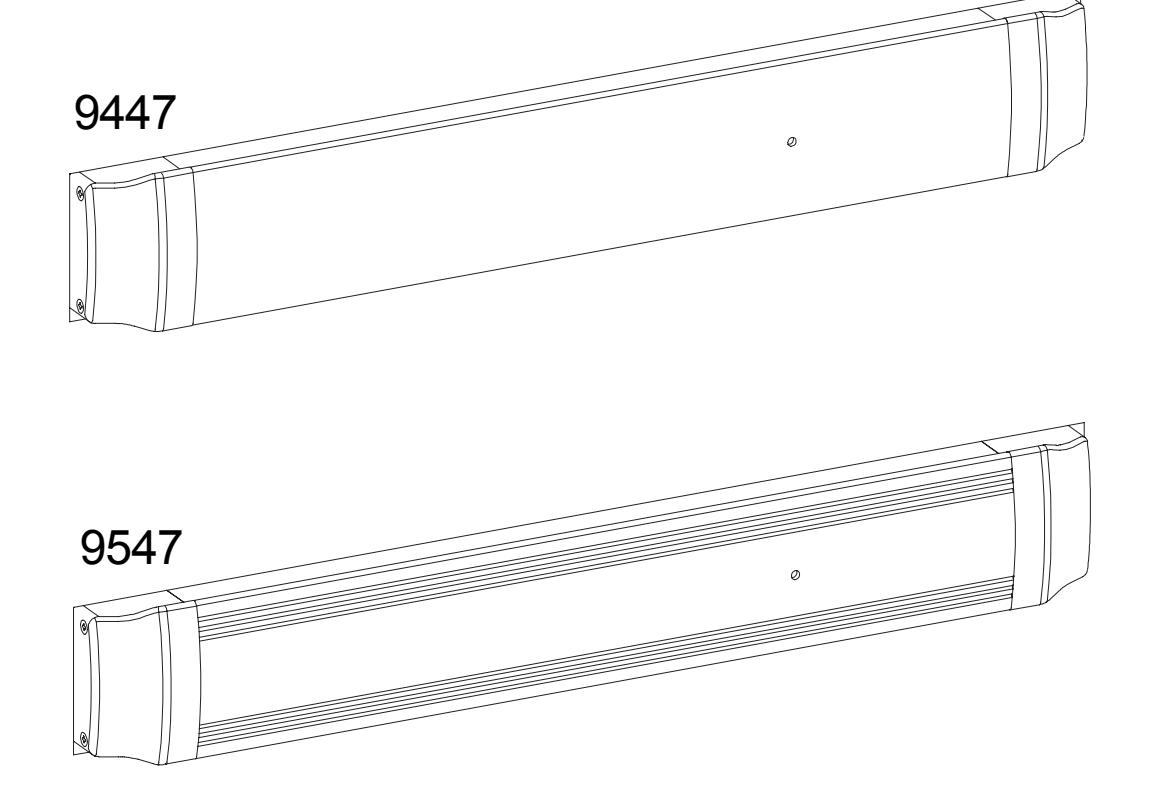

This manual contains a listing of replaceable parts and assemblies for the 94/9547 and 94/9547-F Concealed Vertical Rod Exit Devices. (94 Series and 95 Series devices are almost identical. The 95 Series has a grooved case; the 94 Series has a smooth case.)
HOW TO ORDER
Some parts are sold separately. Other items are available as part of a kit or multiple quantity package. For the best possible service when ordering replacement parts or assemblies, please provide the following information:
- Part number or assembly number
- Description
- Quantity needed
- Finish desired (if available finished)
- Date of original purchase (if known)
To find out the name of your local Von Duprin distributor or sales representative, contact:
Von Duprin Division Allegion 2720 Tobey Drive Indianapolis, Indiana 46219 Phone: (877) 671-7011
PART NUMBER AND AVAILABILITY CHANGES
This manual was designed to help illustrate the replacement parts and kits that are available for sale. Because of changes to the product and/or manufacturing process, part numbers and availability can change over time.

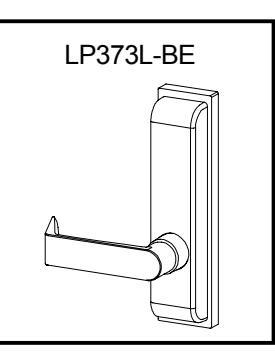

OUTSIDE TRIM FUNCTIONS
94/95 SERIES FINISHES
| 376TX550-DT | 376T-BEX550-DT |
U.S. Std
BHMA Reference |
|
|---|---|---|---|
|
US3
605 |
|||
|
US4
606 |
|||
|
US10
612 |
|||
|
US26
625 |
|||
|
US26D
626 |
|||
|
US28
628 |
|||
|
313
710 |
|||
| LP230L | LP230L-BE | LP373L | LP373L-BE |
|
U.S. Std
Reference |
BHMA
Reference |
Description |
|---|---|---|
| US3 | 605 |
Bright
Brass |
| US4 | 606 |
Satin
Brass |
| US10 | 612 |
Satin
Bronze |
| US26 | 625 |
Polished
Chrome |
| US26D | 626 |
Satin
Chrome |
| US28 | 628 | AnodizedAluminum |
| 313 | 710 | Duranodic Dark Bronze |
| US26D-AM | 626-AM | Satin Chrome, AM |
- * "BE" (Blank Escutcheon) no cylinder used lever always active
- ** "DT" (Dummy Trim) rigid lever for pull operation
STRIKES

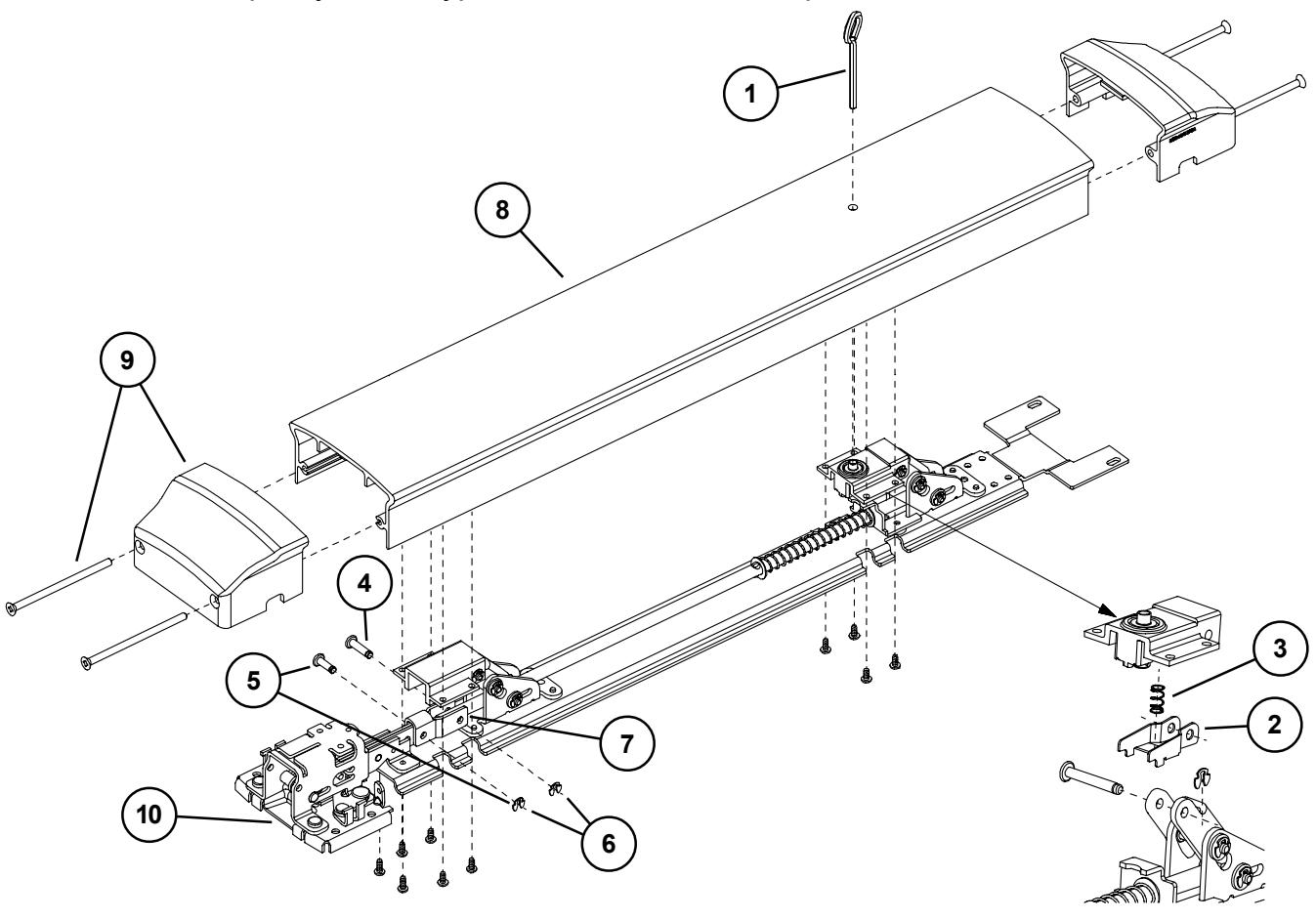

94/9547 PANIC EXIT DEVICE
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | PKGMTG.1001 |
INPACTDevice
MountingPackage |
||
| 1 | 1 | 090085 |
Dog
Key 5/32" Hex (Pkg of 10) |
|
| 1 | 1 | 090005 |
Dog
Key 5/32" Hex (Pkg of 2) |
|
| 2 | 1 | 971659 |
Dogging
Clip |
|
| 3 | 1 | 971664 |
Dogging
Clip Spring |
|
| 4 | 1 | 971706 |
Baseplate
Link Pin |
|
| 5 | 1 | 050585 |
Control
LinkPinKit(w/Retaining Ring) |
|
| 6 | 1 | 090107 |
Control
LinkPin Retaining RingPkg/10 |
|
| 7 | 1 | 971712 |
Main
Control Link |
|
| 8 | 1 | 971763 |
9547/48/75
Pushpad |
X |
| 8 | 1 | 971764 |
9447/48/75
Pushpad |
X |
| 8 | 1 | 971709 |
9547/48/75Pushpad
(US3,/US26) |
X |
| 8 | 1 | 971710 |
9447/48/75Pushpad
(US3,/US26) |
X |
| 9 | 2 | ECAP.115 |
94/9547/48/75
End Cap Package |
X |
| 10 | 1 | CASE.107 |
94/9547/48/75
Center Case |
X in "Finish" column designates finished items; finish must be specified when ordering.

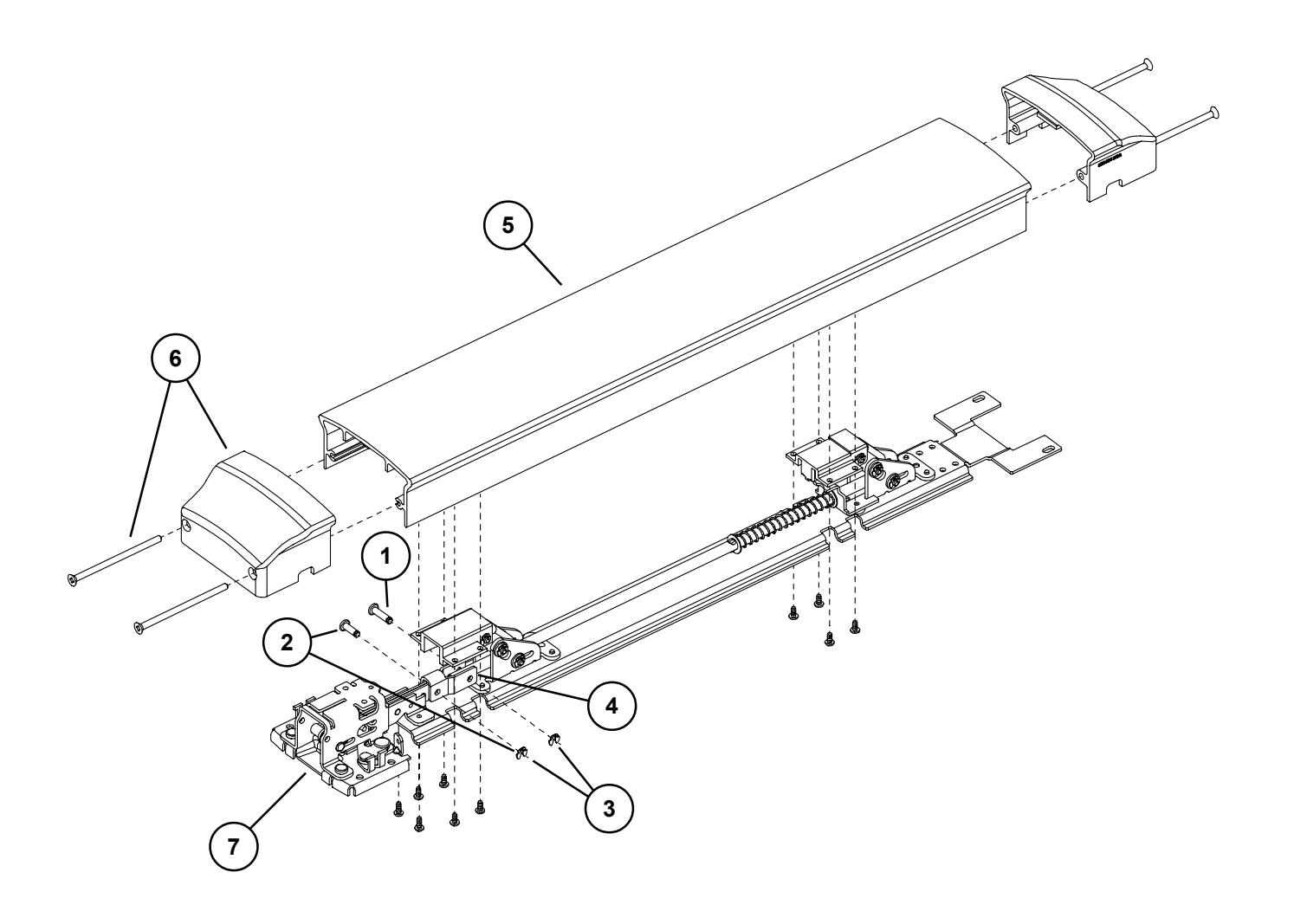

94/9547-F FIRE EXIT DEVICE
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | PKGMTG.1001 |
INPACT
Device MountingPackage |
||
| 1 | 1 | 971706 |
Baseplate
Link Pin |
|
| 2 | 1 | 050585 |
Control
LinkPinKit(w/Retaining Ring) |
|
| 3 | 1 | 090107 |
Control
LinkPin Retaining RingPkg/10 |
|
| 4 | 1 | 971712 |
Main
Control Link |
|
| 5 | 1 | 971765 | 9547/48-F/75-FPushpad | X |
| 5 | 1 | 971766 | 9447/48-F/75-FPushpad | X |
| 5 | 1 | 971655 |
9547/48/75-FPushpad
(US3,/US26) |
X |
| 5 | 1 | 971656 |
9447/48/75-FPushpad
(US3,/US26) |
X |
| 6 | 2 | ECAP.115 |
94/9547/48/75
End Cap Package |
X |
| 7 | 1 | CASE.107 |
94/9547/48/75
Center Case |
X in "Finish" column designates finished items; finish must be specified when ordering.
* To order, specify device type, size, and finish. Example: PBKIT 94 3' US28

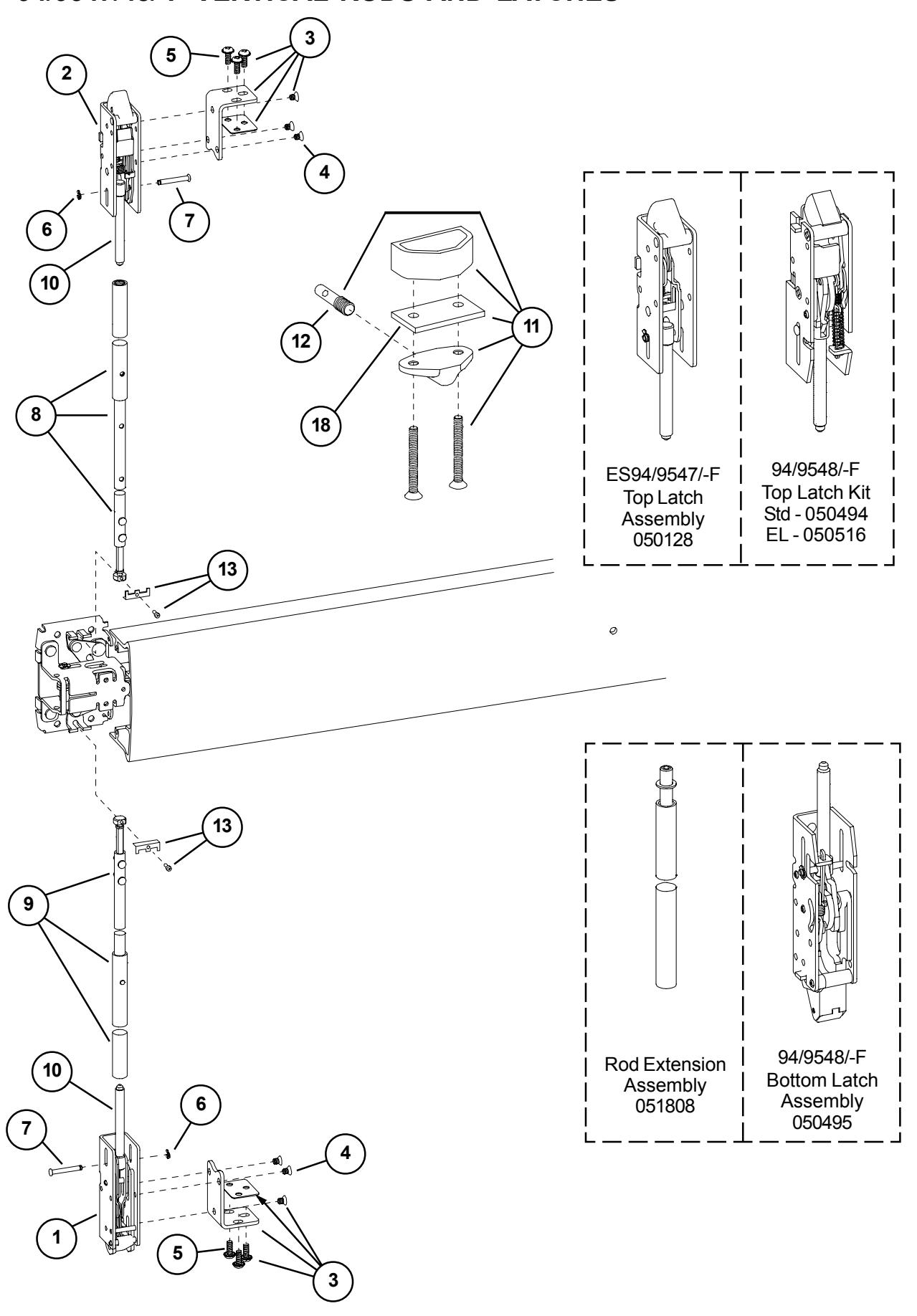

94/9547/48/-F VERTICAL RODS AND LATCHES
94/9547/48/-F VERTICAL RODS AND LATCHES
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| * | 1 | 050047 |
94/9548
Latch Retrofit Kit |
|
| * | 1 | 050048 |
94/9548/-F
Latch Retrofit Kit |
|
| 1** | 1 | 050493 |
94/9547/-F
Bottom Latch Kit |
|
| 2** | 1 | 050492 |
94/9547/-F
Top Latch Kit |
|
| 3 | 2 | 109324 |
94/9547/-F
Latch Mtg Bracket Kit |
|
| 3 | 2 | 112868 |
94/9548/-F
Latch Mtg Bracket Kit |
|
| 4 | 6 | 090059 |
Latch
Bracket Mtg Screw (Latch) |
|
| 5 | 6 | 090061 |
Latch
Bracket Mtg Screw (Metal Door) |
|
| 5 | 6 | 900856 |
Latch
Bracket Mtg Screw (Wood Door) |
|
| 6 | 2 | 090063 |
Retaining
Ring (Pkg of 10) |
|
| 7 | 2 | 090064 |
Latch
Link Pin (Pkg of 10) |
|
| 8 | 1 | RODASY.121 |
Adjustable
Top Rod 6'8" - 8'4" Door |
|
| 9 | 1 | RODASY.122 |
Adjustable
Bottom Rod Kit |
|
| 10 | 2 | 090071 |
94/9547/-F
Rod Connecting Screw |
|
| 10 | 2 | 090072 |
94/9548/-F
Rod Connecting Screw |
|
| 11 | 1 | 106222 |
Ratchet
Release Pkg |
X |
| 12 | 1 | 090070 |
Ratchet
Release Screw |
|
| 13 | 2 | KIT.1001 |
94/9547/-F
Rod Adjustment Kit |
|
| 13 | 2 | KIT.1002 |
94/9547/-F
Rod Adjustment Kit - LBR |
|
| 14 | 1 | 090065 |
Bolt
Return Spring |
|

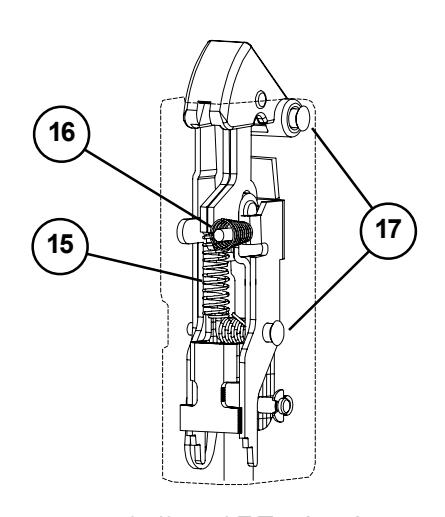

| 15 | 1 | 090066 |
Top Latch
Compression Spring (Pkg of 10) |
|
| 16 | 1 | 090069 |
Ratchet
Lever Spring (Pkg of 2) |
|

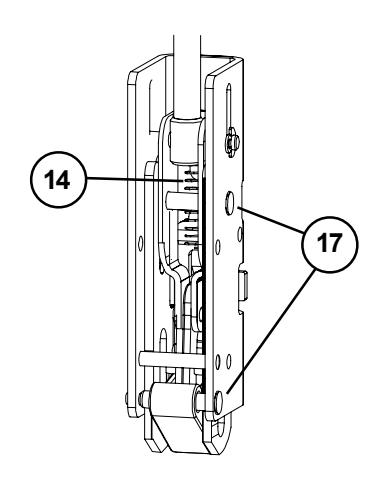

| 17 | 1 | 090062 | Btm Latch Case Spirol Pin (Pkg of 10) | |
| 18 | 1 | 970978 |
94/9547/-F
Ratchet Release Spacer 1/8" |
X in "Finish" column designates finished items; finish must be specified when ordering. *Retrofit kit includes items 1-3 to convert 94/9547/-F to 94/9548/-F.
** Each latch kit (item 1-2) includes only one latch mtg bracket kit (item 3). For service replacement only. Refer to retrofit kits to convert 94/9547/-F to 94/9548/-F.
94/9547/-F Top Latch 94/9547/-F Bottom Latch
94/9547-F LBR (LESS BOTTOM ROD) FIRE PIN KIT
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 051860 | 47 LBR Fire Pin Kit | |
| 2 | 1 | 050509 | LBR Fire Strike Plug |

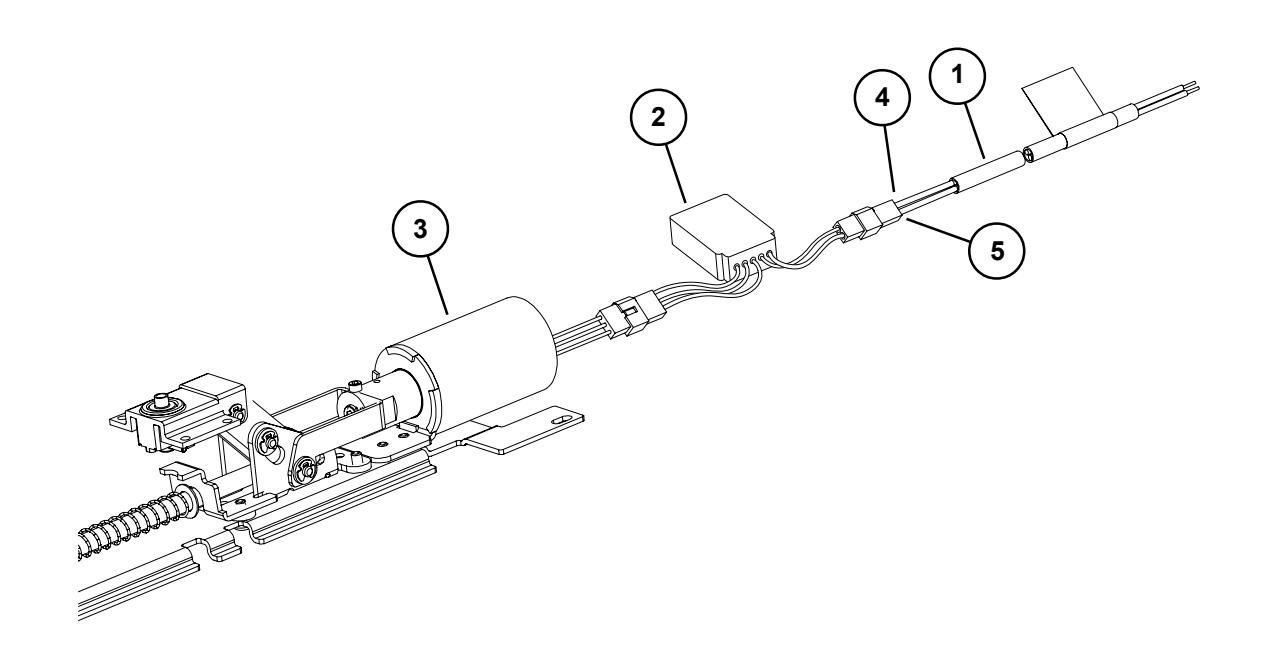

EL94/9547 ELECTRIC LATCH RETRACTION OPTION
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 110388 | EL 6' Cable and Connector | |
| 2 | 1 | 050534 | EL Potted Module | |
| 3 | 1 | 113189 | EL Solenoid Assembly | |
| 4 | 1 | 050539 | EL Receptacle Connector | |
| 5 | 2 | 050540 | EL Female Terminal | |
| * | 1 | 050380 | EL94/95 Conversion Kit |
* Kit includes items 1-7 plus new control link pin, retaining ring, and baseplate screws.
94/9547/-F LX (LATCH BOLT MONITOR)
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050226 |
94/9547/-F
LX Retrofit Kit |
