Von Duprin 88TP Rim Exit Device For Wood Door Template diagram on page 1

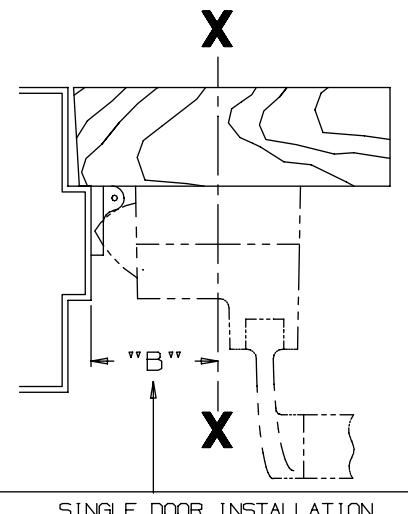

SINGLE DOOR INSTALLATION
STRIKE DIMENSION "B" MIN. STILE
299 2 1/2" 4 3/8"
264 2 1/4" 4 1/8"
1606 2 1/16" 3 15/16"

Von Duprin 88TP Rim Exit Device For Wood Door Template image on page 1

Von Duprin 88TP Rim Exit Device For Wood Door Template image on page 1

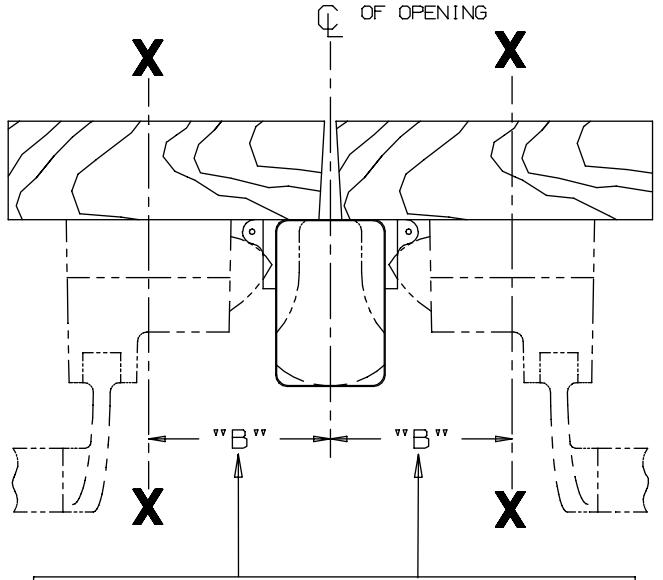

DOUBLE DOOR INSTALLATION
WITH VON DUPRIN MULLIONS
MULLION STRIKE DIMENSION "B" MIN. STILE
(1) 5654 299 3 1/16" 4 1/4"
(1) 5654 264 2 13/16" 4"
) 4954 299 3 1/2" 4 11/16"
4954 264 3 1/4" 4 7/16"
1654 1606 3 1/16" 4 1/4"

FOR OUTSIDE TRIM PREPARATION, WHEN REQUIRED, SEE ADDITIONAL TRIM TEMPLATE.

Von Duprin 88TP Rim Exit Device For Wood Door Template diagram on page 1

INSIDE FACE OF LOCK STILE LHR DOOR

CROSSBAR 36 13/16" FROM FINISHED FLOOR

LHR SHOWN RHR OPPOSITE

NOTE; MOUNTING HOLES TO BE PREPARED AT INSTALLATION ON DOOR.

88TP Series Rim Device (Wood Door)

VON DUPRIN ®

TEMPLATE NUMBER:

W10157_a

DATE: 05-29-13
