FOR ADDITIONAL INFORMATION SEE TEMPLATE NO. 10157 OR NO. 10171

NOTE: TYPE 161 STOCK HOLLOW METAL APPLICATIONS FOR 88 DEVICES WILL WORK ONLY ON THESE APPLICATIONS: SINGLE DOOR & 299, Z99F OR Z68 STRIKE.

TYPE 161 STOCK HOLLOW METAL DOOR

FOR OUTSIDE TRIM PREPARATION, SEE ADDITIONAL TRIM TEMPLATE.

LHR SHOWN RHR OPPOSITE

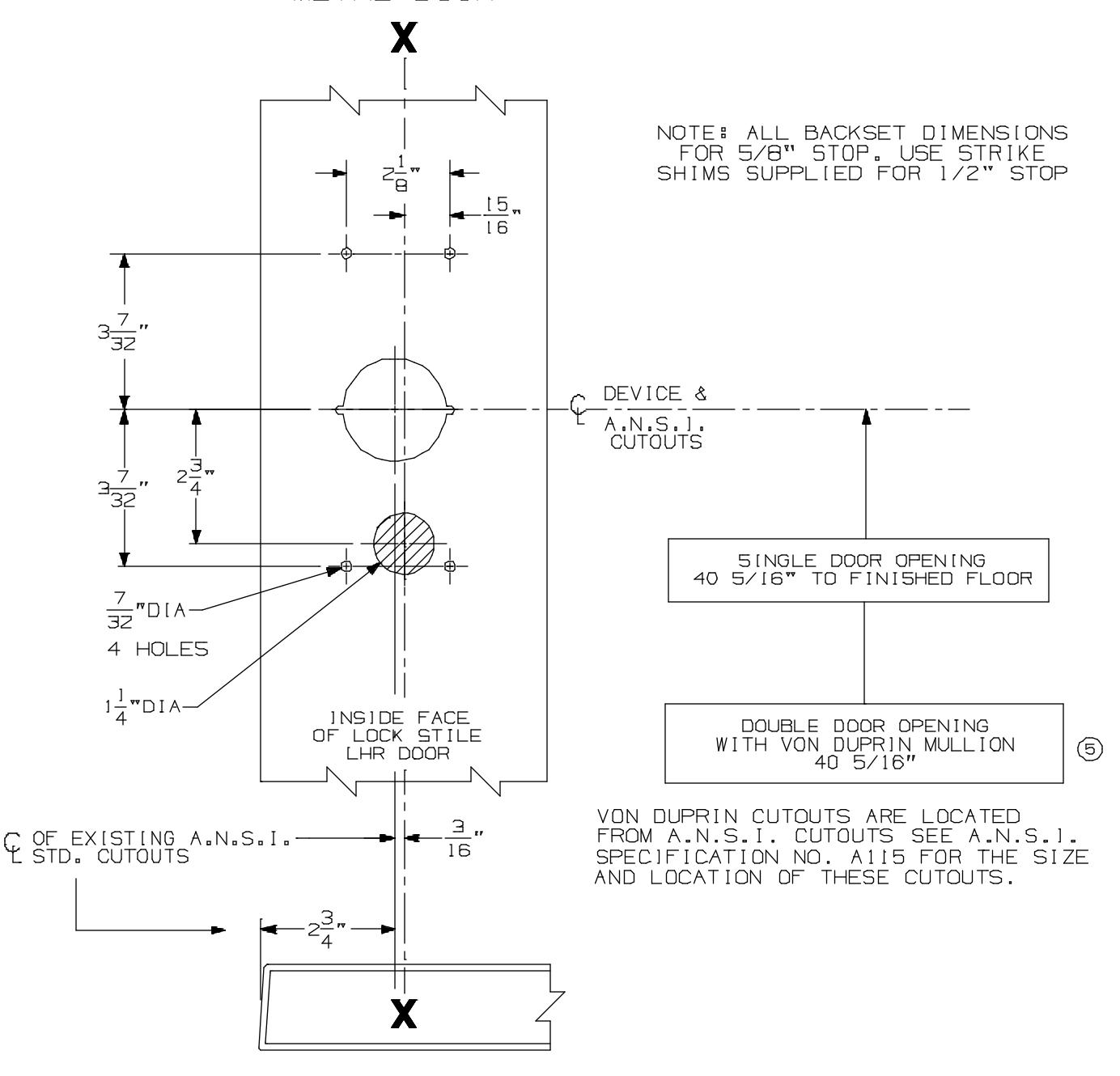

88TP Rim Devices with 880 Trim for Type "86" Stock Hollow Metal Applications

VON DUPRIN ®

TEMPLATE NUMBER:

10196_a

DATE: 05-16-13
