Von Duprin 88TP & 88TP-2 Series Rim Devices For Metal Applications Template

Original Source Document Full PDF Version

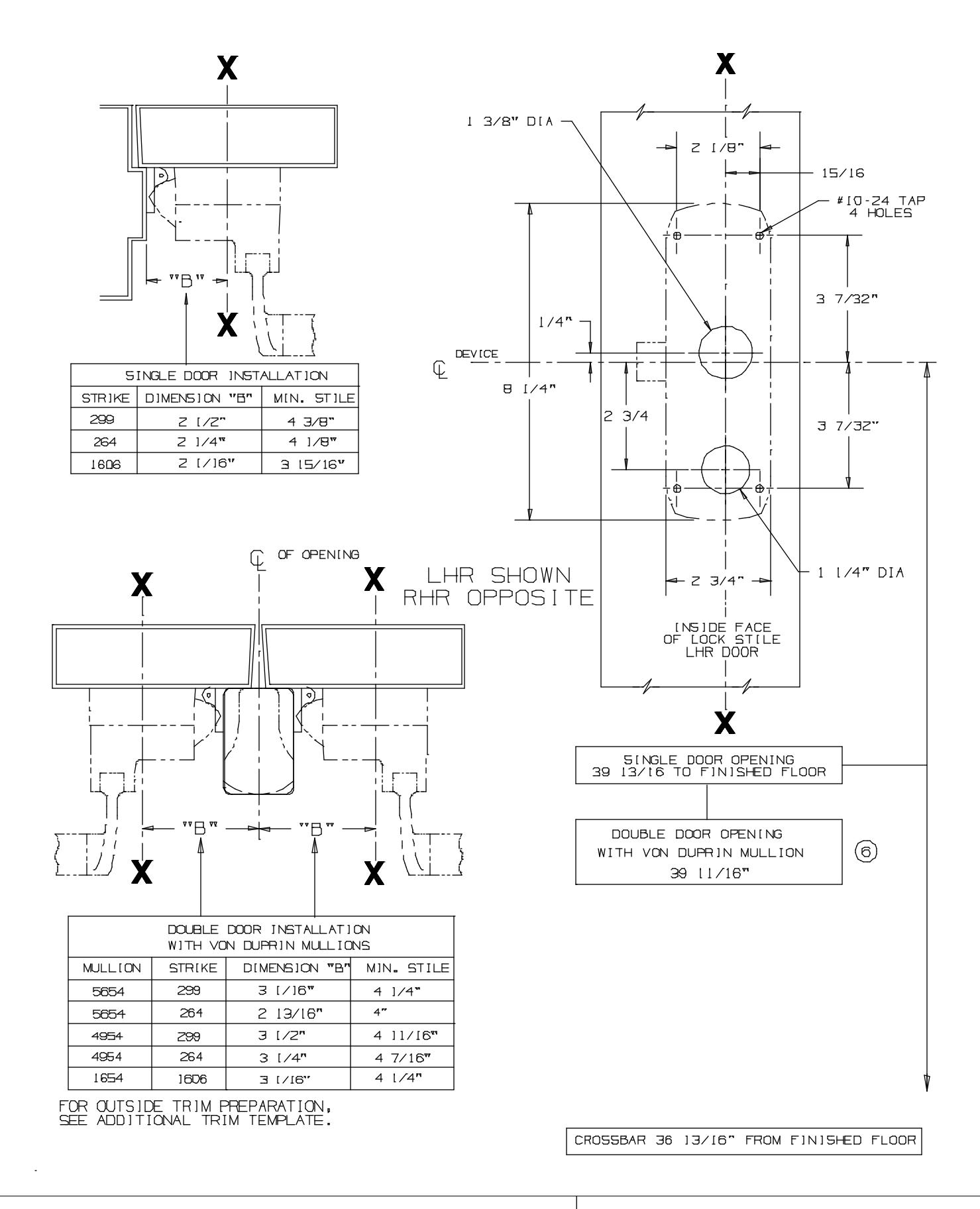

Von Duprin 88TP & 88TP-2 Series Rim Devices For Metal Applications Template diagram on page 1

88TP & 88TP-2 Series Rim Devices

VON DUPRIN ®

TEMPLATE NUMBER:

10157_a

DATE: 05-16-13
