Von Duprin 88L-F Rim Device For Metal Applications Template

Original Source Document Full PDF Version

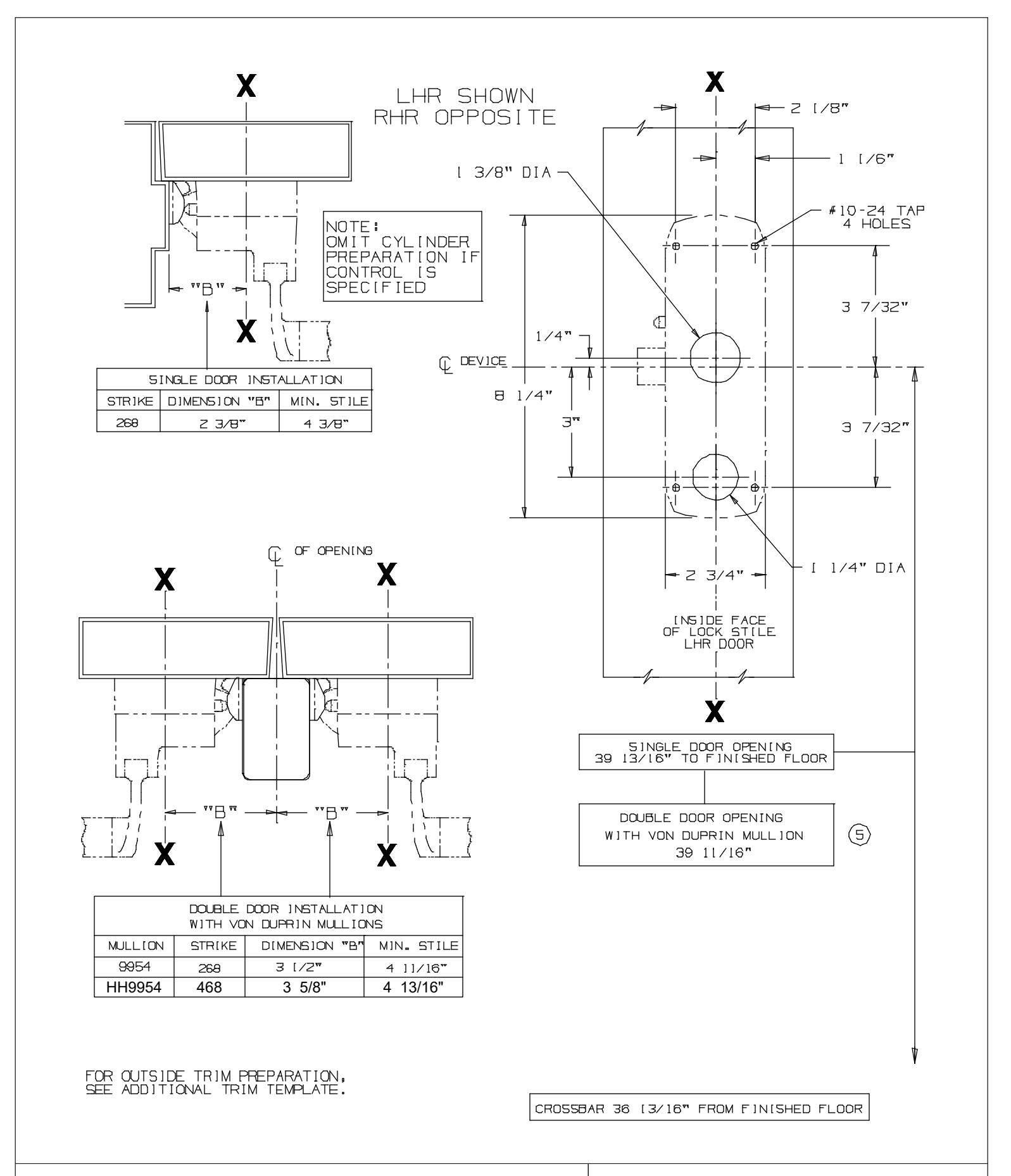

Von Duprin 88L-F Rim Device For Metal Applications Template diagram on page 1

88L-F Rim Device VON DUPRIN

NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING

TEMPLATE NUMBER:

10172_b

DATE: 05-21-21
