Von Duprin 88K Rim Devices with 880 Trim for Type “161” Stock Hollow Metal Applications Template

Original Source Document Full PDF Version

FOR ADDITIONAL INFORMATION SEE TEMPLATE NO. 10158 OR NO. 10172

NOTE: TYPE 161 STOCK HOLLOW METAL APPLICATIONS FOR 88 DEVICES WILL WORK ONLY ON THESE APPLICATIONS: SINGLE DOOR & 299, 299F OR 268 STRIKE. 6

TYPE 161 STOCK HOLLOW METAL DOOR

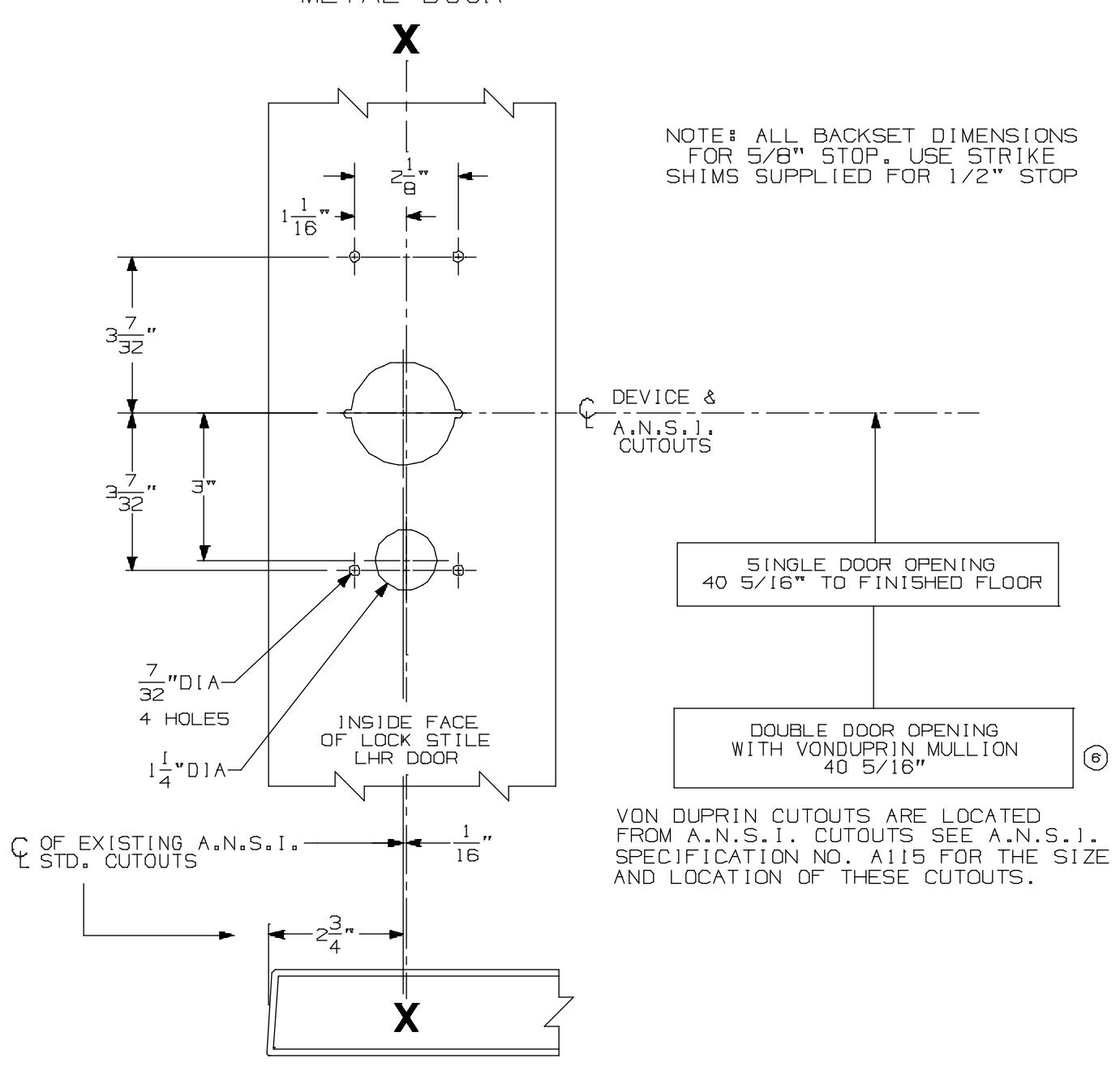

Von Duprin 88K Rim Devices with 880 Trim for Type “161” Stock Hollow Metal Applications Template diagram on page 1

FOR OUTSIDE TRIM PREPARATION, SEE ADDITIONAL TRIM TEMPLATE.

LHR SHOWN RHR OPPOSITE

88K Rim Devices w/ 880 Trim for Type "161" Stock Hollow Metal Applications

VON DUPRIN ®

TEMPLATE NUMBER:

10197 a

DATE: 05-16-13
