Von Duprin 88EO & 88DT Series Rim Devices For Metal Applications Template

Original Source Document Full PDF Version

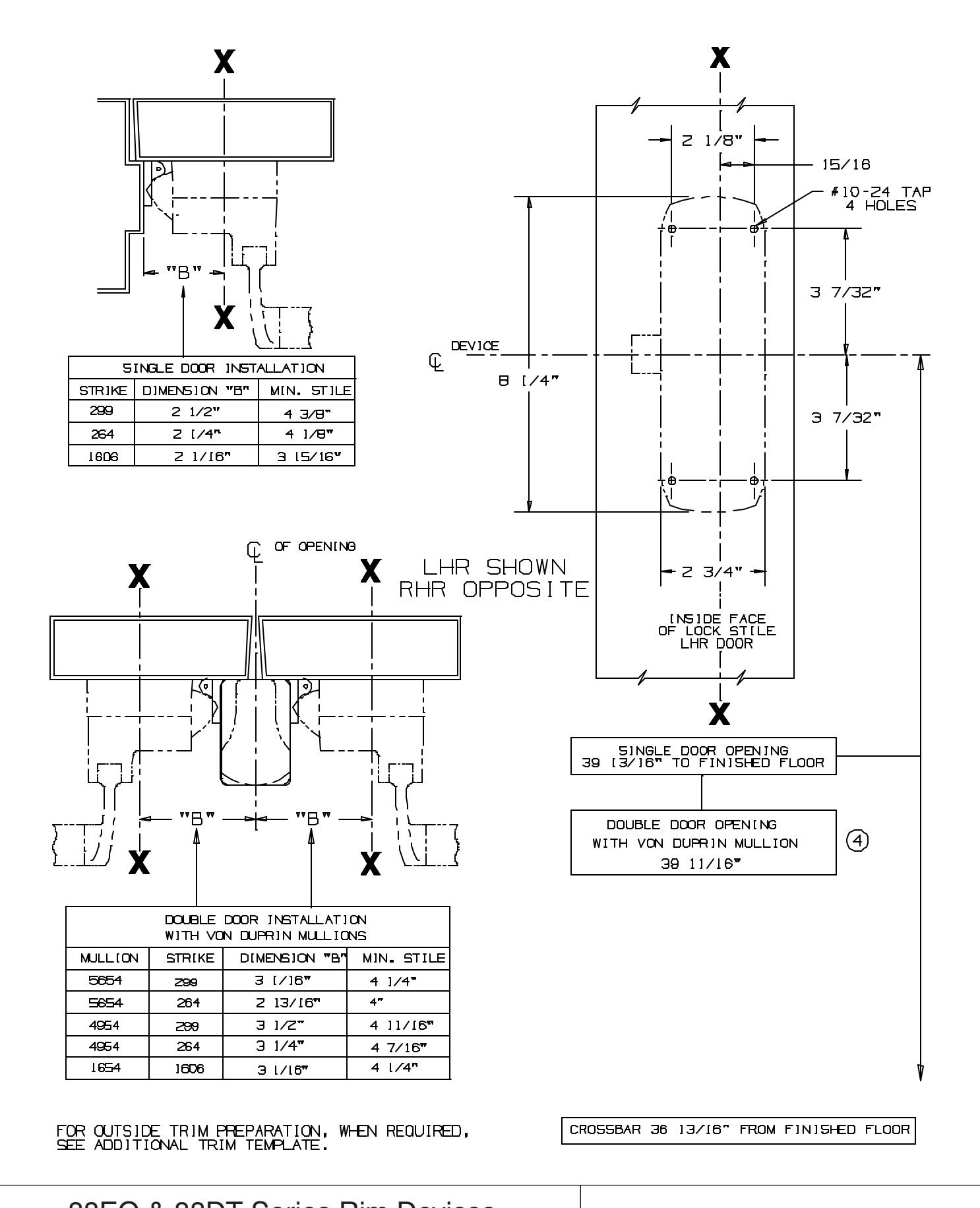

Von Duprin 88EO & 88DT Series Rim Devices For Metal Applications Template diagram on page 1

88EO & 88DT Series Rim Devices

VON DUPRIN ®

TEMPLATE NUMBER:

10155_a

DATE: 05-16-13
