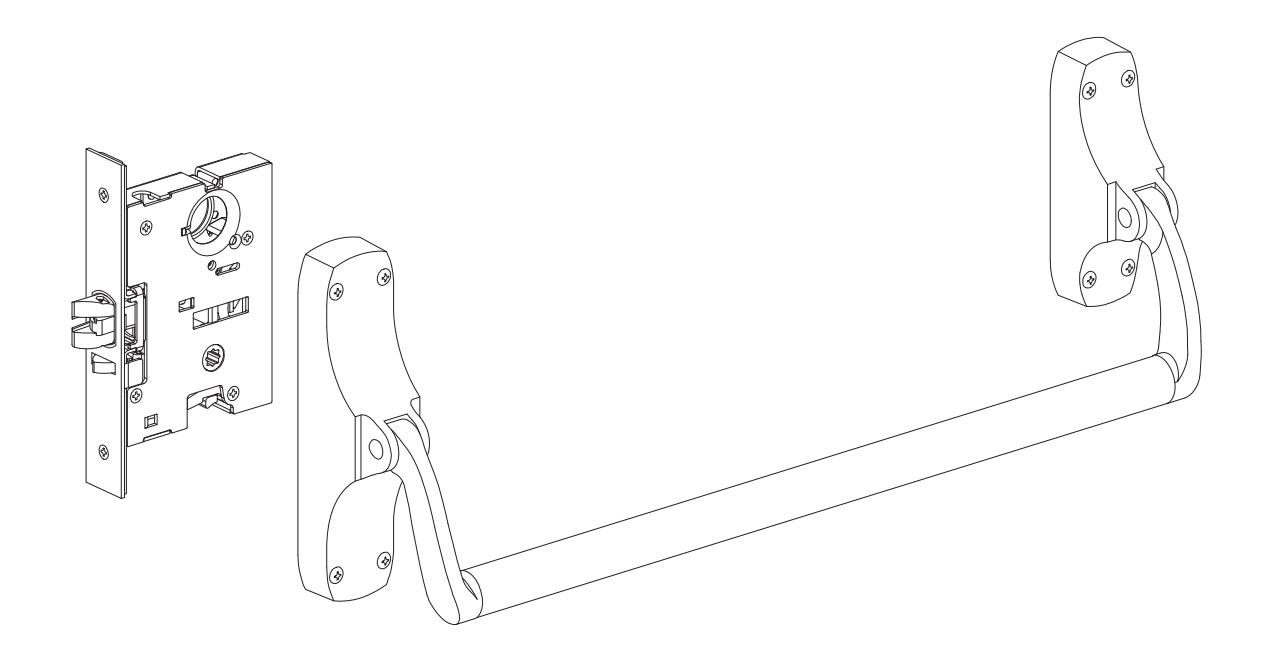

8875 Mortise Lock Series Exit Devices
Service manual
INDEX
General Information Introduction ..................................................................................................................................... 2 How to Order .................................................................................................................................. 2 Part Number Changes .................................................................................................................... 2 8875 Series Finishes ...................................................................................................................... 3 Outside Trim Functions................................................................................................................... 3 Strikes ............................................................................................................................................ 3
8875 Series Device Parts
| LeverArm Parts Packages 4 | |
|---|---|
| LeverArm Kits 6 | |
| Crossbars 6 | |
| End Case Kit and End Case Parts 7 | |
| Center Case Kits and Center Case Parts 8 |
INTRODUCTION
This manual contains a listing of replaceable parts and assemblies for the 8875 Series Devices.
HOW TO ORDER
Some parts are sold separately. Other items are available as part of a kit or multiple quantity package. For the best possible service when ordering replacement parts or assemblies, please provide the following information:
- Part number or assembly number
- Description
- Quantity needed
- Finish desired (if available finished)
- Date of original purchase (if known)
To find out the name of your local Von Duprin distributor or sales representative, contact:
Von Duprin Division Allegion 2720 Tobey Drive Indianapolis, Indiana 46219 Phone: (877) 671-7011
PART NUMBER AND AVAILABILITY CHANGES
This manual was designed to help illustrate the replacement parts and kits that are available for sale. Because of changes to the product and/or manufacturing process, part numbers and availability can change over time.
8875 SERIES FINISHES
|
US
Number |
BHMA
Number |
Color |
|---|---|---|
| US3 | 605 |
Brass,
polished |
| US3A | 408 |
Brass,
polished no laquer |
| US4 | 606 |
Brass,
dull |
| US4A | 410 |
Brass,
dull no laquer |
| US10 | 612 |
Bronze,
dull |
| US10B | 613 |
Brass,
dull (oxidized) |
| US26 | 625 |
Chrome,
polished |
| US26D | 626 |
Chrome,
dull |
| SPBLK | 693 |
Gloss
black powder |

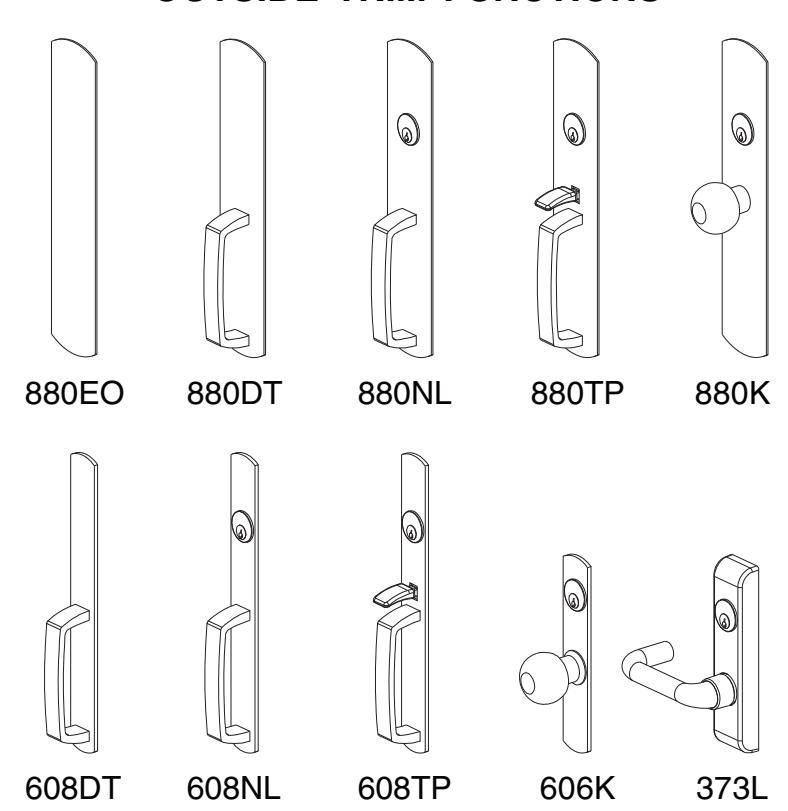

OUTSIDE TRIM FUNCTIONS

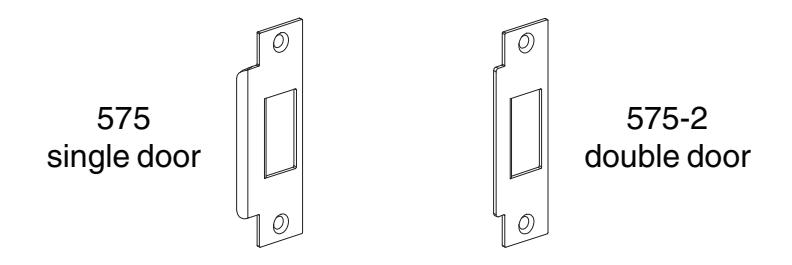

STRIKES

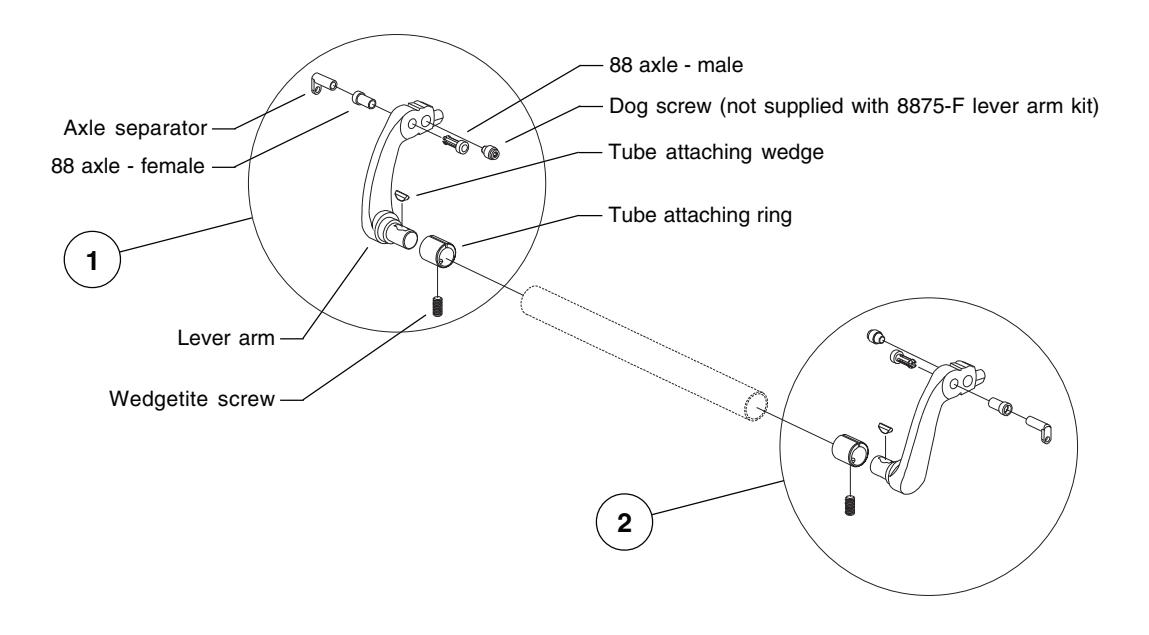

LEVER ARM PARTS PACKAGES
LEVER ARM PARTS PACKAGES
|
Item
No. |
Part
No. |
Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 090007 |
Axle
Security Pin Pkg. |
10 | |
| 1 | 033022 |
Axle
Security Pin Pkg. |
50 | |
| 2 | 090004 |
Dog
Screw Pkg. |
2 | |
| 2 | 090083 |
Dog
Screw Pkg. |
10 | |
| 3 | 090005 |
227
Dog Key 5/32" Pkg. |
2 | |
| 3 | 090085 |
227
Dog Key 5/32" Pkg. |
10 | |
| 4 | 090006 |
88
LeverArmAxles |
||
|
88Axle
Separator |
2 | |||
|
88Axle
- Male |
2 | |||
|
88Axle
- Female |
2 | |||
| 4 | 090082 |
88
LeverArmAxles |
||
|
88Axle
Separator |
10 | |||
|
88Axle
- Male |
10 | |||
|
88Axle
- Female |
10 | |||
| 5 | 090008 |
Wedgetite
Screw Pkg. |
2 | |
| 5 | 090081 |
Wedgetite
Screw Pkg. |
30 | |
| 6 | 090020 |
Crossbar
TubeAttaching Wedge Pkg. |
2 | |
| 7 | 090021 |
Crossbar
TubeAttaching Ring Pkg. |
2 | |
| 8 | 103865 |
88
LeverArm Axle Pkg. |
||
|
CylinerAnchor
Plate |
1 | |||
|
88Axle
Separator |
1 | |||
|
88Axle
- Male |
2 | |||
|
88Axle
- Female |
2 |
X in "Finish" column designates finished item; specify finish when ordering.
LEVER ARM KITS
|
Item
No. |
Part
No. |
Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 050439 |
88
R/M/V LH LeverArm Kit (includes dog screw) |
1 | X |
| 1 | 050445 |
8875-F
LH LeverArm Kit (no dog screw) |
1 | X |
| 2 | 050438 |
88
R/M/V RH LeverArm Kit (includes dog screw) |
1 | X |
| 2 | 050444 |
8875-F
RH LeverArm Kit (no dog screw) |
1 | X |
X in "Finish" column designates finished item; specify finish when ordering.

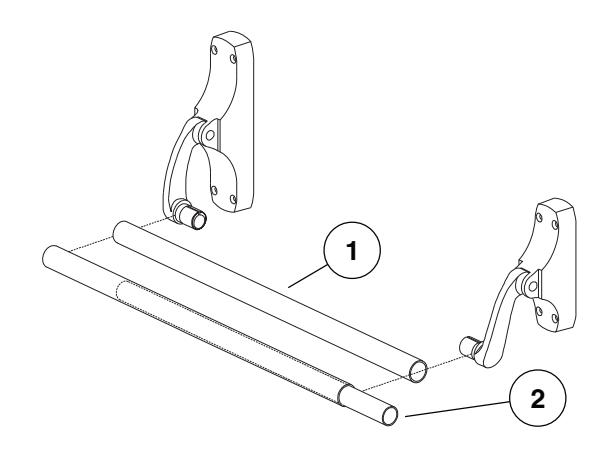

CROSSBARS
|
Item
No. |
Part
No. |
Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 050004 |
42"
Standard Crossbar Kit |
1 | X |
| 1 | 050005 |
42"
Knurled Crossbar Kit |
1 | X |
| 2 | 050459 |
37"
Crossbar ReinforcementKit |
1 |
X in "Finish" column designates finished item; specify finish when ordering.

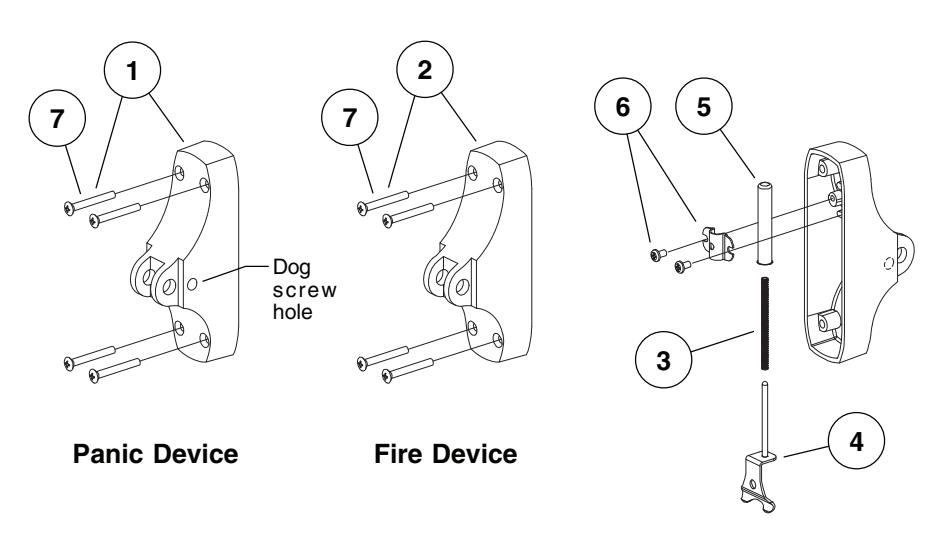

END CASE KIT AND END CASE PARTS
| Item No. | Part No. | Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 050435 | 88 R/M/V End Case Kit | X | |
| 88 R/M/V End Case | 1 | |||
| 10-24 x 1-1/2" OPHMS | 4 | |||
| 10-24 x 2" OPHMS | 4 | |||
| 10-12 x 10-24 x 2" OPHCS | 4 | |||
| 2 | 050436 | 8827-F/8875-F/8847-F End Case Kit | X | |
| 88SV/CV/M-F End Case | 1 | |||
| 10-24 x 1-1/2" OPHMS | 4 | |||
| 10-24 x 2" OPHMS | 4 | |||
| 10-12 x 10-24 x 2" OPHCS | 4 | |||
| 3 | 090003 | 88 End Case Spring Pkg. | 2 | |
| 3 | 090080 | 88 End Case Spring Pkg. | 10 | |
| 4 | 050451 | 88 End Case Spring Stop Kit | 1 | |
| 5 | 050476 | 88/88-F End Case Spring Tube | 1 | |
| 6 | 050477 | 88/88-F Spring Tube Bracket w/Screws Kit | ||
| 88/88-F Spring Tube Bracket | 1 | |||
| 88/88-F Spring Tube Bracket Screws | 2 | |||
| 7 | 900503 | 88 Center or End Case Mtg. Pkg. (CS and MS screws) | X | |
| 10-24 x 1-1/2" OPHMS | 4 | |||
| 10-24 x 2" OPHMS | 4 | |||
| 10-12 x 10-24 x 2" OPHCS | 4 | |||
| 7 | 900504 | 88 Center or End Case Mtg. Pkg. (CS screws) | X | |
| 10-12 x 10-24 x 2" OPHCS | 4 | |||
| 7 | 900505 | 88 Center or End Case Mtg. Pkg. (MS screws 1-3/4" door) | X | |
| 10-24 x 1-1/2" OPHMS | 4 | |||
| 7 | 900506 | 88 Center or End Case Mtg. Pkg. (MS screws 2-1/4" door) | X | |
| 10-24 x 2" OPHMS | 4 |
X in "Finish" column designates finished item; specify finish when ordering.

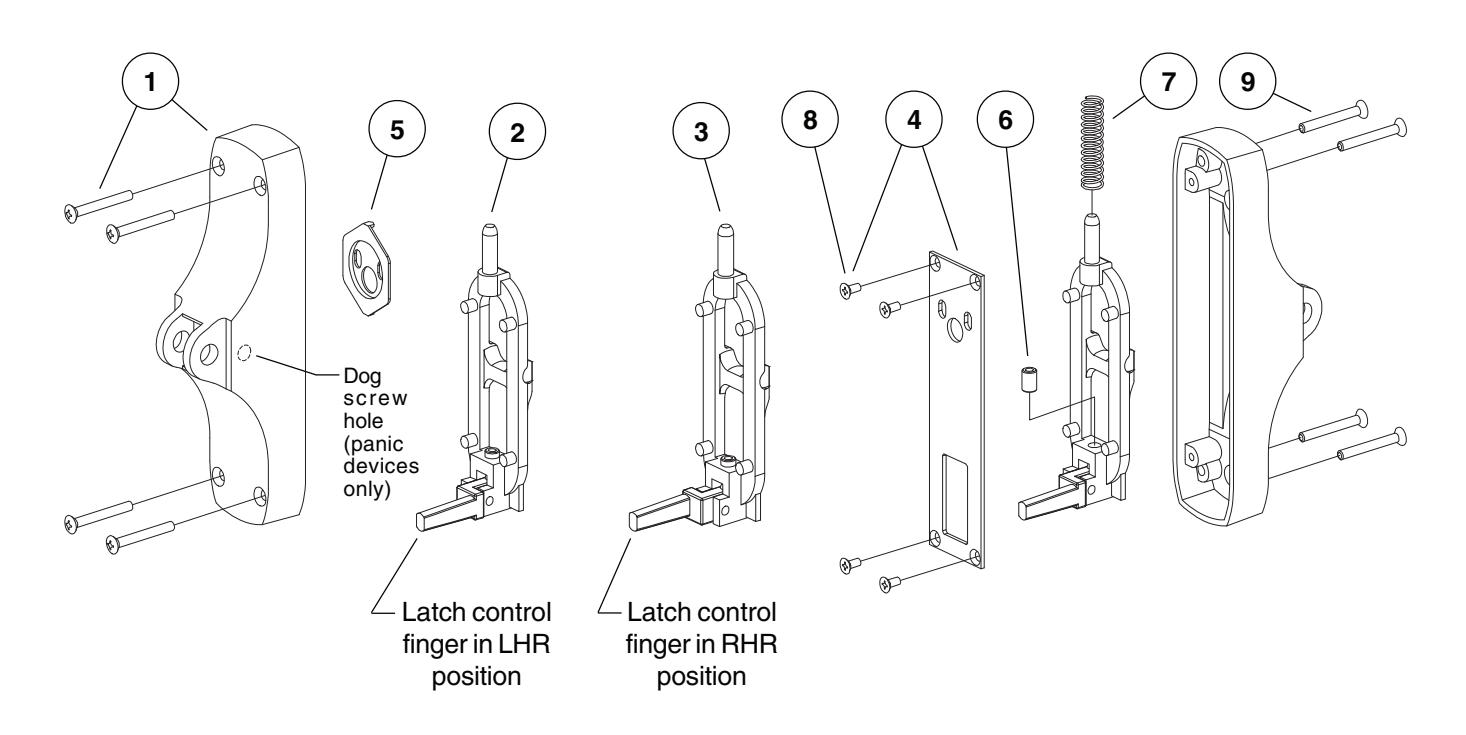

CENTER CASE KITS AND CENTER CASE PARTS
| Item No. | Part No. | Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 050422 | 8847-F RHR Center Case Kit | 1 | Х |
| 1 | 050423 | 8847-F LHR Center Case Kit | 1 | Х |
| 2 | 050209 | 8847-F/75/75-F Latch Control LH | 1 | |
| 3 | 050210 | 8847-F/75/75-F Latch Control RH | 1 | |
| 4 | 050211 | 8847-F/75/75-F Backplate w/ Screws | 1 | |
| 5 | 050331 | 88 Cylinder Anchor Plate | 1 | |
| 6 | 090013 | 8847-F/75-F Flat point Set Screw Pkg. | 5 | |
| 7 | 090014 | 8847-F/75/75-F Center Case Spring Pkg. | 2 | |
| 8 | 900615 | 8827 Backplate Screw Pkg. | 4 | |
| 9 | 900503 | 88 Center or End Case Mtg. Pkg. (CS and MS screws) | Х | |
| 10-24 x 1-1/2" OPHMS | 4 | |||
| 10-24 x 2" OPHMS | 4 | |||
| 10-12 x 10-24 x 2" OPHCS | 4 | 1 | ||
| 9 | 900504 | 88 Center or End Case Mtg. Pkg. (CS screws) | Х | |
| 10-12 x 10-24 x 2" OPHCS | 4 | |||
| 9 | 900505 | 88 Center or End Case Mtg. Pkg. (MS screws 1-3/4" door) | X | |
| 10-24 x 1-1/2" OPHMS | 4 | |||
| 9 | 900506 | 88 Center or End Case Mtg. Pkg. (MS screws 2-1/4" door) | Х | |
| 10-24 x 2" OPHMS | 4 |
X in "Finish" column designates finished item; specify finish when ordering.
