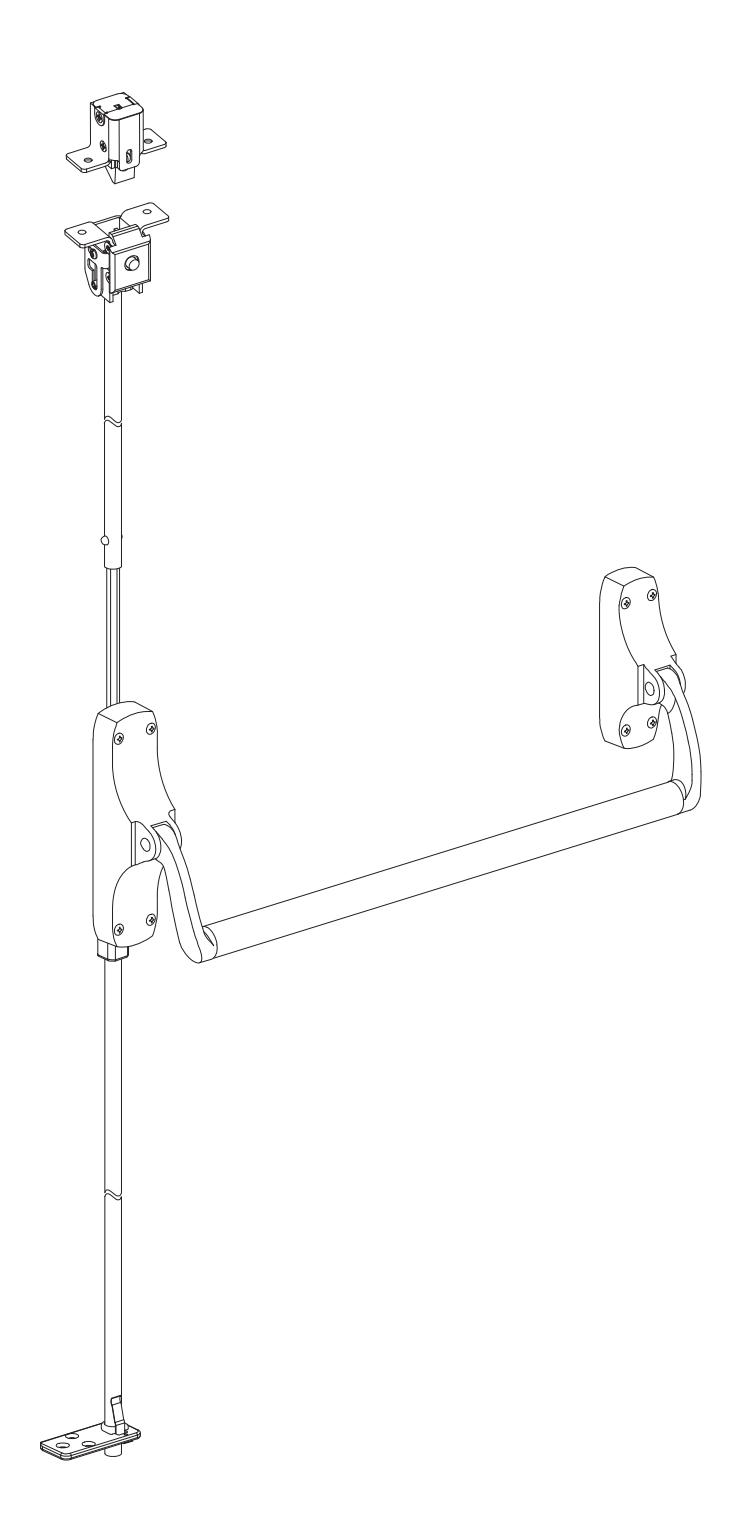

8847-F Concealed Vertical Rod Exit Devices
Service manual
INDEX
General Information Introduction ..................................................................................................................................... How to Order .................................................................................................................................. Part Number Changes .................................................................................................................... 8847-F Series Finishes ................................................................................................................... Outside Trim Functions................................................................................................................... Strikes ............................................................................................................................................ 8847-F Series Device Parts Crossbars ....................................................................................................................................... LeverArm Kits ................................................................................................................................ LeverArm Parts Packages ............................................................................................................. End Case Kit and End Case Parts .................................................................................................. Center Case Kits and Center Case Parts ........................................................................................ Vertical Latch Parts ........................................................................................................................ Vertical Rods .................................................................................................................................. 2 2 2 3 3 3 4 4 5 6 7 8 8
INTRODUCTION
This manual contains a listing of replaceable parts and assemblies for the 8847-F Series Devices.
HOW TO ORDER
Some parts are sold separately. Other items are available as part of a kit or multiple quantity package. For the best possible service when ordering replacement parts or assemblies, please provide the following information:
- Part number or assembly number
- Description
- Quantity needed
- Finish desired (if available finished)
- Date of original purchase (if known)
To find out the name of your local Von Duprin distributor or sales representative, contact:
Von Duprin Division Allegion 2720 Tobey Drive Indianapolis, Indiana 46219 Phone: (877) 671-7011
PART NUMBER AND AVAILABILITY CHANGES
This manual was designed to help illustrate the replacement parts and kits that are available for sale. Because of changes to the product and/or manufacturing process, part numbers and availability can change over time.
8847-F SERIES FINISHES
| US Number | BHMA Number | Color | |
|---|---|---|---|
| US3 | 605 | Brass, polished | |
| US3A | Brass, polished - no lacquer | ||
| US4 | 606 | Brass, satin | |
| US4A | Brass, satin - no lacquer | ||
| US10 | 612 | Bronze, satin | |
| US10B | 613 | Bronze, oil-rubbed satin | |
| US26 | 625 | Chrome, polished | |
| US26D | 626 | Chrome satin | |
| SPBLK | 693 | Black, painted | |
OUTSIDE TRIM FUNCTIONS
STRIKES
301L (bottom)
CROSSBARS

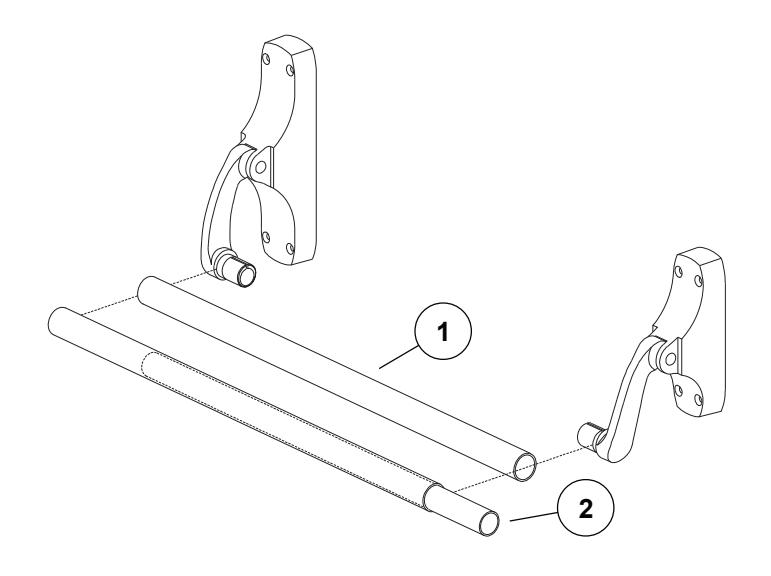

| Item No. | Quantity | Part No. | Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050004 | 42" Standard Crossbar Kit | X |
| 1 | 1 | 050005 | 42" Knurled Crossbar Kit | X |
| 2 | 1 | 050459 | 37" Crossbar Reinforcement Kit |
X in "Finish" column designates finished item; specify finish when ordering.
LEVER ARM KITS
| Item No. | Quantity | Part No. | Description | Finish | |
|---|---|---|---|---|---|
| 1 | 1 | 050443 | 8827-F/47-F LH Lever Arm Kit | X | |
| 2 | 1 | 050442 | 8827-F/47-F RH Lever Arm Kit | X |
X in "Finish" column designates finished item; specify finish when ordering.
LEVER ARM PARTS PACKAGES

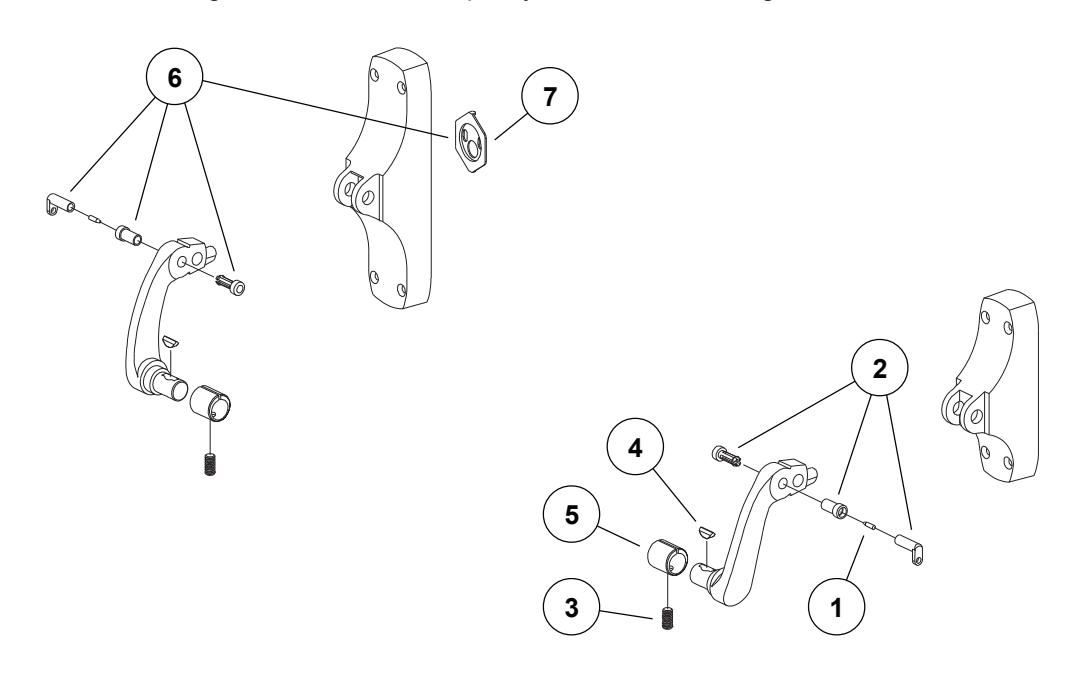

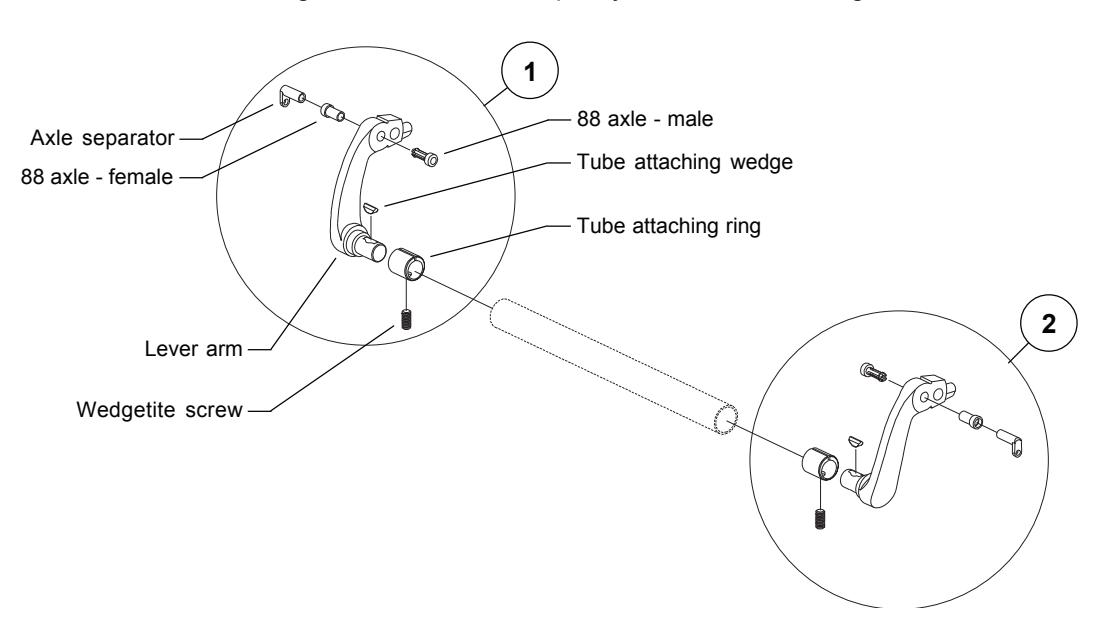

| Item No. | Quantity | Part No. | Description | Finish |
|---|---|---|---|---|
| 1 | 2 | 090007 | Axle Security Pin (Pkg of 10) | |
| 1 | 2 | 033022 | Axle Security Pin (Pkg of 50) | |
| 2 | 2 | 090006 | 88 Lever Arm Axles (Pkg of 2) | |
| 88 Axle Separator | ||||
| 88 Axle - Male | ||||
| 88 Axle - Female | ||||
| 2 | 2 | 090082 | 88 Lever Arm Axles (Pkg of 10) | |
| 88 Axle Separator | ||||
| 88 Axle - Male | ||||
| 88 Axle - Female | ||||
| 3 | 2 | 090008 | Wedgetite Screws (Pkg of 2) | |
| 3 | 2 | 090081 | Wedgetite Screws (Pkg of 30) | |
| 4 | 2 | 090020 | Crossbar Tube Attaching Wedge (Pkg of 2) | |
| 5 | 2 | 090021 | Crossbar Tube Attaching Ring (Pkg of 2) | |
| 6 | 1 | 103865 | 88 Lever Arm Axle Pkg | |
| Cylinder Anchor Plate | ||||
| 88 Axle Separator | ||||
| 88 Axle - Male | ||||
| 88 Axle - Female | ||||
| 7 | 1 | 050331 | 88 Cylinder Anchor Plate |
X in "Finish" column designates finished item; specify finish when ordering.
END CASE KIT AND END CASE PARTS

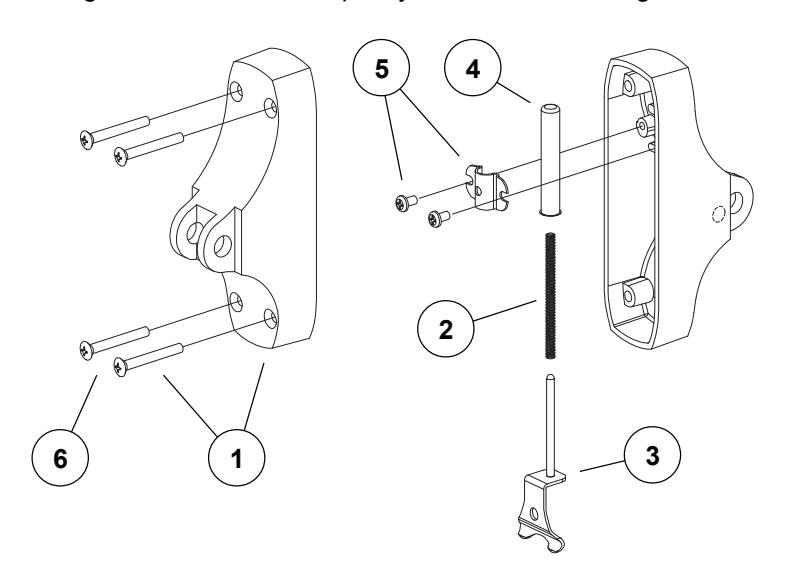

| Item No. | Quantity | Part No. | Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050436 | 8827-F/8875-F/8847-F End Case Kit | X |
| 88SV/CV/M-F End Case | ||||
| 10-24 x 1-1/2" OPHMS (Qty 4) | ||||
| 10-24 x 2" OPHMS (Qty 4) | ||||
| 10-12 x 10-24 x 2" OPHCS (Qty 4) | ||||
| 2 | 1 | 090003 | 88 End Case Spring (Pkg of 2) | |
| 2 | 1 | 090080 | 88 End Case Spring (Pkg of 10) | |
| 3 | 1 | 050451 | 88 End Case Spring Stop Kit | |
| 4 | 1 | 050476 | 88/88-F End Case Spring Tube | |
| 5 | 1 | 050477 | 88/88-F Spring Tube Bracket w/ Screws Kit | |
| 88/88-F Spring Tube Bracket | ||||
| 88/88-F Spring Tube Bracket Screws (Qty 2) | ||||
| 6 | 2 | 900503 | 88 Center or End Case Mtg. Pkg. (CS and MS screws) | X |
| 10-24 x 1-1/2" OPHMS (Qty 4) | ||||
| 10-24 x 2" OPHMS (Qty 4) | ||||
| 10-12 x 10-24 x 2" OPHCS (Qty 4) | ||||
| 6 | 2 | 900504 | 88 Center or End Case Mtg. Pkg. (CS screws) | X |
| 10-12 x 10-24 x 2" OPHCS (Qty 4) | ||||
| 6 | 2 | 900505 | 88 Center or End Case Mtg. Pkg. (MS screws 1-3/4" door) | X |
| 10-24 x 1-1/2" OPHMS (Qty 4) | ||||
| 6 | 2 | 900506 | 88 Center or End Case Mtg. Pkg. (MS screws 2-1/4" door) | X |
| 10-24 x 2" OPHMS (Qty 4) |
X in "Finish" column designates finished item; specify finish when ordering.
CENTER CASE KITS AND CENTER CASE PARTS
| Item No. | Quantity | Part No. | Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050422 | 8847-F RHR Center Case Kit | Х |
| 1 | 1 | 050423 | 8847-F LHR Center Case Kit | Х |
| 2 | 1 | 050209 | 8847-F/75/75-F Latch Control LH | |
| 3 | 1 | 050210 | 8847-F/75/75-F Latch Control RH | |
| 4 | 1 | 050211 | 8847-F/75/75-F Backplate w/ Screws | |
| 5 | 1 | 050331 | 88 Cylinder Anchor Plate | |
| 6 | 1 | 090013 | 8847-F/75-F Flat Point Set Screw (Pkg of 5) | |
| 7 | 1 | 090014 | 8847-F/75/75-F Center Case Spring (Pkg of 2) | |
| 8 | 1 | 900615 | 8827 Backplate Screw Pkg. (Qty 4) | |
| 9 | 2 | 900503 | 88 Center or End Case Mtg. Pkg. (CS and MS screws) | X |
| 10-24 x 1-1/2" OPHMS (Qty 4) | ||||
| 10-24 x 2" OPHMS (Qty 4) | ||||
| 10-12 x 10-24 x 2" OPHCS (Qty 4) | ||||
| 9 | 2 | 900504 | 88 Center or End Case Mtg. Pkg. (CS screws) | X |
| 10-12 x 10-24 x 2" OPHCS (Qty 4) | ||||
| 9 | 2 | 900505 | 88 Center or End Case Mtg. Pkg. (MS screws 1-3/4" door) | X |
| 10-24 x 1-1/2" OPHMS (Qty 4) | ||||
| 9 | 2 900506 88 | 88 Center or End Case Mtg. Pkg. (MS screws 2-1/4" door) | X | |
| 10-24 x 2" OPHMS (Qty 4) | ||||
X in "Finish" column designates finished item; specify finish when ordering.
VERTICAL LATCH PARTS

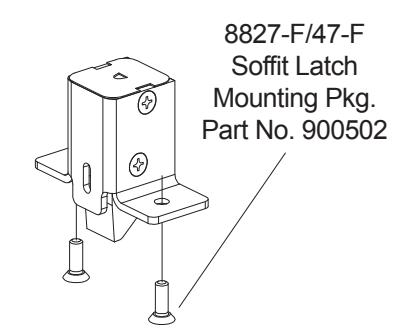

8827-F/47-F Soffit Latch Kit (includes screws) Part No. 114141
Cover with Screws 8847-F Release Guide Part No. 050278 (specify finish)
8847-F Flush Transom Release Bracket Pkg. Part No. 900614 (specify finish)
8847-F Plunger Release Bracket Pkg. Part No. 900576 (specify finish)
VERTICAL RODS

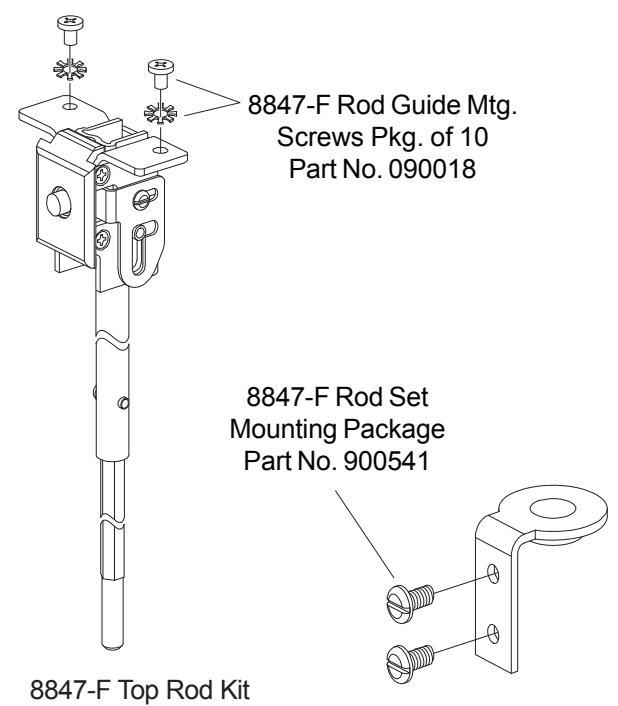

(includes screws) 6'-8" - 8' Door Part No. 050457 (specify finish)
Part No. 105140
8847-F Bottom Rod Kit Part No. 050458

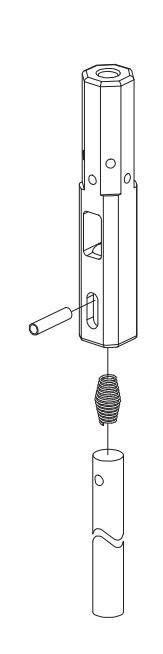

8847-F Extension Rod Kit 8' - 10' Door Part No. 051705
8847-F Rod Connector Rivet Pkg. of 10 Part No. 090011

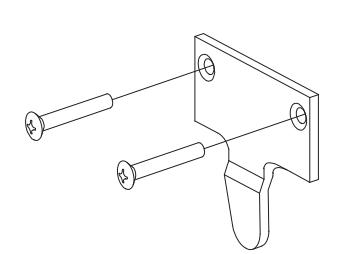

Assembly Procedure (LHR shown) 8847-F Bottom Guide Pkg. Part No. 100741
installation screws included
