Von Duprin 8827TP & 8827TP-NL Series Vertical Rod Device For Metal Applications Template

Original Source Document Full PDF Version

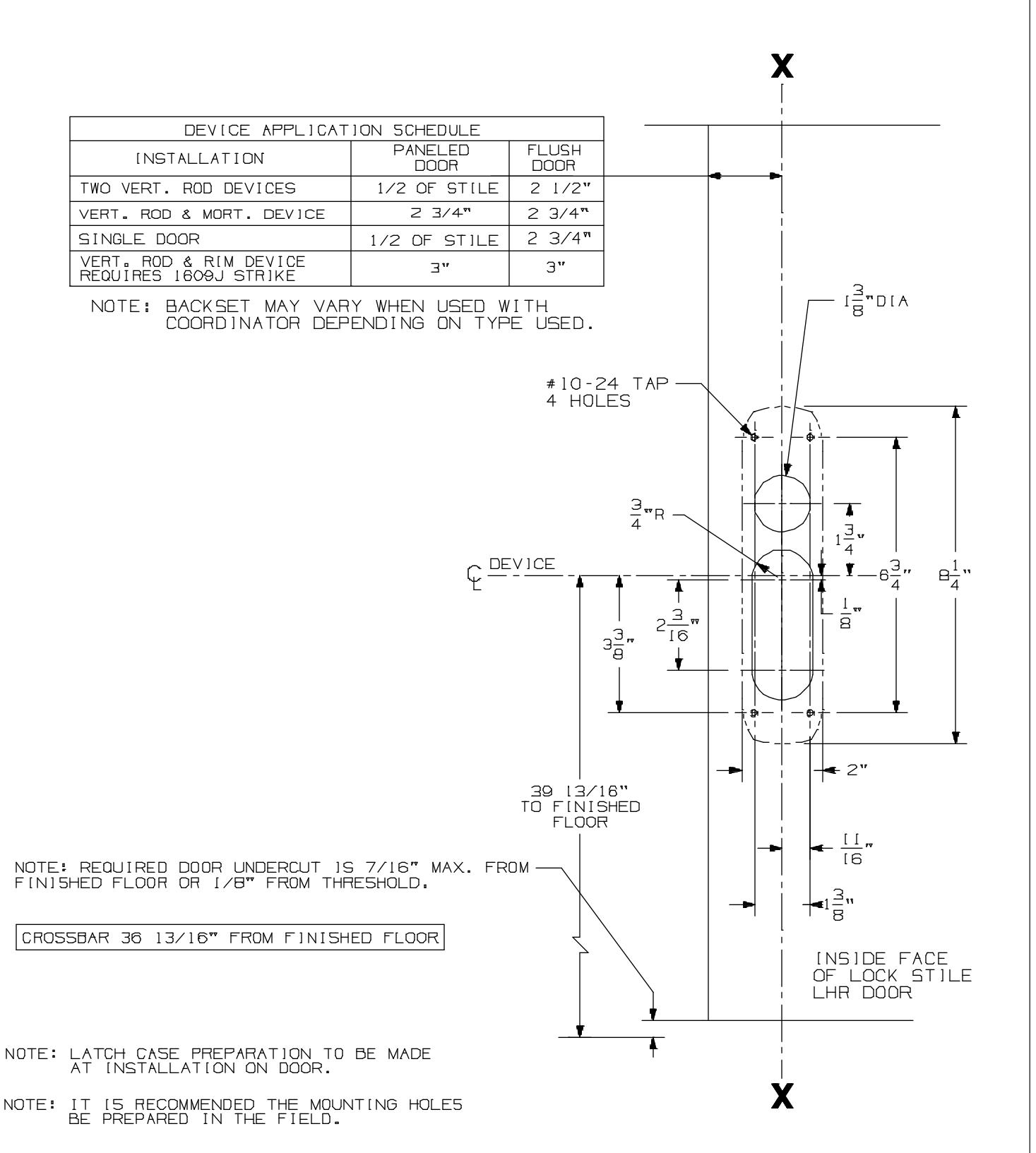

Von Duprin 8827TP & 8827TP-NL Series Vertical Rod Device For Metal Applications Template diagram on page 1

FOR OUTSIDE TRIM PREPARATION, WHEN REQUIRED, SEE ADDITIONAL TRIM TEMPLATE.

LHR SHOWN RHR OPPOSITE

8827TP & 8827TP-NL Series Vertical Rod Device

TEMPLATE NUMBER:

10161_a

DATE: 05-16-13
