FOR ADDITIONAL INFORMATION SEE TEMPLATE NO. 10162

VON DUPRIN CUTOUTS ARE LOCATED FROM A.N.S.I. CUTOUTS SEE A.N.S.I. SPECIFICATION NO. A115 FOR THE SIZE AND LOCATION OF THESE CUTOUTS.

VERT. ROD & R[M DEV]CE

TWO VERT. ROD DEVICES

ONE VERT. ROD DEVICE

VERT. ROD & MORT. DEVICE

FOR OUTSIDE TRIM PREPARATION, SEE ADDITIONAL TRIM TEMPLATE.

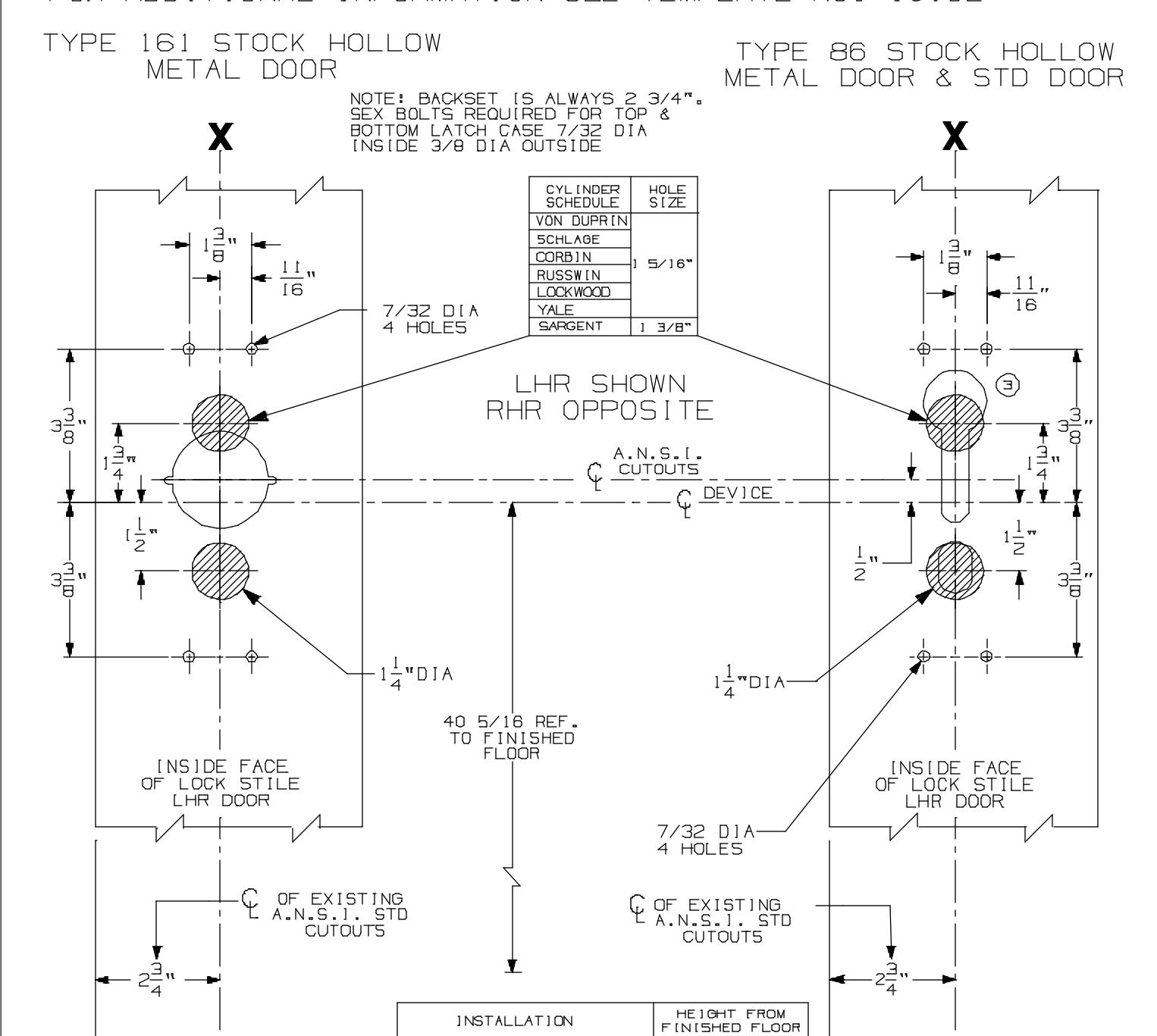

8827K Vertical Rod Device w/ 880 Trim for Stock Hollow Metal Applications

VON DUPRIN ®

TEMPLATE NUMBER:

40 5/16 "

39 13/16 "

39 13/16"

39 [3/16"

10201 a

DATE: 05-16-13
