Von Duprin 8827K-L-F Surface Applied Device For Metal Applications Template

Original Source Document Full PDF Version

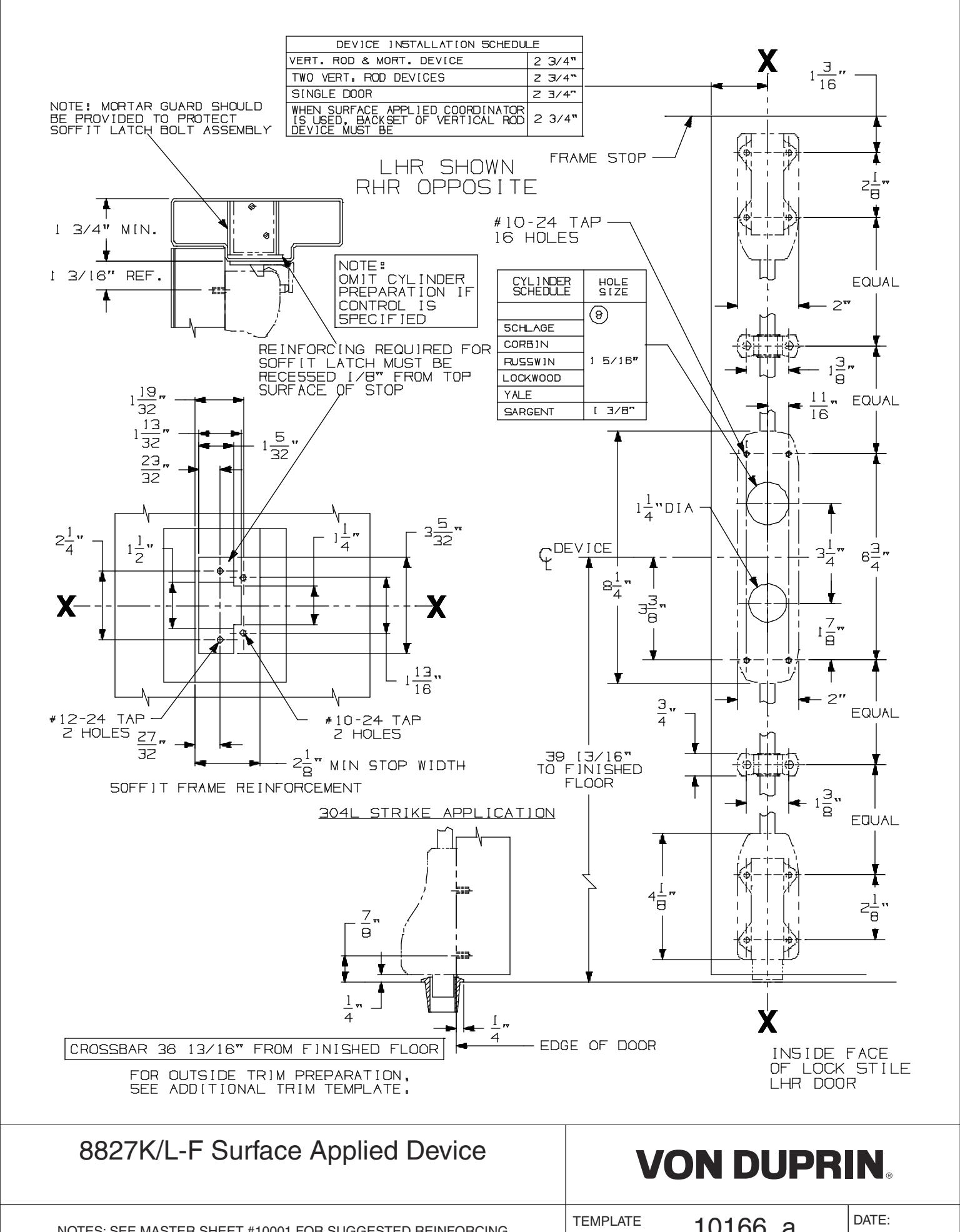

Von Duprin 8827K-L-F Surface Applied Device For Metal Applications Template diagram on page 1

NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING

NUMBER:

10166_a

05-15-13
