Von Duprin 8827K-L & 8827K-L-NL Series Vertical Rod Device For Metal Applications Template

Original Source Document Full PDF Version

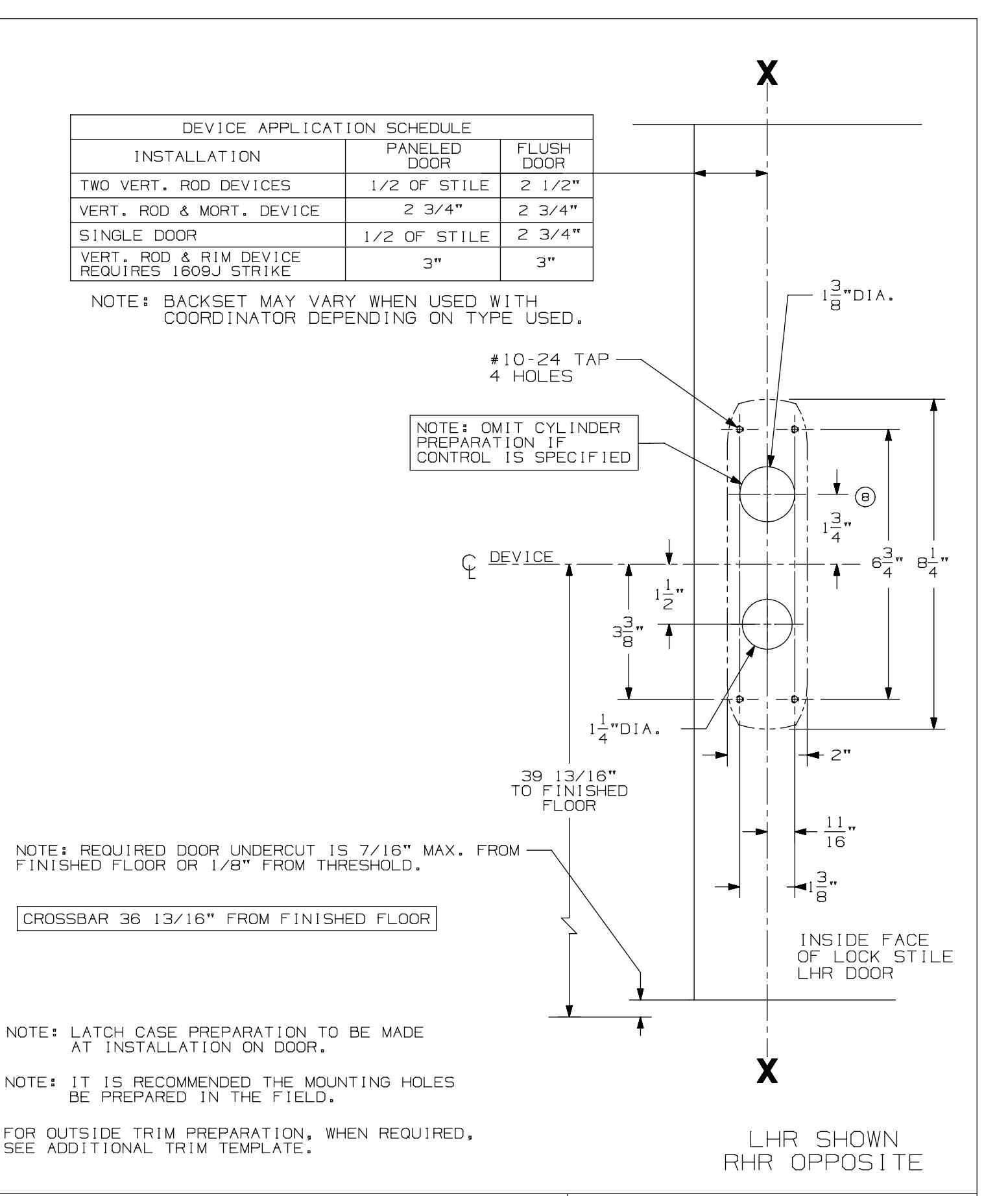

Von Duprin 8827K-L & 8827K-L-NL Series Vertical Rod Device For Metal Applications Template diagram on page 1

8827K/L & 8827K/L-NL Series Vertical Rod Device

VON DUPRIN ®

TEMPLATE NUMBER:

10162 a

DATE: 05-16-13
