Von Duprin 8827K, 8827TL, & 8827K-NL Surface Vertical Rod Exit Device For Wood Door Template

Original Source Document Full PDF Version

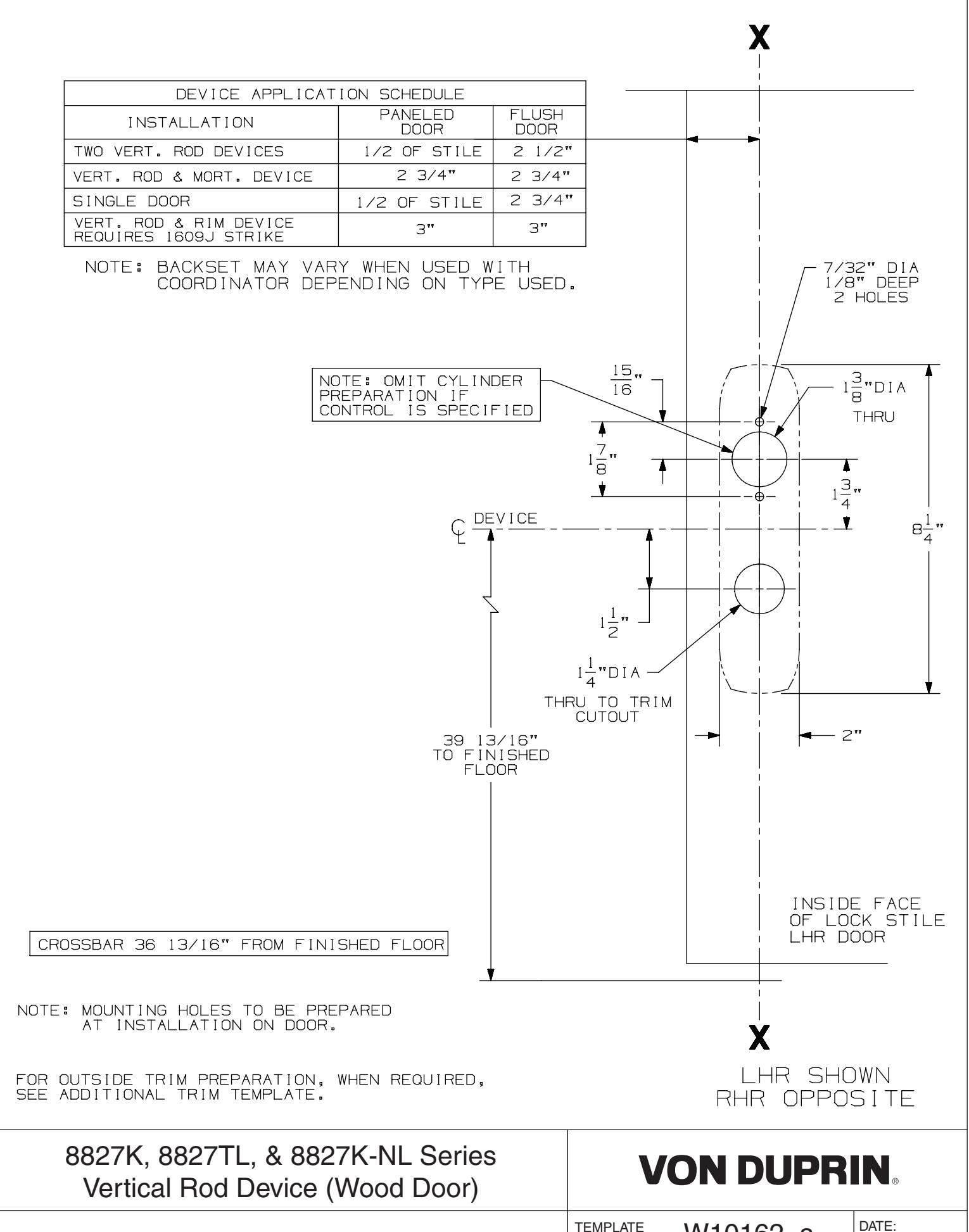

Von Duprin 8827K, 8827TL, & 8827K-NL Surface Vertical Rod Exit Device For Wood Door Template diagram on page 1

NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING

TEMPLATE NUMBER:

W10162_a

DATE: 05-29-13
