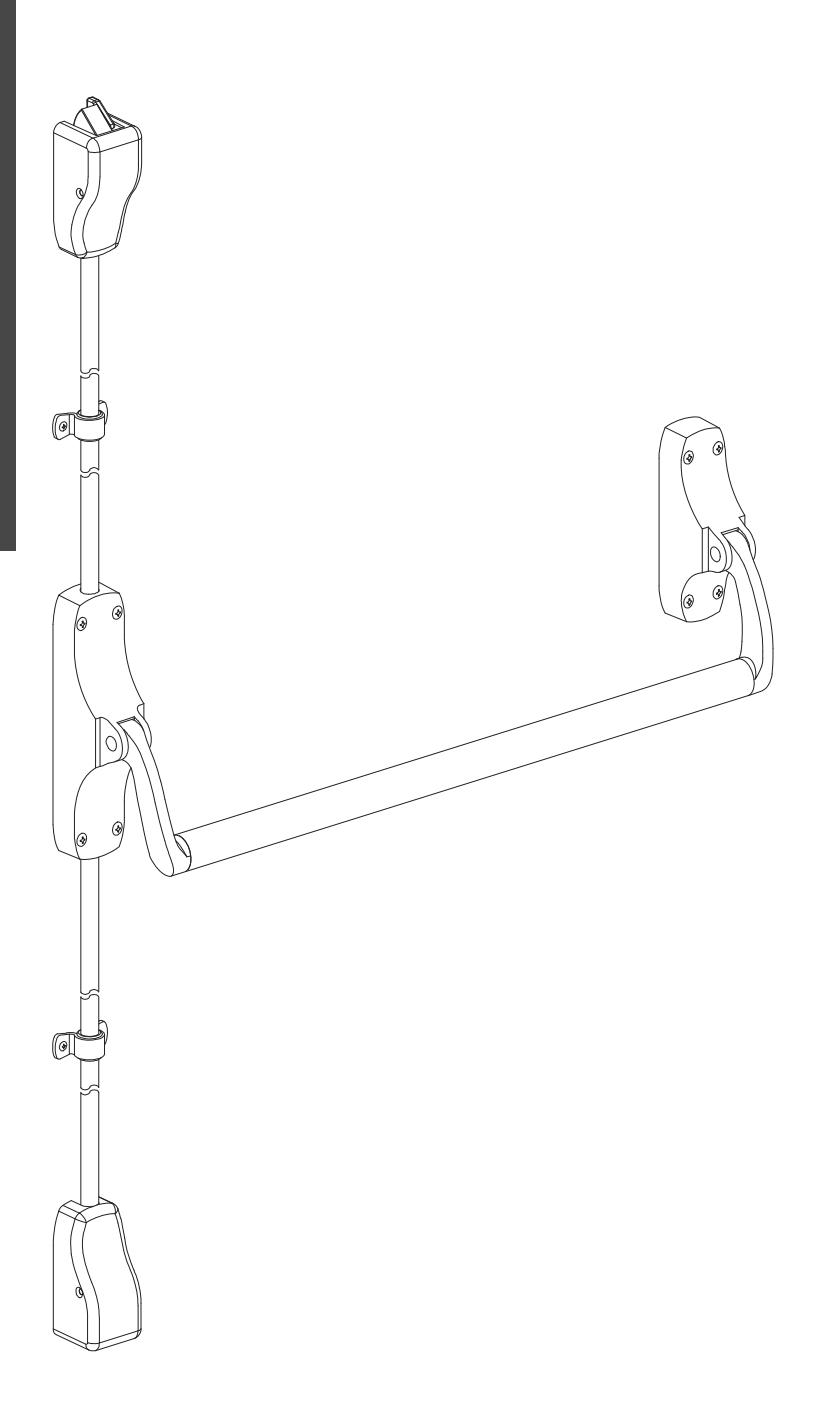

8827 Surface Vertical Rod Series Exit Devices

Service manual

Von Duprin 8827 Surface Vertical Rod Series Exit Devices Parts Manual 108721 image on page 1

INDEX

General Information Introduction ..................................................................................................................................... 2 How to Order .................................................................................................................................. 2 Part Number Changes .................................................................................................................... 2 8827 Series Finishes ...................................................................................................................... 3 Outside Trim Functions................................................................................................................... 3 Strikes ............................................................................................................................................ 3 8827 Series Device Parts Crossbars ....................................................................................................................................... 4 LeverArm Kits ................................................................................................................................ 5 LeverArm Parts Packages ............................................................................................................. 6 End Case Kit and End Case Parts .................................................................................................. 8 Backplate Conversion Kits ............................................................................................................ 10 Center Case Parts: EO/EO-F, DT, TL/TL-F Exit Devices ............................................................... 10 Center Case Parts: K/K-F, K-NL/K-NL-F, L/L-F Exit Devices ......................................................... 11 Center Case Parts: TP/TP-F, TP-NL/TP-NL-F Exit Devices ........................................................... 12 Center Case Mounting Packages and CylinderAnchorPlate ........................................................ 13 Center Case Kits .......................................................................................................................... 13 Latch Parts and Screw Packages ................................................................................................. 14 Latch Kits and Latch Cover Kits .................................................................................................... 15 Vertical Rods ................................................................................................................................ 16

INTRODUCTION

This manual contains a listing of replaceable parts and assemblies for the 8827 Series Panic and FEH Devices.

HOW TO ORDER

Some parts are sold separately. Other items are available as part of a kit or multiple quantity package. For the best possible service when ordering replacement parts or assemblies, please provide the following information:

  • Part number or assembly number
  • Description
  • Quantity needed
  • Finish desired (if available finished)
  • Date of original purchase (if known)

To find out the name of your local Von Duprin distributor or sales representative, contact:

Von Duprin Division Allegion 2720 Tobey Drive Indianapolis, Indiana 46219 Phone: (877) 671-7011

PART NUMBER AND AVAILABILITY CHANGES

This manual was designed to help illustrate the replacement parts and kits that are available for sale. Because of changes to the product and/or manufacturing process, part numbers and availability can change over time.

8827 SERIES FINISHES

US
Number 		BHMA
Number 		Color
US3 605 Brass,
polished
US4 606 Brass,
dull
US10 612 Bronze,
dull
US10B 613 Brass,
dull
(oxidized)
US26 625 Chrome,
polished
US26D 626 Chrome,
dull
SPBLK 693 Gloss
black
powder

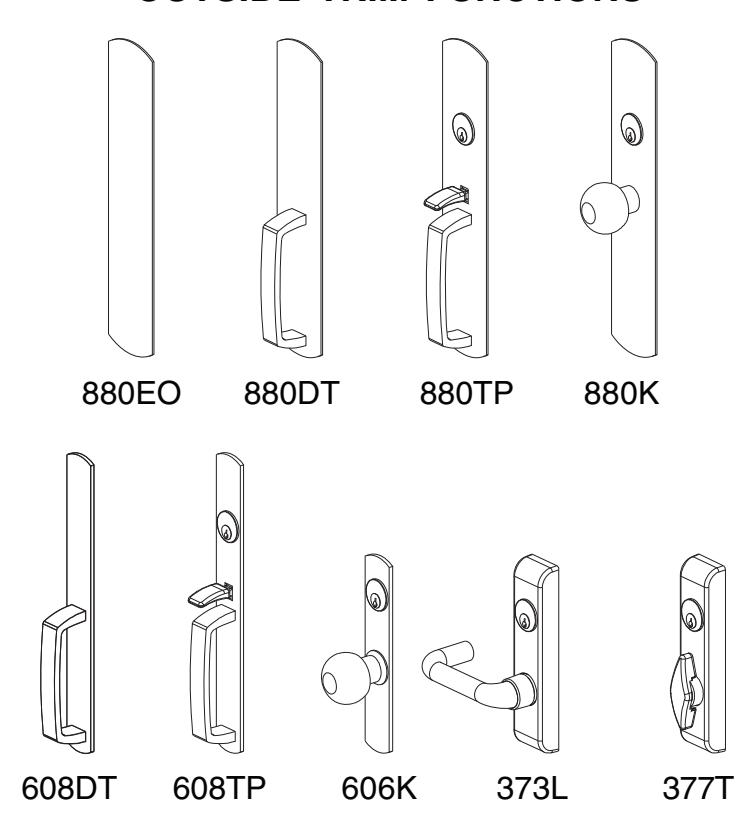

OUTSIDE TRIM FUNCTIONS

Von Duprin 8827 Surface Vertical Rod Series Exit Devices Parts Manual 108721 image on page 3

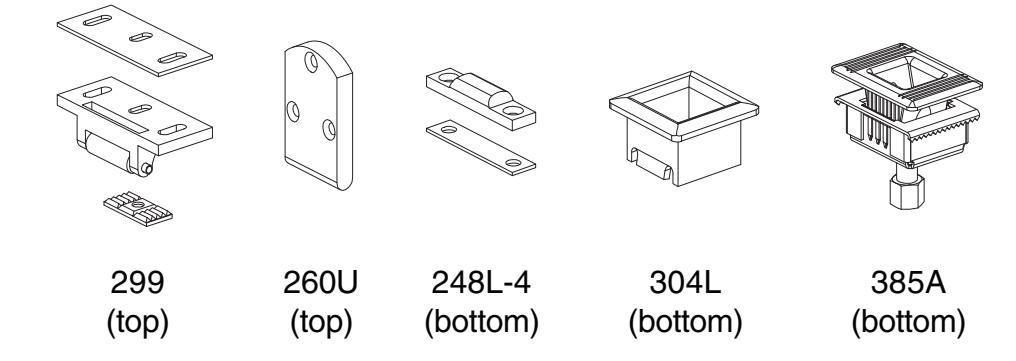

STRIKES

Von Duprin 8827 Surface Vertical Rod Series Exit Devices Parts Manual 108721 diagram on page 3

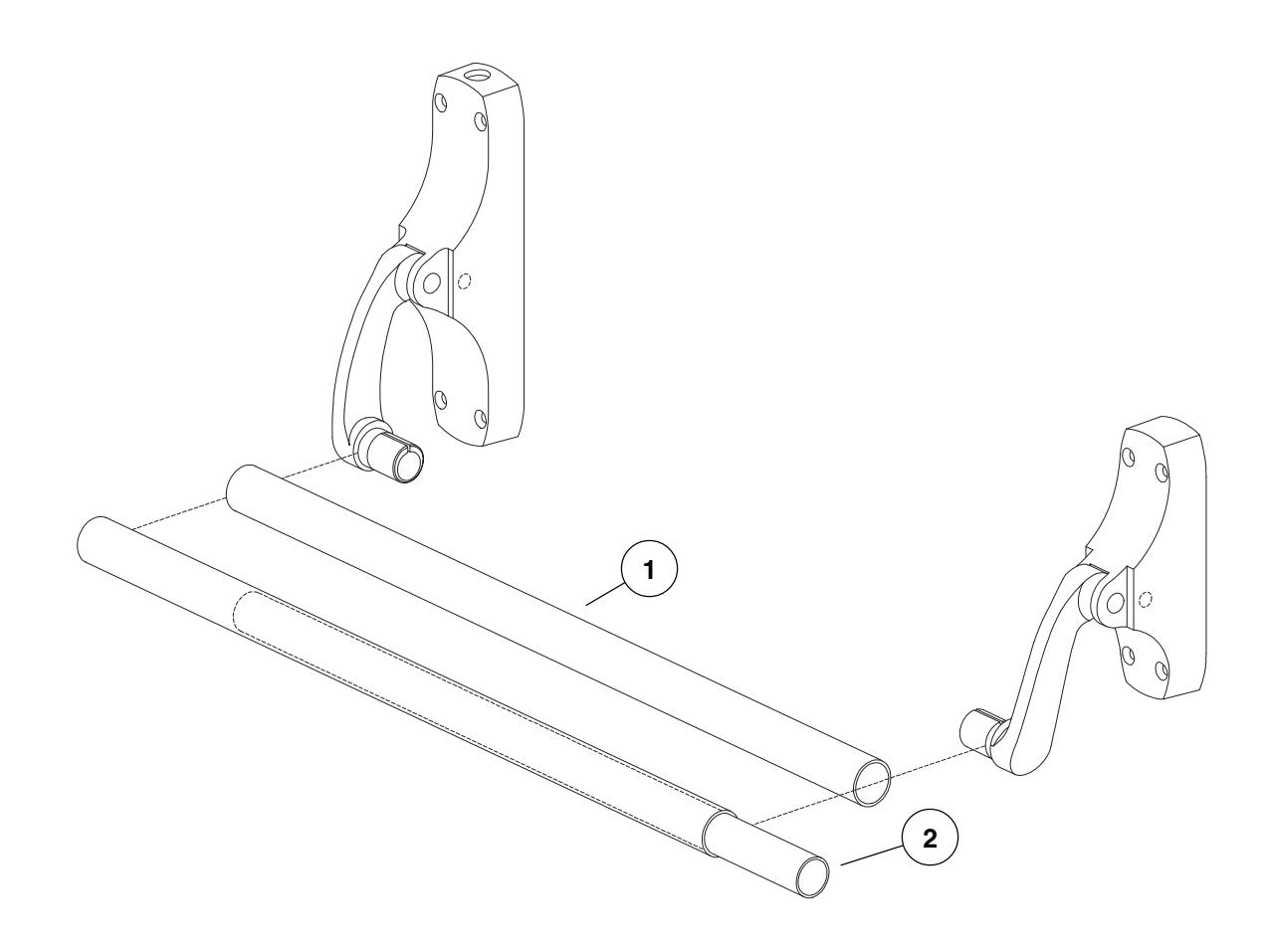

CROSSBARS

Item
No. 		Part
No. 		Description Quantity Finish
1 050004 42"
Standard
Crossbar
Kit 		1 X
1 050005 42"
Knurled
Crossbar
Kit 		1 X
2 050459 37"
Crossbar
ReinforcementKit 		1

X in "Finish" column designates finished item; specify finish when ordering.

Von Duprin 8827 Surface Vertical Rod Series Exit Devices Parts Manual 108721 image on page 4

LEVER ARM KITS

Item
No. 		Part
No. 		Description Quantity Finish
1 050439 88
R/M/V
LH
LeverArm
Kit 		1 X
2 050438 88
R/M/V
RH
LeverArm
Kit 		1 X
3 050443 8827-F/47-F
LH
LeverArm
Kit 		1 X
4 050442 8827-F/47-F
RH
LeverArm
Kit 		1 X

X in "Finish" column designates finished item; specify finish when ordering.

Von Duprin 8827 Surface Vertical Rod Series Exit Devices Parts Manual 108721 image on page 5

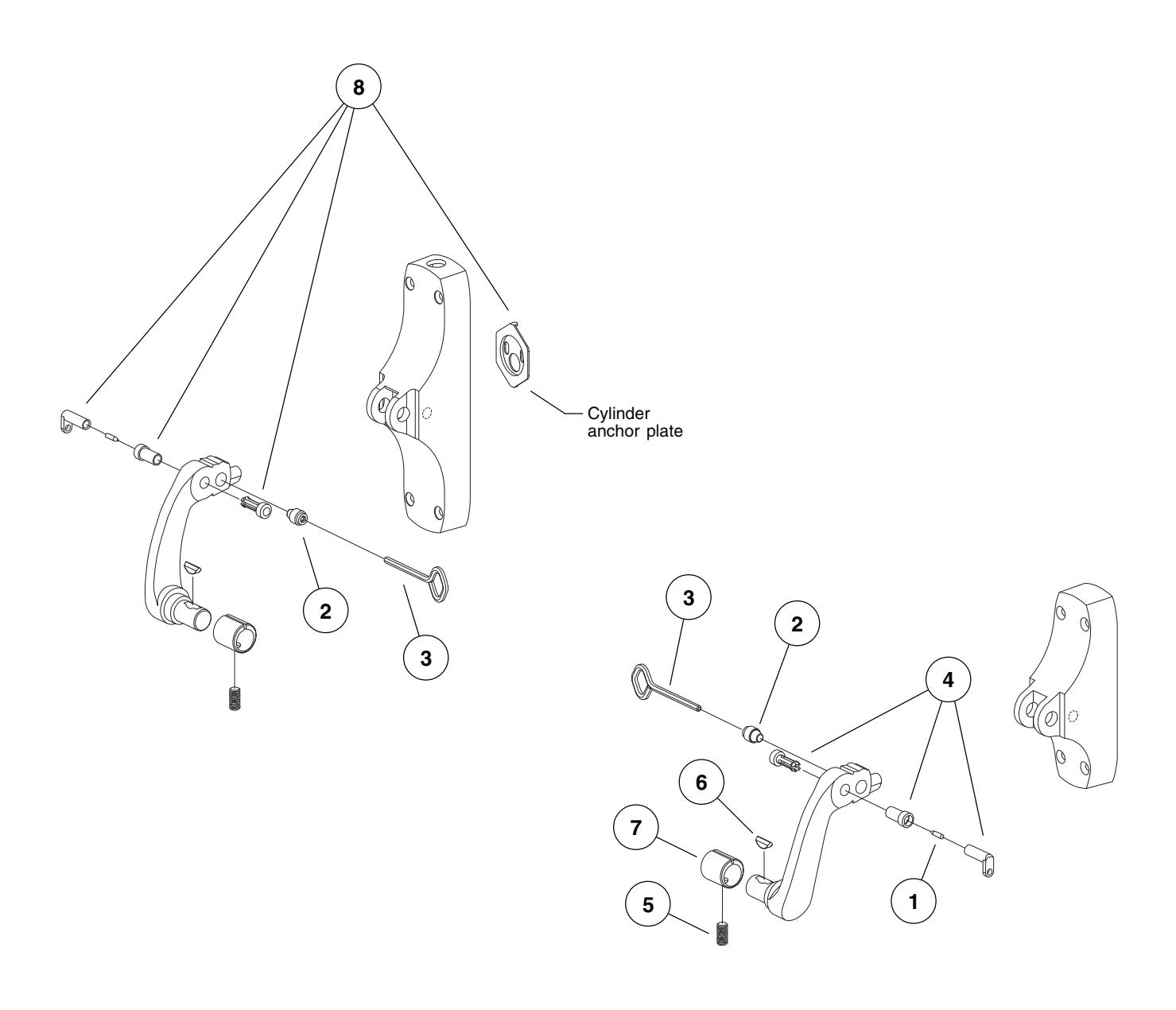

LEVER ARM PARTS PACKAGES

Von Duprin 8827 Surface Vertical Rod Series Exit Devices Parts Manual 108721 image on page 6

LEVER ARM PARTS PACKAGES

Item
No. 		Part
No. 		Description Quantity Finish
1 090007 Axle
Security
Pin
Pkg. 		10
1 033022 Axle
Security
Pin
Pkg. 		50
2 090004 Dog
Screw
Pkg. 		2
2 090083 Dog
Screw
Pkg. 		10
3 090005 227
Dog
Key
5/32"
Pkg. 		2
3 090085 227
Dog
Key
5/32"
Pkg. 		10
4 090006 88
LeverArmAxles
88Axle
Separator 		2
88Axle
-
Male 		2
88Axle
-
Female 		2
4 090082 88
LeverArmAxles
88Axle
Separator 		10
88Axle
-
Male 		10
88Axle
-
Female 		10
5 090008 Wedgetite
Screw
Pkg. 		2
5 090081 Wedgetite
Screw
Pkg. 		30
6 090020 Crossbar
TubeAttaching
Wedge
Pkg. 		2
7 090021 Crossbar
TubeAttaching
Ring
Pkg. 		2
8 103865 88
LeverArmAxle
Pkg.
CylinerAnchor
Plate 		1
88Axle
Separator 		1
88Axle
-
Male 		2
88Axle
-
Female 		2

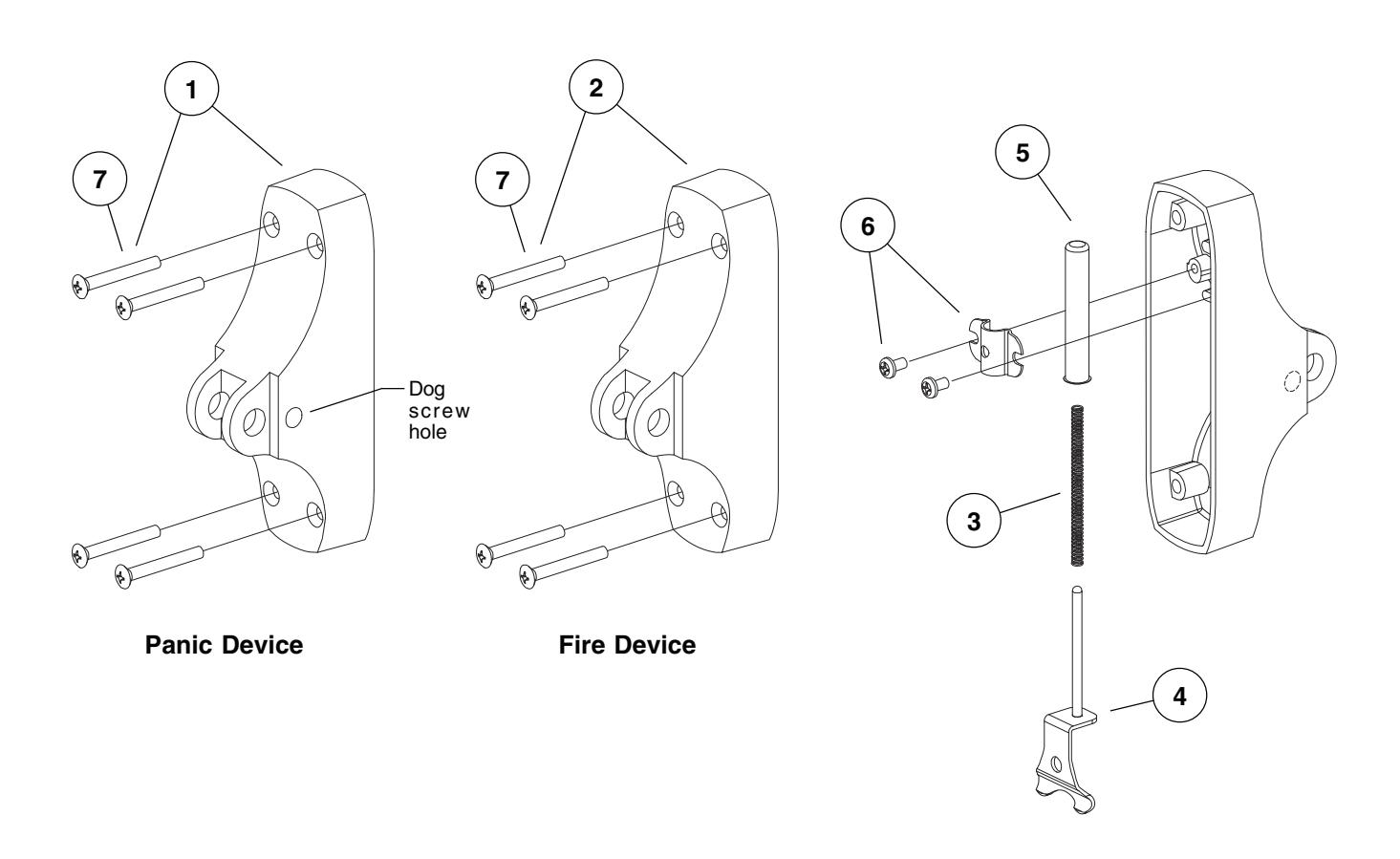

END CASE KIT AND END CASE PARTS

Von Duprin 8827 Surface Vertical Rod Series Exit Devices Parts Manual 108721 image on page 8

END CASE KIT AND END CASE PARTS

Item
No. 		Part
No. 		Description Quantity Finish
1 050435 88
R/M/V
End
Case
Kit 		X
88
R/M/V
End
Case 		1
10-24
x
1-1/2"
OPHMS 		4
10-24
x
2"
OPHMS 		4
10-12
x
10-24
x
2"
OPHCS 		4
2 050436 8827-F/8875-F/8847-FEnd
CaseKit 		X
88SV/CV/M-F
End
Case 		1
10-24
x
1-1/2"
OPHMS 		4
10-24
x
2"
OPHMS 		4
10-12
x
10-24
x
2"
OPHCS 		4
3 090003 88
End
Case
Spring
Pkg. 		2
3 090080 88
End
Case
Spring
Pkg. 		10
4 050451 88
End
Case
Spring
Stop
Kit 		1
5 050476 88/88-FEnd
CaseSpringTube 		1
6 050477 88/88-F
Spring
Tube
Bracket
w/Screws
Kit
88/88-F
SpringTube
Bracket 		1
88/88-F
Spring
Tube
Bracket
Screws 		2
7 900503 88
Center
or
End
Case
Mtg.
Pkg.
(CS
and
MS
screws) 		X
10-24
x
1-1/2"
OPHMS 		4
10-24
x
2"
OPHMS 		4
10-12
x
10-24
x
2"
OPHCS 		4
7 900504 88
Center
or
End
Case
Mtg.
Pkg.
(CS
screws) 		X
10-12
x
10-24
x
2"
OPHCS 		4
7 900505 88
Center
or
End
Case
Mtg.
Pkg.
(MS
screws
1-3/4"
door) 		X
10-24
x
1-1/2"
OPHMS 		4
7 900506 88
Center
or
End
Case
Mtg.
Pkg.
(MS
screws
2-1/4"
door) 		X
10-24
x
2"
OPHMS 		4

BACKPLATE CONVERSION KITS

Von Duprin 8827 Surface Vertical Rod Series Exit Devices Parts Manual 108721 image on page 10

CENTER CASE PARTS: EO/EO-F, DT, TL/TL-F EXIT DEVICES

Item
No. 		Part
No. 		Description Quantity Finish
1 050446 8827/27-F
Rod
Control 		1
2 900615 8827
Backplate
Screw
Pkg.
#8-32
x
3/8"
UFPHMS 		4

Von Duprin 8827 Surface Vertical Rod Series Exit Devices Parts Manual 108721 image on page 10

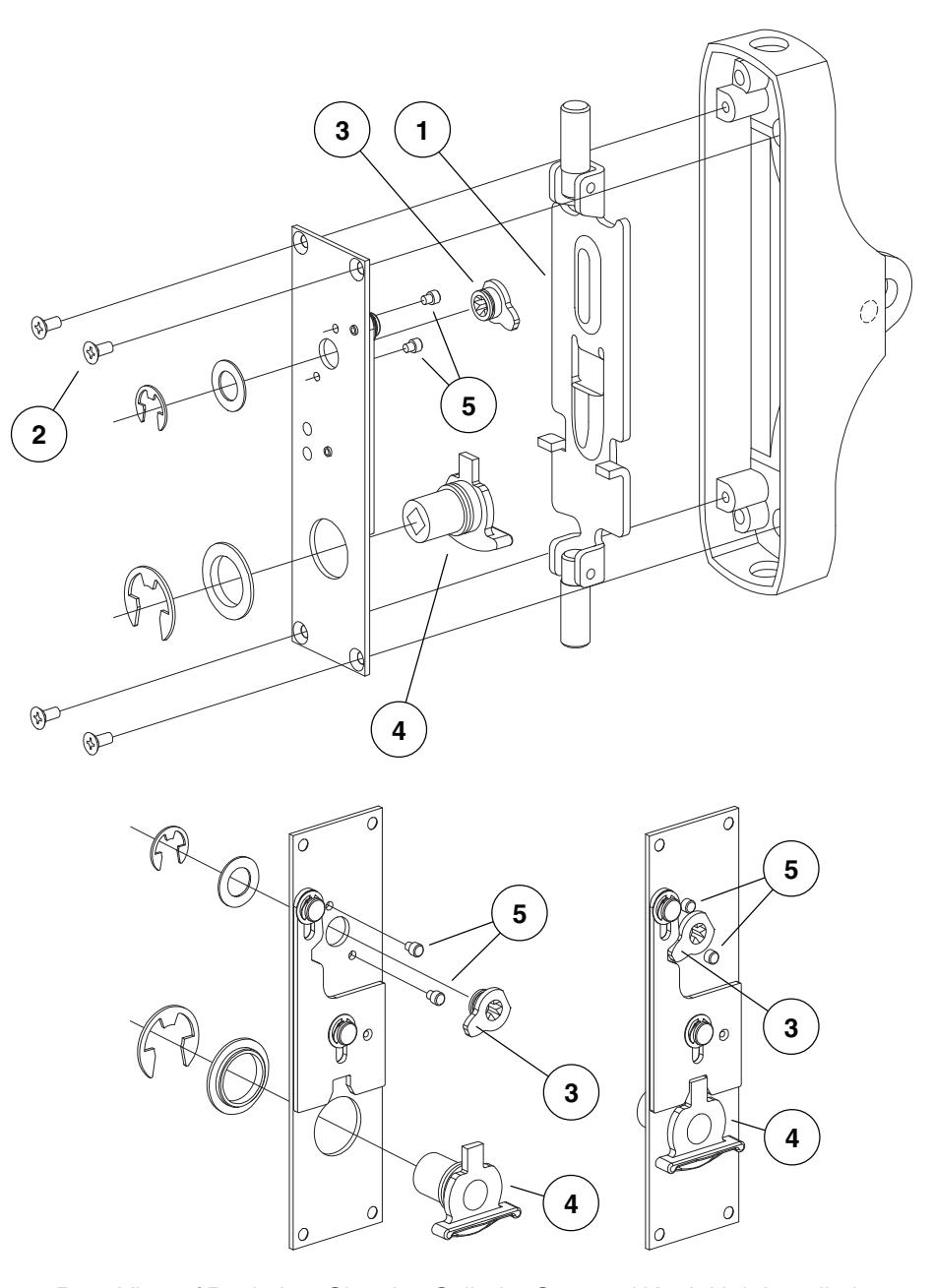

CENTER CASE PARTS: K/K-F, K-NL/K-NL-F, L/L-F EXIT DEVICES

Item
No. 		Part
No. 		Description Quantity Finish
1 050260 8827/27-F
Rod
Control 		1
2 900615 8827
Backplate
Screw
Pkg.
#8-32
x
3/8"
UFPHMS 		4
3 050448 8827K/K-NL/TP/TP-NL/-F
Cylinder
Cam 		1
4 050449 8827K/K-NL/-FKnob
Hub 		1
5 090012 8827K-NL/TP-NL
Backplate
Pin
Pkg.
(for
K-NL
only) 		2

X in "Finish" column designates finished item; specify finish when ordering.

Von Duprin 8827 Surface Vertical Rod Series Exit Devices Parts Manual 108721 image on page 11

Rear View of Backplate Showing Cylinder Cam and Knob Hub Installation

CENTER CASE PARTS: TP/TP-F, TP-NL/TP-NL-F EXIT DEVICES

Item
No. 		Part
No. 		Description Quantity Finish
1 050446 8827/27-F
Rod
Control 		1
2 900615 8827
Backplate
Screw
Pkg.
#8-32
x
3/8"
UFPHMS 		4
3 050448 8827K/K-NL/TP/TP-NL/-F
Cylinder
Cam 		1
4 090012 8827K-NL/TP-NLBackplatePinPkg.(for
TP-NL
only) 		2

X in "Finish" column designates finished item; specify finish when ordering.

Von Duprin 8827 Surface Vertical Rod Series Exit Devices Parts Manual 108721 image on page 12

Rear View of Backplate Showing Cylinder Cam and Backplate Pin Installation

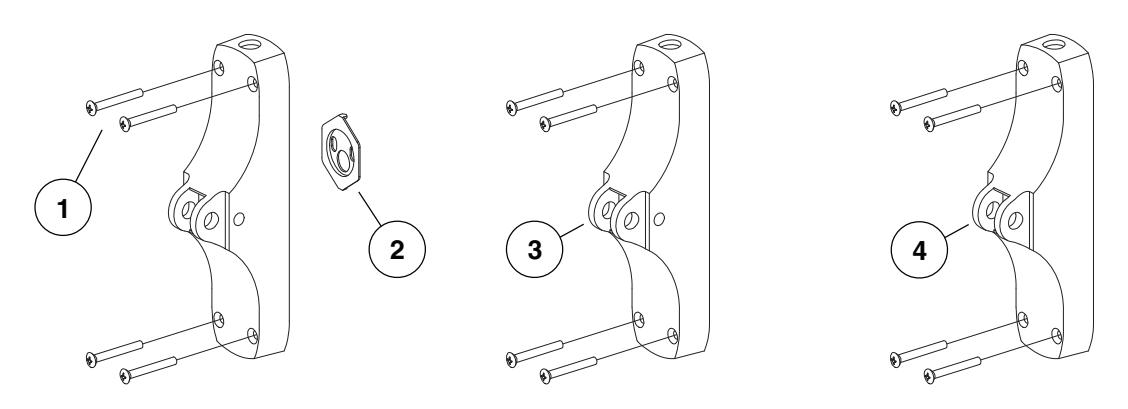

CENTER CASE MOUNTING PACKAGES AND CYLINDER ANCHOR PLATE

Item
No. 		Part
No. 		Description Quantity Finish
1 900503 88
Center
or
End
Case
Mtg.
Pkg.
(CS
and
MS
screws) 		X
10-24
x
1-1/2"
OPHMS 		4
10-24
x
2"
OPHMS 		4
10-12
x
10-24
x
2"
OPHCS 		4
1 900504 88
Center
or
End
Case
Mtg.
Pkg.
(CS
screws) 		X
10-12
x
10-24
x
2"
OPHCS 		4
1 900505 88
Center
or
End
Case
Mtg.
Pkg.
(MS
screws
1-3/4"
door) 		X
10-24
x
1-1/2"
OPHMS 		4
1 900506 88
Center
or
End
Case
Mtg.
Pkg.
(MS
screws
2-1/4"
door) 		X
10-24
x
2"
OPHMS 		4
2 050331 88
CylinderAnchor
Plate 		1

X in "Finish" column designates finished item; specify finish when ordering.

Von Duprin 8827 Surface Vertical Rod Series Exit Devices Parts Manual 108721 image on page 13

CENTER CASE KITS (includes Mounting Package part No. 500503)

Item
No. 		Part
No. 		Description Quantity Finish
3 050415 8827EO/DT/TL
Center
Case
Kit 		1 X
3 050416 8827TP
Center
Case
Kit 		1 X
3 050417 8827K/L
Center
Case
Kit 		1 X
3 050418 8827TP-NL
Center
Case
Kit 		1 X
3 050419 8827K-NL
Center
Case
Kit 		1 X
4 050430 8827EO-F/TL-F
Center
Case
Kit 		1 X
4 050431 8827TP-F
Center
Case
Kit 		1 X
4 050432 8827K/L-F
Center
Case
Kit 		1 X
4 050433 8827TP-NL-F
Center
Case
Kit 		1 X
4 050434 8827K-NL-F
Center
Case
Kit 		1 X

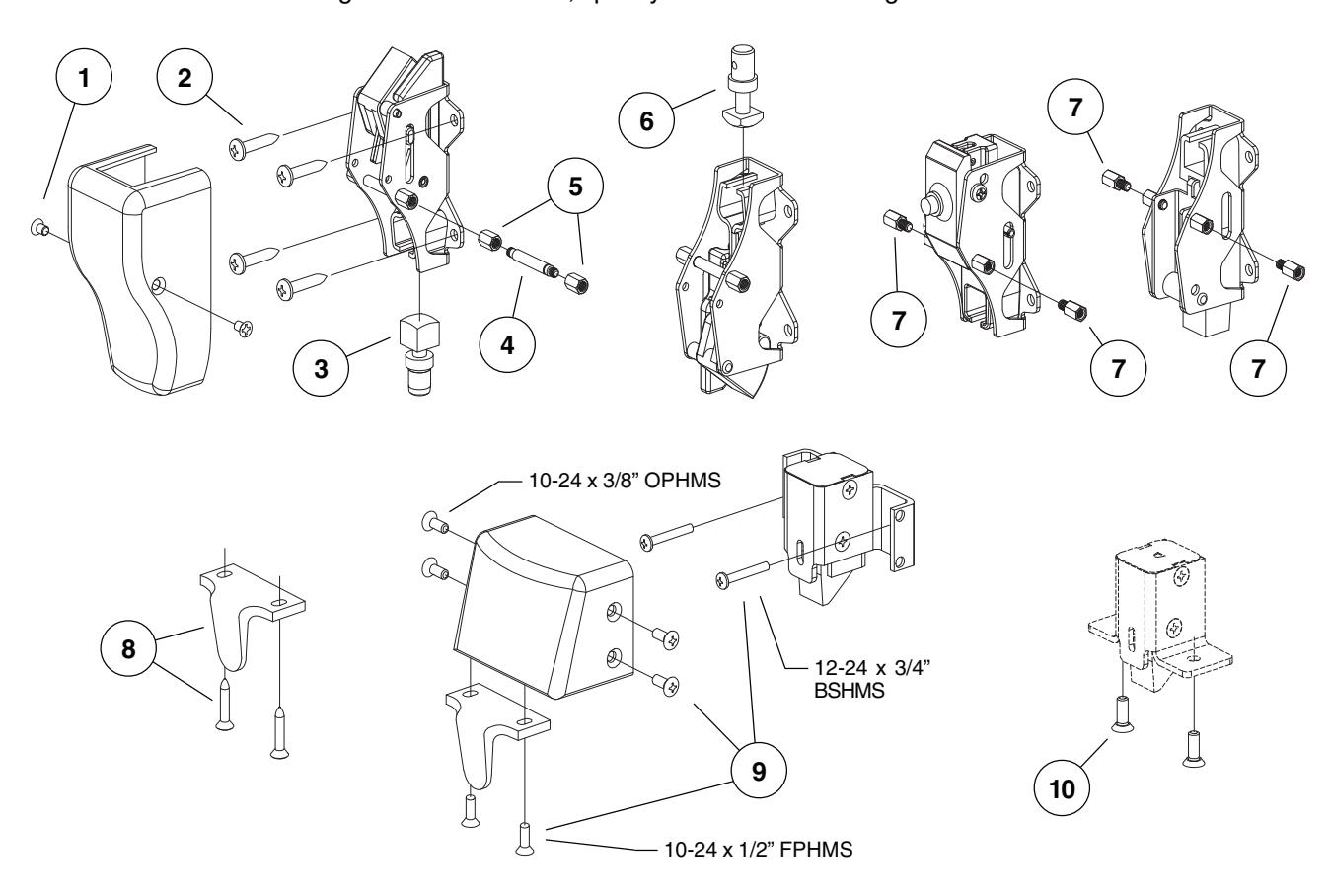

LATCH PARTS AND SCREW PACKAGES

Item
No. 		Part
No. 		Description Quantity Finish
1 900850 8827
Latch
Case
CoverScrew
Package 		X
8-32
x
1/4"
UFPHMS 		2
2 900501 8827
Latch
Case
Mounting
Package
10-12
x
10-24
x
1"
BPHCS 		4
3 050279 8827
LRTop
Rod
Connector 		1
4 050328 8827
Chassis
Tie
Rod 		1
5 050277 8827
Latch
Special
Chassis
Nut 		1
6 050327 8827
LR
Bottom
Rod
Connector 		1
7 050478 8827-F
Special
Chassis
Hex
Stud 		1
8 107765 8827-FPlunger
ReleaseBracket 		1 X
9 900852 8827-F
Flush
Transom
Latch
Screw
Pkg. 		X
10-24
x
1/2"
FPHMS 		2
10-24
x
3/8"
OPHMS 		4
12-24
x
3/4"
BSMHS 		2
10 900502 8827/47-FSoffit
Latch
Mounting
Package
12-24
x
1/2"
UFPHMS 		2

X in "Finish" column designates finished item; specify finish when ordering.

Von Duprin 8827 Surface Vertical Rod Series Exit Devices Parts Manual 108721 image on page 14

LATCH KITS AND LATCH COVER KITS

8827 Latch Cover Kit Part No. 050464

8827-F Top Latch Cover Kit Part No. 050465

8827-F/47-F Soffit Latch Kit Part No. 114141

Specify Finish when Ordering Latch Kits with Covers and Latch Cover Kits

Less Cover Part No. 050460 With Cover Part No. 050466 Less Cover Part No. 050461 With Cover Part No. 050467 Less Cover Part No. 050462 With Cover Part No. 050468 Less Cover Part No. 050463 Less Cover Part No. 050471 With Cover Part No. 050473 Less Cover Part No. 050472 With Cover Part No. 050479 With Cover Part No. 050469 8827 LR Top Latch Kit 8827 LR Bottom Latch Kit 8827-F Top Latch Kit 8827-F Bottom Latch Kit 8827 PL Top Latch Kit 8827 PL Bottom Latch Kit

8827-F Flush Transom Latch Kit w/ Cover Part No. 050480

8827-F Flush Transom Latch Cover Kit Part No. 050481

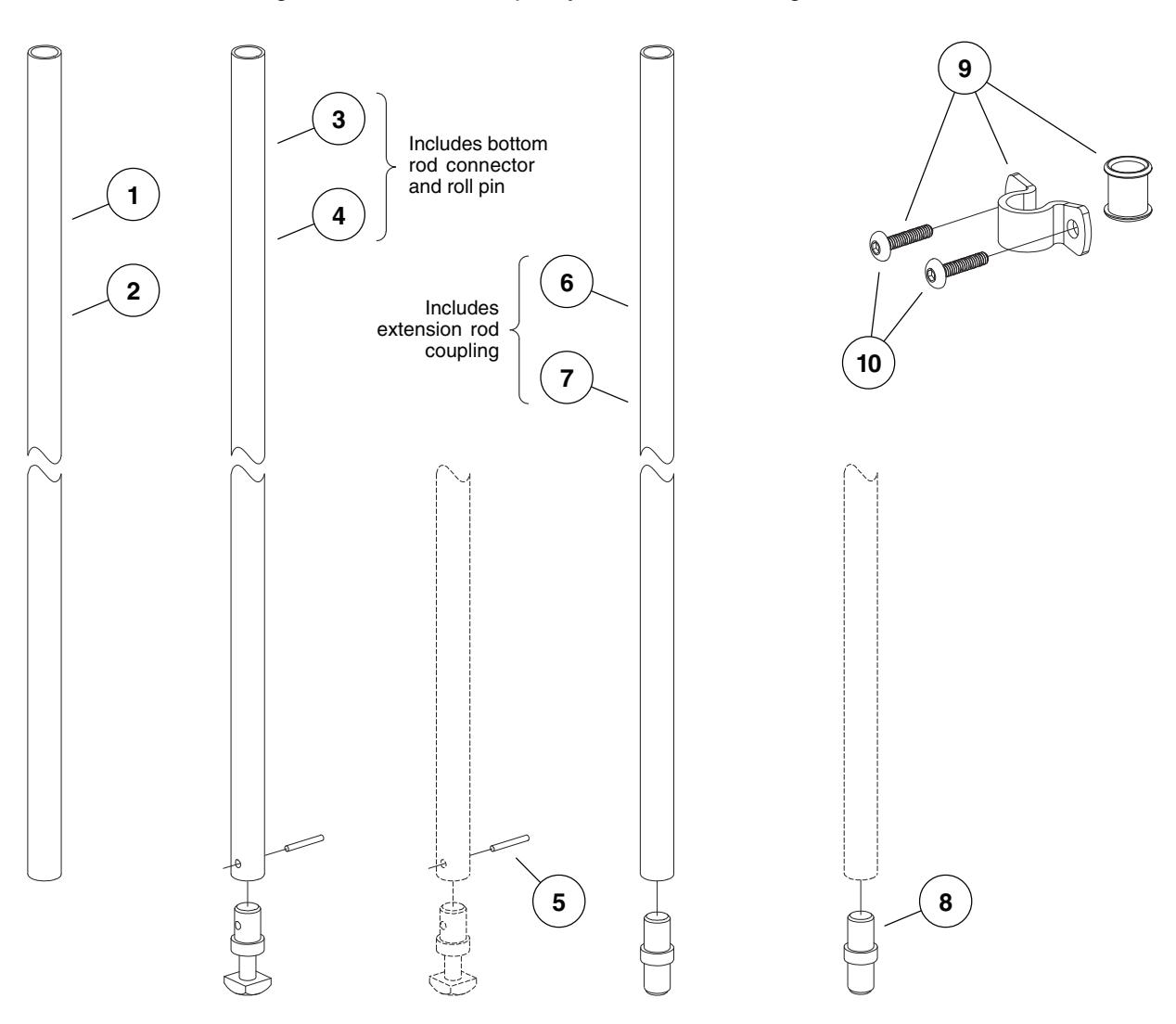

VERTICAL RODS

Item
No. 		Part
No. 		Description Quantity Finish
1 050453 8827
Top
Rod
Kit 		1 X
2 050454 8827-F
Top
Rod
Kit 		1 X
3 050455 8827
Bottom
Rod
Kit 		1 X
4 050456 8827-F
Bottom
Rod
Kit 		1 X
5 090010 8827/27-F
Bottom
Rod
Roll
Pin
Pkg. 		10
6 051701 8827
12"
Extension
Rod
Kit 		1 X
7 051703 8827
24"
Extension
Rod
Kit 		1 X
8 050093 8827Extension
Rod
Coupling 		1
9 050482 8827
Rod
Guide
Kit 		1 X
10 900534 8827
Rod
Guide
Mounting
Pkg. 		X
10-12
x
10-24
x
1
PTHCS 		2

Von Duprin 8827 Surface Vertical Rod Series Exit Devices Parts Manual 108721 image on page 16
