88 Series Rim Exit Device

Service manual

Von Duprin 88 Rim Series Exit Devices Parts Manual 108719 image on page 1

INDEX

General Information Introduction ..................................................................................................................................... 2 How to Order .................................................................................................................................. 2 Part Number Changes .................................................................................................................... 2 88 Rim Series Finishes................................................................................................................... 3 Outside Trim Functions................................................................................................................... 3 Strikes ............................................................................................................................................ 3 88 Rim Series Device Parts Crossbars ....................................................................................................................................... 4 Lever Arm Kits ................................................................................................................................ 5 Lever Arm Parts Packages ............................................................................................................. 6 End Case Kit and End Case Parts .................................................................................................. 8 Center Case Parts: EO, DT, and NL Panic Exit Devices ............................................................... 10 Center Case Parts: EO and NL Fire Exit Devices ......................................................................... 12 Center Case Parts: TP Panic Exit Devices ................................................................................... 14 Center Case Parts: TP Fire Exit Devices ...................................................................................... 16 Center Case Parts: K/L Panic Exit Devices .................................................................................. 18

INTRODUCTION

This manual contains a listing of replaceable parts and assemblies for the 88 Series Panic and FEH Devices.

Center Case Parts: K/L Fire Exit Devices ..................................................................................... 20 Backplate Conversion Kits ............................................................................................................ 22 Center Case Kits .......................................................................................................................... 23

HOW TO ORDER

Some parts are sold separately. Other items are available as part of a kit or multiple quantity package. For the best possible service when ordering replacement parts or assemblies, please provide the following information:

  • s Part number or assembly number
  • s Description
  • s Quantity needed
  • s Finish desired (if available finished)
  • s Date of original purchase (if known)

To find out the name of your local Von Duprin distributor or sales representative, contact:

Von Duprin Division Allegion 2720 Tobey Drive Indianapolis, IN 46219 Phone: (877) 671-7011

PART NUMBER AND AVAILABILITY CHANGES

This manual was designed to help illustrate the replacement parts and kits that are available for sale. Because of changes to the product and/or manufacturing process, part numbers and availability can change over time.

88 RIM SERIES FINISHES

US Number BHMA Number Color
US3 605 Brass, polished
US4 606 Brass, dull
US10 612 Bronze, dull
US10B 613 Brass, dull (oxidized)
US26 625 Chrome, polished
US26D 626 Chrome, dull
SPBLK 693 Gloss Black Powder Coat

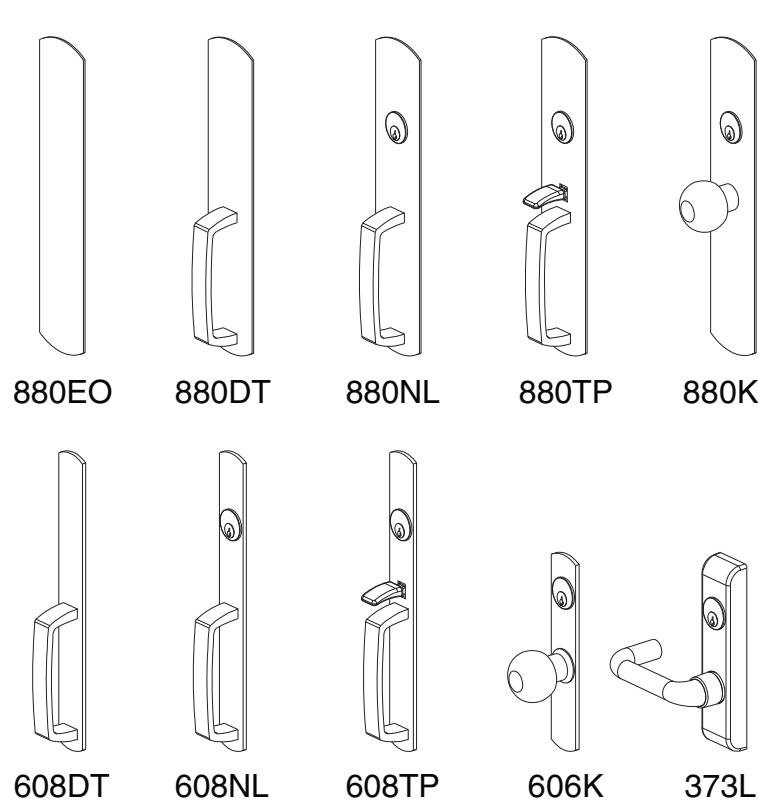

OUTSIDE TRIM FUNCTIONS

Von Duprin 88 Rim Series Exit Devices Parts Manual 108719 image on page 3

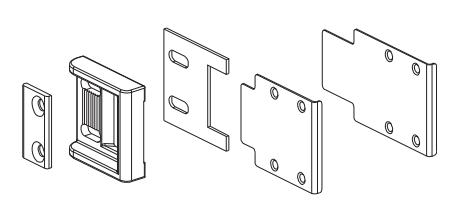

STRIKES

Von Duprin 88 Rim Series Exit Devices Parts Manual 108719 diagram on page 3

1609 Double door, rim/vertical rod combination

Von Duprin 88 Rim Series Exit Devices Parts Manual 108719 image on page 3

299 Single door; double door with mullion

Von Duprin 88 Rim Series Exit Devices Parts Manual 108719 image on page 3

1606 Single door; double door with mullion

Von Duprin 88 Rim Series Exit Devices Parts Manual 108719 image on page 3

268 FEH single door; FEH double door with mullion

Von Duprin 88 Rim Series Exit Devices Parts Manual 108719 image on page 3

1409 Single door (wear plates available for 1-3/4" and 2-1/4" thick doors)

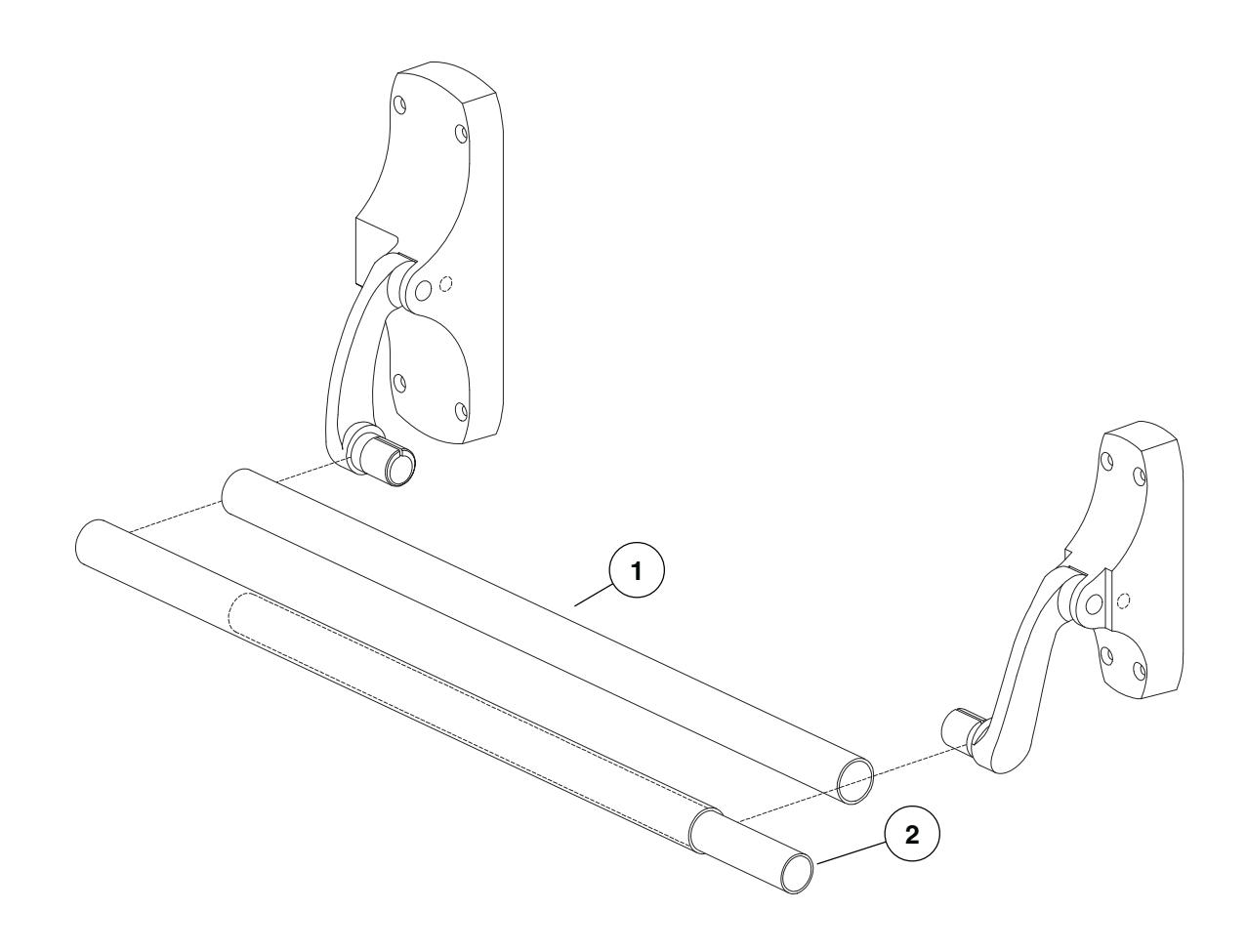

CROSSBARS

Item No. Part No. Description Quantity Finish
1 050004 42" Standard Crossbar Kit 1 X
1 050005 42" Knurled Crossbar Kit 1 X
2 050459 37" Crossbar ReinforcementKit 1

X in "Finish" column designates finished item; specify finish when ordering.

Von Duprin 88 Rim Series Exit Devices Parts Manual 108719 image on page 4

LEVER ARM KITS

Item No. Part No. Description Quantity Finish
1 050439 88
R/M/V LH LeverArm Kit 		1 X
2 050438 88 R/M/V RH
LeverArm Kit 		1 X
3 050441 88-F Rim LH LeverArm Kit 1 X
4 050440 88-F Rim RH LeverArm Kit 1 X

X in "Finish" column designates finished item; specify finish when ordering.

Von Duprin 88 Rim Series Exit Devices Parts Manual 108719 image on page 5

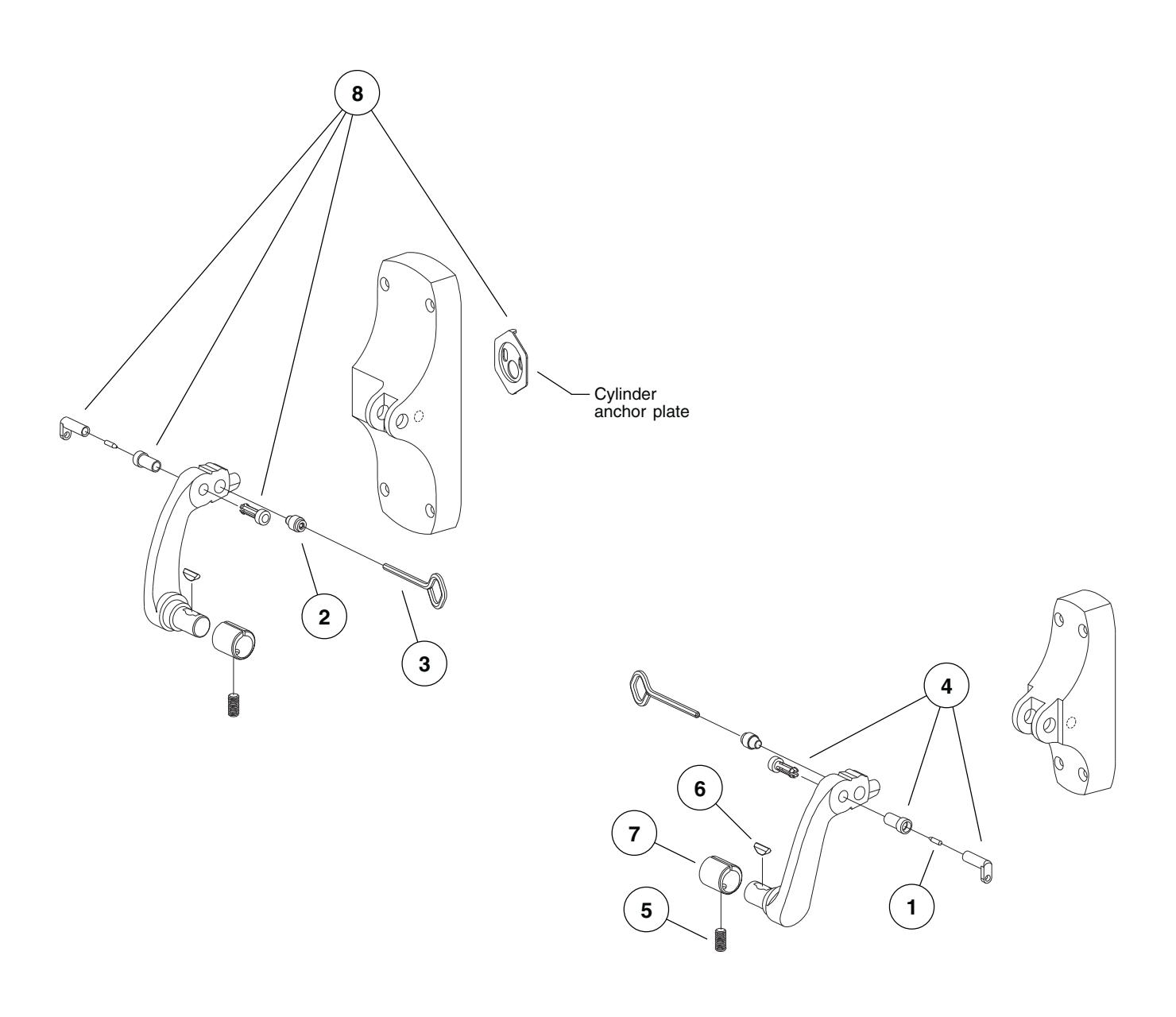

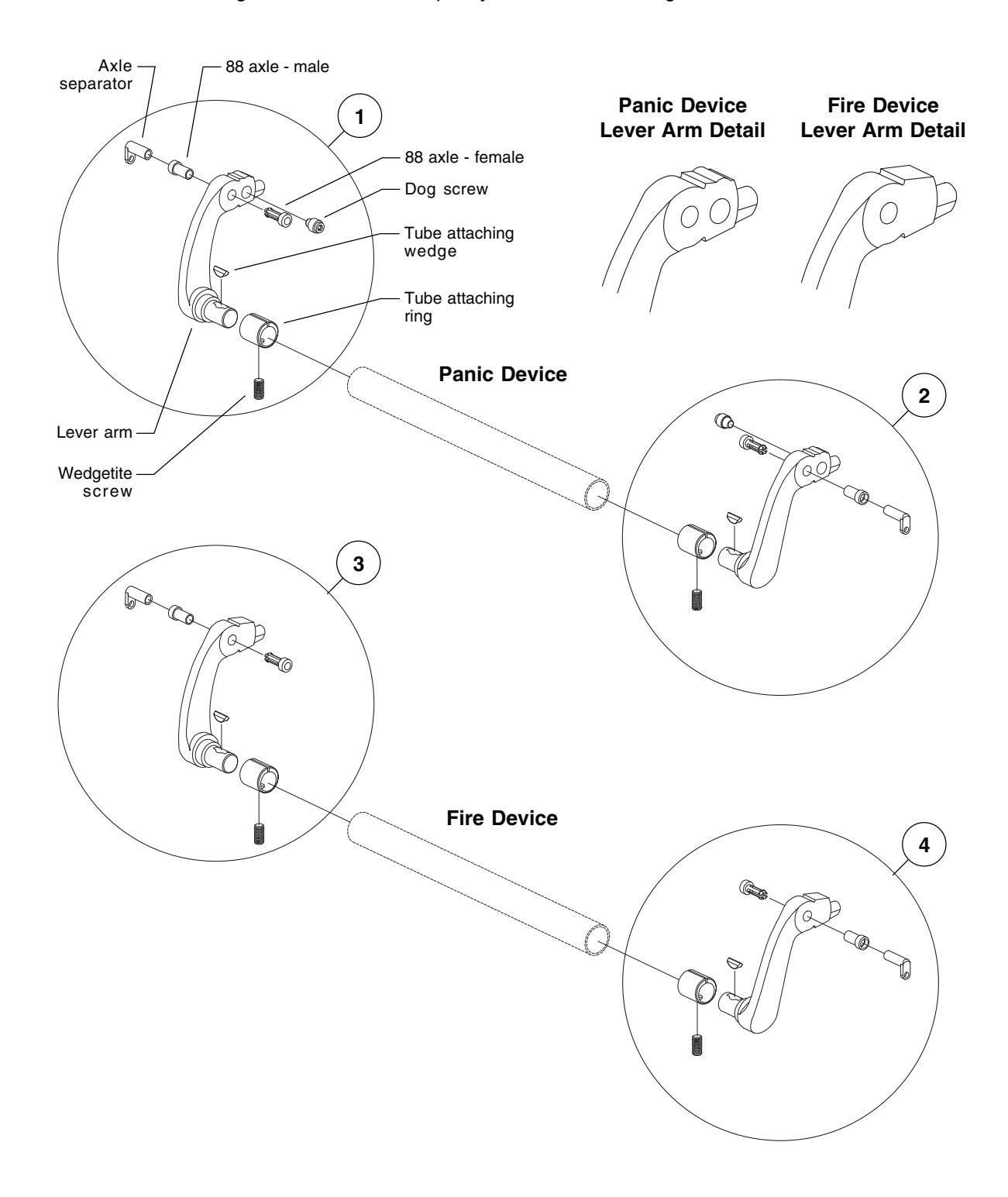

LEVER ARM PARTS PACKAGES

Von Duprin 88 Rim Series Exit Devices Parts Manual 108719 image on page 6

LEVER ARM PARTS PACKAGES

Item No. Part No. Description Quantity Finish
1 090007 Axle Security Pin Pkg. 1
0
1 033022 Axle Security Pin Pkg. 5
0
2 090004 Dog Screw Pkg. 2
2 090083 Dog Screw Pkg. 1
0
3 090005 227 Dog Key 5/32" Pkg. 2
3 090085 227 Dog Key 5/32" Pkg. 1
0
4 090006 Lever Arm Axle Pkg.
88Axle Separator 2
88Axle - Male 2
88Axle - Female 2
4 090082 Lever Arm Axle Pkg.
88Axle Separator 10
88Axle - Male 10
88Axle - Female 10
5 090008 Wedgetite Screw Pkg. 2
5 090081 Wedgetite Screw Pkg. 3
0
6 090020 Crossbar T
ubeAttaching Wedge Pkg. 		2
7 090021 Crossbar TubeAttaching Ring Pkg. 2
8 103865 88 Lever Arm Axle Pkg.
CylinerAnchor Plate 1
88Axle Separator 1
88Axle - Male 2
88Axle - Female 2

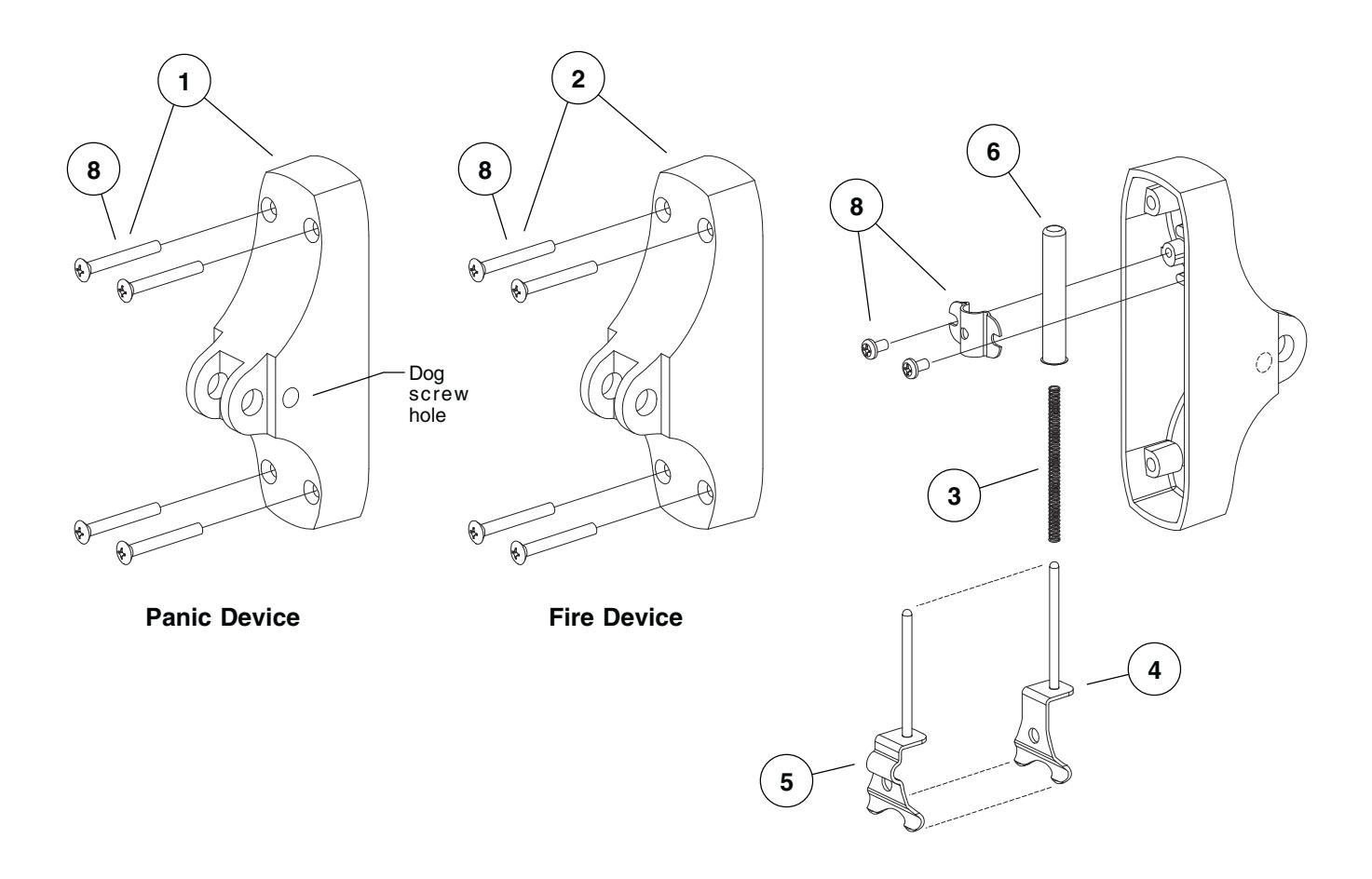

END CASE KIT AND END CASE PARTS

Von Duprin 88 Rim Series Exit Devices Parts Manual 108719 image on page 8

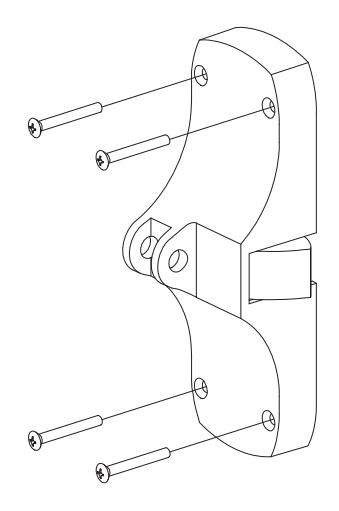

END CASE KIT AND END CASE PARTS

Item No. Part No. Description Quantity Finish
1 050435 88
R/M/V End Case Kit 		X
88 R/M/V End Case 1
10-24 x 1-1/2" OPHMS 4
10-24 x 2" OPHMS 4
10-12 x 10-24 x 2" OPHCS 4
2 050437 88-F Rim
End Case Kit 		X
88-F End Case 1
10-24 x 1-1/2" OPHMS 4
10-24 x 2" OPHMS 4
10-12 x 10-24 x 2" OPHCS 4
3 090003 88
End Case Spring Pkg. 		2
3 090080 88
End Case Spring Pkg. 		1
0
4 050451 88
End Case Spring Stop Kit 		1
5 050452 88-F
End Case Spring Stop Kit 		1
6 050476 88/88-FEnd CaseSpringTube 1
7 050477 88/88-F Spring Tube Bracket w/Screws Kit
88/88-F SpringTube Bracket 1
88/88-F Spring Tube Bracket Screws 2
8 900503 88 Center or End Case Mtg. Pkg. (CS and MS screws) X
10-24 x 1-1/2" OPHMS 4
10-24 x 2" OPHMS 4
10-12 x 10-24 x 2" OPHCS 4
8 900504 88
Center or End Case Mtg. Pkg. (CS screws) 		X
10-12 x 10-24 x 2" OPHCS 4
8 900505
88 Center or End Case Mtg. Pkg. (MS screws 1-3/4" door) 		X
10-24 x 1-1/2" OPHMS 4
8 900506 88 Center or End Case Mtg. Pkg. (MS screws 2-1/4" door) X
10-24 x 2" OPHMS 4

X in "Finish" column designates finished item; specify finish when ordering.

CENTER CASE PARTS: EO, DT, AND NL PANIC EXIT DEVICES

Von Duprin 88 Rim Series Exit Devices Parts Manual 108719 image on page 10

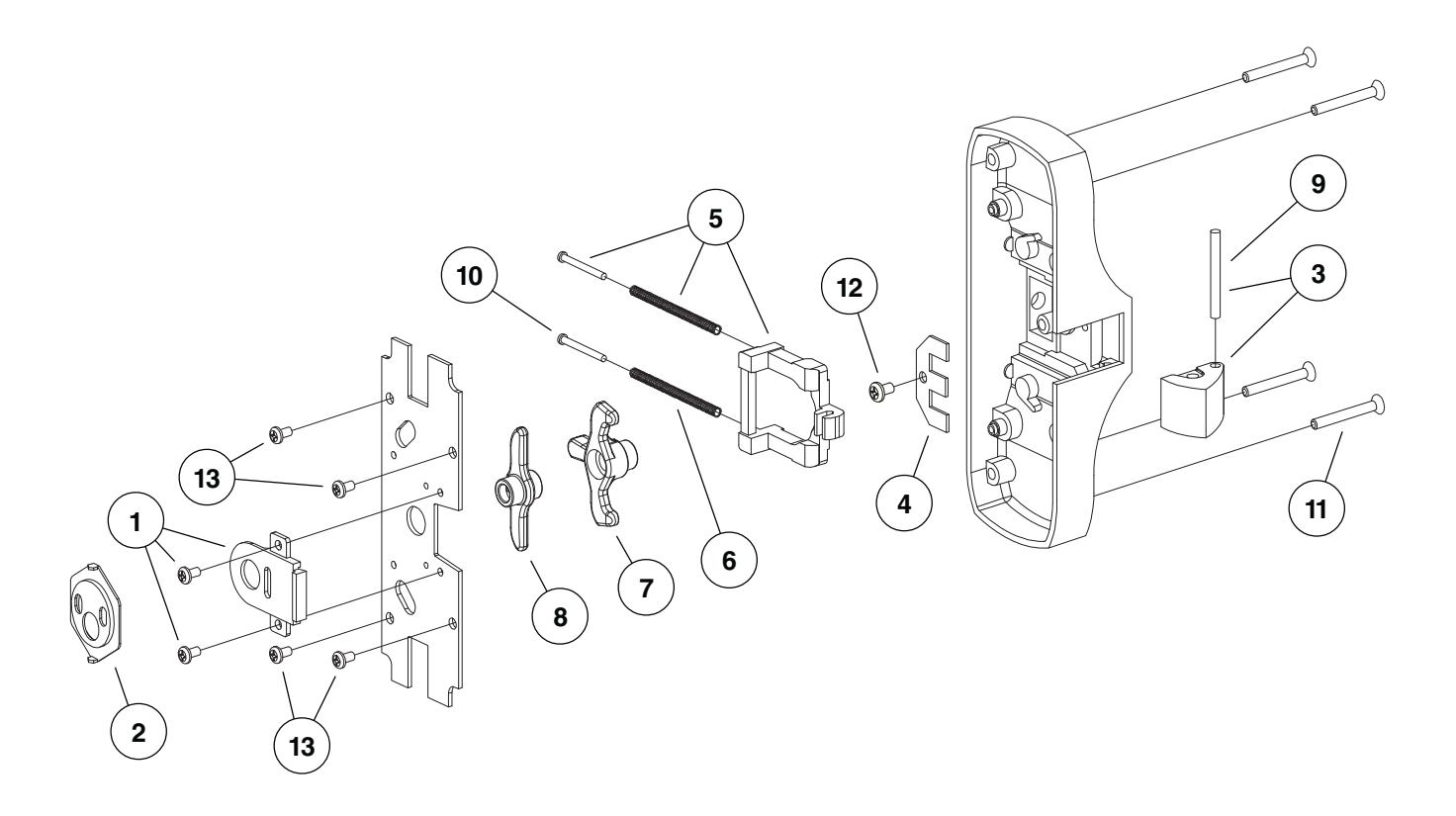

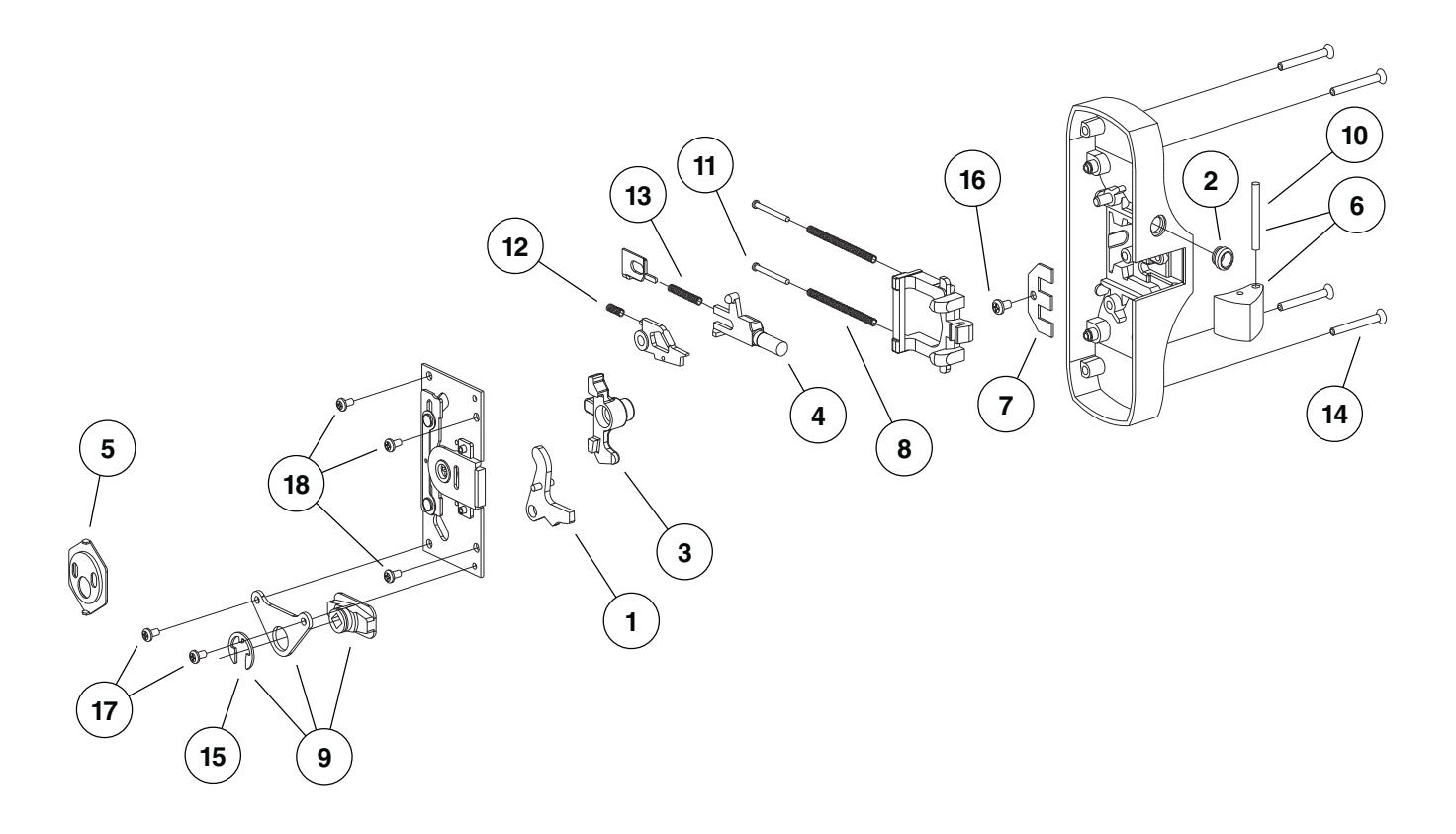

CENTER CASE PARTS: EO, DT, AND NL PANIC EXIT DEVICES

Item No. Part No. Description Quantity Finish
1 050260 88
Rim Auxiliary Backplate Kit 		X
88 Rim Auxiliary Backplate 1
8-32 x 5/16" PPHMS 2
2 050331 88
CylinderAnchor Plate 		1
3 050497 88 Latchbolt w/Axle Kit
88 Rim Latchbolt 1
88 Rim LatchboltAxle 1
4 050499 88
Rim Latch Retainer Plate 		1
5 050500 88 Rim Latch Tail, Spring, Rivet Kit
88 Rim Latch Tail Rivet 2
88 Rim Latch Tail Spring 2
88 Rim Latch Tail 1
6 050393 88
Rim Latch Tail Spring Pkg. 		1
0
7 050501 88
Rim Master Cam 		1
8 050502 88NL Cylinder Cam 1
9 090001 88
Rim Latch Bolt Axle Pkg. 		4
10 090002 88
Rim Center Case Rivet Pkg. 		1
0
11 900503 88 Center or End Case Mtg. Pkg. (CS and MS screws) X
10-24 x 1-1/2" OPHMS 4
10-24 x 2" OPHMS 4
10-12 x 10-24 x 2" OPHCS 4
11 900504 88
Center or End Case Mtg. Pkg. (CS screws) 		X
10-12 x 10-24 x 2" OPHCS 4
11 900505 88 Center or End Case Mtg. Pkg. (MS screws 1-3/4" door) X
10-24 x 1-1/2" OPHMS 4
11 900506 88 Center or End Case Mtg. Pkg. (MS screws 2-1/4" door) X
10-24 x 2" OPHMS 4
12 900610 88 Rim Latch Retainer Plate Screw Pkg.
10-24 x 5/16" PPHMS Thd. Cut 10
13 900613 88 Backplate Screw Pkg.
8-32 x 3/8" PPH TF 4

X in "Finish" column designates finished item; specify finish when ordering.

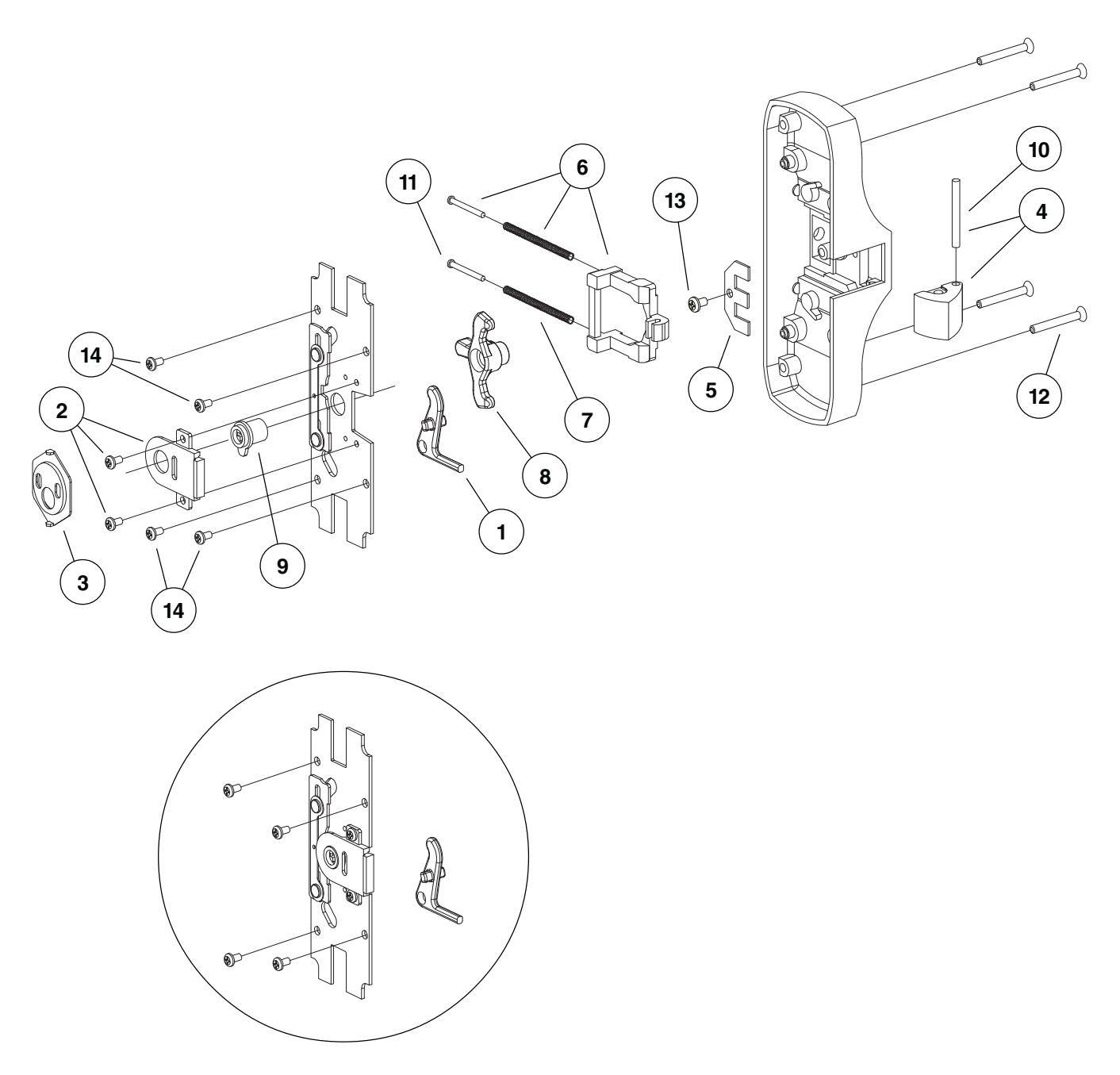

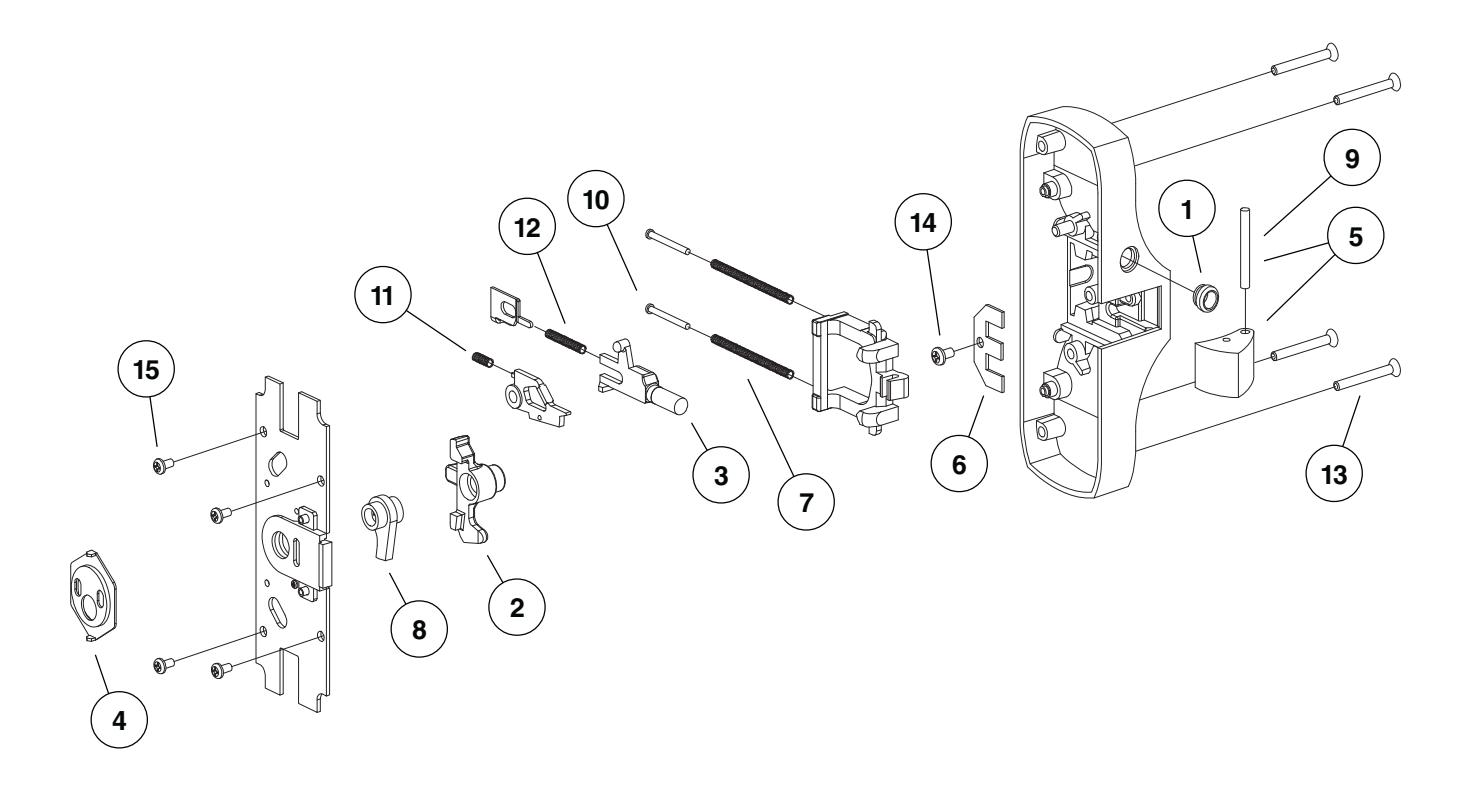

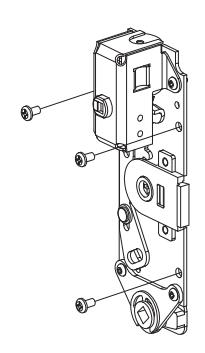

CENTER CASE PARTS: EO AND NL FIRE EXIT DEVICES

Von Duprin 88 Rim Series Exit Devices Parts Manual 108719 image on page 12

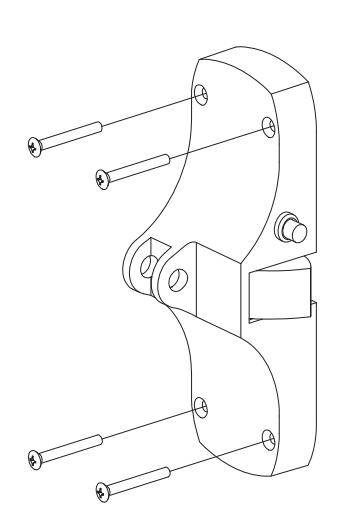

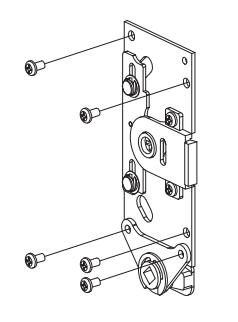

CENTER CASE PARTS: EO AND NL FIRE EXIT DEVICES

Item No. Part No. Description Quantity Finish
1 050272 88-FAuxiliary Bolt Bushing 1
2 050274 88-F Master Cam LH (shown) 1
2 050273 88-F Master Cam RH (not shown) 1
3 050276 88-FAuxiliary Bolt LH (shown) 1
3 050275 88-FAuxiliary Bolt RH (not shown) 1
4 050331 88
CylinderAnchor Plate 		1
5 050498 88-F Latchbolt w/Axle Kit
88-F Rim Latchbolt 1
88 Rim LatchboltAxle 1
6 050499 88
Rim Latch Retainer Plate 		1
7 050393 88
Rim Latch Tail Spring Pkg. 		1
0
8 050503 88NL-FCylinderCam 1
9 090001 88
Rim Latch Bolt Axle Pkg. 		4
10 090002 88
Rim Center Case Rivet Pkg. 		1
0
11 090009 88-F Rim Gravity Dog Spring Pkg. 5
12 090017 88-FAuxiliary Bolt Return Spring Pkg. 5
13 900503 88 Center or End Case Mtg. Pkg. (CS and MS screws) X
10-24 x 1-1/2" OPHMS 4
10-24 x 2" OPHMS 4
10-12 x 10-24 x 2" OPHCS 4
13 900504 88
Center or End Case Mtg. Pkg. (CS screws) 		X
10-12 x 10-24 x 2" OPHCS 4
13 900505 88 Center or End Case Mtg. Pkg. (MS screws 1-3/4" door) X
10-24 x 1-1/2" OPHMS 4
13 900506 88 Center or End Case Mtg. Pkg. (MS screws 2-1/4" door) X
10-24 x 2" OPHMS 4
14 900610 88 Rim Latch Retainer Plate Screw Pkg.
10-24 x 5/16" PPHMS Thd. Cut
15 900613 88 Backplate Screw Pkg.
8-32 x 3/8" PPH TF 4

CENTER CASE PARTS: TP PANIC EXIT DEVICES

Von Duprin 88 Rim Series Exit Devices Parts Manual 108719 image on page 14

Part No. 050102, 88CK-TP Conversion Kit; replaces item No. 1, 88 Thumbpiece Lift Replacement Kit, for 88TP devices shipped after June 2000

CENTER CASE PARTS: TP PANIC EXIT DEVICES

Item No. Part No. Description Quantity Finish
1 050019 88 Thum
bpiece Lift Replacement Kit* 		1
2 050260 88
Rim Auxiliary Backplate 		X
88 Rim Auxiliary Backplate 1
8-32 x 5/16" PPHMS 2
3 050331 88
CylinderAnchor Plate 		1
4 050497 88 Latchbolt w/Axle Kit
88 Rim Latchbolt 1
88 Rim LatchboltAxle 1
5 050499 88
Rim Latch Retainer Plate 		1
6 050500 88 Rim Latch Tail, Spring, Rivet Kit
88 Rim Latch Tail Rivet 2
88 Rim Latch Tail Spring 2
88 Rim Latch Tail 1
7 050393 88
Rim Latch Tail Spring Pkg. 		1
0
8 050501 88
Rim Master Cam 		1
9 050508 88TP/TP-F Cylinder Cam 1
10 090001 88
Rim Latch Bolt Axle Pkg. 		4
11 090002 88
Rim Center Case Rivet Pkg. 		1
0
12 900503 88 Center or End Case Mtg. Pkg. (CS and MS screws) X
10-24 x 1-1/2" OPHMS 4
10-24 x 2" OPHMS 4
10-12 x 10-24 x 2" OPHCS 4
12 900504 88
Center or End Case Mtg. Pkg. (CS screws) 		X
10-12 x 10-24 x 2" OPHCS 4
12 900505 88 Center or End Case Mtg. Pkg. (MS screws 1-3/4" door) X
10-24 x 1-1/2" OPHMS 4
12 900506 88 Center or End Case Mtg. Pkg. (MS screws 2-1/4" door) X
10-24 x 2" OPHMS
13 900610 88 Rim Latch Retainer Plate Screw Pkg.
10-24 x 5/16" PPHMS Thd. Cut 10
14 900613 88 Backplate Screw Pkg.
8-32 x 3/8" PPH TF 4

* For 88TP devices shipped after June 2000; for devices shipped before June 2000, use replacement part No. 050102.

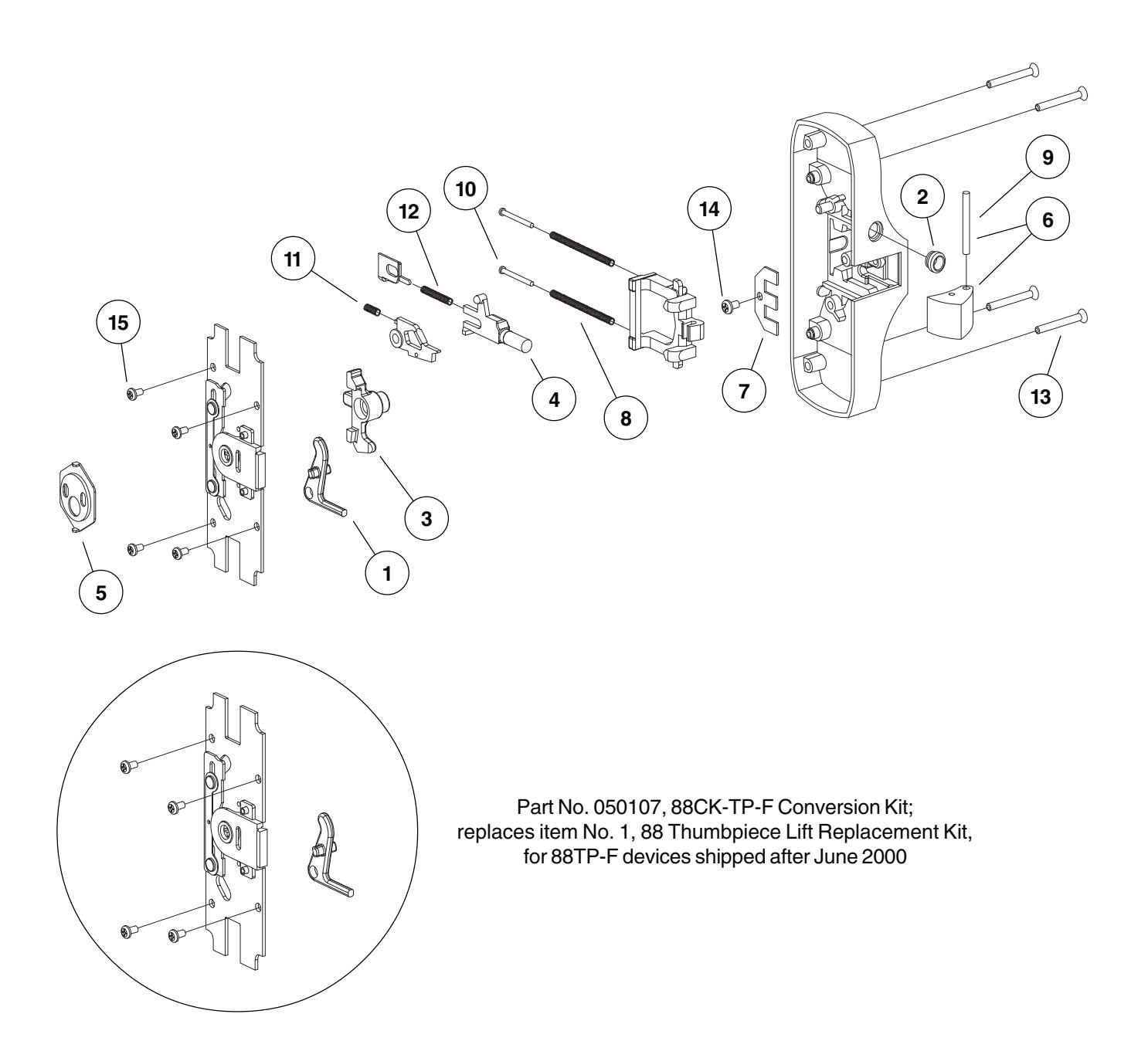

CENTER CASE PARTS: TP FIRE EXIT DEVICES

Von Duprin 88 Rim Series Exit Devices Parts Manual 108719 image on page 16

CENTER CASE PARTS: TP FIRE EXIT DEVICES

Item No. Part No. Description Quantity Finish
1 050019 88 Thum
bpiece Lift Replacement Kit* 		1
2 050272 88-FAuxiliary Bolt Bushing 1
3 050274 88-F Master Cam LH (shown) 1
3 050273 88-F Master Cam RH (not shown) 1
4 050276 88-FAuxiliary Bolt LH (shown) 1
4 050275 88-FAuxiliary Bolt RH (not shown) 1
5 050331 88
CylinderAnchor Plate 		1
6 050498 88-F Latchbolt w/Axle Kit
88-F Rim Latchbolt 1
88 Rim LatchboltAxle 1
7 050499 88
Rim Latch Retainer Plate 		1
8 050393 88
Rim Latch Tail Spring Pkg. 		1
0
9 090001 88
Rim Latch Bolt Axle Pkg. 		4
10 090002 88
Rim Center Case Rivet Pkg. 		1
0
11 090009 88-F Rim Gravity Dog Spring Pkg. 5
12 090017 88-FAuxiliary Bolt Return Spring Pkg. 5
13 900503 88 Center or End Case Mtg. Pkg. (CS and MS screws) X
10-24 x 1-1/2" OPHMS 4
10-24 x 2" OPHMS 4
10-12 x 10-24 x 2" OPHCS 4
13 900504 88
Center or End Case Mtg. Pkg. (CS screws) 		X
10-12 x 10-24 x 2" OPHCS 4
13 900505 88 Center or End Case Mtg. Pkg. (MS screws 1-3/4" door) X
10-24 x 1-1/2" OPHMS 4
13 900506 88 Center or End Case Mtg. Pkg. (MS screws 2-1/4" door) X
10-24 x 2" OPHMS 4
14 900610 88 Rim Latch Retainer Plate Screw Pkg.
10-24 x 5/16" PPHMS Thd. Cut 10
15 900613 88 Backplate Screw Pkg.
8-32 x 3/8" PPH TF 4

* For 88TP-F devices shipped after June 2000; for devices shipped before June 2000, use replacement part No. 050107.

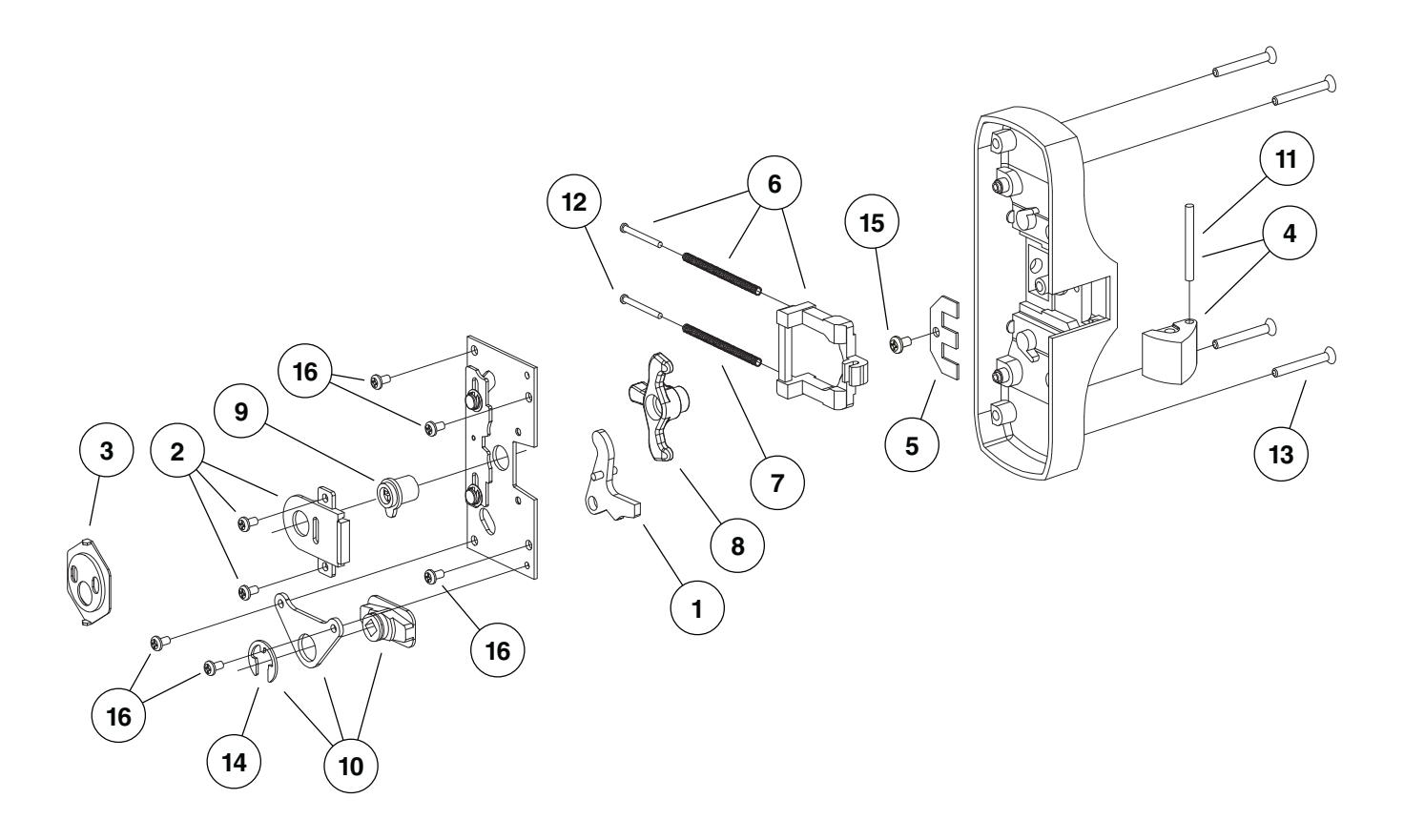

CENTER CASE PARTS: K/L PANIC EXIT DEVICES

Von Duprin 88 Rim Series Exit Devices Parts Manual 108719 image on page 18

CENTER CASE PARTS: K/L PANIC EXIT DEVICES

Item No. Part No. Description Quantity Finish
1 050504 88K/L-F Knob Cam Lift 1
2 050260 88
Rim Auxiliary Backplate 		X
88 Rim Auxiliary Backplate 1
8-32 x 5/16" PPHMS 2
3 050331 88
CylinderAnchor Plate 		1
4 050497 88 Latchbolt w/Axle Kit
88 Rim Latchbolt 1
88 Rim LatchboltAxle 1
5 050499 88
Rim Latch Retainer Plate 		1
6 050500 88 Rim Latch Tail, Spring, Rivet Kit
88 Rim Latch Tail Rivet 2
88 Rim Latch Tail Spring 2
88 Rim Latch Tail 1
7 050393 88
Rim Latch Tail Spring Pkg. 		1
0
8 050501 88
Rim Master Cam 		1
9 050505 88K/L-F Cylinder Cam 1
10 050506 88K/L-F Knob Cam BracketAssy. 1
11 090001 88
Rim Latch Bolt Axle Pkg. 		4
12 090002 88
Rim Center Case Rivet Pkg. 		1
0
13 900503 88 Center or End Case Mtg. Pkg. (CS and MS screws) X
10-24 x 1-1/2" OPHMS 4
10-24 x 2" OPHMS 4
10-12 x 10-24 x 2" OPHCS 4
13 900504 88
Center or End Case Mtg. Pkg. (CS screws) 		X
10-12 x 10-24 x 2" OPHCS 4
13 900505 88 Center or End Case Mtg. Pkg. (MS screws 1-3/4" door) X
10-24 x 1-1/2" OPHMS 4
13 900506 88 Center or End Case Mtg. Pkg. (MS screws 2-1/4" door) X
10-24 x 2" OPHMS 4
14 090015 88K/L-F Retaining Ring Pkg. 1
0
15 900610 88 Rim Latch Retainer Plate Screw Pkg.
10-24 x 5/16" PPHMS Thd. Cut 10
16 900613 88 Backplate Screw Pkg.
8-32 x 3/8" PPH TF 4

CENTER CASE PARTS: K/L FIRE EXIT DEVICES

Von Duprin 88 Rim Series Exit Devices Parts Manual 108719 image on page 20

CENTER CASE PARTS: K/L FIRE EXIT DEVICES

Item No. Part No. Description Quantity Finish
1 050504 88K/L-F Knob Cam Lift 1
2 050272 88-FAuxiliary Bolt Bushing 1
3 050274 88-F Master Cam LH (shown) 1
3 050273 88-F Master Cam RH (not shown) 1
4 050276 88-FAuxiliary Bolt LH (shown) 1
4 050275 88-FAuxiliary Bolt RH (not shown) 1
5 050331 88
CylinderAnchor Plate 		1
6 050498 88-F Latchbolt w/Axle Kit
88-F Rim Latchbolt 1
88 Rim LatchboltAxle 1
7 050499 88
Rim Latch Retainer Plate 		1
8 050393 88
Rim Latch Tail Spring Pkg. 		1
0
9 050506 88K/L-F Knob Cam BracketAssy. 1
10 090001 88
Rim Latch Bolt Axle Pkg. 		4
11 090002 88
Rim Center Case Rivet Pkg. 		1
0
12 090009 88-F Rim Gravity Dog Spring Pkg. 5
13 090017 88-FAuxiliary Bolt Return Spring Pkg. 5
14 900503 88 Center or End Case Mtg. Pkg. (CS and MS screws) X
10-24 x 1-1/2" OPHMS 4
10-24 x 2" OPHMS 4
10-12 x 10-24 x 2" OPHCS 4
14 900504 88
Center or End Case Mtg. Pkg. (CS screws) 		X
10-12 x 10-24 x 2" OPHCS 4
14 900505 88 Center or End Case Mtg. Pkg. (MS screws 1-3/4" door) X
10-24 x 1-1/2" OPHMS 4
14 900506 88 Center or End Case Mtg. Pkg. (MS screws 2-1/4" door) X
10-24 x 2" OPHMS 4
15 090015 88K/L-F Retaining Ring Pkg. 1
0
16 900610 88 Rim Latch Retainer Plate Screw Pkg.
10-24 x 5/16" PPHMS Thd. Cut 10
17 900613 88 Backplate Screw Pkg.
8-32 x 3/8" PPH TF 4

BACKPLATE CONVERSION KITS

Specify Finish when Ordering Backplate Conversion Kits

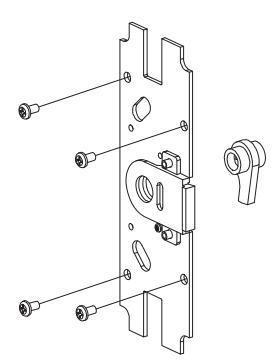

Von Duprin 88 Rim Series Exit Devices Parts Manual 108719 image on page 22

Description: 88CK-NL Part No. 050101

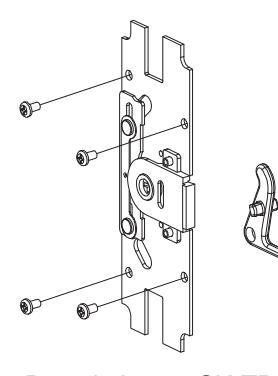

Von Duprin 88 Rim Series Exit Devices Parts Manual 108719 image on page 22

Description: 88CK-TP Part No. 050102

Von Duprin 88 Rim Series Exit Devices Parts Manual 108719 image on page 22

Description: 88CK-K/L Part No. 050103

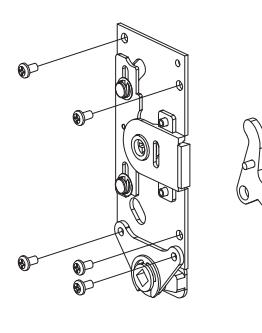

Von Duprin 88 Rim Series Exit Devices Parts Manual 108719 image on page 22

Description: 88CK-NL-F Part No. 050106

Von Duprin 88 Rim Series Exit Devices Parts Manual 108719 image on page 22

Description: 88CK-TP-F Part No. 050107

Von Duprin 88 Rim Series Exit Devices Parts Manual 108719 image on page 22

Description: 88CK-K/L-F Part No. 050108

Von Duprin 88 Rim Series Exit Devices Parts Manual 108719 image on page 22

Description Part No.
E88K RHR FSE 24VDC 050336
E88K LHR FSE 24VDC 050337
E88K RHR FS
24VDC 		050338
E88K LHR FS
24VDC 		050339
E88K RHR FSE 24VAC 050344
E88K LHR FSE 24VAC 050345
E88K RHR FS
24VAC 		050346
E88K LHR FS
24VAC 		050347

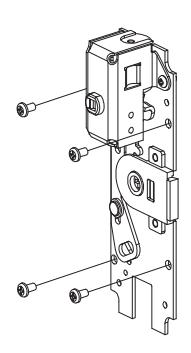

Von Duprin 88 Rim Series Exit Devices Parts Manual 108719 image on page 22

Description Part No.
E88TP RHR FSE 24VDC 050341
E88TP LHR FSE 24VDC 050341
E88TP RHR FS
24VDC 		050342
E88TP LHR FS
24VDC 		050343
E88TP RHR FSE 24VAC 050348
E88TP LHR FSE 24VAC 050349
E88TP RHR FS
24VAC 		050350
E88TP LHR FS
24VAC 		050351

CENTER CASE KITS

Specify Finish when Ordering Center Case Kits

Von Duprin 88 Rim Series Exit Devices Parts Manual 108719 image on page 23

Panic Exit Device Center Case Kit RHR shown

Description (Panic Exit Devices) Part No.
88EO/DT/NL - - - 050409
88TP - - - 050410
88K/L RHR - - 050411
88K/L LHR - - 050412
E88K RHR FSE 24VDC 050336
E88K LHR FSE 24VDC 050337
E88K RHR FS 24VDC 050338
E88K LHR FS 24VDC 050339
E88K RHR FSE 24VAC 050344
E88K LHR FSE 24VAC 050345
E88K RHR FS 24VAC 050346
E88K LHR FS 24VAC 050347

Von Duprin 88 Rim Series Exit Devices Parts Manual 108719 image on page 23

Fire Exit Device Center Case Kit RHR shown

Description (Fire Exit Devices) Part No.
88EO-F/NL-F RHR - - 050424
88EO-F/NL-F LHR - - 050425
88TP-F RHR - - 050426
88TP-F LHR - - 050427
88K/L-F RHR - - 050428
88K/L-F LHR - - 05029
E88K-F RHR FSE 24VDC 050311
E88K-F LHR FSE 24VDC 050312
E88K-F RHR FS 24VDC 050313
E88K-F LHR FS 24VDC 050314
E88TP-F RHR FSE 24VDC 050315
E88TP-F LHR FSE 24VDC 050316
E88TP-F RHR FS 24VDC 050317
E88TP-F LHR FS 24VDC 050318
E88K-F RHR FSE 24VAC 050319
E88K-F LHR FSE 24VAC 050320
E88K-F RHR FS 24VAC 050321
E88K-F LHR FS 24VAC 050322
E88TP-F RHR FSE 24VAC 050323
E88TP-F LHR FSE 24VAC 050324
E88TP-F RHR FS 24VAC 050325
E88TP-F LHR FS 24VAC 050326

About Allegion

Allegion (NYSE: ALLE) creates peace of mind by pioneering safety and security. As a $2 billion provider of security solutions for homes and businesses, Allegion employs more than 7,800 people and sells products in more than 120 countries across the world. Allegion comprises 23 global brands, including strategic brands CISA®, Interfl ex®, LCN®, Schlage® and Von Duprin®.

For more, visit www.allegion.com .

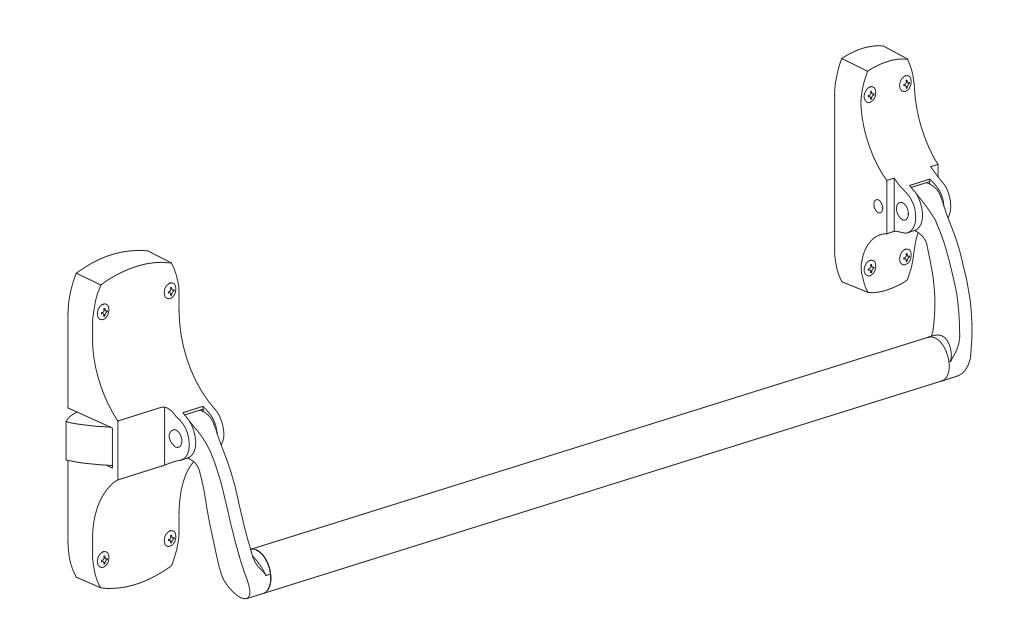

Von Duprin 88 Rim Series Exit Devices Parts Manual 108719 image on page 24
