Von Duprin 697TP-R, 697TP-V, 697TP-R-BE, 697-TP-V-BE Trim For 98 and 99 Series Trim Wood Door Template

Original Source Document Full PDF Version

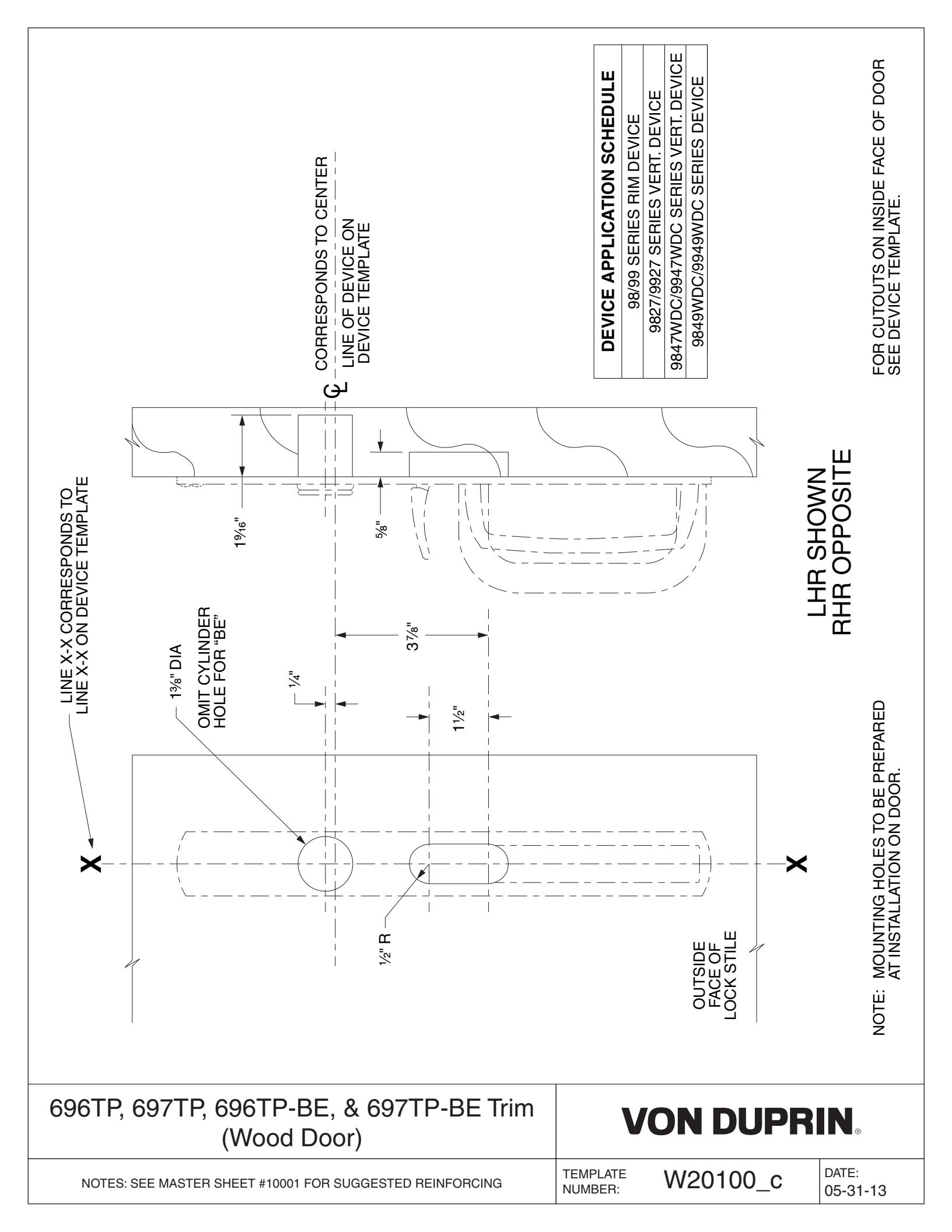

Von Duprin 697TP-R, 697TP-V, 697TP-R-BE, 697-TP-V-BE Trim For 98 and 99 Series Trim Wood Door Template diagram on page 1
