Von Duprin 606K, 606KBE Trim Used With 88K, 88K-F, 8827K, 8827K-F, 8875K, 8875K-F For Wood Door Template

Original Source Document Full PDF Version

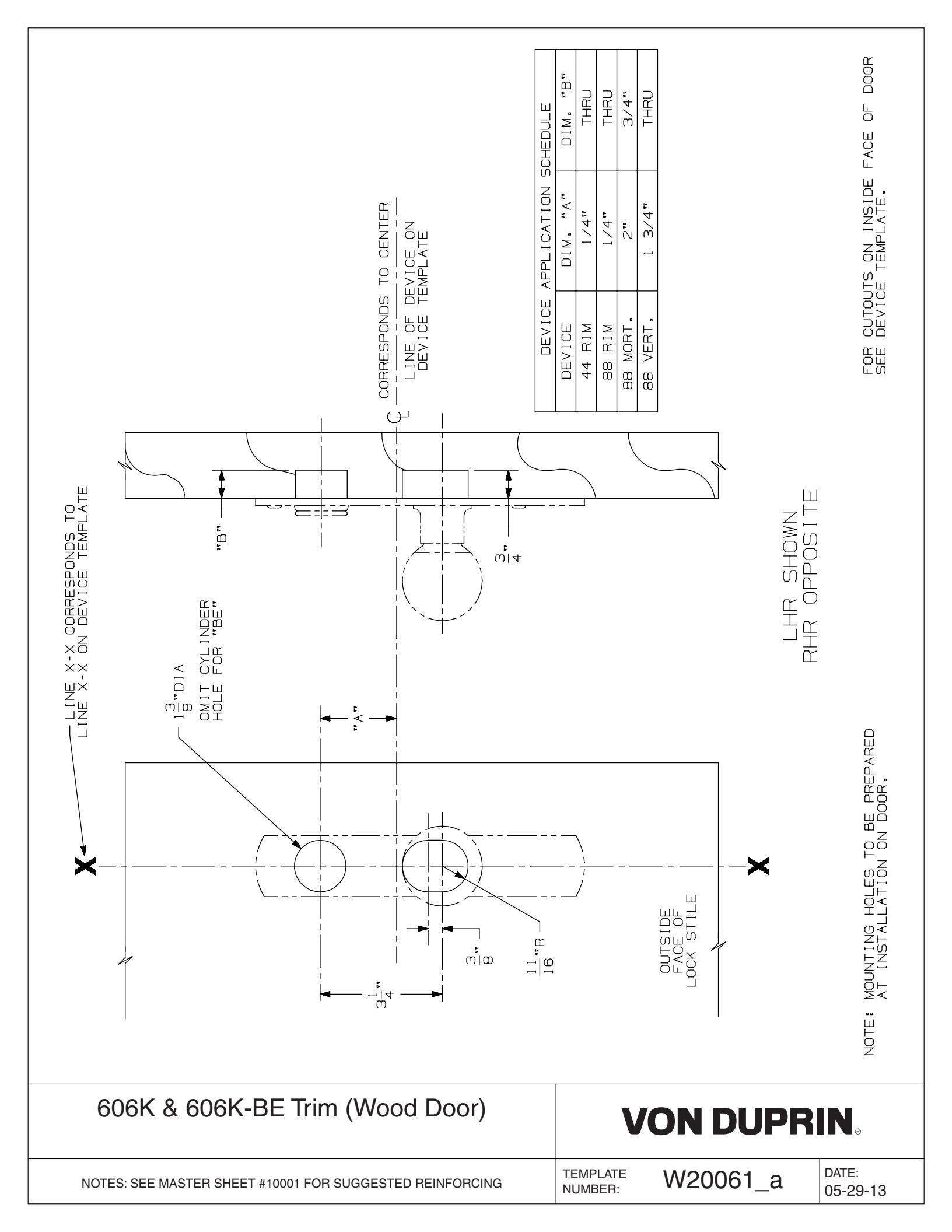

Von Duprin 606K, 606KBE Trim Used With 88K, 88K-F, 8827K, 8827K-F, 8875K, 8875K-F For Wood Door Template diagram on page 1
