← Von Duprin
Electric Strikes 5100, 6100, 6200, 6300 Series
Service manual
Table of Contents
|
General Information
2 |
6200 Series Electric Strikes17 | |
|---|---|---|
|
Introduction
2 |
Box Parts: Type B Box18 | |
| How To Order2 |
Box Parts: Type B Box Images
19 |
|
|
Part Number Changes
2 |
Solenoids & Box Parts: Type A Box, Type C | |
|
5100 Series Medium Duty Electric Strikes
3 |
Box, Offset Box
20 |
|
| Faceplate & Screw Packages4 |
6213
22 |
|
| Solenoid Replacement Kit5 | 6214, 6215, 6222, 6224, 6224AL, 6225, | |
| 6100 Series Electric Strikes7 |
6226
24 |
|
|
Solenoids & Solenoid Parts
8 |
6211, 6211AL, 621226 | |

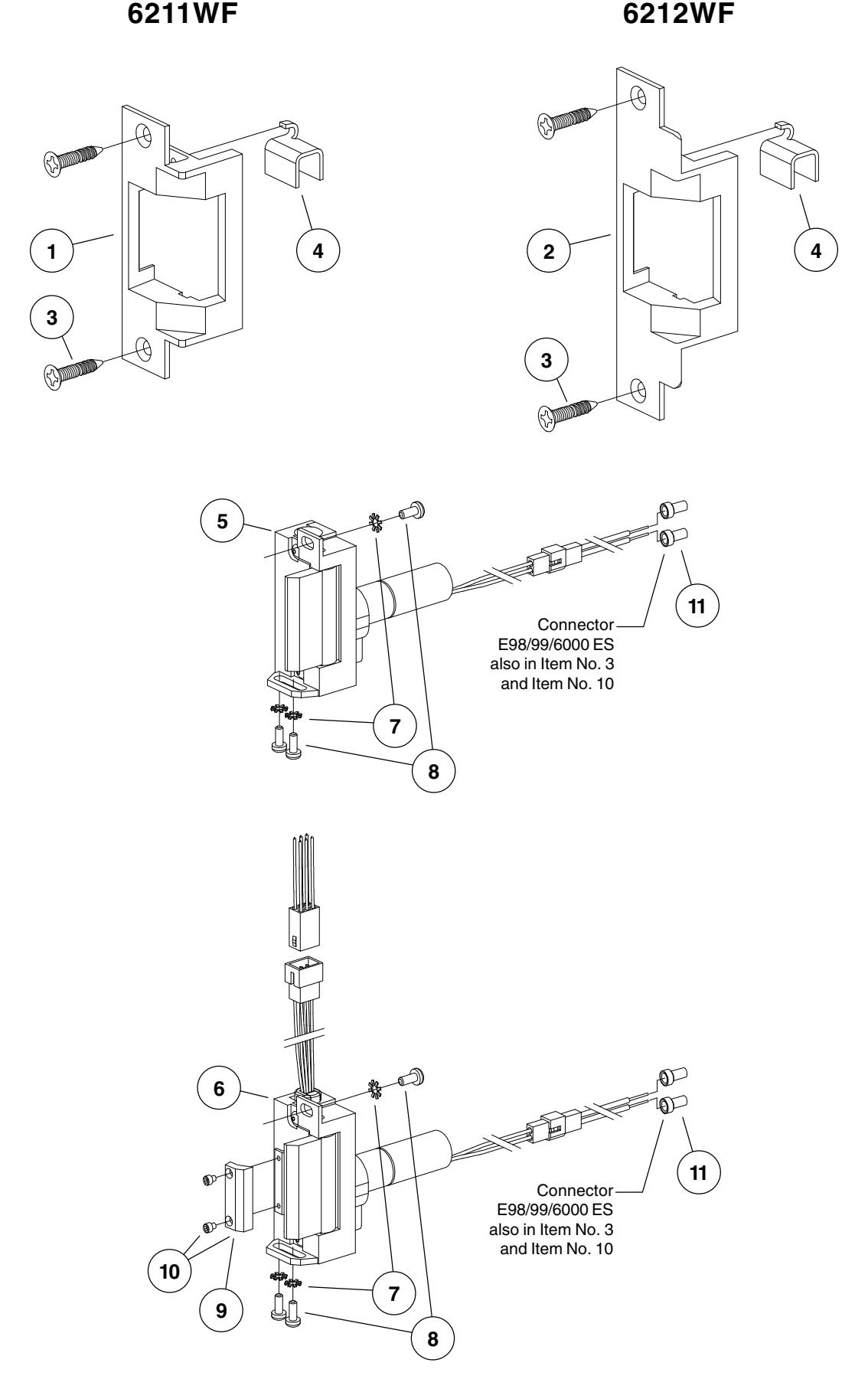

| Solenoids & Box Parts: Type A Box, Type C | 6211WF, 6212WF28 | |
|
Box, Offset Box
9 |
6221, 6223
30 |
|
| 6111, 611310 |
6216
32 |
|
|
6114
12 |
6210
34 |
|
|
6112, 6121
14 |
6300 Series Electric Strikes37 | |

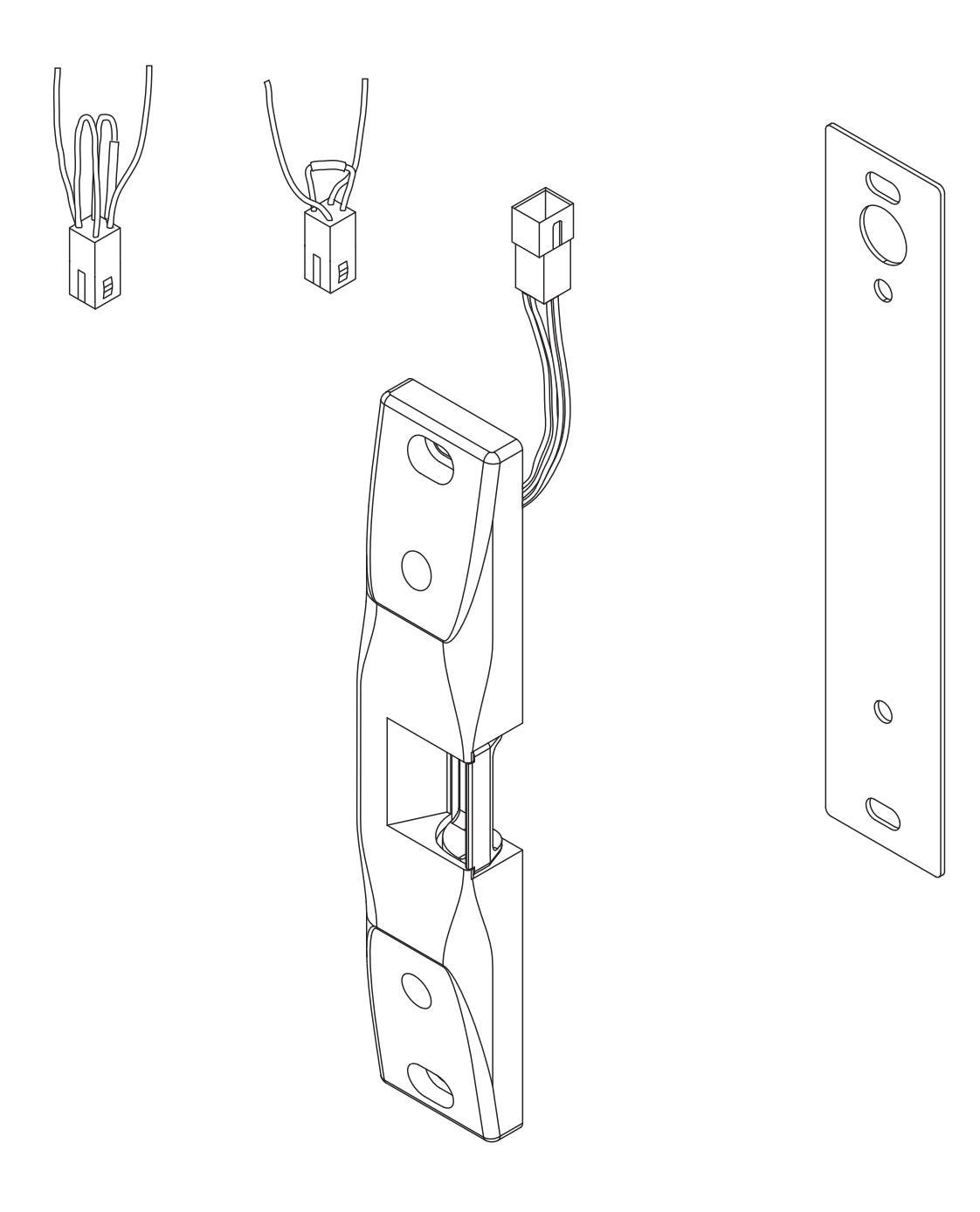

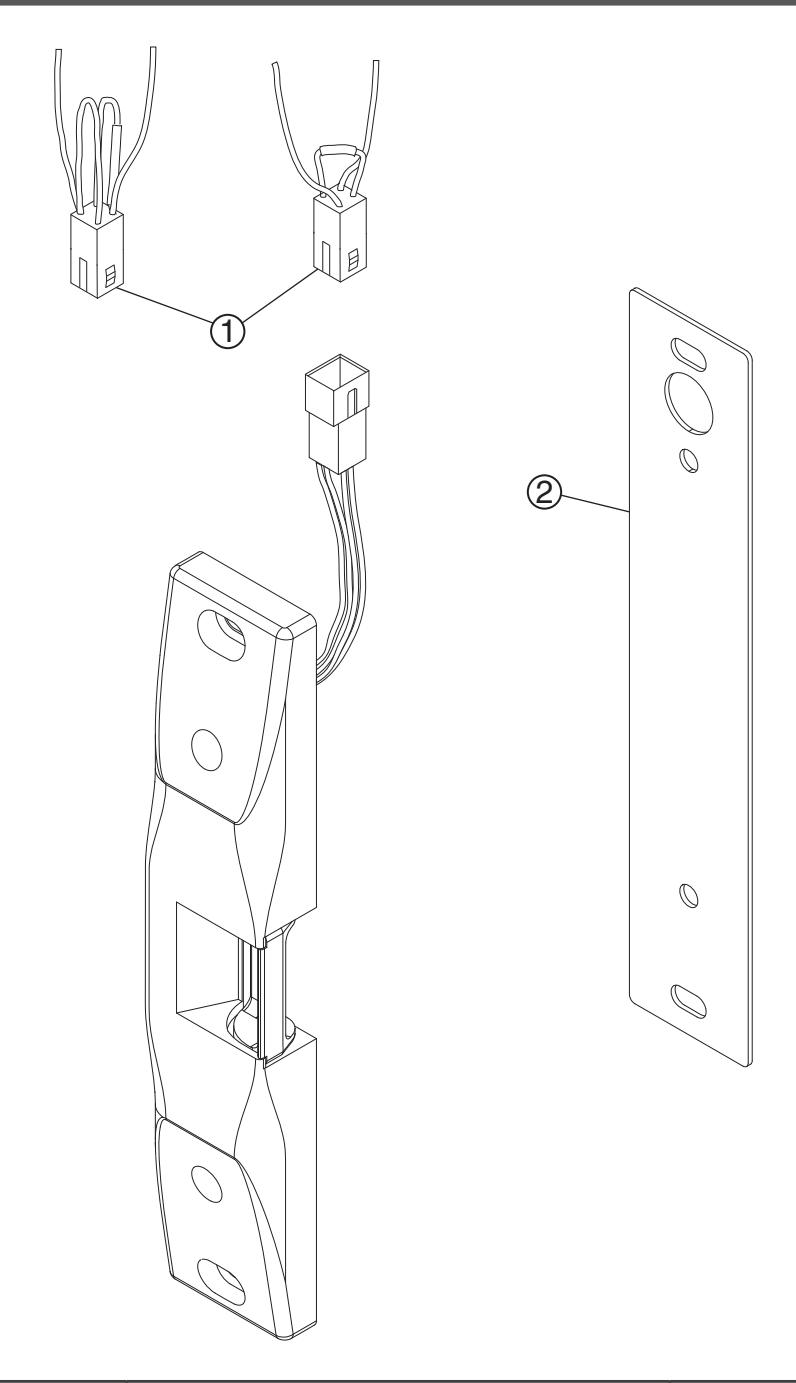

| 6300 Strike Shim & Wire Harness38 |
General Information
INTRODUCTION
This manual lists replaceable parts and assemblies for 5100 Series Medium Duty Electric Strikes, 6100 Series Electric Strikes, 6200 Series Electric Strikes, and 6300 Electric Strikes.
HOW TO ORDER
Some parts are sold separately. Other items are available as part of a kit or multiple quantity package. For the best possible service when ordering replacement parts or assemblies, please provide the following information:
- Part number or assembly number
- Description
- Quantity needed
- Finish desired (if available finished)
- Date of original purchase (if known)
To find out the name of your local Von Duprin distributor or sales representative, contact:
Von Duprin Division Allegion 2720 Tobey Drive Indianapolis, Indiana 46219 Phone: (877) 671-7011
PART NUMBER AND AVAILABILITY CHANGES
This manual was designed to help illustrate the replacement parts and kits that are available for sale. Because of changes to the product and/or manufacturing process, part numbers and availability can change over time.
5100 Series Medium Duty Electric Strikes PARTS MANUAL

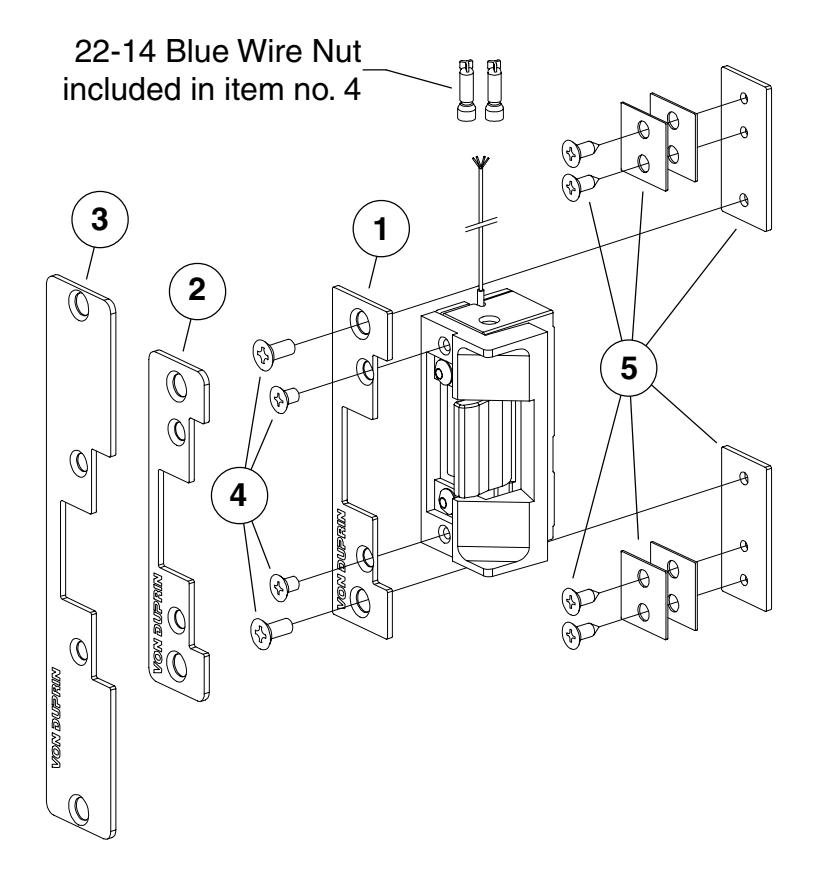

Faceplate & Screw Packages
|
Item
Number |
Part Number | Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 050031 | 5100 Faceplate Package - Standard 4-7/8" | 1 | x |
| 2 | 050032 | 5100 Faceplate Package - Round Corner 4-7/8" | 1 | x |
| 3 | 050033 | 5100 Faceplate Package - Long 7-11/16" | 1 | x |
| 4 | PKGSCR.1003 | 5000 Series Screw Package US32D | ||
| 10-24 5/16" UFPHMS | 2 | |||
| 12-24 1/2" UFPHMS | 2 | |||
| 12-14 1" UFPHWS | 2 | |||
| 22-14 Blue Wire Nut | 2 | |||
| 5000 Series Screw Package Black | ||||
| 4 | PKGSCR.1004 | Same parts as PKGSCR.1003 in Black Finish | ||
| 5000 Mounting Package US32D | ||||
| Mounting Tab Zinc | 2 | |||
|
5
PKGMTG.1004 |
Mounting Tab Shim Nylon | 4 | ||
| 10-24 1/2" UFPHMS | 4 | |||
| 5000 Mounting Package Black | ||||
| 5 | PKGMTG.1005 | Same parts as PKGMTG.1004 in Black Finish |
X in "Finish" column designates finished item; specify finish when ordering.

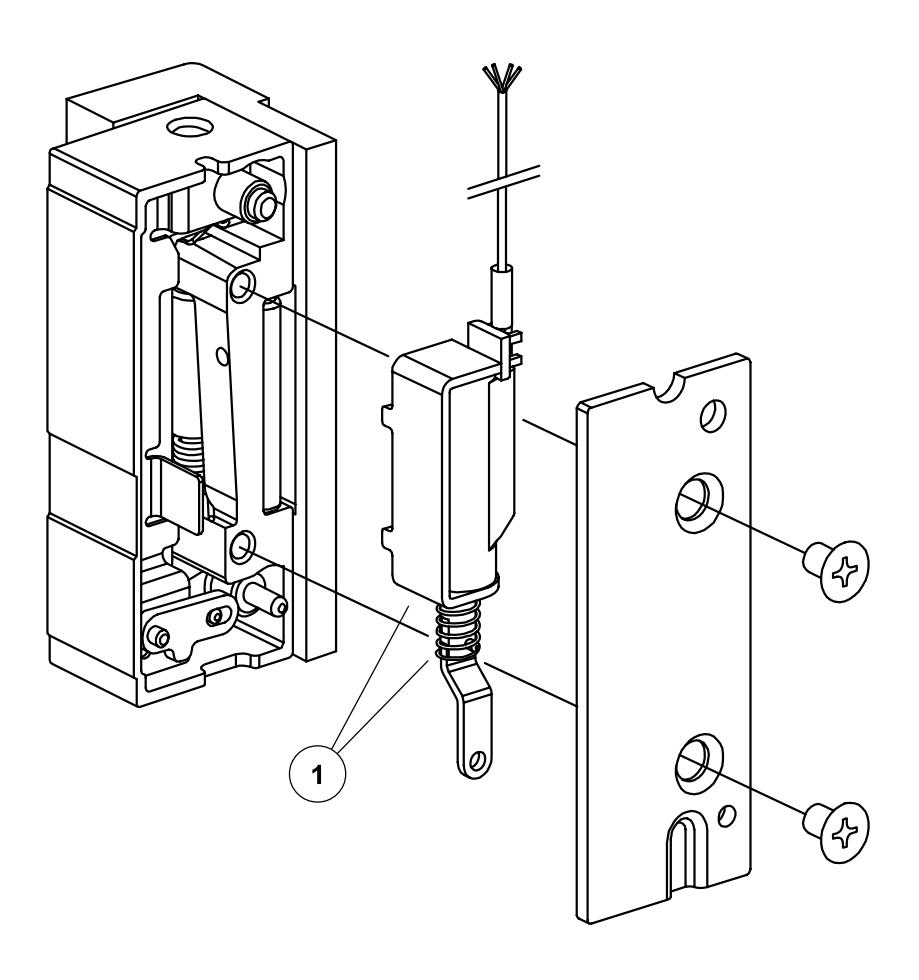

Solenoid Replacement Kit
|
Item
Number |
Part Number | Description | Quantity | Finish |
|---|---|---|---|---|
| 5100 Solenoid Replacement Kit | ||||
| 1 | 050034 | 5100 Solenoid Assembly | 1 | |
| 5100 Plunger Spring | 1 |
X in "Finish" column designates finished item; specify finish when ordering.
5100 Series Medium Duty Electric Strikes

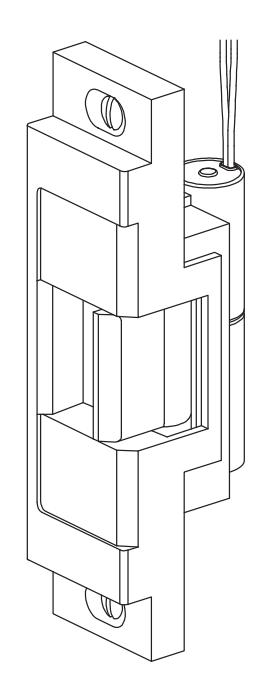

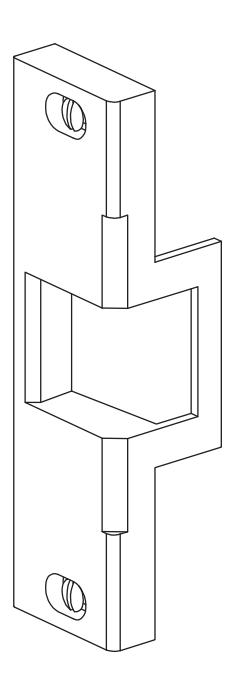

6100 Series Electric Strikes

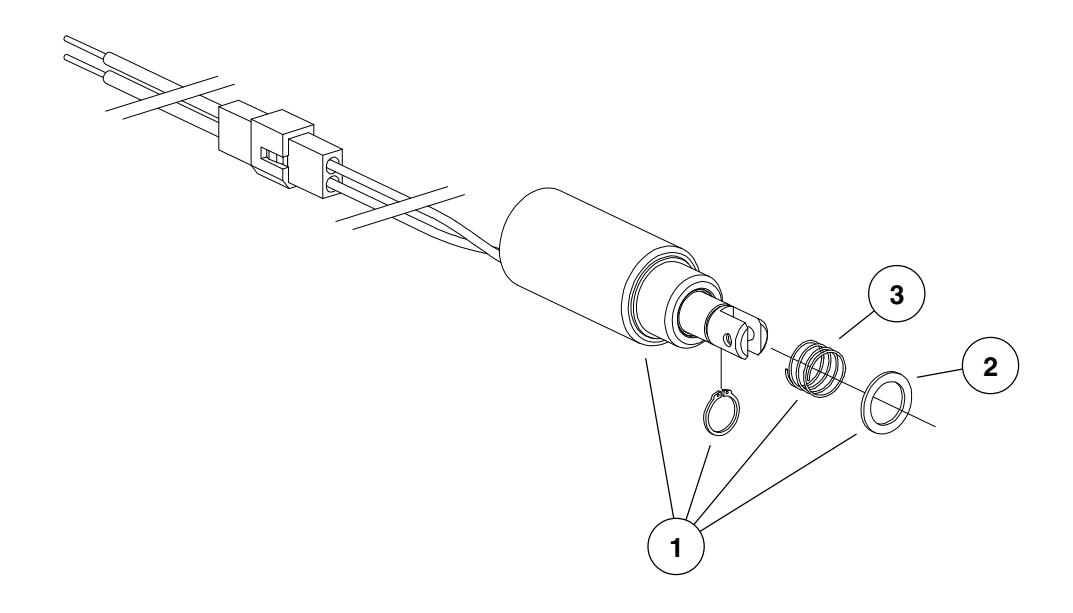

Solenoids & Solenoid Parts
|
Item
Number |
Part Number | Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 050237 | 6000 Series Solenoid Kit 12VDC (FS & FSE) | 1 | |
| 1 | 050239 | 6000 Series Solenoid Kit 16VDC (FS & FSE) | 1 | |
| 1 | 050240 | 6000 Series Solenoid Kit 24VDC (FS & FSE) | 1 | |
| 2 | 964037 | Solenoid Washer | 1 | |
| 3 | 968713 | Solenoid Spring | 1 |
X in "Finish" column designates finished item; specify finish when ordering.

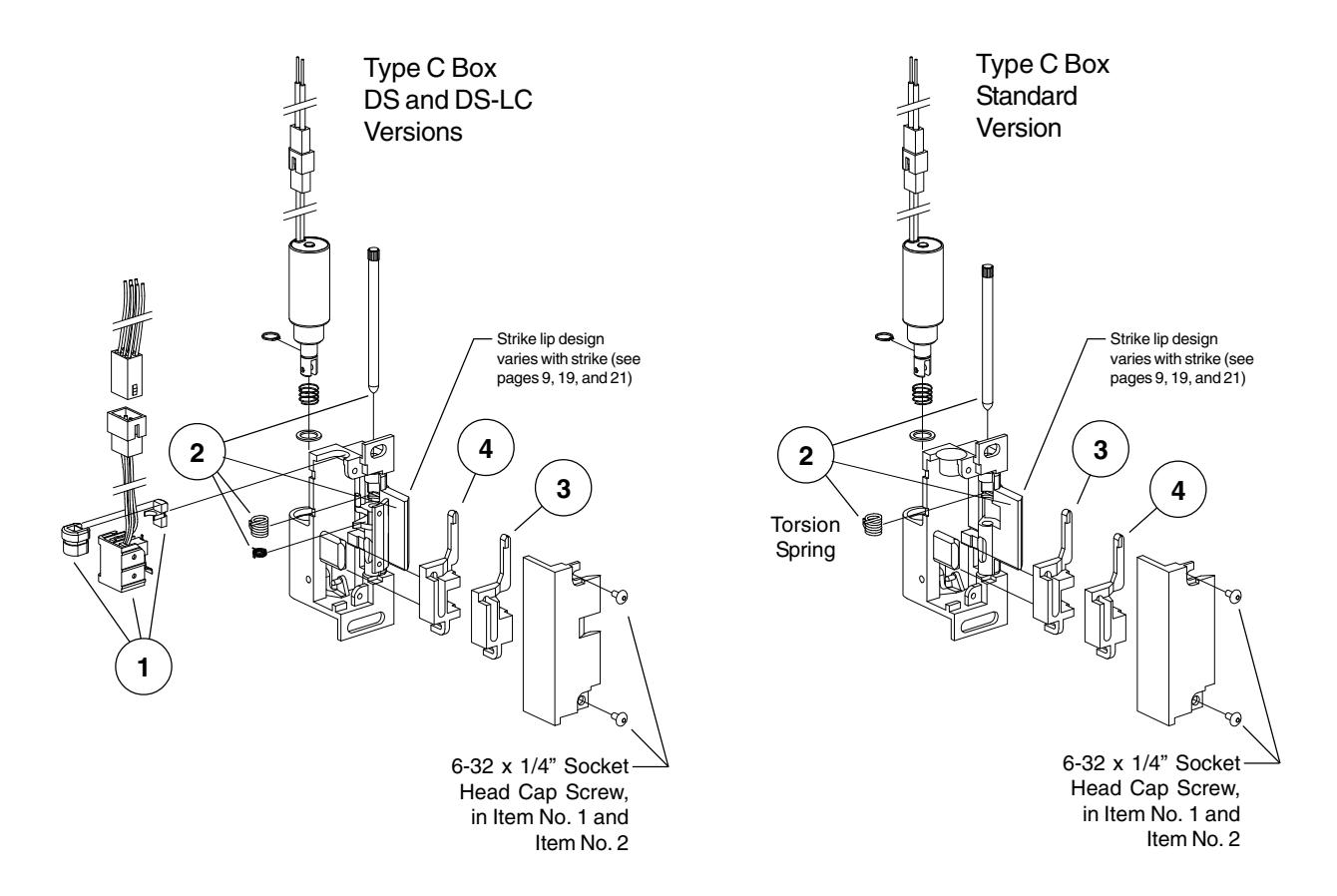

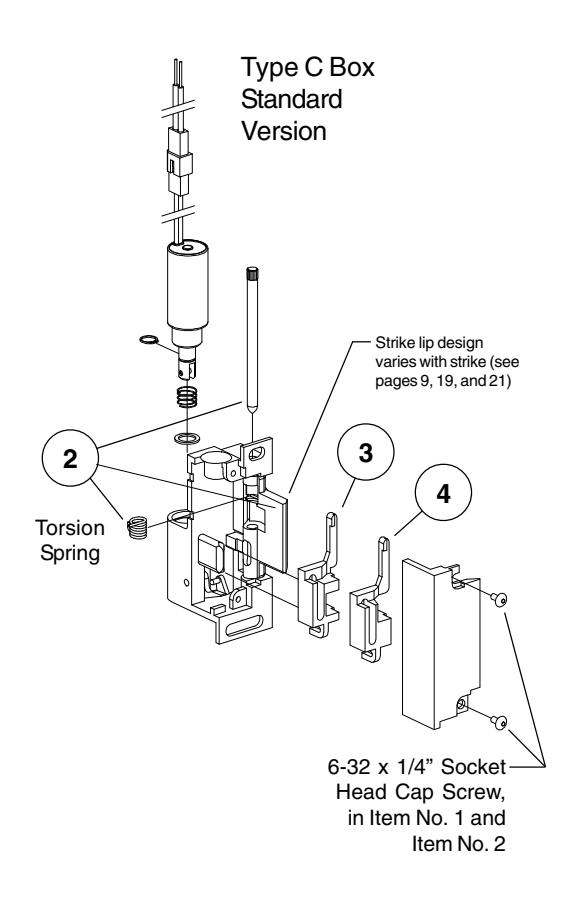

Solenoids & Box Parts: Type A Box, Type C Box, Offset Box
|
Item
Number |
Part Number | Description | Quantity | Finish |
|---|---|---|---|---|
| 050941 | Type C Box Spring Kit (Includes items listed below) | 2 | ||
| 3 | 970388 | FSE Slider (*Except for models below) | 1 | |
| *Use as FS Slider for 6211WF/6212WF/6221/6223 | ||||
| 4 | 970387 | FS Slider (*Except for models below) | 1 | |
| *Use as FSE Slider for 6211WF/6212WF/6221/6223 |
X in "Finish" column designates finished item; specify finish when ordering.
| Type C Bo | ox Used For: |
|---|---|
| 6111 | 6113 |
| 6112 | 6121 |

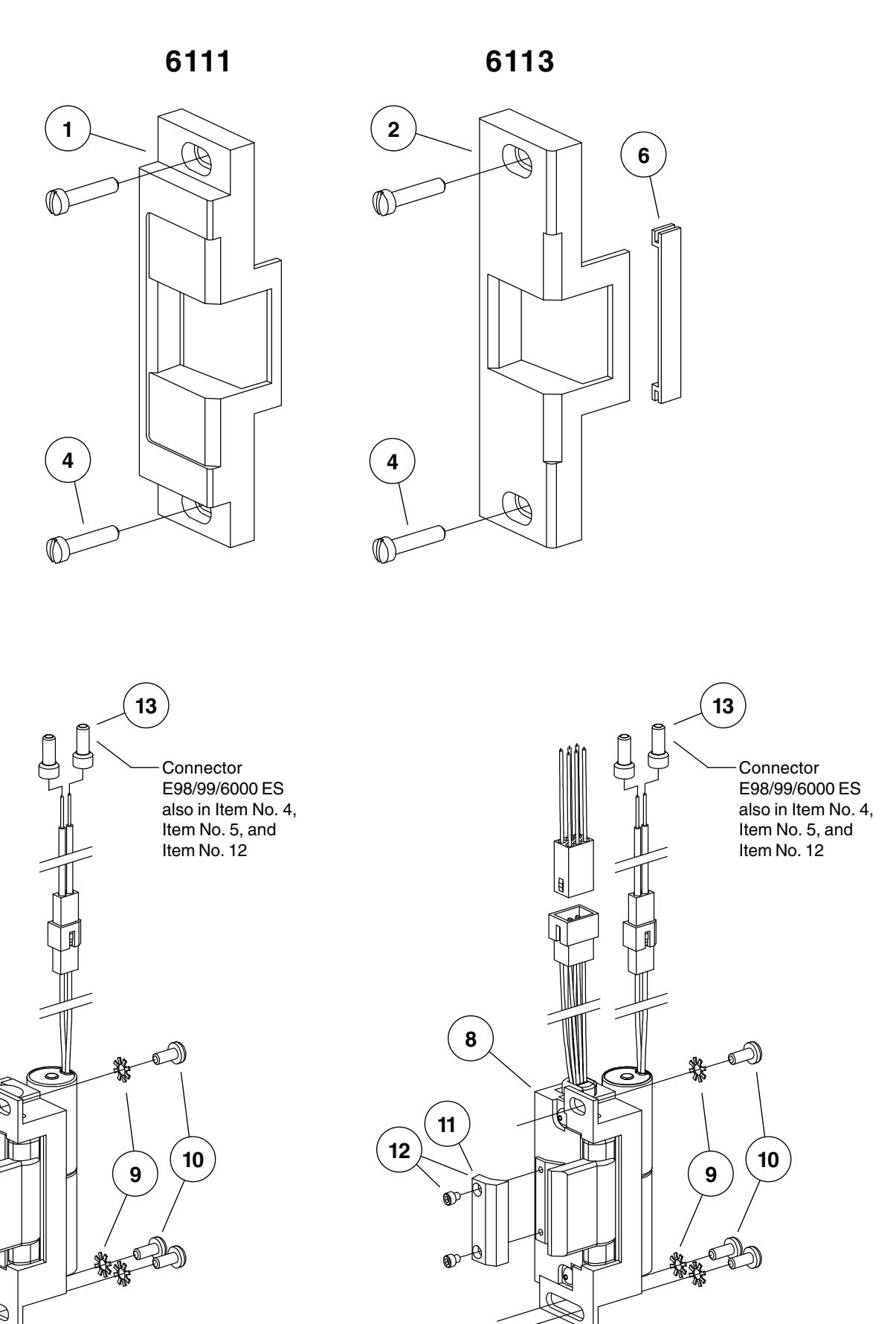

6111, 6113
|
Item
Number |
Part Number | Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 970271 | 6111 Faceplate | 1 | x |
| 2 | 970280 | 6113 Faceplate | 1 | x |
| 6111/6113 Screw Pkg. | ||||
| 4 | 900870 | 12-24 x 1" Slotted Fill. HMS | 2 | x |
| Connector- E98/99/6000 ES | 2 | |||
| 6 | 900347 | 6113 Frame Insert Pkg. | 1 | |
| 7 | 111743 | 6111, 6113, 6213 12VDC FS Box Assy. | 1 | |
| 7 | 111744 | 6111, 6113, 6213 12VDC FSE Box Assy. | 1 | |
| 7 | 111745 | 6111, 6113, 6231 24VDC FS Box Assy. | 1 | |
| 7 | 111746 | 6111, 6113, 6213 24VDC FSE Box Assy. | 1 | |
| 8 | 111747 | 6111, 6113, 6213 12VDC FS DS Box Assy. | 1 | |
| 8 | 111748 | 6111, 6113, 6213 12VDC FSE DS Box Assy. | 1 | |
| 8 | 111749 | 6111, 6113, 6213 24VDC FS DS Box Assy. | 1 | |
| 8 | 111750 | 6111, 6113, 6213 24VDC FSE DS Box Assy. | 1 | |
| 8 | 112772 | 6111/6113/6213 12VDC FS DS-LC Box Assy. | 1 | |
| 8 | 112773 | 6111/6113/6213 12VDC FSE DS-LC Box Assy. | 1 | |
| 8 | 112774 | 6111/6113/6213 24VDC FS DS-LC Box Assy. | 1 | |
| 8 | 112775 | 6111/6113/6213 24VDC FSE DS-LC Box Assy. | 1 | |
| 9 | 964019 | #8 Ext. Tooth Lock Washer | 1 | |
| 10 | 964070 | 8-32 x C" PPHMS | 1 | |
| 11 | 970384 | DS Tripper Extension | 1 | |
| DS Tripper Extension & Connector | ||||
| Tripper Extension | 1 | |||
| 12 | 900344 | 4-40 x Z" Socket Head Cap Screw | 2 | |
| Connector- E98/99/6000 ES | 6 | |||
| 13 | 990132 | Connector- E98/99/6000 ES | 1 |
X in "Finish" column designates finished item; specify finish when ordering.
|

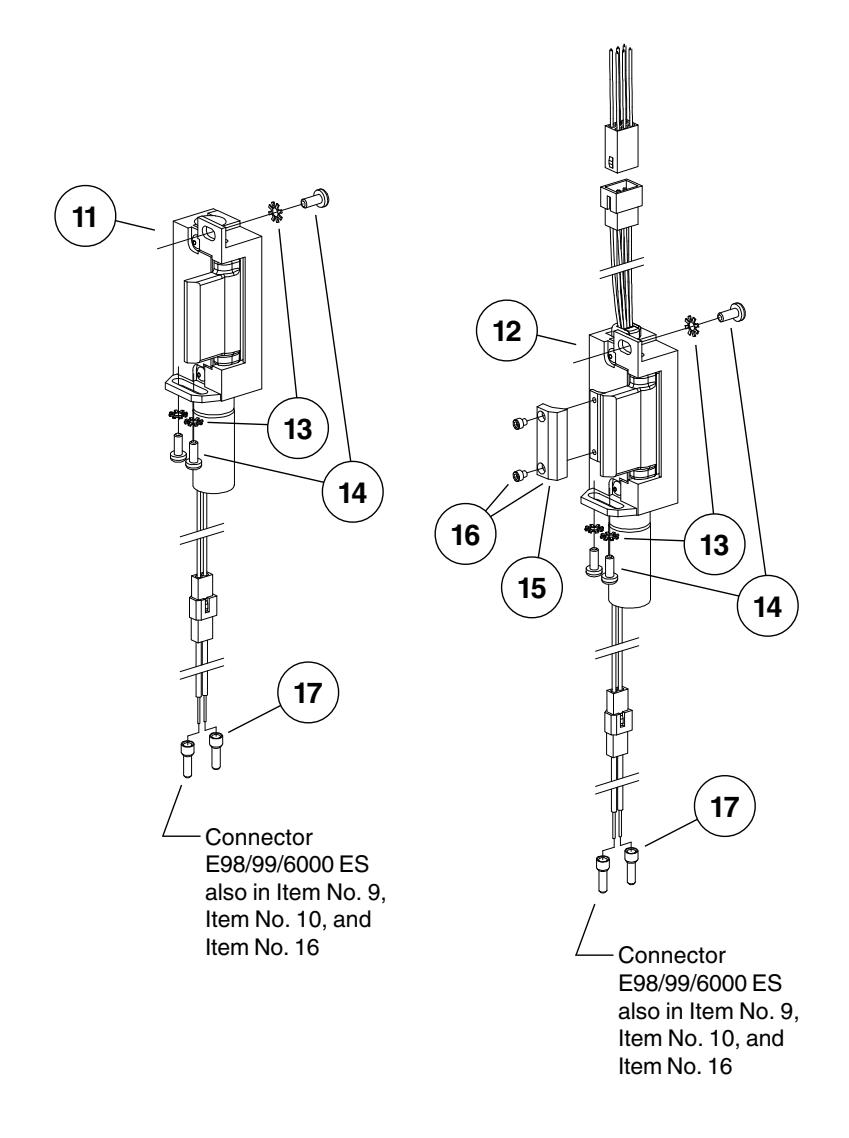

Item
Number |
Part Number | Description | Quantity | Finish |
|---|---|---|---|---|

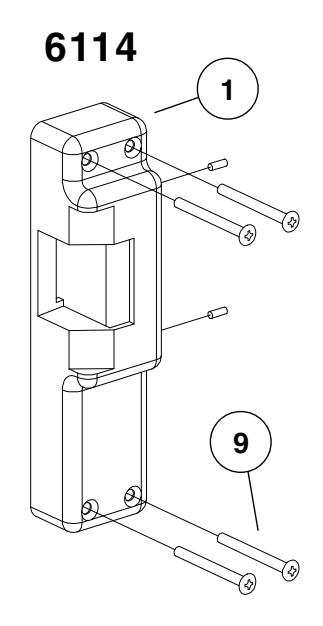

| 1 | 970300 | 6114 Faceplate | 1 | x |
| 6114 Screw Pkg. | ||||
| 9 | 900882 | 10-12 x 10-24 x 2" OPHCS | 4 | x |
| Connector- E98/99/6000 ES | 2 | |||
| 11 | 111719 | 6114, 6214/5, 6222/4/4AL/5/6 12VDC FS Box Assy. | 1 | |
| 11 | 111720 | 6114, 6214/5, 6222/4/4AL/5/6 12VDC FSE Box Assy. | 1 | |
| 11 | 111721 | 6114, 6214/5, 6222/4/4AL/5/6 24VDC FS Box Assy. | 1 | |
| 11 | 111722 | 6114, 6214/5, 6222/4/4AL/5/6 24VDC FSE Box Assy. | 1 | |
| 12 | 111723 | 6114, 6214/5, 6222/4/4AL/5/6 12VDC FS DS Box Assy. | 1 | |
| 12 | 111724 | 6114, 6214/5, 6222/4/4AL/5/6 12VDC FSE DS Box Assy. | 1 | |
| 12 | 111725 | 6114, 6214/5, 6222/4/4AL/5/6 24VDC FS DS Box Assy. | 1 | |
| 12 | 111726 | 6114, 6214/5, 6222/4/4AL/5/6 24VDC FSE DS Box Assy. | 1 | |
| 12 | 112760 | 6114/6214/15/24/24AL/26 12VDC FS DS-LC Box Assy. | ||
| 12 | 112761 | 6114/6214/15/24/24AL/26 12VDC FSE DS-LC Box Assy. | ||
| 12 | 112762 | 6114/6214/15/24/24AL/26 24VDC FS DS-LC Box Assy. | ||
| 12 | 112763 | 6114/6214/15/24/24AL/26 24VDC FSE DS-LC Box Assy. | ||
| 13 | 964019 | #8 Ext. Tooth Lock Washer | 1 | |
| 14 | 964070 | 8-32 x C" PPHMS | 1 | |
| 15 | 970384 | DS Tripper Extension | 1 | |
| DS Tripper Extension & Connector | ||||
| Tripper Extension | 1 | |||
| 16 | 900344 | 4-40 x Z" Socket Head Cap Screw | 2 | |
| Connector- E98/99/6000 ES | 6 | |||
| 17 | 990132 | Connector- E98/99/6000 ES | 1 |
X in "Finish" column designates finished item; specify finish when ordering.

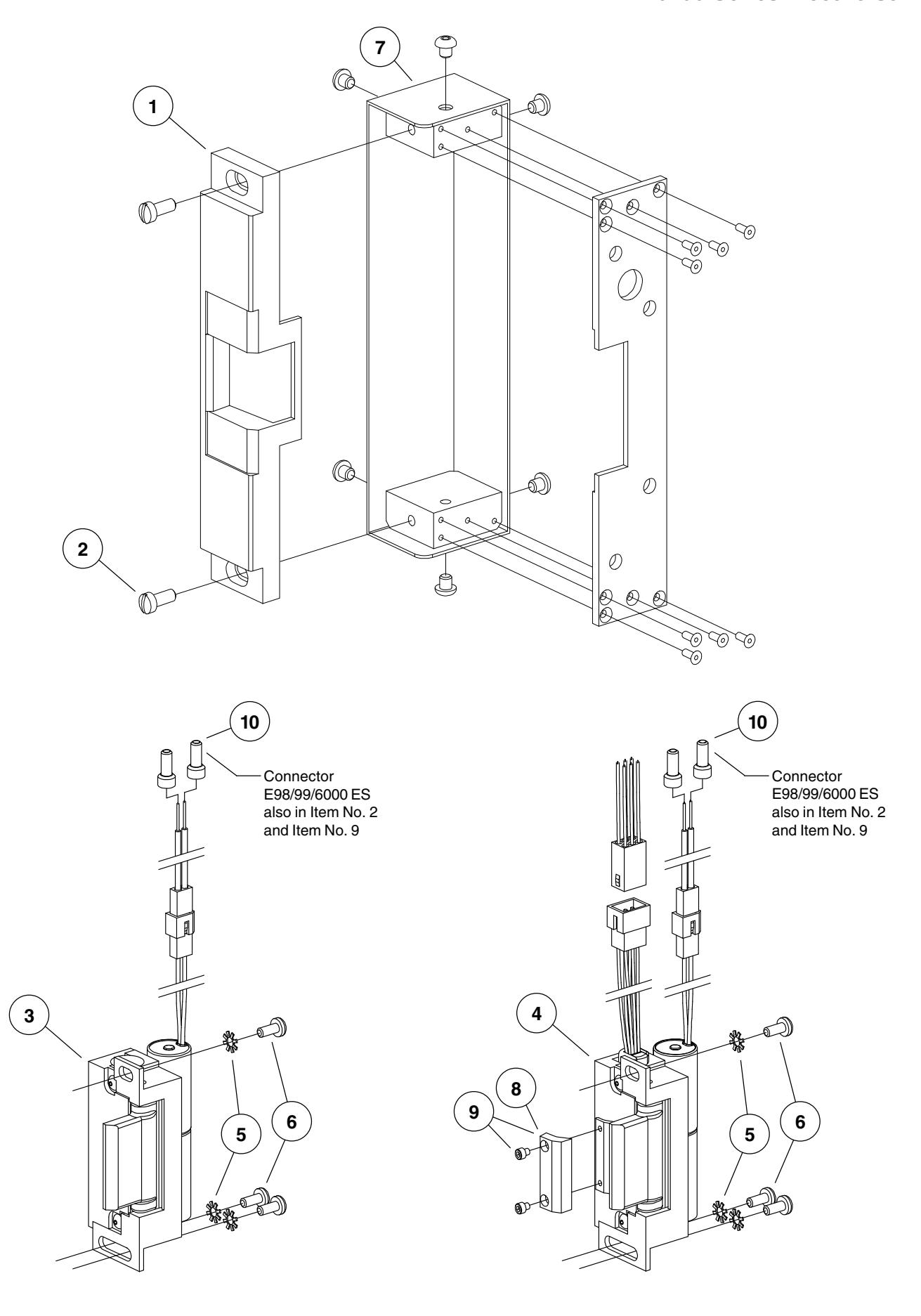

6112, 6121
|
Item
Number |
Part Number | Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 970303 | 6112/6121 Faceplate | 1 | x |
| 6112/6121 Screw Pkg. | ||||
| Z\v-20 x B" Slot Fill HMS | ||||
| 2 | 900881 | 2 | x | |
| Connector- E98/99/6000 ES | 2 | |||
| 3 | 111751 | 6112, 6121 12VDC FS Box Assy. | 1 | |
| 3 | 111752 | 6112, 6121 12VDC FSE Box Assy. | 1 | |
| 3 | 111753 | 6112, 6121 24VDC FS Box Assy. | 1 | |
| 3 | 111754 | 6112, 6121 24VDC FSE Box Assy. | 1 | |
| 4 | 111755 | 6112, 6121 12VDC FS DS Box Assy. | 1 | |
| 4 | 111756 | 6112, 6121 12VDC FSE DS Box Assy. | 1 | |
| 4 | 111757 | 6112, 6121 24VDC FS DS Box Assy. | 1 | |
| 4 | 111758 | 6112, 6121 24VDC FSE DS Box Assy. | 1 | |
| 4 | 112776 | 6112/6121 12VDC FS DS-LC Box Assy. | 1 | |
| 4 | 112777 | 6112/6121 12VDC FSE DS-LC Box Assy. | 1 | |
| 4 | 112778 | 6112/6121 24VDC FS DS-LC Box Assy. | 1 | |
| 4 | 112779 | 6112/6121 24VDC FSE DS-LC Box Assy. | 1 | |
| 5 | 964019 | #8 Ext. Tooth Lock Washer | ||
| 6 | 964070 | 8-32 x C" PPHMS | 1 | |
| 7 | 970412 | 6121 Housing Cover | 1 | x |
| 8 | 970384 | DS Tripper Extension | 1 | |
| DS Tripper Extension | ||||
| Tripper Extension | 1 | |||
| 9 | 900344 | 4-40 x Z" Socket Head Cap Screw | 2 | |
| Connector- E98/99/6000 ES | 6 | |||
| 10 | 990132 | Connector- E98/99/6000 ES | 1 |
X in "Finish" column designates finished item; specify finish when ordering.

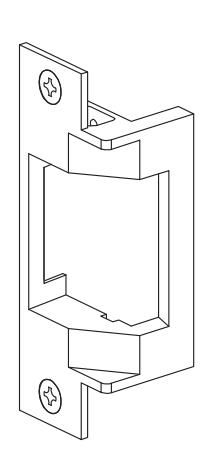

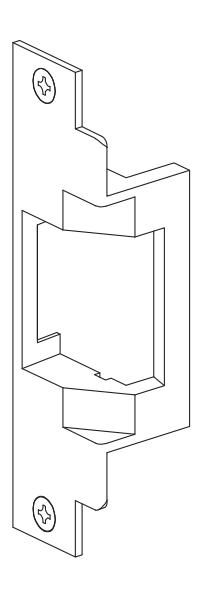

6200 Series Electric Strikes
Box Parts: Type B Box
|
Item
Number |
Part Number | Description | Quantity | Finish |
|---|---|---|---|---|
| 6000 DS Replacement Kit Type B | ||||
| 6000 Switch & Mtg. Assy. | 1 | |||
| 1 | 050015 | 6-32 x Z\v" Socket Head Cap Screw | 2 | |
| Wire Strain Relief | 1 | |||
|
1
050018 |
6000 DS-LC Replacement Kit Type B | |||
| Same parts as 050015 for DS-LC Version | ||||
| Type A or B Box Spring Kit | ||||
| 6-32 x Z\v" Socket Head Cap Screw | 2 | |||
| Tripper Spring | 1 | |||
| 2 | 050939 | Torsion Spring | 1 | x |
| Strike Lip Pin | 1 | |||
| Strike Lip | 1 | |||
| 3 | 970387 | FS Slider (6211WF/6212WF/6221/6223 Only) | 1 | |
| 4 | 970388 | FSE Slider (6211WF/6212WF/6221/6223 Only) | 1 |
X in "Finish" column designates finished item; specify finish when ordering.
| Type B Box Used For: |
|---|
| 6211WF |
| 6212WF |
| 6221 |
| 6223 |
Box Parts: Type B Box Images

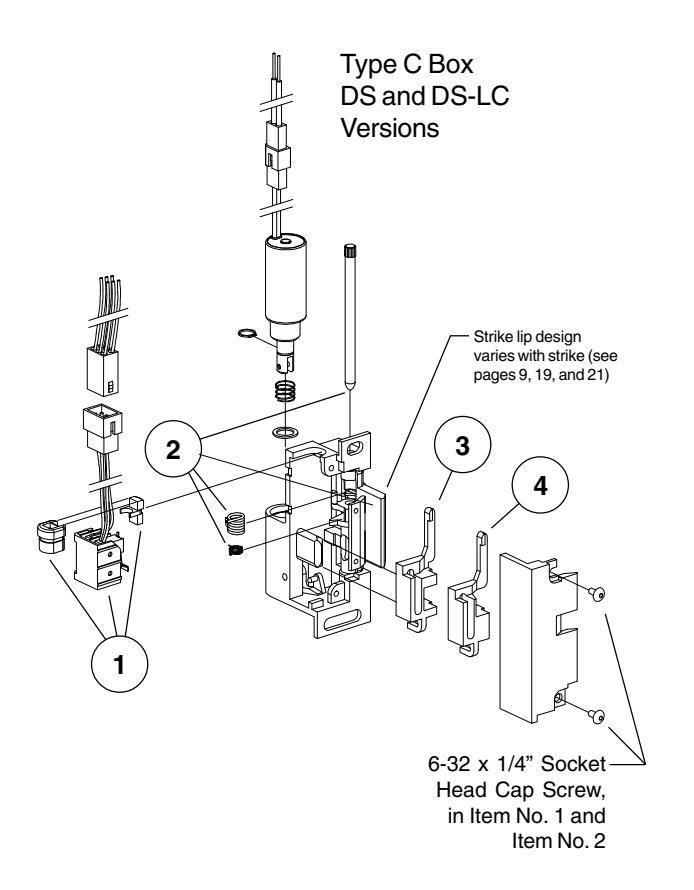

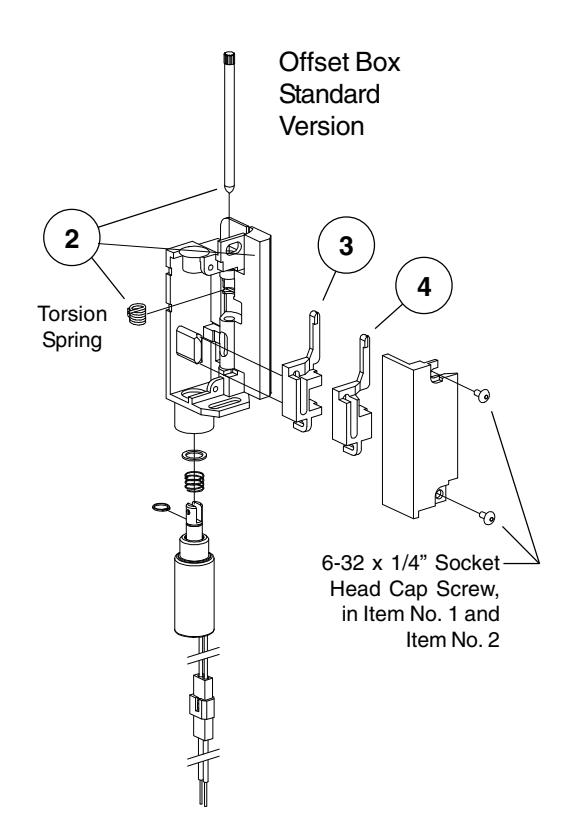

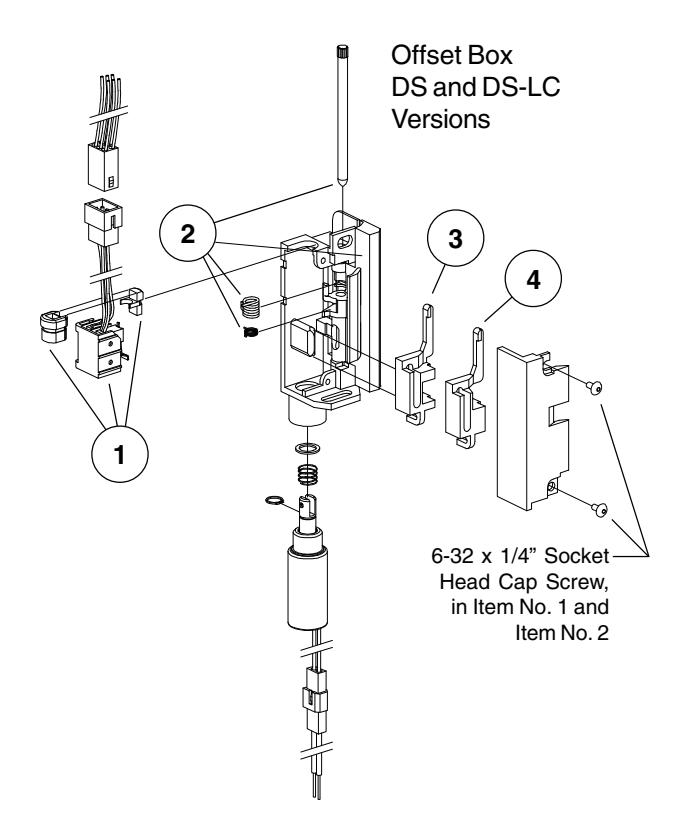

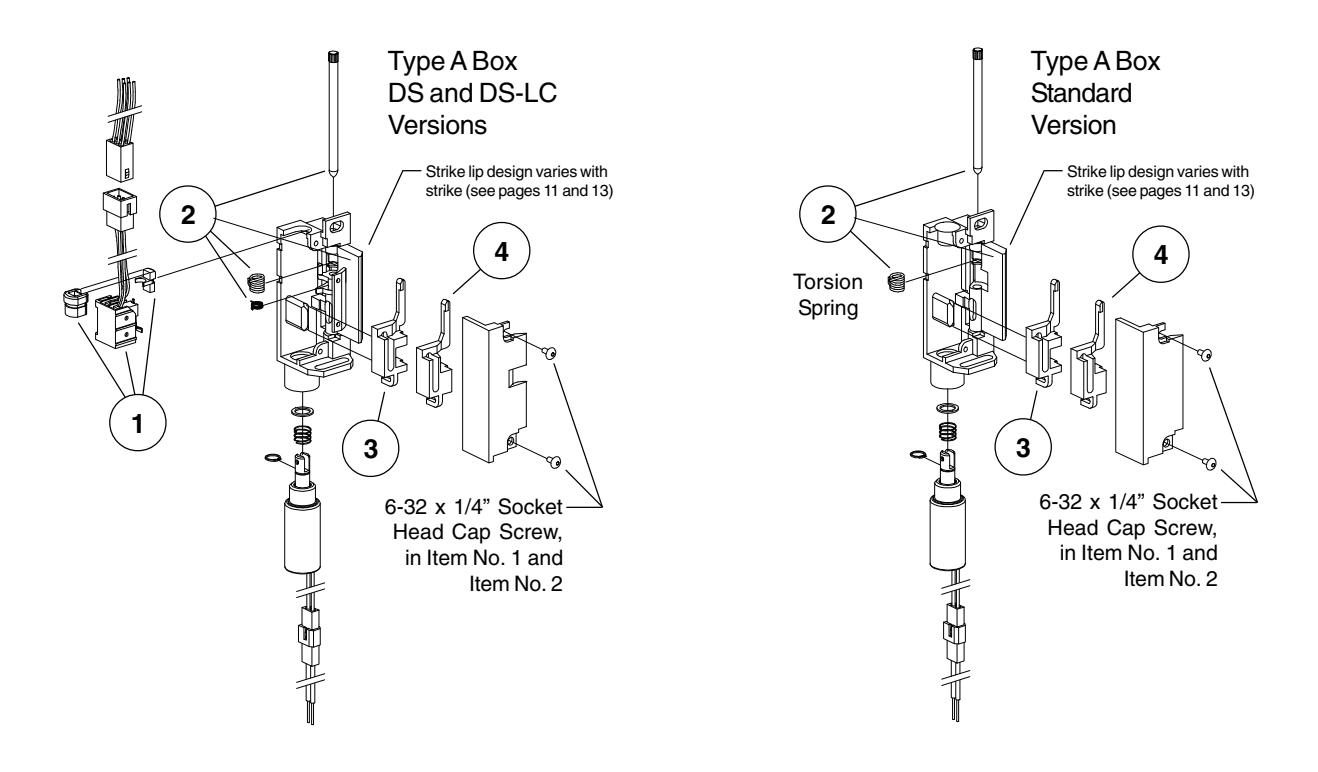

Solenoids & Box Parts: Type A Box, Type C Box, Offset Box
|
Item
Number |
Part Number | Description | Quantity | Finish |
|---|---|---|---|---|
| 6000 DS Replacement Kit Type A | ||||
| 6000 Switch & Mtg. Assy. | 1 | |||
| 1 | 050011 | 6-32 x Z\v" Socket Head Cap Screw | 2 | |
| Wire Strain Relief | 1 | |||
| 6000 DS-LC Replacement Kit Type B | 1 | |||
| 1 | 050016 | Same parts as 050011 for DS-LC Version | ||
| 050939 | Type A or B Box Spring Kit (Includes items listed below) | |||
| 050941 | Type C Box Spring Kit (Includes items listed below) | 2 | ||
| 050940 | Type Offset Box Spring Kit (Includes items listed below) | 1 | ||
| 2 | Tripper Spring | 1 | ||
| Torsion Spring | 1 | |||
| Strike Lip | 1 | |||
| 3 | 970387 | FSE Slider (*Except for models below) | 1 | |
| *Use as FS Slider for 6211WF/6212WF/6221/6223 | ||||
| 4 | 970388 | FS Slider (*Except for models below) | 1 | |
| *Use as FSE Slider for 6211WF/6212WF/6221/6223 |
X in "Finish" column designates finished item; specify finish when ordering.
| Type A Box Used For: | Type C Box Used For: | Offset Box Used For: | |
|---|---|---|---|
| 6211 | 6222 | 6213 | 6210 |
| 6211AL | 6224 | 6216 | |
| 6212 | 6224AL | ||
| 6214 | 6225 | ||
| 6215 | 6226 |

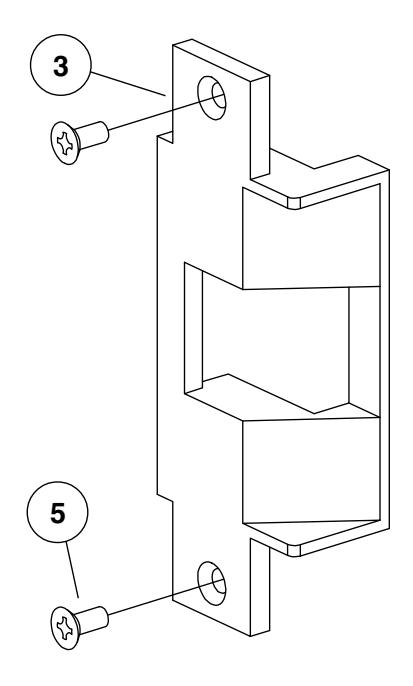

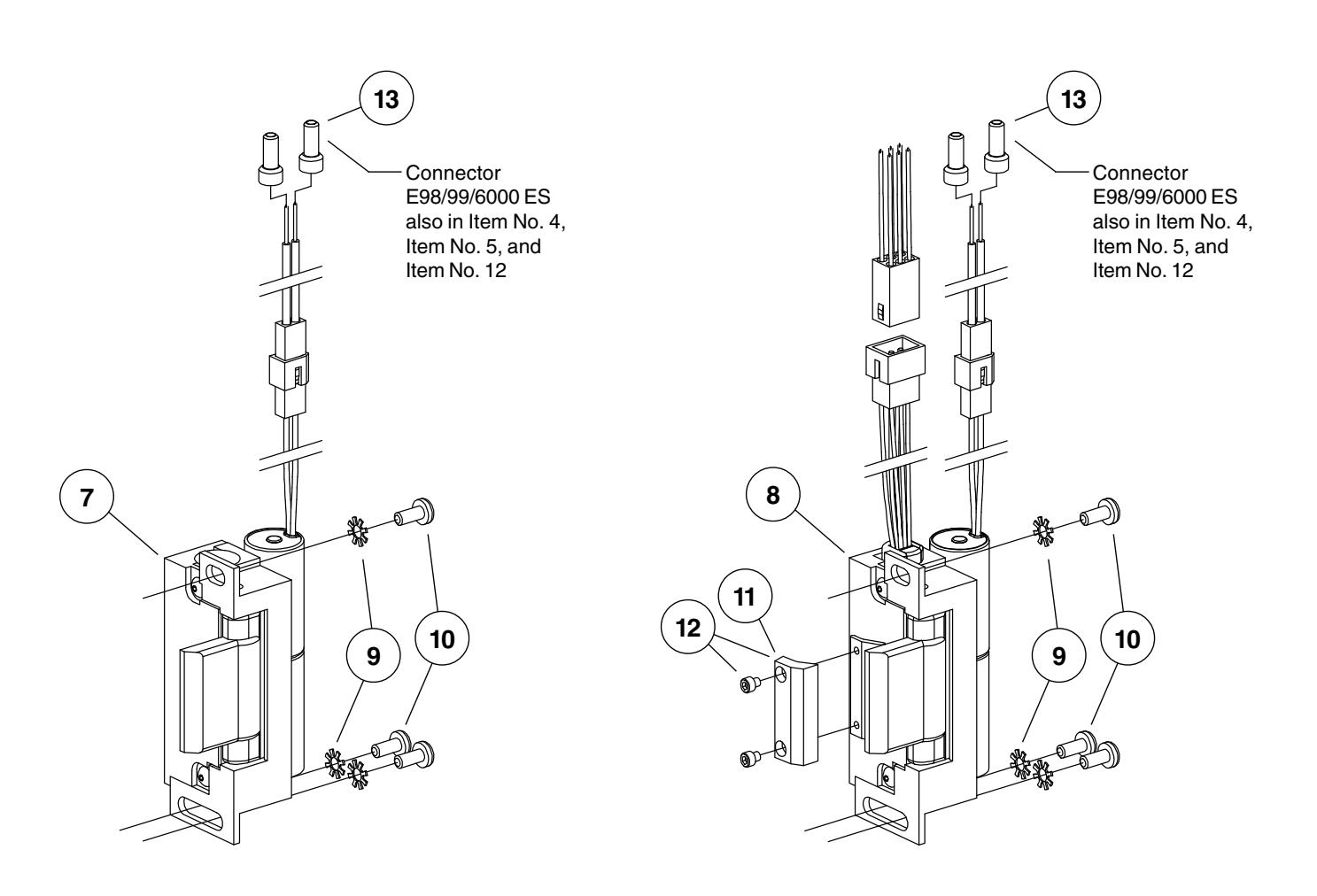

6200 Series Electric Strikes
|

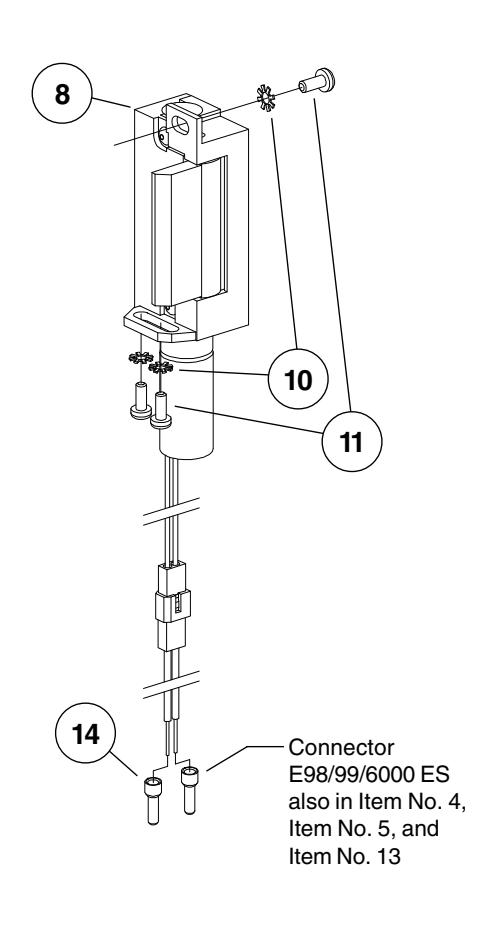

Item
Number |
Part Number | Description | Quantity | Finish |
|---|---|---|---|---|
| 3 | 970278 | 6213 Faceplate | 1 | x |
| 6210/11/13/14/16/22/24/25/26 Screw Pkg. | ||||
| 5 | 900288 | 12-24 x Z\x" UFPHMS | 2 | x |
| Connector- E98/99/6000 ES | 2 | |||
| 7 | 111743 | 6213 12VDC FS Box Assy. | 1 | |
| 7 | 111744 | 6213 12VDC FSE Box Assy. | 1 | |
| 7 | 111745 | 6231 24VDC FS Box Assy. | 1 | |
| 7 | 111746 | 6213 24VDC FSE Box Assy. | 1 | |
| 8 | 111747 | 6213 12VDC FS DS Box Assy. | 1 | |
| 8 | 111748 | 6213 12VDC FSE DS Box Assy. | 1 | |
| 8 | 111749 | 6213 24VDC FS DS Box Assy. | 1 | |
| 8 | 111750 | 6213 24VDC FSE DS Box Assy. | 1 | |
| 8 | 112772 | 6213 12VDC FS DS-LC Box Assy. | 1 | |
| 8 | 112773 | 6213 12VDC FSE DS-LC Box Assy. | 1 | |
| 8 | 112774 | 6213 24VDC FS DS-LC Box Assy. | 1 | |
| 8 | 112775 | 6213 24VDC FSE DS-LC Box Assy. | 1 | |
| 9 | 964019 | #8 Ext. Tooth Lock Washer | 1 | |
| 10 | 964070 | 8-32 x C" PPHMS | 1 | |
| 11 | 970384 | DS Tripper Extension | 1 | |
| DS Tripper Extension & Connector | ||||
| Tripper Extension | 1 | |||
| 12 | 900344 | 4-40 x Z" Socket Head Cap Screw | 2 | |
| Connector- E98/99/6000 ES | 6 | |||
| 13 | 990132 | Connector- E98/99/6000 ES | 1 |
X in "Finish" column designates finished item; specify finish when ordering.
6213
6214, 6215, 6222, 6224, 6224AL, 6225, 6226
|
Item
Number |
Part Number | Description | Quantity | Finish |
|---|---|---|---|---|
| 2 | 971417 | 6214 Faceplate | 1 | x |
| 3 | 971415 | 6215 Faceplate | 1 | x |
| 4 | 970305 | 6222 Faceplate | 1 | x |
| 5 | 970302 | 6224 Faceplate | 1 | x |
| 6 | 970310 | 6224AL Faceplate | 1 | x |
| 7 | 970306 | 6225 Faceplate | 1 | x |
| 8 | 970301 | 6226 Faceplate | 1 | x |
| 6210/11/13/14/16/22/24/25/26 Screw Pkg. | ||||
| 10 | 900288 | 12-24 x Z\x" UFPHMS | 2 | x |
| Connector- E98/99/6000 ES | 2 | |||
| 11 | 111719 | 6214/5, 6222/4/4AL/5/6 12VDC FS Box Assy. | 1 | |
| 11 | 111720 | 6214/5, 6222/4/4AL/5/6 12VDC FSE Box Assy. | 1 | |
| 11 | 111721 | 6214/5, 6222/4/4AL/5/6 24VDC FS Box Assy. | 1 | |
| 11 | 111722 | 6214/5, 6222/4/4AL/5/6 24VDC FSE Box Assy. | 1 | |
| 12 | 111723 | 6214/5, 6222/4/4AL/5/6 12VDC FS DS Box Assy. | 1 | |
| 12 | 111724 | 6214/5, 6222/4/4AL/5/6 12VDC FSE DS Box Assy. | 1 | |
| 12 | 111725 | 6214/5, 6222/4/4AL/5/6 24VDC FS DS Box Assy. | 1 | |
| 12 | 111726 | 6214/5, 6222/4/4AL/5/6 24VDC FSE DS Box Assy. | 1 | |
| 12 | 112760 | 6214/15/24/24AL/26 12VDC FS DS-LC Box Assy. | ||
| 12 | 112761 | 6214/15/24/24AL/26 12VDC FSE DS-LC Box Assy. | ||
| 12 | 112762 | 6214/15/24/24AL/26 24VDC FS DS-LC Box Assy. | ||
| 12 | 112763 | 6214/15/24/24AL/26 24VDC FSE DS-LC Box Assy. | ||
| 13 | 964019 | #8 Ext. Tooth Lock Washer | 1 | |
| 14 | 964070 | 8-32 x C" PPHMS | 1 | |
| 15 | 970384 | DS Tripper Extension | 1 | |
| DS Tripper Extension & Connector | ||||
| Tripper Extension | 1 | |||
| 16 | 900344 | 4-40 x Z" Socket Head Cap Screw | 2 | |
| Connector- E98/99/6000 ES | 6 | |||
| 17 | 990132 | Connector- E98/99/6000 ES | 1 |
X in "Finish" column designates finished item; specify finish when ordering.
6200 Series Electric Strikes
6211, 6211AL, 6212
|
Item
Number |
Part Number | Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 968716 | 6211/6211WF Faceplate | 1 | x |
| 2 | 970272 | 6211AL Faceplate | 1 | x |
| 3 | 969584 | 6212/6212WF Faceplate | 1 | x |
| 6210/11/13/14/16/22/24/25/26 Screw Pkg. | ||||
| 4 | 900288 | 12-24 x Z\x" UFPHMS | 2 | x |
| Connector- E98/99/6000 ES | 2 | |||
| 6212 Screw Package | ||||
| 5 | 900290 | 12-24 x Z\x" UFPHMS | 4 | x |
| Connector- E98/99/6000 ES | 2 | |||
| 6 | 900291 | 6211/6212WF Strike Pocket Insert | 1 | |
| 7 | 900292 | 6212 Strike Pocket Insert/Mounting Tab | 1 | |
| 8 | 111711 | 6211, 6211AL, 6212 12VDC FS Box Assy. | 1 | |
| 8 | 111712 | 6211, 6211AL, 6212 12VDC FSE Box Assy. | 1 | |
| 8 | 111713 | 6211, 6211AL, 6212 24VDC FS Box Assy. | 1 | |
| 8 | 111714 | 6211, 6211AL, 6212 24VDC FSE Box Assy. | 1 | |
| 9 | 111715 | 6211, 6211AL, 6212 12VDC FS DS Box Assy. | 1 | |
| 9 | 111716 | 6211, 6211AL, 6212 12VDC FSE DS Box Assy. | 1 | |
| 9 | 111717 | 6211, 6211AL, 6212 24VDC FS DS Box Assy. | 1 | |
| 9 | 111718 | 6211, 6211AL, 6212 24VDC FSE DS Box Assy. | 1 | |
| 9 | 112756 | 6211/6211AL/6212 12VDC FS DS-LC Box Assy. | 1 | |
| 9 | 112757 | 6211/6211AL/6212 12VDC FSE DS-LC Box Assy. | 1 | |
| 9 | 112758 | 6211/6211AL/6212 24VDC FS DS-LC Box Assy. | 1 | |
| 9 | 112759 | 6211/6211AL/6212 24VDC FSE DS-LC Box Assy. | 1 | |
| 10 | 964019 | #8 Ext. Tooth Lock Washer | 1 | |
| 11 | 964070 | 8-32 x C" PPHMS | 1 | |
| 12 | 970384 | DS Tripper Extension | 1 | |
| DS Tripper Extension & Connector | ||||
| Tripper Extension | 1 | |||
| 13 | 900344 | 4-40 x Z" Socket Head Cap Screw | 2 | |
| Connector- E98/99/6000 ES | 6 | |||
| 14 | 990132 | Connector- E98/99/6000 ES | 1 |
X in "Finish" column designates finished item; specify finish when ordering.
6211WF, 6212WF
|
Item
Number |
Part Number | Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 968716 | 6211/6211WF Faceplate | 1 | x |
| 2 | 970271 | 6212/6212WF Faceplate | 1 | x |
| 6211WF/6212WF/6221/6223 Screw Pkg. | ||||
| 3 | 900885 | 12-12 x 12-24 x 1" UFPHCS | 2 | x |
| Connector- E98/99/6000 ES | 2 | |||
| 4 | 900291 | 6211/6212WF Strike Pocket Insert | ||
| 5 | 111727 | 6211WF, 6212WF 12VDC FS Box Assy. | 1 | |
| 5 | 111728 | 6211WF, 6212WF 12VDC FSE Box Assy. | 1 | |
| 5 | 111729 | 6211WF, 6212WF 24VDC FS Box Assy. | 1 | |
| 5 | 111730 | 6211WF, 6212WF 24VDC FSE Box Assy. | 1 | |
| 6 | 111731 | 6211WF, 6212WF 12VDC FS DS Box Assy. | 1 | |
| 6 | 111732 | 6211WF, 6212WF 12VDC FSE DS Box Assy. | 1 | |
| 6 | 111733 | 6211WF, 6212WF 24VDC FS DS Box Assy. | 1 | |
| 6 | 111734 | 6211WF, 6212WF 24VDC FSE DS Box Assy. | 1 | |
| 6 | 112764 | 6211WF/6212WF 12VDC FS DS-LC Box Assy. | 1 | |
| 6 | 112765 | 6211WF/6212WF 12VDC FSE DS-LC Box Assy. | 1 | |
| 6 | 112766 | 6211WF/6212WF 24VDC FS DS-LC Box Assy. | 1 | |
| 6 | 112767 | 6211WF/6212WF 24VDC FSE DS-LC Box Assy. | 1 | |
| 7 | 964019 | #8 Ext. Tooth Lock Washer | 1 | |
| 8 | 964070 | 8-32 x C" PPHMS | 1 | |
| 9 | 970384 | DS Tripper Extension | 1 | |
| DS Tripper Extension & Connector | ||||
| Tripper Extension | 1 | |||
| 10 | 900344 | 4-40 x Z" Socket Head Cap Screw | 2 | |
| Connector- E98/99/6000 ES | 6 | |||
| 11 | 990132 | Connector- E98/99/6000 ES | 1 |
X in "Finish" column designates finished item; specify finish when ordering.

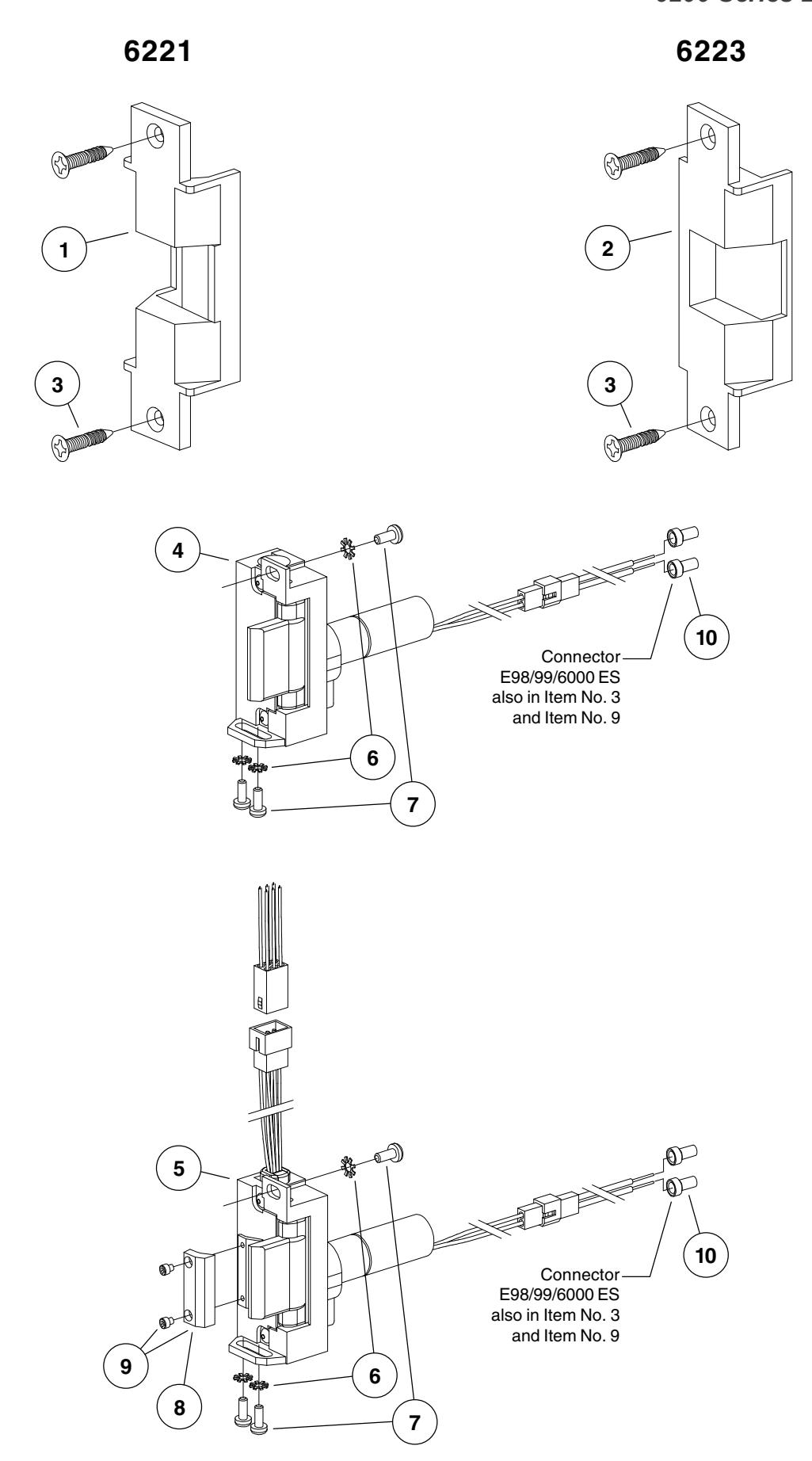

6221, 6223
|
Item
Number |
Part Number | Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 970276 | 6221 Faceplate | 1 | x |
| 2 | 970274 | 6223 Faceplate | 1 | x |
| 6211WF/6212WF/6221/6223 Screw Pkg. | ||||
| 3 | 900885 | 12-12 x 12-24 x 1" UFPHCS | 2 | x |
| Connector- E98/99/6000 ES | 2 | |||
| 4 | 111735 | 6221, 6223 12VDC FS Box Assy. | 1 | |
| 4 | 111736 | 6221, 6223 12VDC FSE Box Assy. | 1 | |
| 4 | 111737 | 6221, 6223 24VDC FS Box Assy. | 1 | |
| 4 | 111738 | 6221, 6223 24VDC FSE Box Assy. | 1 | |
| 4 | 111739 | 6223 12VDC FS DS Box Assy. | 1 | |
| 4 | 111740 | 6223 12VDC FSE DS Box Assy. | 1 | |
| 4 | 111741 | 6223 24VDC FS DS Box Assy. | 1 | |
| 4 | 111742 | 6223 24VDC FSE DS Box Assy. | 1 | |
| 5 | 112768 | 6223 12VDC FS DS-LC Box Assy. | 1 | |
| 5 | 112769 | 6223 12VDC FSE DS-LC Box Assy. | 1 | |
| 5 | 112770 | 6223 24VDC FS DS-LC Box Assy. | 1 | |
| 5 | 112771 | 6223 24VDC FSE DS-LC Box Assy. | 1 | |
| 6 | 964019 | #8 Ext. Tooth Lock Washer | 1 | |
| 7 | 964070 | 8-32 x C" PPHMS | 1 | |
| 8 | 970384 | DS Tripper Extension | 1 | |
| DS Tripper Extension & Connector | ||||
| Tripper Extension | 1 | |||
| 9 | 900344 | 4-40 x Z" Socket Head Cap Screw | 2 | |
| Connector- E98/99/6000 ES | 6 | |||
| 10 | 990132 | Connector- E98/99/6000 ES | 1 |
X in "Finish" column designates finished item; specify finish when ordering.
|

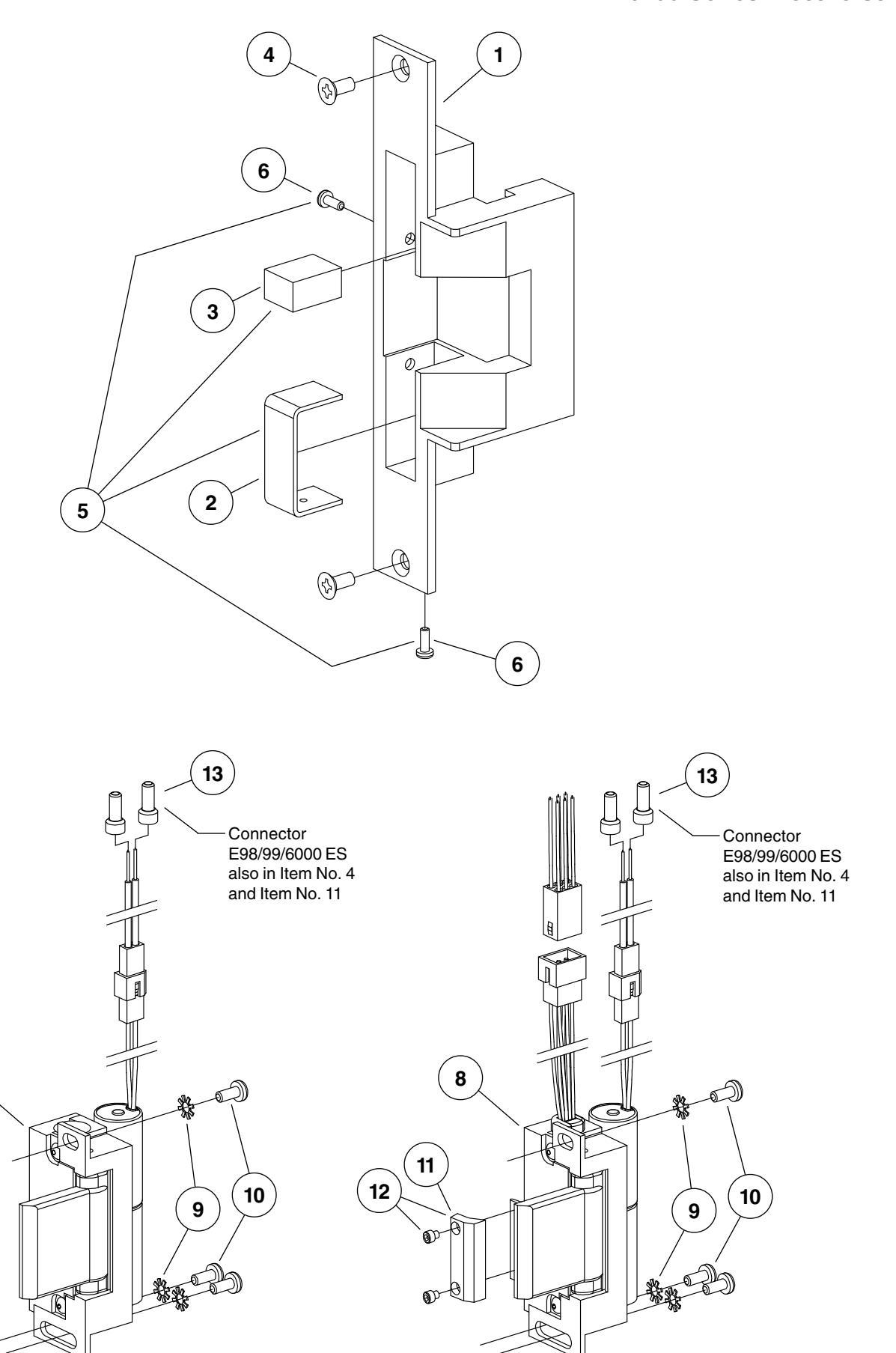

Item
Number |
Part Number | Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 971385 | 6216 Faceplate Less Inserts | 1 | x |
| 2 | 970407 | 6216 Large Faceplate Insert | 1 | x |
| 3 | 970415 | 6216 Small Faceplate Insert | 1 | x |
| 6210/11/13/14/16/22/24/25/26 Screw Pkg. | ||||
| 4 | 900288 | 12-24 x Z\x" UFPHMS | 2 | x |
| Connector- E98/99/6000 ES | 2 | |||
| 6216 Inserts and Screw Pkg. | ||||
| 6-32 x C" PPHMS | 2 | |||
| 5 | 900345 | 6216 Large Faceplate Insert | 1 | x |
| 6216 Small Faceplate Insert | 1 | |||
| 6 | 964190 | 6-32 x C" PPHMS | 1 | |
| 7 | 111759 | 6216 12VDC FS Box Assy. | 1 | |
| 7 | 111760 | 6216 12VDC FSE Box Assy. | 1 | |
| 7 | 111761 | 6216 24VDC FS Box Assy. | 1 | |
| 7 | 111762 | 6216 24VDC FSE Box Assy. | 1 | |
| 8 | 111763 | 6216 12VDC FS DS Box Assy. | 1 | |
| 8 | 111764 | 6216 12VDC FSE DS Box Assy. | 1 | |
| 8 | 111765 | 6216 24VDC FS DS Box Assy. | 1 | |
| 8 | 111766 | 6216 24VDC FSE DS Box Assy. | 1 | |
| 8 | 112780 | 6216 12VDC FS DS-LC Box Assy. | 1 | |
| 8 | 112781 | 6216 12VDC FSE DS-LC Box Assy. | 1 | |
| 8 | 112782 | 6216 24VDC FS DS-LC Box Assy. | 1 | |
| 8 | 112783 | 6216 24VDC FSE DS-LC Box Assy. | 1 | |
| 9 | 964019 | #8 Ext. Tooth Lock Washer | 1 | |
| 10 | 964070 | 8-32 x C" PPHMS | 1 | |
| 11 | 970384 | DS Tripper Extension | 1 | |
| DS Tripper Extension & Connector | ||||
| Tripper Extension | 1 | |||
| 12 | 900344 | 4-40 x Z" Socket Head Cap Screw | 2 | |
| Connector- E98/99/6000 ES | 6 | |||
| 13 | 990132 | Connector- E98/99/6000 ES | 1 |
X in "Finish" column designates finished item; specify finish when ordering.
|
Item
Number |
Part Number | Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 971198 | 6210 Faceplate | x | |
| 6210/11/13/14/16/22/24/25/26 Screw Pkg. | x | |||
| 2 | 900288 | 12-24 x Z\x" UFPHMS | ||
| Connector- E98/99/6000 ES | ||||
| 6210 Auxiliary Bolt Plate Pkg. | ||||
| Aux. Bolt Plate - Schlage | ||||
| 3 | 900584 | Aux. Bolt Plate - Std. | ||
| Aux. Bolt Plate - Short | ||||
| 6210 Strike Pocket Insert Mounting Pkg. | ||||
| 4 | 900966 | 6-32 x Z\v" FPHMS | ||
| 5 | 111244 | 6210 12VDC FS Box Assy. | ||
| 5 | 111246 | 6210 12VDC FSE Box Assy. | ||
| 5 | 111247 | 6210 24VDC FS Box Assy. | ||
| 5 | 111250 | 6210 24VDC FSE Box Assy. | ||
| 6 | 111251 | 6210 12VDC FS DS Box Assy. | ||
| 6 | 111264 | 6210 12VDC FSE DS Box Assy. | ||
| 6 | 111813 | 6216 24VDC FS DS Box Assy. | ||
| 6 | 111814 | 6216 24VDC FSE DS Box Assy. | ||
| 6 | 112754 | 6210 12 VDC FS DS-LC Box Assy. | ||
| 6 | 112755 | 6210 12 VDC FSE DS-LC Box Assy. | ||
| 6 | 112784 | 6210 24 VDC FS DS-LC Box Assy. | ||
| 6 | 112785 | 6210 24 VDC FSE DS-LC Box Assy. | ||
| 7 | 964019 | #8 Ext. Tooth Lock Washer | ||
| 8 | 970384 | DS Tripper Extension | ||
| DS Tripper Extension & Connector | ||||
| Tripper Extension | ||||
| 9 | 900344 | 4-40 x Z" Socket Head Cap Screw | ||
| Connector- E98/99/6000 ES | ||||
| 10 | 990132 | Connector- E98/99/6000 ES |
X in "Finish" column designates finished item; specify finish when ordering.
6200 Series Electric Strikes
6300 Series PARTS MANUAL Electric Strikes
6300 Strike Shim & Wire Harness
|
Item
Number |
Part Number | Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 050803 | 6300 Strike Wire Harness Kit* | ||
| 2 | 050804 | 6300 Strike Shim Kit - SS |
X in "Finish" column designates finished item; specify finish when ordering. *Includes 12 VDC and 24 VDC pigtails.
