Von Duprin 576A & 576B OB Dbl Door Strike Used with 8875, 8875-F, E8875, E8875-F For Metal Applications Template

Original Source Document Full PDF Version

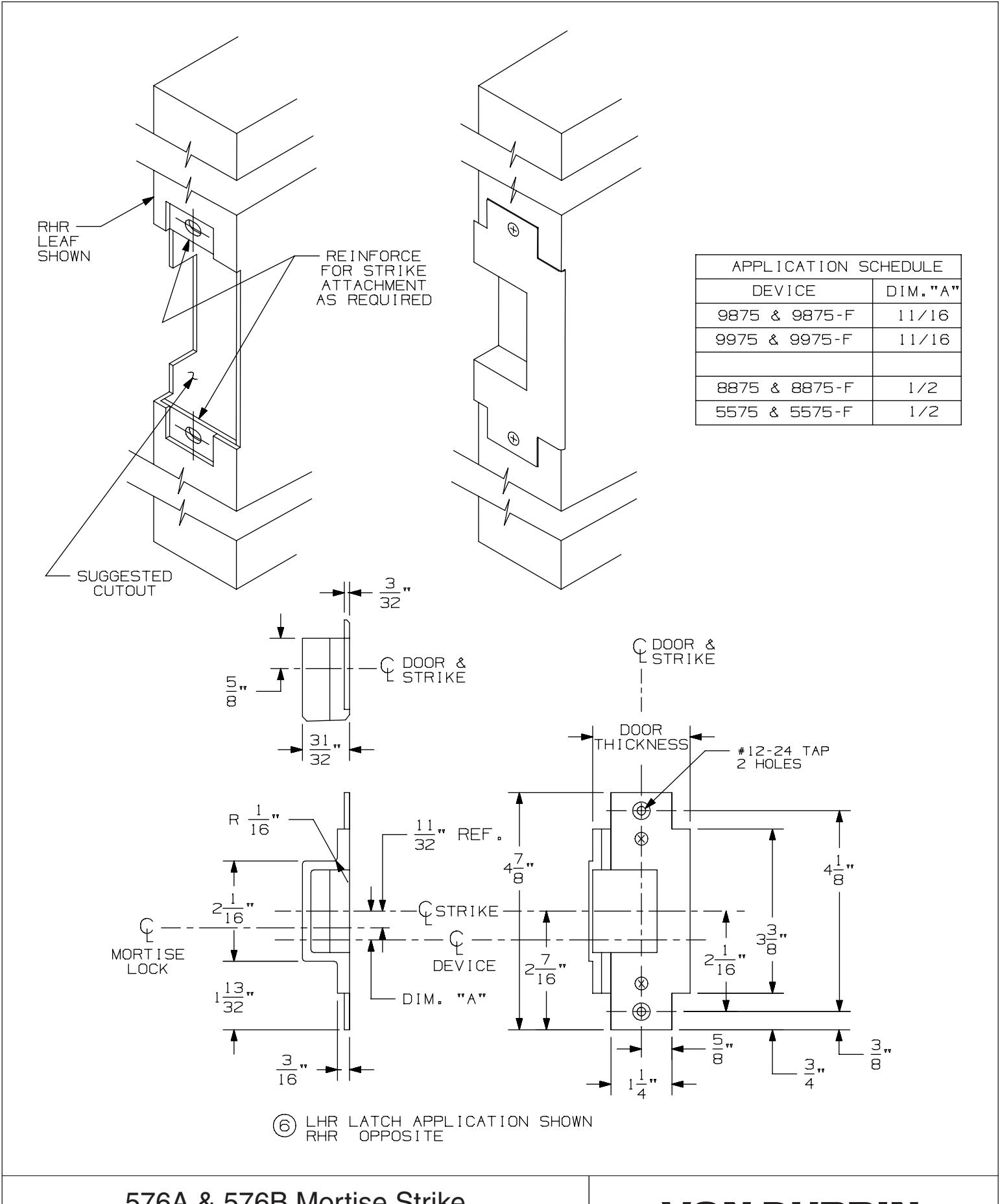

Von Duprin 576A & 576B OB Dbl Door Strike Used with 8875, 8875-F, E8875, E8875-F For Metal Applications Template diagram on p

576A & 576B Mortise Strike for 7500 Mortise Lock

TEMPLATE NUMBER:

30211_a

DATE: 05-28-13
